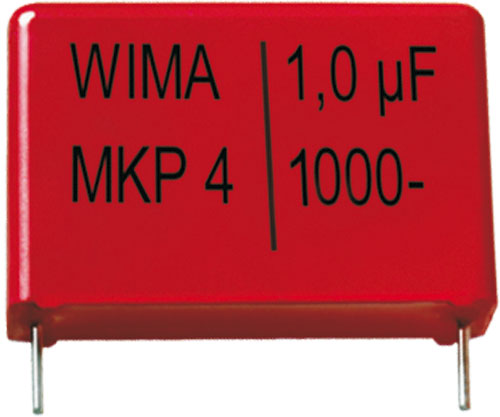

Kondensatory polipropylenowe metalizowane serii MKP4 firmy Wima
| Typ kondensatora | polipropylenowy |
| Kategoria klimatyczna | 55/100/56 |
| Zastosowanie | obwody wysokich częstotliwości, układy czasowe, układy oscylacyjne |
| Temperatura pracy | -55...100°C |
| Rodzaj materiału | samogasnący |
| Klasa palności | UL94V-0 |
| Długość wyprowadzeń | 6mm |
| Symbol | Pojemność | Tolerancja | Upracy max | Upracy max | Raster |
|---|---|---|---|---|---|
| [F] | [%] | [V DC] | [V AC] | [mm] | |
| MKP4-10N/100 | 10n | ±10 | 100 | 63 | 7,5 |
| MKP4-10N/1K | 10n | ±10 | 1000 | 400 | 10 |
| MKP4-10N/250 | 10n | ±10 | 250 | 160 | 7,5 |
| MKP4-10N/400 | 10n | ±10 | 400 | 220 | 7,5 |
| MKP4-10N/630P10 | 10n | ±10 | 630 | 280 | 10 |
| MKP4-10N/630P7.5 | 10n | ±10 | 630 | 280 | 7,5 |
| MKP4-15N | 15n | ±10 | 630 | 280 | 10 |
| MKP4-15N/400P10 | 15n | ±10 | 400 | 220 | 10 |
| MKP4-22N/100 | 22n | ±10 | 100 | 63 | 7,5 |
| MKP4-22N/1K | 22n | ±10 | 1000 | 400 | 15 |
| MKP4-22N/250 | 22n | ±10 | 250 | 160 | 7,5 |
| MKP4-22N/630P10 | 22n | ±10 | 630 | 280 | 10 |
| MKP4-33N/100 | 33n | ±10 | 100 | 63 | 7,5 |
| MKP4-33N/1K | 33n | ±10 | 1000 | 400 | 15 |
| MKP4-33N/250P10 | 33n | ±10 | 250 | 160 | 10 |
| MKP4-33N/250P7.5 | 33n | ±10 | 250 | 160 | 7,5 |
| MKP4-33N/400 | 33n | ±10 | 400 | 220 | 10 |
| MKP4-33N/630 | 33n | ±10 | 630 | 280 | 10 |
| MKP4-47N/100P10 | 47n | ±10 | 100 | 63 | 10 |
| MKP4-47N/1K | 47n | ±10 | 1000 | 400 | 15 |
| MKP4-47N/250P10 | 47n | ±10 | 250 | 160 | 10 |
| MKP4-47N/250P7.5 | 47n | ±10 | 250 | 160 | 7,5 |
| MKP4-47N/400 | 47n | ±10 | 400 | 220 | 7,5 |
| MKP4-47N/630 | 47n | ±10 | 630 | 280 | 10 |
| MKP4-68N/100P10 | 68n | ±10 | 100 | 63 | 10 |
| MKP4-68N/100P7.5 | 68n | ±10 | 100 | 63 | 7,5 |
| MKP4-68N/1K | 68n | ±10 | 1000 | 400 | 15 |
| MKP4-68N/250P10 | 68n | ±10 | 250 | 160 | 10 |
| MKP4-68N/250P7.5 | 68n | ±10 | 250 | 160 | 7,5 |
| MKP4-68N/400 | 68n | ±10 | 400 | 220 | 10 |
| MKP4-68N/630 | 68n | ±10 | 630 | 280 | 15 |
| MKP4-100N/100 | 100n | ±10 | 100 | 63 | 7,5 |
| MKP4-100N/1000 | 100n | ±10 | 1000 | 400 | 22,5 |
| MKP4-100N/100P10 | 100n | ±10 | 100 | 63 | 10 |
| MKP4-100N/1KP15 | 100n | ±10 | 1000 | 400 | 15 |
| MKP4-100N/250 | 100n | ±10 | - | - | 7,5 |
| MKP4-100N/250P10 | 100n | ±10 | 250 | 160 | 10 |
| MKP4-100N/400P10 | 100n | ±10 | 400 | 220 | 10 |
| MKP4-100N/400P15 | 100n | ±10 | 400 | 220 | 15 |
| MKP4-100N/630 | 100n | ±10 | 630 | 280 | 15 |
| MKP4-150N/100P10 | 150n | ±10 | 100 | 63 | 10 |
| MKP4-150N/1000 | 150n | ±10 | 1000 | 400 | 22,5 |
| MKP4-150N/250P10 | 150n | ±10 | 250 | 160 | 10 |
| MKP4-150N/250P10-5 | 150n | ±5 | 250 | 160 | 10 |
| MKP4-150N/250P7.5 | 150n | ±10 | 250 | 160 | 7,5 |
| MKP4-150N/400 | 150n | ±10 | 400 | 220 | 15 |
| MKP4-220N/1000 | 220n | ±10 | 1000 | 400 | 22,5 |
| MKP4-220N/100P10 | 220n | ±10 | 100 | 63 | 10 |
| MKP4-220N/100P15 | 220n | ±10 | 100 | 63 | 15 |
| MKP4-220N/1KP27.5 | 220n | ±10 | 1000 | 400 | 27,5 |
| MKP4-220N/250 | 220n | ±10 | 250 | 160 | 10 |
| MKP4-220N/250P15 | 220n | ±10 | 250 | 160 | 15 |
| MKP4-220N/400 | 220n | ±10 | 400 | 220 | 15 |
| MKP4-220N/630 | 220n | ±10 | 630 | 280 | 22,5 |
| MKP4-220N/630P15 | 220n | ±10 | 630 | 280 | 15 |
| MKP4-330N/100 | 330n | ±10 | 100 | 63 | 15 |
| MKP4-330N/1000 | 330n | ±10 | 1000 | 400 | 27,5 |
| MKP4-330N/1K | 330n | ±10 | 1000 | 400 | 27,5 |
| MKP4-330N/250 | 330n | ±10 | 250 | 160 | 15 |
| MKP4-330N/400 | 330n | ±10 | 400 | 220 | 15 |
| MKP4-330N/630 | 330n | ±10 | 630 | 280 | 22,5 |
| MKP4-470N/1K | 470n | ±10 | 1000 | 400 | 27,5 |
| MKP4-470N/250 | 470n | ±10 | 250 | 160 | 15 |
| MKP4-470N/400 | 470n | ±10 | 400 | 220 | 22,5 |
| MKP4-470N/630 | 470n | ±10 | 630 | 280 | 22,5 |
| MKP4-470N/630P22.5 | 470n | ±10 | 630 | 280 | 22,5 |
| MKP4-470N/630P27.5 | 470n | ±10 | 630 | 280 | 27,5 |
| MKP4-680N/100P15 | 680n | ±10 | 100 | 63 | 15 |
| MKP4-680N/100P22.5 | 680n | ±10 | 100 | 63 | 22,5 |
| MKP4-680N/1K | 680n | ±10 | 1000 | 400 | 27,5 |
| MKP4-680N/250P15 | 680n | ±10 | 250 | 160 | 15 |
| MKP4-680N/250P22.5 | 680n | ±10 | 250 | 160 | 22,5 |
| MKP4-680N/400 | 680n | ±10 | 400 | 220 | 22,5 |
| MKP4-680N/630 | 680n | ±10 | 630 | 280 | 27,5 |
| MKP4-1U/100 | 1µ | ±10 | 100 | 63 | 22,5 |
| MKP4-1U/1000 | 1µ | ±10 | 1000 | 400 | 37,5 |
| MKP4-1U/250 | 1µ | ±10 | 250 | 160 | 22,5 |
| MKP4-1U/400P22.5 | 1µ | ±10 | 400 | 220 | 22,5 |
| MKP4-1U/400P27.5 | 1µ | ±10 | 400 | 220 | 27,5 |
| MKP4-1U/630 | 1µ | ±10 | 630 | 280 | 27,5 |
| MKP4-1.5U/100 | 1,5µ | ±10 | 100 | 63 | 22,5 |
| MKP4-1.5U/1K | 1,5µ | ±10 | 1000 | 400 | 37,5 |
| MKP4-1.5U/250 | 1,5µ | ±10 | 250 | 160 | 22,5 |
| MKP4-1.5U/630 | 1,5µ | ±10 | 630 | 280 | 27,5 |
| MKP4-2.2U/100P22.5 | 2,2µ | ±10 | 100 | 63 | 22,5 |
| MKP4-2.2U/100P27.5 | 2,2µ | ±10 | 100 | 63 | 27,5 |
| MKP4-2.2U/250P22.5 | 2,2µ | ±10 | 250 | 160 | 22,5 |
| MKP4-2.2U/250P27.5 | 2,2µ | ±10 | 250 | 160 | 27,5 |
| MKP4-2.2U/400 | 2,2µ | ±10 | 400 | 220 | 27,5 |
| MKP4-2.2U/630 | 2,2µ | ±10 | 630 | 280 | 37,5 |
| MKP4-3.3U/250 | 3,3µ | ±10 | 250 | 160 | 27,5 |
| MKP4-3.3U/400P27.5 | 3,3µ | ±10 | 400 | 220 | 27,5 |
| MKP4-3.3U/630 | 3,3µ | ±10 | 630 | 280 | 37,5 |
| MKP4-4.7U/100 | 4,7µ | ±10 | 100 | 63 | 27,5 |
| MKP4-4.7U/250 | 4,7µ | ±10 | 250 | 160 | 27,5 |
| MKP4-4.7U/400 | 4,7µ | ±10 | 400 | 220 | 37,5 |
| MKP4-4.7U/630 | 4,7µ | ±10 | 630 | 280 | 37,5 |
| MKP4-6.8U/250P27.5 | 6,8µ | ±10 | 250 | 160 | 27,5 |
| MKP4-6.8U/250P37.5 | 6,8µ | ±10 | 250 | 160 | 37,5 |
| MKP4-6.8U/400P37.5 | 6,8µ | ±10 | 400 | 220 | 37,5 |
| MKP4-6.8U/630P37.5 | 6,8µ | ±10 | 630 | 280 | 37,5 |
| MKP4-10U/100 | 10µ | ±10 | 100 | 63 | 37,5 |
| MKP4-10U/250 | 10µ | ±10 | 250 | 160 | 37,5 |
| MKP4-10U/400 | 10µ | ±10 | 400 | 220 | 37,5 |
| MKP4-15U/250 | 15µ | ±10 | 250 | 160 | 37,5 |
| MKP4-22U/100 | 22µ | ±10 | 100 | 63 | 37,5 |
| MKP4-22U/250 | 22µ | ±10 | 250 | 160 | 37,5 |
| MKP4-33U/100 | 33µ | ±10 | 100 | 63 | 37,5 |
| MKP4-68U/100 | 68µ | ±10 | 100 | 63 | 37,5 |
| MKP4-100U/100 | 100µ | ±5 | 100 | 63 | 52,5 |
| MKP4-150U/100 | 150µ | ±5 | 100 | 63 | 52,5 |
| Symbol | Wym. korp. | Napięcie pracy | Wytrzymałość imp. |
|---|---|---|---|
| [mm] | [V DC] | [V/μs] | |
| MKP4-10N/100 | 3x8,5x10 | 100 | - |
| MKP4-10N/1K | 5x11x13 | 1k | 550 |
| MKP4-10N/250 | 3x8,5x10 | 250 | - |
| MKP4-10N/400 | 3x8,5x10 | 400 | - |
| MKP4-10N/630P10 | 4x9x13 | 630 | 500 |
| MKP4-10N/630P7.5 | 3x8,5x10 | 630 | 500 |
| MKP4-15N | 4x9x13 | 630 | 500 |
| MKP4-15N/400P10 | 4x9x13 | 400 | 450 |
| MKP4-22N/100 | 3x8,5x10 | 100 | - |
| MKP4-22N/1K | 5x11x18 | 1k | 550 |
| MKP4-22N/250 | 3x8,5x10 | 250 | 450 |
| MKP4-22N/630P10 | 4x9x13 | 630 | 500 |
| MKP4-33N/100 | 3x8,5x10 | 100 | - |
| MKP4-33N/1K | 6x12,5x18 | 1k | 400 |
| MKP4-33N/250P10 | 4x9x13 | 250 | - |
| MKP4-33N/250P7.5 | 3x8,5x10 | 250 | 250 |
| MKP4-33N/400 | 4x9x13 | 400 | 300 |
| MKP4-33N/630 | 4x9x13 | 630 | 350 |
| MKP4-47N/100P10 | 4x9x13 | 100 | - |
| MKP4-47N/1K | 7x14x18 | 1k | 200 |
| MKP4-47N/250P10 | 4x9x13 | 250 | - |
| MKP4-47N/250P7.5 | 4x9x10 | 250 | 250 |
| MKP4-47N/400 | 5x10,5x10,3 | 400 | 300 |
| MKP4-47N/630 | 5x11x13 | 630 | 350 |
| MKP4-68N/100P10 | 4x9x13 | 100 | - |
| MKP4-68N/100P7.5 | 4x9x10 | 100 | - |
| MKP4-68N/1K | 8x15x18 | 1k | 400 |
| MKP4-68N/250P10 | 4x9x13 | 250 | 250 |
| MKP4-68N/250P7.5 | 4x9x10 | 250 | 250 |
| MKP4-68N/400 | 5x11x13 | 400 | 150 |
| MKP4-68N/630 | 6x12,5x18 | 630 | 350 |
| MKP4-100N/100 | 4,5x9,5x10,3 | 100 | 150 |
| MKP4-100N/1000 | 7x16,5x26,5 | 1k | 300 |
| MKP4-100N/100P10 | 5x11x13 | 100 | - |
| MKP4-100N/1KP15 | 9x16x18 | 1k | 300 |
| MKP4-100N/250 | 4,5x9,5x10,3 | 250 | 150 |
| MKP4-100N/250P10 | 5x11x13 | 250 | 150 |
| MKP4-100N/400P10 | 6x12x13 | 400 | 200 |
| MKP4-100N/400P15 | 5x11x18 | 400 | 200 |
| MKP4-100N/630 | 7x14x18 | 630 | 250 |
| MKP4-150N/100P10 | 5x11x13 | 100 | 150 |
| MKP4-150N/1000 | 8,5x18,5x26,5 | 1k | 300 |
| MKP4-150N/250P10 | 5x11x13 | 250 | - |
| MKP4-150N/250P10-5 | 5x11x13 | 250 | 150 |
| MKP4-150N/250P7.5 | 5x10,5x10,3 | 250 | - |
| MKP4-150N/400 | 6x12,5x18 | 400 | - |
| MKP4-220N/1000 | 11x21x26,5 | 1k | 300 |
| MKP4-220N/100P10 | 6x12x13 | - | - |
| MKP4-220N/100P15 | 5x11x18 | 100 | - |
| MKP4-220N/1KP27.5 | 11x21x31,5 | 1k | 300 |
| MKP4-220N/250 | 6x12x13 | 250 | 150 |
| MKP4-220N/250P15 | 5x11x18 | 250 | 150 |
| MKP4-220N/400 | 7x14x18 | 400 | 200 |
| MKP4-220N/630 | 7x16,5x26,5 | 630 | 250 |
| MKP4-220N/630P15 | 9x16x18 | 630 | 250 |
| MKP4-330N/100 | 6x12,5x18 | 100 | - |
| MKP4-330N/1000 | 11x21x31,5 | 1k | 200 |
| MKP4-330N/1K | 11x21x31,5 | 1k | 200 |
| MKP4-330N/250 | 6x12,5x18 | 250 | 100 |
| MKP4-330N/400 | 8x15x18 | 400 | 150 |
| MKP4-330N/630 | 8,5x18,5x26,5 | 630 | 200 |
| MKP4-470N/1K | 13x24x31,5 | 1k | 200 |
| MKP4-470N/250 | 7x14x18 | 250 | 100 |
| MKP4-470N/400 | 7x16,5x26,5 | 400 | 150 |
| MKP4-470N/630 | 10,5x19x26,5 | 630 | 200 |
| MKP4-470N/630P22.5 | 10,5x19x26,5 | 630 | 200 |
| MKP4-470N/630P27.5 | 11x21x31,5 | 630 | 200 |
| MKP4-680N/100P15 | 8x15x18 | 100 | - |
| MKP4-680N/100P22.5 | 6x15x26,5 | 100 | - |
| MKP4-680N/1K | 17x29x31,5 | 1k | 200 |
| MKP4-680N/250P15 | 8x15x18 | 250 | 100 |
| MKP4-680N/250P22.5 | 6x15x26,5 | 250 | 100 |
| MKP4-680N/400 | 8,5x18,5x26,5 | 400 | 150 |
| MKP4-680N/630 | 11x21x31,5 | 630 | 200 |
| MKP4-1U/100 | 7x16,5x26,5 | 100 | - |
| MKP4-1U/1000 | 17x29x41,5 | 1k | 150 |
| MKP4-1U/250 | 7x16,5x26,5 | 250 | 100 |
| MKP4-1U/400P22.5 | 11x21x26,5 | 400 | 100 |
| MKP4-1U/400P27.5 | 11x21x31,5 | 400 | 100 |
| MKP4-1U/630 | 13x24x31,5 | 630 | 150 |
| MKP4-1.5U/100 | 10,5x19x26,5 | 100 | - |
| MKP4-1.5U/1K | 20x39,5x41,5 | 1k | 150 |
| MKP4-1.5U/250 | 10,5x19x26,5 | 250 | 100 |
| MKP4-1.5U/630 | 15x26x31,5 | 630 | 150 |
| MKP4-2.2U/100P22.5 | 11x21x26,5 | 100 | - |
| MKP4-2.2U/100P27.5 | 11x21x31,5 | 100 | - |
| MKP4-2.2U/250P22.5 | 11x21x26,5 | 250 | 100 |
| MKP4-2.2U/250P27.5 | 11x21x31,5 | 250 | 100 |
| MKP4-2.2U/400 | 15x26x31,5 | 400 | 100 |
| MKP4-2.2U/630 | 17x29x41,5 | 630 | 150 |
| MKP4-3.3U/250 | 13x24x31,5 | 250 | 100 |
| MKP4-3.3U/400P27.5 | 17x29x31,5 | 400 | 100 |
| MKP4-3.3U/630 | 19x32x41,5 | 630 | 120 |
| MKP4-4.7U/100 | 13x24x31,5 | 100 | 60 |
| MKP4-4.7U/250 | 15x26x31,5 | 250 | 100 |
| MKP4-4.7U/400 | 19x32x41,5 | 400 | 100 |
| MKP4-4.7U/630 | 20x39,5x41,5 | 630 | 120 |
| MKP4-6.8U/250P27.5 | 17x29x31,5 | 250 | 50 |
| MKP4-6.8U/250P37.5 | 15x26x41,5 | 250 | 50 |
| MKP4-6.8U/400P37.5 | 20x39,5x41,5 | 400 | 60 |
| MKP4-6.8U/630P37.5 | 24x45,5x41,5 | 630 | 85 |
| MKP4-10U/100 | 17x29x41,5 | 100 | 40 |
| MKP4-10U/250 | 19x32x41,5 | 250 | 50 |
| MKP4-10U/400 | 24x45,5x41,5 | 400 | 60 |
| MKP4-15U/250 | 20x39,5x41,5 | 250 | 50 |
| MKP4-22U/100 | 20x39,5x41,5 | 100 | 35 |
| MKP4-22U/250 | 24x45,5x41,5 | 250 | 50 |
| MKP4-33U/100 | 24x45,5x41,5 | 100 | 35 |
| MKP4-68U/100 | 40x55x41,5 | 100 | 10 |
| MKP4-100U/100 | 45x55x57 | 100 | 10 |
| MKP4-150U/100 | 45x65x57 | 100 | 10 |
