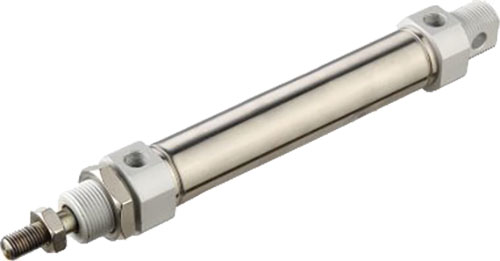

Linearzylinder; Flowmatik; PNEUMAT
| Hersteller | PNEUMAT |
| Pneumatikmodul | Linearzylinder |
| Herstellerserie | Flowmatik |

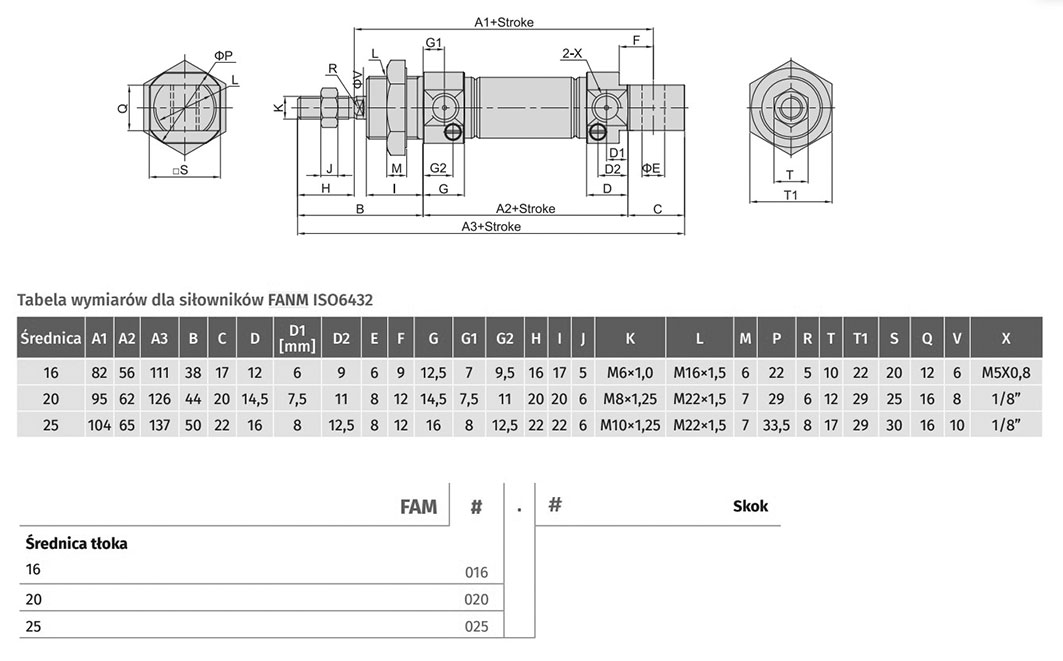

| Abmessungen | Abb.1. |
| Gehäuse-Material | Aluminium |
| Dichtungsmaterial | NBR-Kautschuk |
| Betriebstemperatur | -20...80°C |
| Betriebsdruck | 1...10bar |
| Eigenschaften | pneumatische Amortisation; Medium: Druckluft, gefiltert, geschmiert oder nicht |
| Symbol | Gewinde | Kolbendurchmesser | Kolbenhub |
|---|---|---|---|
| [mm] | [mm] | ||
| FANM016.0025 | M16x1,5, M6x1 | 6 | 25 |
| FANM016.0050 | M16x1,5, M6x1 | 6 | 50 |
| FANM016.0080 | M16x1,5, M6x1 | 6 | 80 |
| FANM016.0100 | M16x1,5, M6x1 | 6 | 100 |
| FANM016.0125 | M16x1,5, M6x1 | 6 | 125 |
| FANM016.0160 | M16x1,5, M6x1 | 6 | 160 |
| FANM016.0200 | M16x1,5, M6x1 | 6 | 200 |
| FANM016.0500 | M16x1,5, M6x1 | 6 | 500 |
| FANM020.0025 | M22x1,5, M8x1,25 | 8 | 25 |
| FANM020.0050 | M22x1,5, M8x1,25 | 8 | 50 |
| FANM020.0080 | M22x1,5, M8x1,25 | 8 | 80 |
| FANM020.0100 | M22x1,5, M8x1,25 | 8 | 100 |
| FANM020.0125 | M22x1,5, M8x1,25 | 8 | 125 |
| FANM020.0160 | M22x1,5, M8x1,25 | 8 | 160 |
| FANM020.0200 | M22x1,5, M8x1,25 | 8 | 200 |
| FANM020.0500 | M22x1,5, M8x1,25 | 8 | 500 |
| FANM025.0025 | M10x1,25, M22x1,5 | 10 | 25 |
| FANM025.0050 | M10x1,25, M22x1,5 | 10 | 50 |
| FANM025.0080 | M10x1,25, M22x1,5 | 10 | 80 |
| FANM025.0100 | M10x1,25, M22x1,5 | 10 | 100 |
| FANM025.0125 | M10x1,25, M22x1,5 | 10 | 125 |
| FANM025.0160 | M10x1,25, M22x1,5 | 10 | 160 |
| FANM025.0200 | M10x1,25, M22x1,5 | 10 | 200 |
| FANM025.0500 | M10x1,25, M22x1,5 | 10 | 500 |
| FDNM025.0120 | M10x1,25, M22x1,5 | 10 | 120 |
