Mikroschalter Serie XC
| Hersteller | SAIA-BURGESS |
| Schalter-Typ | Mikroschalter SNAP ACTION |
| Konf. Kontakte | SPDT |
| Schaltw.* | ON-(ON) |
| Schaltstellungen | 2 |
| Gehäuseabmessungen | 19,9x6,4x9,5mm |
| Herstellerserie | XC |
| Dichtheitsklasse | IP40 |
* die position in klammern zeigt die momentane position an.
Belastbarkeit AC @R*:
- 5A / 250V AC (XCG3xxxZ1, XCG5xxxZ1, XCG8xxxZ1, XCG1xxx, XCG9-81-S1Z1, XCG9-81Z1)
- 0,3A / 30V AC (XCG8-81)
- 10,1A / 250V AC (XCFxxxZ1)
Schaltkraft:
- 1,7N (XCG3Z1, XCG5Z1, XCG5W-Z1, XCG8Z1, XCG8-81, XCG10, XCG11, XCG9-81-S1Z1, XCG9-81Z1)
- 0,6N (XCG3-J1Z1, XCG10-J1Z1, XCG11-J1Z1)
- 0,7N (XCG12-L1, XCG13-L1)
Eigenschaften:
* bei ohmscher Last
| Symbol | Mechanische Haltbarkeit | Betriebstemperatur | Rastermaß | Ausg. | L. Hebel | Kontaktbeschichtung | Abmessungen |
|---|---|---|---|---|---|---|---|
| [°C] | [mm] | [mm] | |||||

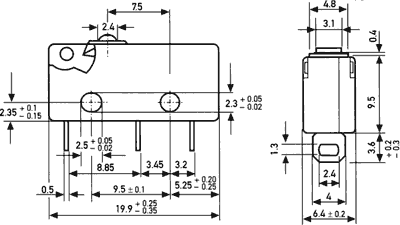

| XCG3Z1 | 50000000 Zyklen | -40...85 | 6,65 | Lötverbindung | - | - | Abb.1. |
| XCG3-J1Z1 | 50000000 Zyklen | -40...85 | 6,65 | Lötverbindung | 18 | - | - |
| XCG5Z1 | 50000000 Zyklen | -40...85 | 6,65 | Verbinder | - | - | - |
| XCG5W-Z1 | 50000000 Zyklen | -40...140 | 6,65 | Verbinder | - | - | - |
| XCG8Z1 | 50000000 Zyklen | -40...85 | 6,65 | Printmontage, gerade | - | - | - |
| XCG8-81 | 50000000 Zyklen | -40...85 | 6,65 | Printmontage, gerade | - | vergoldet | - |

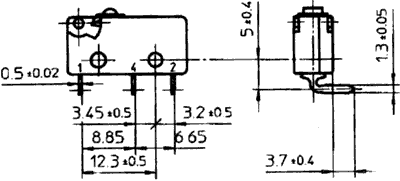

| XCG10 | 50000000 Zyklen | -40...85 | 6,65 | Printmontage, mit Winkel, rechts | - | - | Abb.2. |
| XCG10-J1Z1 | 50000000 Zyklen | -40...85 | 6,65 | Printmontage, mit Winkel, rechts | 18 | - | - |

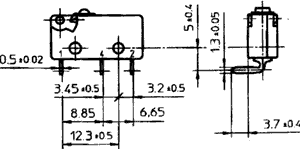

| XCG11 | 50000000 Zyklen | -40...85 | 6,65 | Printmontage, mit Winkel, links | - | - | Abb.3. |
| XCG11-J1Z1 | 50000000 Zyklen | -40...85 | 6,65 | Printmontage, mit Winkel, links | 18 | - | - |
| XCG12-L1 | 50000000 Zyklen | -40...85 | 6,65 | Printmontage, mit Winkel, rechts | 16 | - | - |
| XCG13-L1 | 50000000 Zyklen | -40...85 | 6,65 | Printmontage, mit Winkel, links | 16 | - | - |
| XCG3-S1Z1 | - | -40...85 | - | Lötverbindung | - | - | - |
| XCG3-81Z1 | - | -40...85 | - | Lötverbindung | - | - | - |
| XCF3-J1Z1 | - | -40...85 | - | Lötverbindung | 18 | - | - |
| XCF3-S1Z1 | - | -40...85 | - | Lötverbindung | 16 | - | - |
| XCF3Z1 | - | -40...85 | - | Lötverbindung | - | - | - |
| XCF8Z1 | - | -40...85 | - | Printmontage | - | - | - |
| XCG5-81Z1 | - | -40...85 | - | Verbinder | - | - | - |
| XCG5-J1Z1 | - | -40...85 | - | Verbinder | 18 | - | - |
| XCG5-S1Z1 | - | -40...85 | - | Verbinder | 16 | - | - |
| XCG8-81-S1Z1 | - | -40...85 | - | Printmontage | 16 | - | - |
| XCG8-J1Z1 | - | -40...85 | - | Printmontage | 18 | - | - |
| XCG8-S1Z1 | - | -40...85 | - | Printmontage | 16 | - | - |
| XCG9-81-S1Z1 | - | -40...85 | 7,6 | Printmontage | 16 | vergoldet | - |
| XCG9-81Z1 | - | -40...85 | 7,6 | Printmontage | - | vergoldet | - |
