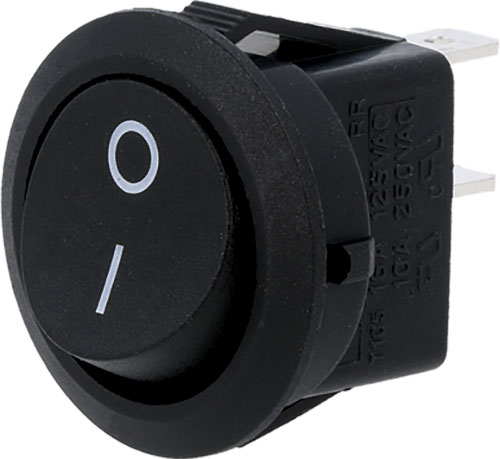

Schalter: ROCKER; E-SWITCH
| Hersteller | E-SWITCH |
| Schalter-Typ | ROCKER |
Montage:
- für Frontplatten (R5ABLKBLKFF0, RA11131121, RA1113112R, RBxxx, RRxxx, WB242D1121)
- THT (400xxxE)
Form:
- rechtwinklig (R5ABLKBLKFF0)
| Symbol | Schaltstellungen | Anzahl stabiler Positionen | Kontaktmaterial | Kontaktbeschichtung | Korpusfarbe | Tastenkennzeichnung | Schaltw.* | Max. Kontaktwiderstand | Kontaktbelastbarkeit AC @R** | Ausg. | Betriebstemperatur | Konf. Kontakte | Elektrische Lebensdauer | Mechanische Haltbarkeit | Montageabmessungen | Tastenfarbe | Gehäuseabmessungen | Kontaktbelastbarkeit DC @R** | Tastenfarbe | Kontaktwiderstand | Min. Isolationswiderstand | Dichtheitsklasse | Herstellerserie | Bel.-Farbe | Beleuchtung | Ausgangsmaße | Beleuchtungsspannung |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [mΩ] | [°C] | [mm] | [mm] | [mΩ] | [MΩ] | [mm] | [V] | ||||||||||||||||||||
| 400MSP1R6BLKM6QE | 2 | 2 | Kupfer | versilbert | - | - | ON-ON | 20 | 1A / 250V AC | Printmontage, mit Winkel | -30...85 | SPDT | 30000 Zyklen | - | - | schwarz | - | 3A / 28V DC | schwarz | - | - | - | - | - | Fehlen | - | - |
| 400UDP1L1BLKM2RE | 2 | 2 | - | vergoldet | schwarz | - | ON-ON | - | 0,02A / 20V AC | Printmontage | -30...85 | DPDT | 6000 Zyklen | - | - | - | 4,9x7,4x7 | 0,02A / 20V DC | schwarz | 100 | 500 | - | 400U | - | Fehlen | - | - |
| 400UDP1L1BLKM6RE | 2 | 2 | - | vergoldet | schwarz | - | ON-ON | - | 0,02A / 20V AC | Printmontage, mit Winkel | -30...85 | DPDT | 6000 Zyklen | - | - | - | 7,6x5,35x7,75 | 0,02A / 20V DC | schwarz | 100 | 500 | - | 400U | - | Fehlen | - | - |
| 400UDP1R1BLKM2RE | 2 | 2 | - | vergoldet | schwarz | - | ON-ON | - | 0,02A / 20V AC | Printmontage | -30...85 | DPDT | 6000 Zyklen | - | - | - | 4,9x7,4x7 | 0,02A / 20V DC | schwarz | 100 | 500 | - | 400U | - | Fehlen | - | - |
| 400UDP1R1BLKM6RE | 2 | 2 | - | vergoldet | schwarz | - | ON-ON | - | 0,02A / 20V AC | Printmontage, mit Winkel | -30...85 | DPDT | 6000 Zyklen | - | - | - | 7,6x5,35x7,75 | 0,02A / 20V DC | schwarz | 100 | 500 | - | 400U | - | Fehlen | - | - |
| 400UDP1R1BLKM7RE | 2 | 2 | - | vergoldet | schwarz | - | ON-ON | - | 0,02A / 20V AC | Printmontage, mit Winkel | -30...85 | DPDT | 6000 Zyklen | - | - | - | 5x7,85x7,75 | 0,02A / 20V DC | schwarz | 100 | 500 | - | 400U | - | Fehlen | - | - |
| R5ABLKBLKFF0 | 2 | 2 | Kupfer | versilbert | schwarz | O-I | ON-OFF | 20 | 16A / 250V AC | Steckverbinder FASTON | -20...55 | SPST-NO x2 | 10000 Zyklen | 30000 Zyklen | 30,1x22,15 | schwarz | 32,1x25,2x28,8 | - | - | - | - | - | - | - | Fehlen | - | - |
| RA11131121 | 2 | 2 | Kupfer | versilbert | schwarz | O-I | ON-OFF | 35 | 4A / 250V AC | Verbinder | -20...125 | SPST-NO | 10000 Zyklen | - | 19,2x13 | schwarz | 21x15x11,6 | - | - | - | - | - | - | - | Fehlen | 4,8x0,8 | - |
| RA1113112R | 2 | 2 | Kupfer | versilbert | schwarz | O-I | ON-OFF | 30 | 4A / 250V AC | Verbinder | -20...55 | SPST-NO | 10000 Zyklen | - | 19,4x13,1 | schwarz | 21x15x12,3 | - | - | - | - | - | - | - | Fehlen | 4,8x0,8 | - |
| RB212C1011-136 | 2 | 2 | - | - | - | O-I | OFF-ON | 20 | 8A / 250V AC | Verbinder | -20...55 | DPST | 6000 Zyklen | - | 30x22 | grün | 32x25x30,8 | - | - | - | 100 | - | RB2 | grün | - | 4,8x0,8 | - |
| RB212C101Z95-126 | 2 | 2 | - | - | - | - | OFF-ON | 20 | 8A / 250V AC | Verbinder | -20...55 | DPST | 6000 Zyklen | - | 30x22 | schwarz | 31,6x25x29 | - | - | - | 100 | - | RB2 | bernsteinfarben | - | 4,8x0,8 | - |
| RB212C1121 | 2 | 2 | - | - | - | O-I | OFF-ON | 20 | 8A / 250V AC | Verbinder | -20...55 | DPST | 6000 Zyklen | - | 30x22 | schwarz | 31,45x24,9x29 | - | schwarz | - | 100 | - | RB2 | - | - | 4,8x0,8 | - |
| RB341A1100 | 2 | 2 | - | - | schwarz | - | OFF-ON | 20 | 16A / 125V AC | Verbinder | 0...55 | SPST | 10000 Zyklen | - | 13,8x30,2 | schwarz | - | - | - | - | 100 | IP67 | RB3 | - | - | 6,35x0,8 | - |
| RB341A1100-16 | 2 | 2 | - | - | schwarz | - | OFF-ON | 20 | 16A / 125V AC | Verbinder | 0...55 | SPST | 10000 Zyklen | - | 13,8x30,2 | schwarz | - | - | - | - | 100 | IP67 | RB3 | rot | LED | 6,35x0,8 | 125 |
| RB342A1100-136 | 2 | 2 | - | - | schwarz | - | ON-ON | 20 | 16A / 125V AC | Verbinder | 0...55 | SPST | 10000 Zyklen | - | 13,8x30,2 | schwarz | - | - | - | - | 100 | IP67 | RB3 | rot/grün | LED | 6,35x0,8 | 125 |
| RB343A1100-136 | 3 | 3 | - | - | schwarz | - | ON-OFF-ON | 20 | 16A / 125V AC | Verbinder | 0...55 | SPST | 10000 Zyklen | - | 13,8x30,2 | schwarz | - | - | - | - | 100 | IP67 | RB3 | rot/grün | LED | 6,35x0,8 | 125 |
| RB344A1100-16 | 2 | 1 | - | - | schwarz | - | OFF-(ON) | 20 | 16A / 125V AC | Verbinder | 0...55 | SPST | 10000 Zyklen | - | 13,8x30,2 | schwarz | - | - | - | - | 100 | IP67 | RB3 | rot | LED | 6,35x0,8 | 125 |
| RB345A1100-136 | 2 | 1 | - | - | schwarz | - | ON-(ON) | 20 | 16A / 125V AC | Verbinder | 0...55 | SPST | 10000 Zyklen | - | 13,8x30,2 | schwarz | - | - | - | - | 100 | IP67 | RB3 | rot/grün | LED | 6,35x0,8 | 125 |
| RB346A1100-136 | 3 | 1 | - | - | schwarz | - | (ON)-OFF-(ON) | 20 | 16A / 125V AC | Verbinder | 0...55 | SPST | 10000 Zyklen | - | 13,8x30,2 | schwarz | - | - | - | - | 100 | IP67 | RB3 | rot/grün | LED | 6,35x0,8 | 125 |
| RB347A1100-136 | 3 | 2 | - | - | schwarz | - | ON-OFF-(ON) | 20 | 16A / 125V AC | Verbinder | 0...55 | SPST | 10000 Zyklen | - | 13,8x30,2 | schwarz | - | - | - | - | 100 | IP67 | RB3 | rot/grün | LED | 6,35x0,8 | 125 |
| RB541A1100 | 2 | 2 | - | - | schwarz | - | OFF-ON | 20 | 16A / 125V AC | Verbinder | 0...55 | DPST | 10000 Zyklen | - | 30,2x22 | schwarz | 29x21,5x25 | - | - | - | 100 | IP67 | RB5 | - | Fehlen | 6,3x0,8 | - |
| RB541A1100-16 | 2 | 2 | - | - | schwarz | - | OFF-ON | 20 | 16A / 125V AC | Verbinder | 0...55 | DPST | 10000 Zyklen | - | 30,2x22 | schwarz | 29x21,5x25 | - | - | - | 100 | IP67 | RB5 | rot | LED | 6,3x0,8 | 125 |
| RB543A1100-136 | 3 | 3 | - | - | schwarz | - | ON-OFF-ON | 20 | 16A / 125V AC | Verbinder | 0...55 | DPDT | 10000 Zyklen | - | 30,2x22 | schwarz | 29x21,5x25 | - | - | - | 100 | IP67 | RB5 | rot/grün | LED | 6,3x0,8 | 125 |
| RB546A1100 | 3 | 1 | - | - | schwarz | - | (ON)-OFF-(ON) | 20 | 16A / 125V AC | Verbinder | 0...55 | DPDT | 10000 Zyklen | - | 30,2x22 | schwarz | 29x21,5x25 | - | - | - | 100 | IP67 | RB5 | - | Fehlen | 6,3x0,8 | - |
| RB546A1100-136 | 3 | 1 | - | - | schwarz | - | (ON)-OFF-(ON) | 20 | 16A / 125V AC | Verbinder | 0...55 | DPDT | 10000 Zyklen | - | 30,2x22 | schwarz | 29x21,5x25 | - | - | - | 100 | IP67 | RB5 | rot/grün | LED | 6,3x0,8 | 125 |
| RB547A1100-136 | 3 | 2 | - | - | schwarz | - | ON-OFF-(ON) | 20 | 16A / 125V AC | Verbinder | 0...55 | DPDT | 10000 Zyklen | - | 30,2x22 | schwarz | 29x21,5x25 | - | - | - | 100 | IP67 | RB5 | rot/grün | LED | 6,3x0,8 | 125 |
| RR111C1121 | 2 | 2 | Kupfer | versilbert | schwarz | O-I | ON-OFF | 35 | 10A / 250V AC | Verbinder | -20...125 | SPST-NO | 50000 Zyklen | - | Ø20 | schwarz | 16,6x17,2x20,8 | - | - | - | - | - | - | - | Fehlen | 4,75x0,8 | - |
| RR3130ABLKBLKFS | 2 | 2 | Kupfer | versilbert | schwarz | O-I | ON-OFF | 50 | 6A / 250V AC | Lötverbindung | 0...65 | SPST-NC | 6000 Zyklen | 20000 Zyklen | Ø18,2 | schwarz | Ø25,4x19 | - | - | - | - | - | - | - | Fehlen | - | - |
| RR511D1121 | 2 | 2 | Kupfer | versilbert | schwarz | O-I | ON-OFF | 20 | 10A / 250V AC | Verbinder | -20...125 | SPST-NO | 50000 Zyklen | - | Ø21 | schwarz | - | - | - | - | - | - | - | - | Fehlen | 4,8x0,8 | - |
| WB242D1121 | 2 | 2 | Kupfer | versilbert | schwarz | O-I | ON-OFF | 50 | 20A / 125V AC | Verbinder | -20...65 | SPST-NO | - | - | 30x22 | - | - | - | - | - | - | - | - | - | Fehlen | 4,8x0,8 | - |
* die position in klammern zeigt die momentane position an.
** bei ohmscher Last
** bei ohmscher Last
