3M 3811 Series

Manufacturer	3M
Type of wire	ribbon
Kind of core	Cu, tinned
Core	stranded
Operating temperature	-20...105°C
Core marking	colours with colour repetition
Core diameter	26AWG
Tape pitch	1.27mm

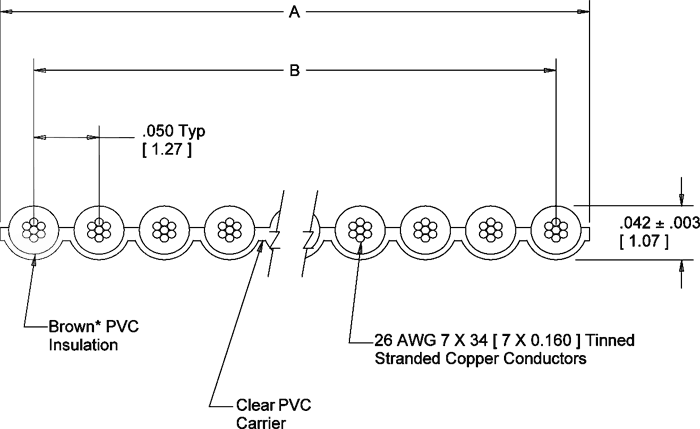

Dimensions	Fig. 1.
Wire insulation material	PVC

Symbol	Rated volt.	Number of cores	A	B
	[V]		[mm]	[mm]
3811-09	50	9	11.43	10.16
3811-300-09	50	9	11.43	10.16
3811-10	50	10	12.7	11.43
3811-300-10	50	10	12.7	11.43
3811-14	50	14	17.78	16.51
3811-300-14	50	14	17.78	16.51
3811-16	50	16	20.32	19.05
3811-300-16	50	16	20.32	19.05
3811-18	50	18	22.86	21.59
3811-20	50	20	25.4	24.13
3811-300-20	50	20	25.4	24.13
3811-24	50	24	30.48	29.21
3811-300-24	50	24	30.48	29.21
3811-25	50	25	31.75	30.48
3811-26	50	26	33.02	31.75
3811-30	50	30	38.1	36.83
3811-300-34	50	34	43.18	41.91
3811-34	49	34	43.18	41.91
3811-37	50	37	46.99	45.72
3811-300-40	50	40	50.8	49.53
3811-40	50	40	50.8	49.53
3811-50	50	50	63.5	62.23
3811-60	49	60	76.2	74.93
3811-64	49	64	81.28	80.01
