4D SYSTEMS's inteligent displays with DIABLO16 controlers
| Manufacturer | 4D Systems |
| Type of display | TFT |
| µC | DIABLO16 |
| Symbol | Manufacturer's part number | Ver. | Luminosity | Ioper. | Features |
|---|---|---|---|---|---|
| [cd/m2] | [mA] | ||||
| 4DISCOVERY-50 | 4DISCOVERY-50 | - | 500 | - | microSD card reader |
| 4DISCOVERY-50B | 4DISCOVERY-50B | - | 500 | - | microSD card reader |
| 4DISCOVERY-50W | 4DISCOVERY-50W | - | 500 | - | microSD card reader |
| GEN4-ULCD-24D | GEN4-ULCD-24D | - | 228 | - | microSD card reader; smart |
| GEN4-ULCD-24D-CLB | GEN4-ULCD-24D-CLB | Cover Lens Bezel | 221 | - | smart |
| GEN4-ULCD-28D | GEN4-ULCD-28D | - | 175 | 155 | microSD card reader; pulse output; PWM output |
| GEN4-ULCD-28D-CLB | GEN4-ULCD-28D-CLB | Cover Lens Bezel | 170 | - | smart |
| GEN4-ULCD-32D | GEN4-ULCD-32D | - | 200 | - | smart |
| GEN4-ULCD-32D-CLB | GEN4-ULCD-32D-CLB | Cover Lens Bezel | 194 | - | smart |
| GEN4-ULCD-35D | GEN4-ULCD-35D | - | 228 | 180 | - |
| GEN4-ULCD-35D-CLB | GEN4-ULCD-35D-CLB | - | 221 | - | smart |
| GEN4-ULCD-35DCTCLB | GEN4-ULCD-35DCT-CLB | Cover Lens Bezel | 216 | 180 | microSD card reader |
| GEN4-ULCD-43D-CLB | GEN4-ULCD-43D-CLB | Cover Lens Bezel | 485 | - | smart |
| GEN4-ULCD-43DCT-C | GEN4-ULCD-43DCT-CLB | Cover Lens Bezel | 475 | 315 | microSD card reader; quadrature input; pulse output; PWM output |
| GEN4-ULCD-43DCT-CA | GEN4-ULCD-43DCT-CLB-AR | Cover Lens Bezel | 475 | 315 | microSD card reader; quadrature input; pulse output; PWM output |
| GEN4-ULCD-43DCT-CP | GEN4-ULCD-43DCT-CLB-PI | Cover Lens Bezel | 475 | 315 | microSD card reader; quadrature input; pulse output; PWM output |
| GEN4-ULCD-43DCT-CS | GEN4-ULCD-43DCT-CLB-SB | Cover Lens Bezel | - | - | microSD card reader; quadrature input; pulse output; PWM output |
| GEN4-ULCD-43DCT-SA | GEN4-ULCD-43DCT-SB-AR | - | - | - | microSD card reader; quadrature input; pulse output; PWM output |
| GEN4-ULCD-43DCT-SB | GEN4-ULCD-43DCT-SB | - | - | - | microSD card reader; quadrature input; pulse output; PWM output |
| GEN4-ULCD-43DCT-SP | GEN4-ULCD-43DCT-SB-PI | - | - | - | microSD card reader; quadrature input; pulse output; PWM output |
| GEN4-ULCD-43DT-SB | GEN4-ULCD-43DT-SB | - | - | - | microSD card reader; quadrature input; pulse output; PWM output |
| GEN4-ULCD-50D-CLB | GEN4-ULCD-50D-CLB | Cover Lens Bezel | 485 | - | smart |
| GEN4-ULCD-50DCT | GEN4-ULCD-50DCT | - | - | - | - |
| GEN4-ULCD-50DCTCLB | GEN4-ULCD-50DCT-CLB | - | 475 | 400 | CRC; microSD card reader; NeoPixel; quadrature input; pulse output; PWM output |
| GEN4-ULCD-50DCT-CS | GEN4-ULCD-50DCT-CLB-SB | Cover Lens Bezel | 705 | - | - |
| GEN4-ULCD-50D-SB | GEN4-ULCD-50D-SB | - | 820 | 400 | - |
| GEN4-ULCD-70D-CLB | GEN4-ULCD-70D-CLB | Cover Lens Bezel | 485 | - | smart |
| GEN4-ULCD-70DCT-CS | GEN4-ULCD-70DCT-CLB-SB | Cover Lens Bezel | 758 | - | - |
| SK-90DCT | SK-90DCT | - | 475 | 784 | - |
| SK-90DCT-AR | SK-90DCT-AR | - | 475 | 784 | - |
| SK-90DCT-PI | SK-90DCT-PI | - | 475 | 784 | - |
| SK-90DT-AR | SK-90DT-AR | - | 450 | 766 | - |
| SK-90DT-PI | SK-90DT-PI | - | 450 | 766 | - |
| ULCD-104D | ULCD-104D | - | 950 | 680 | microSD card reader |
| ULCD-104DCT | ULCD-104DCT | - | 855 | 680 | microSD card reader |
| ULCD-480RD-CLB | ULCD-480RD-CLB | round | 500 | - | microSD card reader |
| ULCD-480RD-CTP-CLB | ULCD-480RD-CTP-CLB | Cover Lens Bezel, round | 500 | - | microSD card reader |
| ULCD-56D | ULCD-56D | - | 600 | - | - |
| ULCD-56DCT | ULCD-56DCT | - | 504 | - | - |
| ULCD-56DCT-CLB | ULCD-56DCT-CLB | Cover Lens Bezel | 504 | - | - |
| ULCD-90DCT | ULCD-90DCT | - | 475 | 784 | - |
| ULCD-90DT | ULCD-90DT | - | 450 | 766 | - |
Kind of display:
- graphical
- matrix IPS (ULCD-480RD-CLB, ULCD-480RD-CTP-CLB)
Touchpad:
- none (GEN4-ULCD-50D-SB, GEN4-ULCD-70D-CLB, ULCD-104D, ULCD-480RD-CLB, ULCD-56D)
- capacitive (4DISCOVERY-50x, GEN4-ULCD-35DCTCLB, GEN4-ULCD-43DCT-xx, GEN4-ULCD-50DCTxxx, GEN4-ULCD-70DCT-CS, SK-90DCTxxx, ULCD-104DCT, ULCD-480RD-CTP-CLB, ULCD-56DCT, ULCD-56DCT-CLB, ULCD-90DCT)
- resistance (GEN4-ULCD-43DT-SB, SK-90DT-AR, SK-90DT-PI, ULCD-90DT)
Connection:
- FFC/FPC (GEN4-ULCD-28D, GEN4-ULCD-35D, GEN4-ULCD-35DCTCLB, GEN4-ULCD-43DCT-xx, GEN4-ULCD-43DT-SB, GEN4-ULCD-50DCTxxx, GEN4-ULCD-50D-SB, GEN4-ULCD-70D-CLB, SK-90Dxxx, ULCD-480RD-CLB, ULCD-480RD-CTP-CLB, ULCD-90DCT, ULCD-90DT)
- microSD (ULCD-480RD-CLB, ULCD-480RD-CTP-CLB)
- RJ45 x2 (4DISCOVERY-50x)
Layout:
- 1x30 (GEN4-ULCD-28D, GEN4-ULCD-35D, GEN4-ULCD-35DCTCLB, GEN4-ULCD-43DCT-xx, GEN4-ULCD-43DT-SB, GEN4-ULCD-50DCTxxx, GEN4-ULCD-50D-SB, GEN4-ULCD-70D-CLB, GEN4-ULCD-70DCT-CS, SK-90Dxxx, ULCD-90DCT, ULCD-90DT)
- 3x10 (ULCD-104D, ULCD-104DCT)
Contrast:
- 1000:1 (4DISCOVERY-50x, ULCD-480RD-CLB, ULCD-480RD-CTP-CLB, ULCD-56Dxxx)
- 500:1 (GEN4-ULCD-43DCT-xx, GEN4-ULCD-43DT-SB, GEN4-ULCD-70DCT-CS, SK-90Dxxx, ULCD-90DCT, ULCD-90DT)
- 300:1 (ULCD-104D, ULCD-104DCT)
Usup:
- 4...5.5V (GEN4-ULCD-43DCT-xx, GEN4-ULCD-43DT-SB, SK-90Dxxx, ULCD-xxx)
- 5V (GEN4-ULCD-50D-SB)
- 7...30V (4DISCOVERY-50x)
Flash memory organisation:
- 6x32kB (4DISCOVERY-50x, GEN4-ULCD-28D, GEN4-ULCD-35D, GEN4-ULCD-35DCTCLB, GEN4-ULCD-43DCT-xx, GEN4-ULCD-43DT-SB, GEN4-ULCD-50DCTCLB, GEN4-ULCD-50D-SB, GEN4-ULCD-70DCT-CS, SK-90Dxxx, ULCD-104D, ULCD-104DCT, ULCD-90DCT, ULCD-90DT)
Operating temperature:
- -20...70°C (GEN4-ULCD-24D, GEN4-ULCD-24D-CLB, GEN4-ULCD-28D-CLB, GEN4-ULCD-32D, GEN4-ULCD-32D-CLB, GEN4-ULCD-35D-CLB, GEN4-ULCD-43D-CLB, GEN4-ULCD-50DCT-CS, GEN4-ULCD-70D-CLB, GEN4-ULCD-70DCT-CS, SK-90Dxxx, ULCD-480RD-CLB, ULCD-480RD-CTP-CLB, ULCD-56Dxxx, ULCD-90DCT, ULCD-90DT)
- -15...65°C (GEN4-ULCD-28D, GEN4-ULCD-35D, GEN4-ULCD-35DCTCLB, GEN4-ULCD-50DxxxB)
- -10...60°C (4DISCOVERY-50x, GEN4-ULCD-43DCT-xx, GEN4-ULCD-43DT-SB, ULCD-104D, ULCD-104DCT)
Screen size:
- 5" (4DISCOVERY-50x, GEN4-ULCD-50D-CLB, GEN4-ULCD-50D-SB, GEN4-ULCD-50DCTCLB, GEN4-ULCD-50DCT-CS)
- 2.4" (GEN4-ULCD-24D, GEN4-ULCD-24D-CLB)
- 2.8" (GEN4-ULCD-28D, GEN4-ULCD-28D-CLB)
- 3.2" (GEN4-ULCD-32D, GEN4-ULCD-32D-CLB)
- 3.5" (GEN4-ULCD-35Dxxx)
- 4.3" (GEN4-ULCD-43Dxxx)
- 7" (GEN4-ULCD-70D-CLB, GEN4-ULCD-70DCT-CS)
- 9" (SK-90Dxxx, ULCD-90DCT, ULCD-90DT)
- 10.4" (ULCD-104D, ULCD-104DCT)
- 2.1" (ULCD-480RD-CLB, ULCD-480RD-CTP-CLB)
- 5.6" (ULCD-56Dxxx)
Resolution:
- 480x854 (4DISCOVERY-50x)
- 240x320 (GEN4-ULCD-2xxx, GEN4-ULCD-32D, GEN4-ULCD-32D-CLB)
- 320x480 (GEN4-ULCD-35Dxxx)
- 480x272 (GEN4-ULCD-43Dxxx)
- 800x480 (GEN4-ULCD-50Dxxx, GEN4-ULCD-70D-CLB, GEN4-ULCD-70DCT-CS, SK-90Dxxx, ULCD-90DCT, ULCD-90DT)
- 1024x100 (ULCD-104D, ULCD-104DCT)
- 480x480 (ULCD-480RD-CLB, ULCD-480RD-CTP-CLB)
- 640x480 (ULCD-56Dxxx)
Interface:
- 8bit parallel (GEN4-ULCD-50D-SB, ULCD-104D, ULCD-104DCT, ULCD-56Dxxx)
- Bluetooth (4DISCOVERY-50W)
- GPIO (GEN4-ULCD-2xxx, GEN4-ULCD-3xxx, GEN4-ULCD-43Dxxx, GEN4-ULCD-50D-CLB, GEN4-ULCD-50D-SB, GEN4-ULCD-50DCT, GEN4-ULCD-50DCTCLB, GEN4-ULCD-70D-CLB, GEN4-ULCD-70DCT-CS, SK-90Dxxx, ULCD-104D, ULCD-104DCT, ULCD-56Dxxx, ULCD-90DCT, ULCD-90DT)
- I2C (ULCD-56Dxxx)
- I2C x3 (GEN4-ULCD-2xxx, GEN4-ULCD-3xxx, GEN4-ULCD-43Dxxx, GEN4-ULCD-50D-CLB, GEN4-ULCD-50D-SB, GEN4-ULCD-50DCT, GEN4-ULCD-50DCTCLB, GEN4-ULCD-70D-CLB, GEN4-ULCD-70DCT-CS, SK-90Dxxx, ULCD-104D, ULCD-104DCT, ULCD-90DCT, ULCD-90DT)
- microSD (SK-90Dxxx, ULCD-90DCT, ULCD-90DT)
- PWM (SK-90Dxxx, ULCD-90DCT, ULCD-90DT)
- RS485 (4DISCOVERY-50x)
- serial (GEN4-ULCD-2xxx, GEN4-ULCD-3xxx, GEN4-ULCD-43Dxxx, GEN4-ULCD-50D-CLB, GEN4-ULCD-50D-SB, GEN4-ULCD-50DCT, GEN4-ULCD-50DCTCLB, GEN4-ULCD-70D-CLB, GEN4-ULCD-70DCT-CS, ULCD-104D, ULCD-104DCT)
- single-wire (GEN4-ULCD-50D-SB)
- SPI (ULCD-56Dxxx)
- SPI x3 (GEN4-ULCD-2xxx, GEN4-ULCD-3xxx, GEN4-ULCD-43Dxxx, GEN4-ULCD-50D-CLB, GEN4-ULCD-50D-SB, GEN4-ULCD-50DCT, GEN4-ULCD-50DCTCLB, GEN4-ULCD-70D-CLB, GEN4-ULCD-70DCT-CS, ULCD-104D, ULCD-104DCT)
- SPI x4 (SK-90Dxxx, ULCD-90DCT, ULCD-90DT)
- WiFi (4DISCOVERY-50W)
Window dimensions:
- 110.5x62.6mm (4DISCOVERY-50x)
- 48.96x36.72mm (GEN4-ULCD-24D, GEN4-ULCD-24D-CLB)
- 57.6x43.2mm (GEN4-ULCD-28D, GEN4-ULCD-28D-CLB)
- 64.8x48.6mm (GEN4-ULCD-32D, GEN4-ULCD-32D-CLB)
- 73.4x49mm (GEN4-ULCD-35D)
- 73.44x48.96mm (GEN4-ULCD-35D-CLB, GEN4-ULCD-35DCTCLB)
- 95.04x53.86mm (GEN4-ULCD-43Dxxx)
- 108x64.8mm (GEN4-ULCD-50D-CLB, GEN4-ULCD-50DCTxxx)
- 153.84x85.63mm (GEN4-ULCD-70D-CLB, GEN4-ULCD-70DCT-CS)
- 111.7x198mm (SK-90Dxxx, ULCD-90DCT, ULCD-90DT)
- 264.19x25.8mm (ULCD-104D, ULCD-104DCT)
- 112.9x84.67mm (ULCD-56Dxxx)

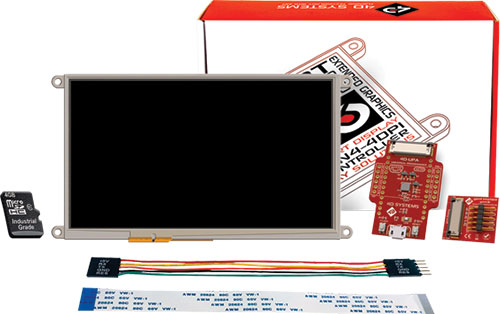

Kit contents:
- 4D-UPA (GEN4-ULCD-50DCT-CS, SK-90Dxxx)
- adapter (ULCD-104D, ULCD-104DCT)
- 4D Serial Pi adapter (GEN4-ULCD-43DCT-CP, GEN4-ULCD-43DCT-SP, SK-90DCT-PI, SK-90DT-PI)
- adapter Arduino Shield II (GEN4-ULCD-43DCT-CA, GEN4-ULCD-43DCT-SA, SK-90DCT-AR, SK-90DT-AR)
- GEN4-IB (GEN4-ULCD-35DCTCLB, GEN4-ULCD-43DCT-C, GEN4-ULCD-43DCT-CA, GEN4-ULCD-43DCT-CP, GEN4-ULCD-43DCT-Sx, GEN4-ULCD-50DCTCLB, GEN4-ULCD-50DCT-CS, GEN4-ULCD-70D-CLB, GEN4-ULCD-70DCT-CS, SK-90Dxxx, ULCD-56Dxxx, ULCD-90DCT, ULCD-90DT)
- manual (GEN4-ULCD-35DCTCLB, GEN4-ULCD-50DCTCLB)
- 30pin FFC cable (GEN4-ULCD-43DCT-C, GEN4-ULCD-43DCT-CA, GEN4-ULCD-43DCT-CP, GEN4-ULCD-43DCT-Sx)
- 5pin cable (ULCD-104D, ULCD-104DCT)
- 15cm 30pin FFC cable (GEN4-ULCD-35DCTCLB, GEN4-ULCD-50DCTCLB, GEN4-ULCD-50DCT-CS, GEN4-ULCD-70D-CLB, GEN4-ULCD-70DCT-CS, SK-90Dxxx, ULCD-56Dxxx, ULCD-90DCT, ULCD-90DT)
- 4GB microSD card (GEN4-ULCD-50DCT-CS, SK-90Dxxx)
- display module (GEN4-ULCD-50DCT-CS, GEN4-ULCD-70D-CLB, GEN4-ULCD-70DCT-CS, SK-90Dxxx, ULCD-104D, ULCD-104DCT, ULCD-56Dxxx, ULCD-90DCT, ULCD-90DT)
- ribbon cable with adatper 5pin (GEN4-ULCD-43DCT-C, GEN4-ULCD-43DCT-CA, GEN4-ULCD-43DCT-CP, GEN4-ULCD-43DCT-Sx, GEN4-ULCD-50DCT-CS, SK-90Dxxx)
Related items:
- RPI-4B-4G (SK-90DCT-PI, SK-90DT-PI)
Dimensions:
- 139.4x76.2x11.7mm (4DISCOVERY-50x)
- 78.4x44.8x6mm (GEN4-ULCD-24D)
- 79x58.7x7.1mm (GEN4-ULCD-24D-CLB)
- 87.3x52.1x7.3mm (GEN4-ULCD-28D)
- 87.6x67.2x7.3mm (GEN4-ULCD-28D-CLB)
- 95.7x57.1x6.3mm (GEN4-ULCD-32D)
- 98.8x72.6x7.4mm (GEN4-ULCD-32D-CLB)
- 104.2x72.1x6.9mm (GEN4-ULCD-35D-CLB)
- 101.1x56.6x7.8mm (GEN4-ULCD-35DCTCLB)
- 123x84.5x7.4mm (GEN4-ULCD-43D-CLB)
- 140.7x93.8x7.4mm (GEN4-ULCD-50D-CLB)
- 142.8x77.9x8.2mm (GEN4-ULCD-50DCT)
- 140.7x93.8x8.2mm (GEN4-ULCD-50DCTCLB)
Usup:
- 4...5.5V DC (ULCD-104D, ULCD-104DCT)
- 5V DC (GEN4-ULCD-2xxx, GEN4-ULCD-3xxx, GEN4-ULCD-43D-CLB, GEN4-ULCD-50D-CLB, GEN4-ULCD-50DCTxxx, GEN4-ULCD-70D-CLB)
- 7...30V DC (4DISCOVERY-50x)
Memory:
- 32kB SRAM (ULCD-104D, ULCD-104DCT, ULCD-56Dxxx)
- 32kB RAM (4DISCOVERY-50x, GEN4-ULCD-2xxx, GEN4-ULCD-3xxx, GEN4-ULCD-43D-CLB, GEN4-ULCD-43DCT-xx, GEN4-ULCD-50Dxxx, GEN4-ULCD-70D-CLB, GEN4-ULCD-70DCT-CS, SK-90Dxxx, ULCD-90DCT, ULCD-90DT)
- 192kB FLASH (4DISCOVERY-50x, GEN4-ULCD-2xxx, GEN4-ULCD-3xxx, GEN4-ULCD-43D-CLB, GEN4-ULCD-43DCT-xx, GEN4-ULCD-50Dxxx, GEN4-ULCD-70D-CLB, GEN4-ULCD-70DCT-CS)
- 32MB FLASH (ULCD-480RD-CLB, ULCD-480RD-CTP-CLB, ULCD-56Dxxx)
- 32b SRAM (ULCD-480RD-CLB, ULCD-480RD-CTP-CLB)
Application - series/manufacturer:
- Arduino (GEN4-ULCD-43DCT-CA, GEN4-ULCD-43DCT-SA, SK-90DCT-AR, SK-90DT-AR)
- Raspberry Pi (GEN4-ULCD-43DCT-CP, GEN4-ULCD-43DCT-SP, SK-90DCT-PI, SK-90DT-PI)
Body col.:
- black (4DISCOVERY-50B)
