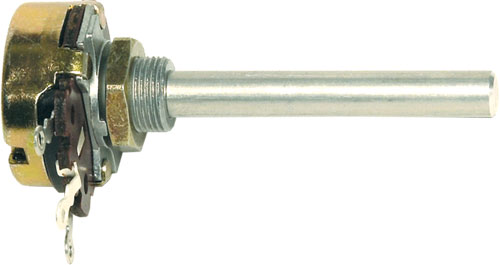

4W wirewound potentiometers
| Type of potentiometer | shaft |
| Track mat. | wirewound |
| Characteristics | linear |
| Power | 4W |
| Max operating voltage | 500V DC |
| Linearity tolerance | ±2% |
| Mechanical rotation angle | 300 ±10° |
| Electrical rotation angle | 280 ±5° |
| Shaft diameter | 6mm |
| Shaft length | 42mm |
| Thread length | 8mm |
| Fastening thread | M10x0,75 |
| Dimensions | Fig. 1. |
| Symbol | Resist. | Tol. |
|---|---|---|
| [Ω] | [%] | |
| POT4W-5R | 5 | ±20 |
| POT4W-10R | 10 | ±20 |
| POT4W-25R | 25 | ±10 |
| POT4W-50R | 50 | ±10 |
| POT4W-100R | 100 | ±10 |
| POT4W-250R | 250 | ±10 |
| POT4W-500R | 500 | ±10 |
| POT4W-1K | 1k | ±10 |
| POT4W-2K5 | 2.5k | ±10 |
| POT4W-5K | 5k | ±10 |
| POT4W-10K | 10k | ±10 |
| POT4W-25K | 25k | ±10 |
