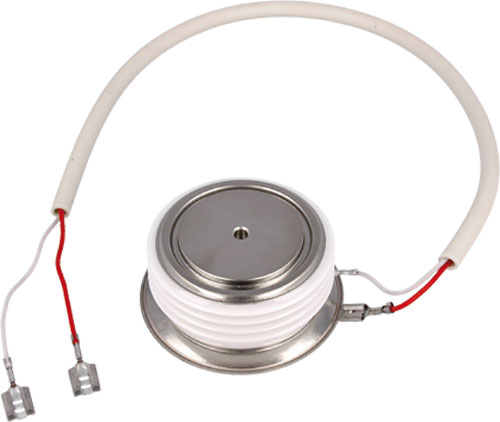

ABB thyristors
| Manufacturer | ABB |
| Thyristor | hockey-puck |
| Mounting | Press-Pack |
| Symbol | Urmax | If | Ifmax | Ifsm | Igt | Features | Body dimensions |
|---|---|---|---|---|---|---|---|
| [kV] | [A] | [A] | [kA] | [A] | [mm] | ||
| 5SGA06D4502 | 4.5 | 210 | 330 | 3 | 2 | gate turn-off thyristor (GTO) | Ø60/Ø34 |
| 5SGA15F2502 | 2.5 | 570 | 900 | 10 | 1.5 | gate turn-off thyristor (GTO) | Ø75/Ø47 |
| 5SGA20H2501 | 2.5 | 830 | 1.3k | 16 | 2.5 | gate turn-off thyristor (GTO) | Ø93/Ø63 |
| 5SGA20H4502 | 4.5 | 710 | 1.115k | 13 | 2.5 | gate turn-off thyristor (GTO) | Ø93/Ø63 |
| 5SGA25H2501 | 2.5 | 830 | 1.3k | 16 | 2.5 | gate turn-off thyristor (GTO) | Ø93/Ø63 |
| 5SGA30J2501 | 2.5 | 1.3k | 2.04k | 30 | 4 | gate turn-off thyristor (GTO) | Ø108/Ø75 |
| 5SGA30J4502 | 4.5 | 930 | 1.46k | 24 | 3 | gate turn-off thyristor (GTO) | Ø108/Ø75 |
| 5SGA40L4501 | 4.5 | 1k | 1.57k | 25 | 4 | gate turn-off thyristor (GTO) | Ø120/Ø85 |
| 5SGF30J4502 | 4.5 | 960 | 1.51k | 24 | 2.5 | gate turn-off thyristor (GTO) | Ø108/Ø75 |
| 5SGF40L4502 | 4.5 | 1.18k | 1.85k | 25 | 4 | gate turn-off thyristor (GTO) | Ø120/Ø85 |
| 5SHX19L6020 | 5.5 | 840 | 1.32k | 18 | - | integral control unit; reverse conducting IGCT (RC-IGCT) | Ø120.5/Ø85 |
| 5SHX26L4520 | 4.5 | 1.01k | 1.59k | 17 | - | integral control unit; reverse conducting IGCT (RC-IGCT) | Ø120.5/Ø85 |
| 5SHY35L4520 | 4.5 | 1.7k | 2.67k | 32 | - | asymmetric IGCT (AS-IGCT); integral control unit | Ø120.5/Ø85 |
| 5SHY35L4521 | 4.5 | 1.7k | - | 32 | - | asymmetric IGCT (AS-IGCT); integral control unit | Ø120.5/Ø85 |
| 5SHY35L4522 | 4.5 | 2.1k | 3.3k | 35 | - | asymmetric IGCT (AS-IGCT); integral control unit | Ø120.5/Ø85 |
| 5SHY42L6500 | 6.5 | 1.29k | 2.03k | 26 | - | asymmetric IGCT (AS-IGCT); integral control unit | Ø120.5/Ø85 |
| 5SHY45L4520 | 4.5 | 1.43k | 2.24k | 28 | - | asymmetric IGCT (AS-IGCT); integral control unit | Ø120.5/Ø85 |
| 5SHY50L5500 | 5.5 | 1.29k | 2.03k | 26 | - | asymmetric IGCT (AS-IGCT); integral control unit | Ø120.5/Ø85 |
| 5SHY55L4500 | 4.5 | 1.87k | 2.94k | 33 | - | asymmetric IGCT (AS-IGCT); integral control unit | Ø120.5/Ø85 |
| 5STB13N6500 | 6.5 | 1.405k | 2.205k | 22 | 400m | bi-directional controlled thyristor (BCT) | Ø150/Ø100 |
| 5STB17N5200 | 5.2 | 1.8k | 2.83k | 29 | 400m | bi-directional controlled thyristor (BCT) | Ø150/Ø100 |
| 5STB18N4200 | 4.2 | 1.92k | 3.02k | 32 | 400m | bi-directional controlled thyristor (BCT) | Ø150/Ø100 |
| 5STB18U6500 | 6.5 | 1.58k | 2.48k | 29.7 | 400m | bi-directional controlled thyristor (BCT) | Ø172/Ø110 |
| 5STB24N2800 | 2.8 | 2.43k | 3.82k | 43 | 400m | bi-directional controlled thyristor (BCT) | Ø150/Ø100 |
| 5STB24Q2800 | 2.8 | 2.63k | 4.13k | 43 | 400m | bi-directional controlled thyristor (BCT) | Ø151/Ø100 |
| 5STB25U5200 | 5.2 | 1.98k | 3.1k | 42 | 400m | bi-directional controlled thyristor (BCT) | Ø172/Ø110 |
| 5STF06D2020 | 2 | 557 | 875 | 8 | 500m | fast switching | Ø58.5/Ø34 |
| 5STF23H2040 | 2 | 2.322k | 3.648k | 42 | 500m | fast switching | Ø101.5/Ø63 |
| 5STF28H2060 | 2 | 2.667k | 4.189k | 46.5 | 500m | fast switching | Ø101.5/Ø63 |
| 5STP03D6500 | 6.5 | 390 | 610 | 4.7 | 400m | phase control thyristor (PCT) | Ø60/Ø34 |
| 5STP03X6500 | 6.5 | 340 | 540 | 4.7 | 400m | phase control thyristor (PCT) | Ø60/Ø34 |
| 5STP04D4200 | 4.2 | 470 | 740 | 7.1 | 400m | phase control thyristor (PCT) | Ø60/Ø34 |
| 5STP04D5200 | 5.2 | 420 | 650 | 6.1 | 400m | phase control thyristor (PCT) | Ø60/Ø34 |
| 5STP06D2800 | 2.8 | 640 | 1100 | 8.8 | 400m | phase control thyristor (PCT) | Ø60/Ø34 |
| 5STP07D1800 | 1.8 | 760 | 1.19k | 9 | 400m | phase control thyristor (PCT) | Ø60/Ø34 |
| 5STP08F6500 | 6.5 | 850 | 1.34k | 15.1 | 400m | phase control thyristor (PCT) | Ø75/Ø47 |
| 5STP08G6500 | 6.5 | 730 | 1.15k | 15.1 | 400m | phase control thyristor (PCT) | Ø75/Ø47 |
| 5STP12F4200 | 4.2 | 1.15k | 1.8k | 17.3 | 400m | phase control thyristor (PCT) | Ø75/Ø47 |
| 5STP12K6500 | 6.5 | 1.43k | 2.25k | 31.5 | 400m | phase control thyristor (PCT) | Ø102/Ø63 |
| 5STP16F2800 | 2.8 | 1.4k | 2.21k | 18 | 400m | phase control thyristor (PCT) | Ø74.5/Ø47 |
| 5STP17H5200 | 5.2 | 1.97k | 3.09k | 34 | 400m | phase control thyristor (PCT) | Ø102/Ø63 |
| 5STP18F1800 | 1.8 | 1.78k | 2.79k | 21 | 400m | phase control thyristor (PCT) | Ø75/Ø47 |
| 5STP18H4200 | 4.2 | 2.17k | 3.4k | 32 | 400m | phase control thyristor (PCT) | Ø102/Ø63 |
| 5STP18M6500 | 6.5 | 1.83k | 2.87k | 47.5 | 400m | phase control thyristor (PCT) | Ø120/Ø78 |
| 5STP20F1601 | 1.6 | 1.901k | 2.987k | 27.3 | 250m | phase control thyristor (PCT) | Ø74.5/Ø47 |
| 5STP24H2800 | 2.8 | 2.78k | 4.36k | 43 | 400m | phase control thyristor (PCT) | Ø102/Ø63 |
| 5STP25L5200 | 5.2 | 2.83k | 4.45k | 50.5 | 400m | phase control thyristor (PCT) | Ø120/Ø78 |
| 5STP25M5200 | 5.2 | 2.4k | 3.77k | 50.5 | 400m | phase control thyristor (PCT) | Ø120/Ø78 |
| 5STP26N6500 | 6.5 | 2.88k | 4.52k | 65 | 400m | phase control thyristor (PCT) | Ø150/Ø100 |
| 5STP27H1800 | 1.8 | 2.94k | 4.62k | 50.5 | 400m | phase control thyristor (PCT) | Ø102/Ø63 |
| 5STP27H2801 | 2.8 | 2.67k | 4.193k | 43 | 250m | phase control thyristor (PCT) | Ø101.5/Ø63 |
| 5STP27N8500 | 8.5 | 2.66k | 4.18k | 64 | 400m | phase control thyristor (PCT) | Ø150/Ø100 |
| 5STP27Q8500 | 8.5 | 2.87k | 4.51k | 64 | 400m | phase control thyristor (PCT) | Ø150/Ø100 |
| 5STP28L4200 | 4.2 | 3.29k | 5.16k | 54 | 400m | phase control thyristor (PCT) | Ø120/Ø78 |
| 5STP33L2800 | 2.8 | 3.76k | 5.9k | 65.5 | 400m | phase control thyristor (PCT) | Ø120/Ø78 |
| 5STP34N5200 | 5.2 | 3.45k | 5.42k | 63 | 400m | phase control thyristor (PCT) | Ø150/Ø100 |
| 5STP34Q5200 | 5.2 | 3.72k | 5.84k | 63 | 400m | phase control thyristor (PCT) | Ø150/Ø100 |
| 5STP38N4200 | 4.2 | 4.09k | 6.42k | 64.5 | 400m | phase control thyristor (PCT) | Ø150/Ø100 |
| 5STP38Q4200 | 4.2 | 4.42k | 6.95k | 64.5 | 400m | phase control thyristor (PCT) | Ø150/Ø100 |
| 5STP42L1800 | 1.8 | 4.31k | 6.77k | 64 | 400m | phase control thyristor (PCT) | Ø120/Ø78 |
| 5STP42U6500 | 6.5 | 4.3k | 6.75k | 86 | 400m | phase control thyristor (PCT) | Ø172/Ø110 |
| 5STP45N2800 | 2.8 | 5.25k | 8.24k | 77 | 400m | phase control thyristor (PCT) | Ø150/Ø100 |
| 5STP45Q2800 | 2.8 | 5.71k | 8.97k | 77 | 400m | phase control thyristor (PCT) | Ø150/Ø100 |
| 5STP45Y8500 | 8.5 | 4.45k | 6.99k | 90 | 400m | phase control thyristor (PCT) | Ø192/Ø143 |
| 5STP48Y7200 | 7.2 | 5.04k | 7.91k | 92 | 400m | phase control thyristor (PCT) | Ø192/Ø143 |
| 5STP50Q1800 | 1.8 | 6.1k | 9.58k | 94 | 400m | phase control thyristor (PCT) | Ø150/Ø100 |
| 5STP52U5200 | 5.2 | 5.2k | 8.17k | 99 | 400m | phase control thyristor (PCT) | Ø172/Ø110 |
| 5STR03T2040 | 2 | 360 | 566 | 5 | 400m | reverse conducting thyristor (RCT) | Ø58.5/Ø34 |
| YS130101-BH | - | - | - | - | - | phase control thyristor (PCT) | - |
