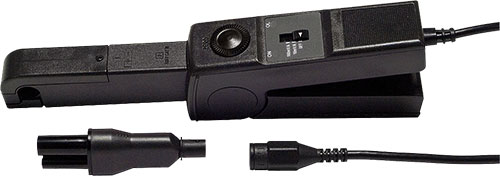

AC/DC 100A current clamp adaptor
Type of test accessories:
- AC current clamp adapter
Measurement:
- AC current
Power supply:
- battery 6LR61 9V x1 (CA-P01120570, CA-P01120571, CA-P01120572)
- battery AA 1,5V x2 (CA-A1xxx, CA-MA1xxx0)
- battery AAA 1,5V x2 (CA-P01120575Z, CA-P01120576Z, CA-P01120577Z, CA-P01120578)
Manufacturer:
- CHAUVIN ARNOUX
Manufacturer's part number:
- AMPFLEX A110-120 (CA-A110-120)
- AMPFLEX A110-45 (CA-A110-45)
- AMPFLEX A110-80 (CA-A110-80)
- AMPFLEX A130-80 (CA-A130-80)
- B102 CV CLAMP LEAKAGE CT. JAW : 112 MM (CA-B102)
- D30CN CLAMP LCA 3000/1 (CA-D30CN)
- D30N CLAMP LDA 3000/1 (CA-D30N)
- D31N CLAMP LDA 0.5-1-1.5K /1 (CA-D31N)
- D32N CLAMP LDA 1-2-3K/1 (CA-D32N)
- D33N CLAMP DA 3000/5 (CA-D33N)
- D34N CLAMP LDA 0.5-1-1.5K /5 (CA-D34N)
- D35N CLAMP DA 1-2-3K/5 (CA-D35N)
- D36N CLAMP LDA 3000/3 (CA-D36N)
- D37N CLAMP (CA-D37N)
- D38N OSCILLO CLAMP CV (CA-D38N)
- MINIFLEX MA110-170 (CA-MA110-170)
- MINIFLEX MA110-250 (CA-MA110-250)
- MINIFLEX MA110-350 (CA-MA110-350)
- MINIFLEX MA130-250 (CA-MA130-250)
- MINIFLEX MA200 HF 30-300A/3V 17 (CA-P01120570)
- MINIFLEX MA200 HF 30-300A/3V 25 (CA-P01120571)
- MINIFLEX MA200 HF 3000A/3V 035 (CA-P01120572)
- P01120575Z (CA-P01120575Z)
- P01120576Z (CA-P01120576Z)
- P01120577Z (CA-P01120577Z)
- P01120578 (CA-P01120578)
- Y1N CLAMP LCA 500/0.5 (CA-Y1N)
- Y2N CLAMP LCA 500/0.5 (CA-Y2N)
- Y3N CLAMP LC 500/5 (CA-Y3N)
- Y4N CLAMP CV 500/0.5 (CA-Y4N)
- Y7N CLAMP CV OSCILLO (CA-Y7N)
Max. dia. of measured cable:
- 190mm (CA-A110-120)
- 70mm (CA-A110-45, CA-MA110-250, CA-MA130-250, CA-P01120571)
- 125mm (CA-A110-80, CA-A130-80)
- 112mm (CA-B102)
- 64mm (CA-D3xxN)
- 45mm (CA-MA110-170, CA-P01120570)
- 100mm (CA-MA110-350, CA-P01120572)
- 30mm (CA-Y1N, CA-Y4N, CA-Y7N)
- 33mm (CA-Y2N, CA-Y3N)
Output signal:
- 0,1mV/1A (CA-A110-120)
- 0,1mV/1A AC (CA-D38N)
- 0,333mA/1A AC (CA-D30CN, CA-D30N, CA-D32N)
- 0,5mA/1A AC (CA-D32N)
- 1,666mA/1A AC (CA-D33N, CA-D35N)
- 1,666mV/1A AC (CA-D37N)
- 100mV/1A (CA-A1xxx, CA-MA1xxx0, CA-P01120570, CA-P01120571)
- 100mV/1A AC (CA-D37N)
- 10mA/1A (CA-Y3N)
- 10mA/1A AC (CA-D34N)
- 10mV/1A (CA-A1xxx, CA-MA1xxx0, CA-P01120570, CA-P01120571)
- 10mV/1A AC (CA-D37N, CA-D38N)
- 1mA/1A (CA-Y1N, CA-Y2N)
- 1mA/1A AC (CA-D31N, CA-D32N, CA-D36N)
- 1mV DC/1A AC (CA-Y4N)
- 1mV/1A (CA-A1xxx, CA-B102, CA-MA1xxx0, CA-P01120572, CA-Y7N)
- 1mV/1A AC (CA-D38N)
- 1mV/1mA (CA-A110-45, CA-A110-80, CA-B102, CA-MA110-xx0)
- 2,5mA/1A AC (CA-D35N)
- 2mA/1A AC (CA-D31N)
- 33,3mA/1A AC (CA-D34N)
- 5mA/1A AC (CA-D34N, CA-D35N)
Resistance to:
- fall from 1,5m height (CA-YxN)
Conform to the norm:
- CAT III 1000V (CA-MA1xxx0, CA-P01120570, CA-P01120571, CA-P01120572)
- CAT III 600V (CA-B102, CA-D3xxN, CA-YxN)
- CAT IV 1000V (CA-A1xxx)
- CAT IV 300V (CA-B102, CA-D3xxN, CA-YxN)
- CAT IV 600V (CA-MA1xxx0, CA-P0112057xx)
- EN 61010 (CA-A1xxx, CA-B102, CA-D3xxN, CA-MA1xxx0, CA-P01120570, CA-P01120571, CA-P01120572, CA-YxN)
- IEC 61010 (CA-P01120575Z, CA-P01120576Z, CA-P01120577Z, CA-P01120578)
Dimensions:
- 285x175x43mm (CA-B102)
- 120x315x48mm (CA-D30CN, CA-D30N, CA-D31N, CA-D32N, CA-D33N, CA-D34N, CA-D35N, CA-D36N, CA-D37N)
- 310x120x48mm (CA-D38N)
- 100x60x20mm (CA-P01120575Z, CA-P01120576Z, CA-P01120577Z, CA-P01120578)
- 66x195x34mm (CA-YxN)
Cable length:
- 0.8m (CA-P01120575Z, CA-P01120576Z, CA-P01120577Z, CA-P01120578)
AC current measuring range:
- 500µA...4A (CA-B102)
- 10mA...30A (CA-D37N)
- 20...3999mA (CA-P01120575Z, CA-P01120576Z, CA-P01120577Z, CA-P01120578)
- 80mA...3A (CA-A110-45, CA-A110-80, CA-MA110-xx0)
- 500mA...30A (CA-A1xxx, CA-MA1xxx0, CA-P01120570, CA-P01120571)
- 500mA...300A (CA-A1xxx, CA-MA1xxx0, CA-P01120570, CA-P01120571)
- 500mA...400A (CA-B102)
- 500mA...3kA (CA-A1xxx, CA-MA1xxx0, CA-P01120572)
- 500mA...30kA (CA-A110-120)
- 1...30A (CA-D38N)
- 1...300A (CA-D37N, CA-D38N)
- 1...500A (CA-D31N, CA-D34N, CA-Y7N)
- 1...1000A (CA-D31N, CA-D32N, CA-D34N, CA-D35N)
- 1...1500A (CA-D31N, CA-D34N)
- 1...2000A (CA-D32N, CA-D35N, CA-D37N)
- 1...2400A (CA-D30CN, CA-D30N, CA-D32N, CA-D33N, CA-D35N, CA-D36N)
- 1...3000A (CA-D38N)
- 4...39.99A (CA-P01120575Z, CA-P01120576Z, CA-P01120577Z, CA-P01120578)
- 4...600A (CA-Y1N, CA-Y2N, CA-Y3N, CA-Y4N)
- 40...399.9A (CA-P01120575Z, CA-P01120576Z, CA-P01120577Z, CA-P01120578)
IP rating:
- IP20 (CA-xxxN)
- IP40 (CA-B102)
- IP50 (CA-P01120570, CA-P01120571, CA-P01120572)
- IP54 (CA-A1xxx, CA-MA1xxx0)
Gear:
Probe length:
- 1200mm (CA-A110-120)
- 450mm (CA-A110-45)
- 800mm (CA-A110-80, CA-A130-80)
- 170mm (CA-MA110-170, CA-P01120570, CA-P01120575Z)
- 250mm (CA-MA110-250, CA-MA130-250, CA-P01120571, CA-P01120576Z)
- 350mm (CA-MA110-350, CA-P01120572, CA-P01120577Z)
- 1000mm (CA-P01120578)
Battery/ rechargeable battery:
- none (CA-B102, CA-D3xxN, CA-YxN)
Alias:
- P01120575Z (CA-P01120575Z)
- P01120576Z (CA-P01120576Z)
- P01120577Z (CA-P01120577Z)
- P01120578 (CA-P01120578)
Frequency:
- 10...3kHz (CA-P01120575Z, CA-P01120576Z, CA-P01120577Z, CA-P01120578)
Manufacturer series:
- MA400D (CA-P01120575Z, CA-P01120576Z, CA-P01120578)
- MA4000D (CA-P01120577Z)
Operating temperature:
- 0...50°C (CA-P01120575Z, CA-P01120576Z, CA-P01120577Z, CA-P01120578)
Display:
Display parameters:
- (4000) (CA-P01120575Z, CA-P01120576Z, CA-P01120577Z, CA-P01120578)
AC current measuring accuracy:
Connection:
- banana 4mm socket x2 (CA-D30N, CA-D31N, CA-D32N, CA-D33N, CA-D34N, CA-D35N, CA-D36N, CA-D37N)
- banana 4mm plug (CA-Y1N, CA-Y2N, CA-Y3N, CA-Y4N)
- banana 4mm plug x2 (CA-A110-xxx, CA-B102, CA-D30CN, CA-MA110-xx0)
- BNC (CA-D38N, CA-P01120570, CA-P01120571, CA-P01120572, CA-Y7N)
- BNC x3 (CA-A130-80, CA-MA130-250)
| Symbol | Product description |
|---|---|
| CA-A110-120 | AC current clamp adapter;Øcable:190mm;Probe l:1200mm;IP54 |
| CA-A110-45 | AC current clamp adapter;Øcable:70mm;Probe l:450mm;IP54 |
| CA-A110-80 | AC current clamp adapter;Øcable:125mm;Probe l:800mm;IP54 |
| CA-A130-80 | AC current clamp adapter;Øcable:125mm;Probe l:800mm;IP54 |
| CA-B102 | AC current clamp adapter;Øcable:112mm;Len:1.5m;IP40 |
| CA-D30CN | AC current clamp adapter;Øcable:64mm;I AC:1÷2400A;±0.5%;IP20 |
| CA-D30N | AC current clamp adapter;Øcable:64mm;I AC:1÷2400A;±0.5%;IP20 |
| CA-D31N | AC current clamp adapter;Øcable:64mm;±0.5%;IP20 |
| CA-D32N | AC current clamp adapter;Øcable:64mm;±0.5%;IP20 |
| CA-D33N | AC current clamp adapter;Øcable:64mm;I AC:1÷2400A;±1%;IP20 |
| CA-D34N | AC current clamp adapter;Øcable:64mm;±0.5%;IP20 |
| CA-D35N | AC current clamp adapter;Øcable:64mm;±0.5%;IP20 |
| CA-D36N | AC current clamp adapter;Øcable:64mm;I AC:1÷2400A;±0.5%;IP20 |
| CA-D37N | AC current clamp adapter;Øcable:64mm;IP20 |
| CA-D38N | AC current clamp adapter;Øcable:64mm;Len:2m;IP20;BNC |
| CA-MA110-170 | AC current clamp adapter;Øcable:45mm;Probe l:170mm;IP54 |
| CA-MA110-250 | AC current clamp adapter;Øcable:70mm;Probe l:250mm;IP54 |
| CA-MA110-350 | AC current clamp adapter;Øcable:100mm;Probe l:350mm;IP54 |
| CA-MA130-250 | AC current clamp adapter;Øcable:70mm;Probe l:250mm;IP54 |
| CA-P01120570 | AC current clamp adapter;Øcable:45mm;Probe l:170mm;IP50;BNC |
| CA-P01120571 | AC current clamp adapter;Øcable:70mm;Probe l:250mm;IP50;BNC |
| CA-P01120572 | AC current clamp adapter;Øcable:100mm;I AC:500mA÷3kA;IP50 |
| CA-P01120575Z | AC current clamp adapter;LCD;(4000);Probe l:170mm;0÷50°C |
| CA-P01120576Z | AC current clamp adapter;LCD;(4000);Probe l:250mm;0÷50°C |
| CA-P01120577Z | AC current clamp adapter;LCD;(4000);Probe l:350mm;0÷50°C |
| CA-P01120578 | AC current clamp adapter;LCD;(4000);Probe l:1000mm;0÷50°C |
| CA-Y1N | AC current clamp adapter;Øcable:30mm;I AC:4÷600A;±3%;IP20 |
| CA-Y2N | AC current clamp adapter;Øcable:33mm;I AC:4÷600A;±1%;IP20 |
| CA-Y3N | AC current clamp adapter;Øcable:33mm;I AC:4÷600A;±3%;IP20 |
| CA-Y4N | AC current clamp adapter;Øcable:30mm;I AC:4÷600A;±1%;IP20 |
| CA-Y7N | AC current clamp adapter;Øcable:30mm;I AC:1÷500A;±2%;Len:2m |
