AC/DC converters

AC/DC converters, AC07W85-265/12D, AC07W85-265/5, AC07W85-265/12, AC07W85-265/15 |EN|
ManufacturerCHINFA ELECTRONICS
Symbol Uin Operating temperature Power Iout Output voltage Iout2 Uout2 Efficiency Body dim. Dimensions Insulation voltage Uinsul
[V AC] [°C] [W] [A] [V DC] [A] [V DC] [%] [mm] [kV] [V DC]
AC15W85-265/15 85...265 -40...71 15 1 15 - - 82 76.2x50.8x22.8 Fig. 1. - -

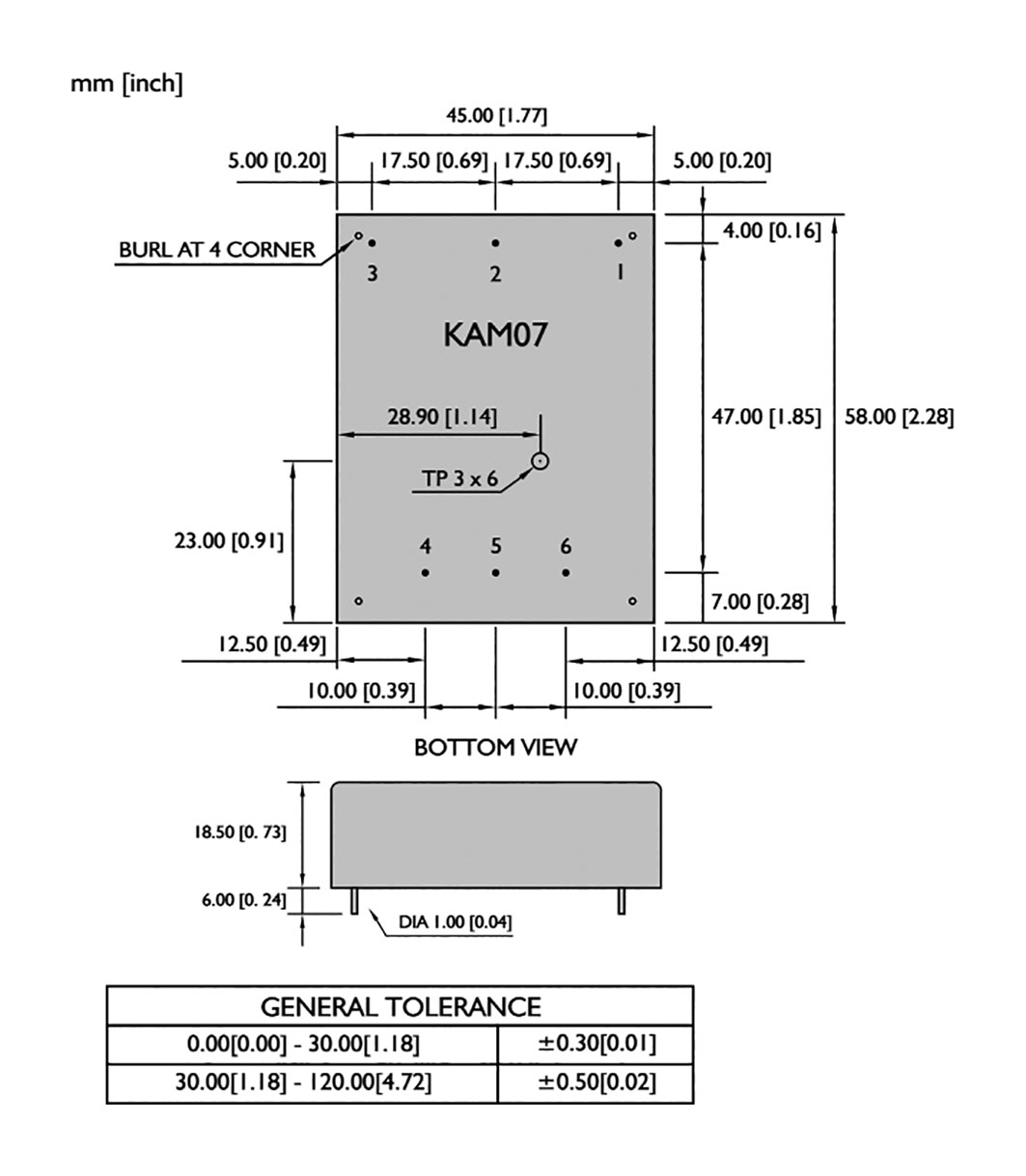

KAM0703 65...265 -40...71 6.6 2 3.3 - - 71 45x47x18.5 Fig. 2. 3 4242

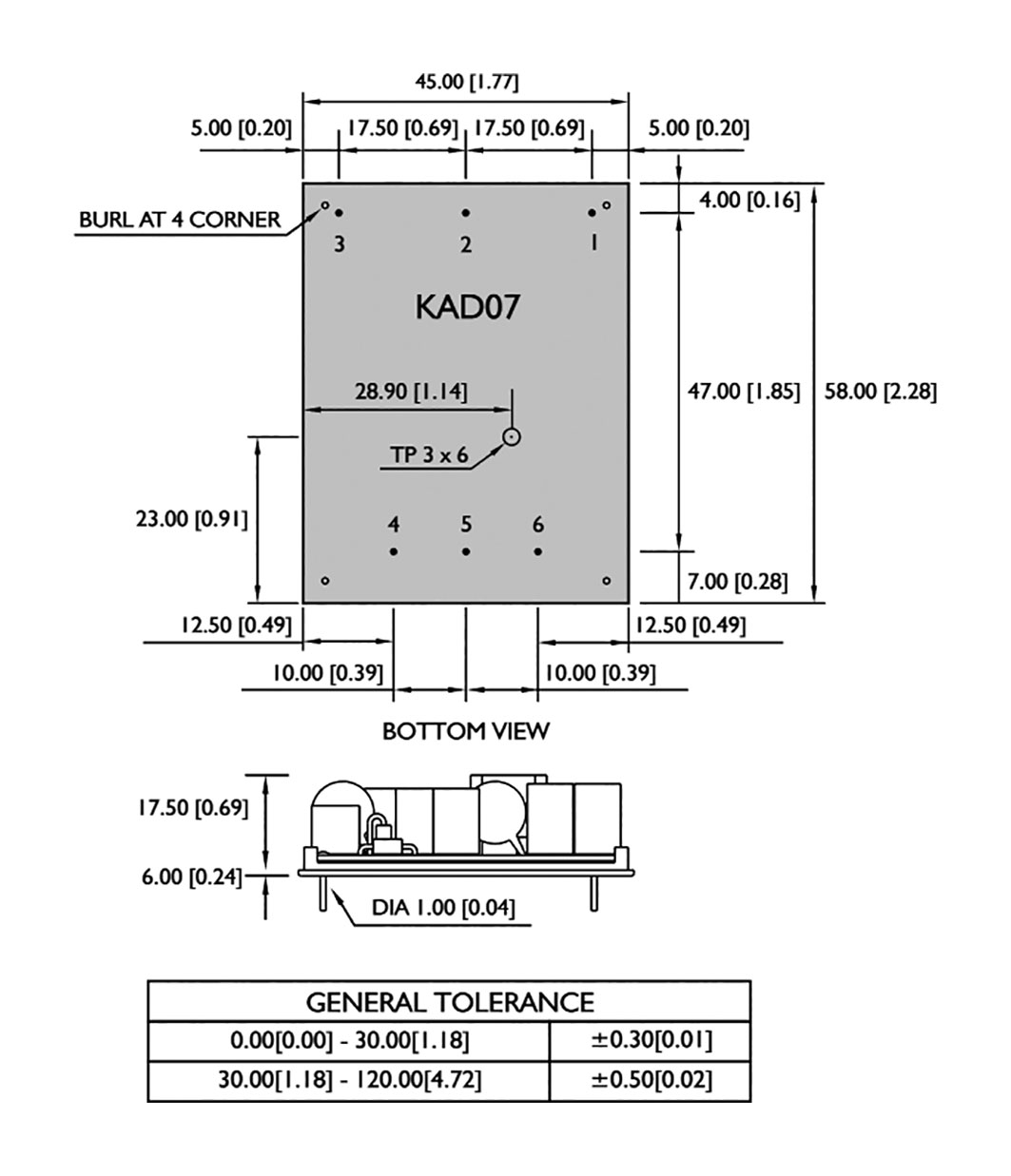

KAD0703 65...265 -40...71 6.6 2 3.3 - - 71 45x47x17.5 Fig. 3. 3 4242
KAM0705 65...265 -40...71 7.5 1.5 5 - - 71 45x47x18.5 Fig. 2. 3 4242
KAD0705 65...265 -40...71 7.5 1.5 5 - - 71 45x47x17.5 Fig. 3. 3 4242
KAM0712 65...265 -40...71 7.5 0.63 12 - - 75 45x47x18.5 Fig. 2. 3 4242
KAD0712 65...265 -40...71 7.5 0.63 12 - - 75 45x47x17.5 Fig. 3. 3 4242
KAM0715 65...265 -40...71 7.5 0.5 15 - - 75 45x47x18.5 Fig. 2. 3 4242
KAD0715 65...265 -40...71 7.5 0.5 15 - - 75 45x47x17.5 Fig. 3. 3 4242

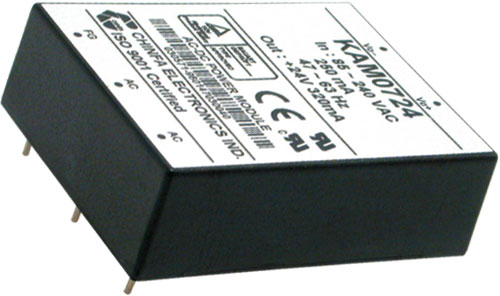

KAM0724 65...265 -40...71 7.5 0.32 24 - - 75 45x47x18.5 Fig. 2. 3 4242
KAD0724 65...265 -40...71 7.5 0.32 24 - - 75 45x47x17.5 Fig. 3. 3 4242
KAM0712D 65...265 -40...71 7.6 0.32 12 - - 79 45x47x18.5 Fig. 2. 3 4242
KAD0712D 65...265 -40...71 7.6 0.32 12 0.32 -12 79 45x47x17.5 Fig. 3. 3 4242
KAM0715D 65...265 -40...71 7.5 0.25 15 0.25 -15 80 45x47x18.5 Fig. 2. 3 4242
KAD0715D 65...265 -40...71 7.5 0.25 15 0.25 -15 80 45x47x17.5 Fig. 3. 3 4242
KAM07503D 65...265 -40...71 6.3 1 3.3 0.6 5 70 45x47x18.5 Fig. 2. 3 4242
KAD07503D 65...265 -40...71 6.3 1 3.3 0.6 5 70 45x47x17.5 Fig. 3. 3 4242
KAM07512D 65...265 -40...71 6.6 0.6 5 0.3 12 77 45x47x18.5 Fig. 2. 3 4242
KAD07512D 65...265 -40...71 6.6 0.6 5 0.3 12 77 45x47x17.5 Fig. 3. 3 4242
KAM1003 85...265 -40...71 10 3 3.3 - - 70 50.8x76.2x22.8 Fig. 4. 3 4242
KAM1005 85...265 -40...71 10 2 5 - - 72 50.8x76.2x22.8 Fig. 4. 3 4242
KAM1012 85...265 -40...71 10 0.84 12 - - 77 50.8x76.2x22.8 Fig. 4. 3 4242
KAM1015 85...265 -40...71 10 0.67 15 - - 77 50.8x76.2x22.8 Fig. 4. 3 4242
KAM1024 85...265 -40...71 10 0.42 24 - - 78 50.8x76.2x22.8 Fig. 4. 3 4242
KAM1012D 85...265 -40...71 10 0.42 12 420m -12 77 50.8x76.2x22.8 Fig. 4. 3 4242
KAM1015D 85...265 -40...71 10 0.335 15 335m -15 77 50.8x76.2x22.8 Fig. 4. 3 4242
KAM10503D 85...265 -40...71 10 0.8 5 2 3.3 74 50.8x76.2x22.8 Fig. 4. 3 4242

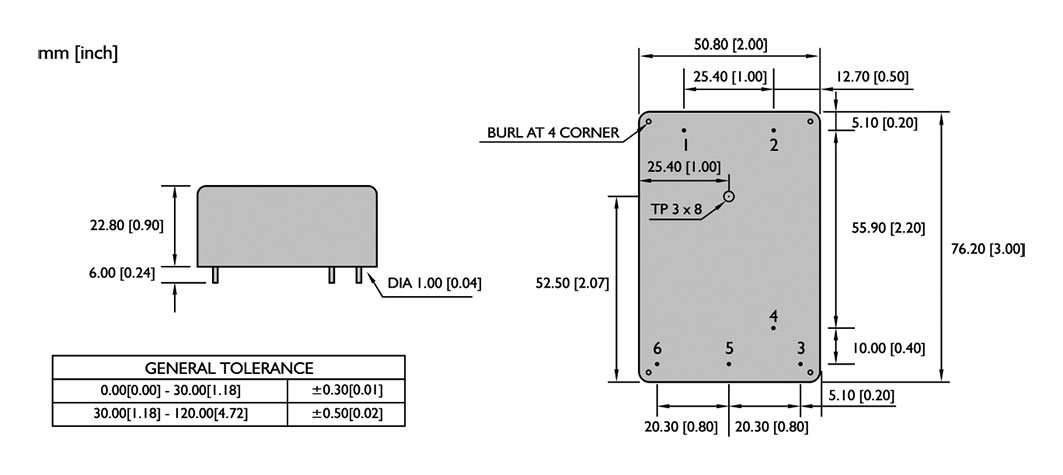

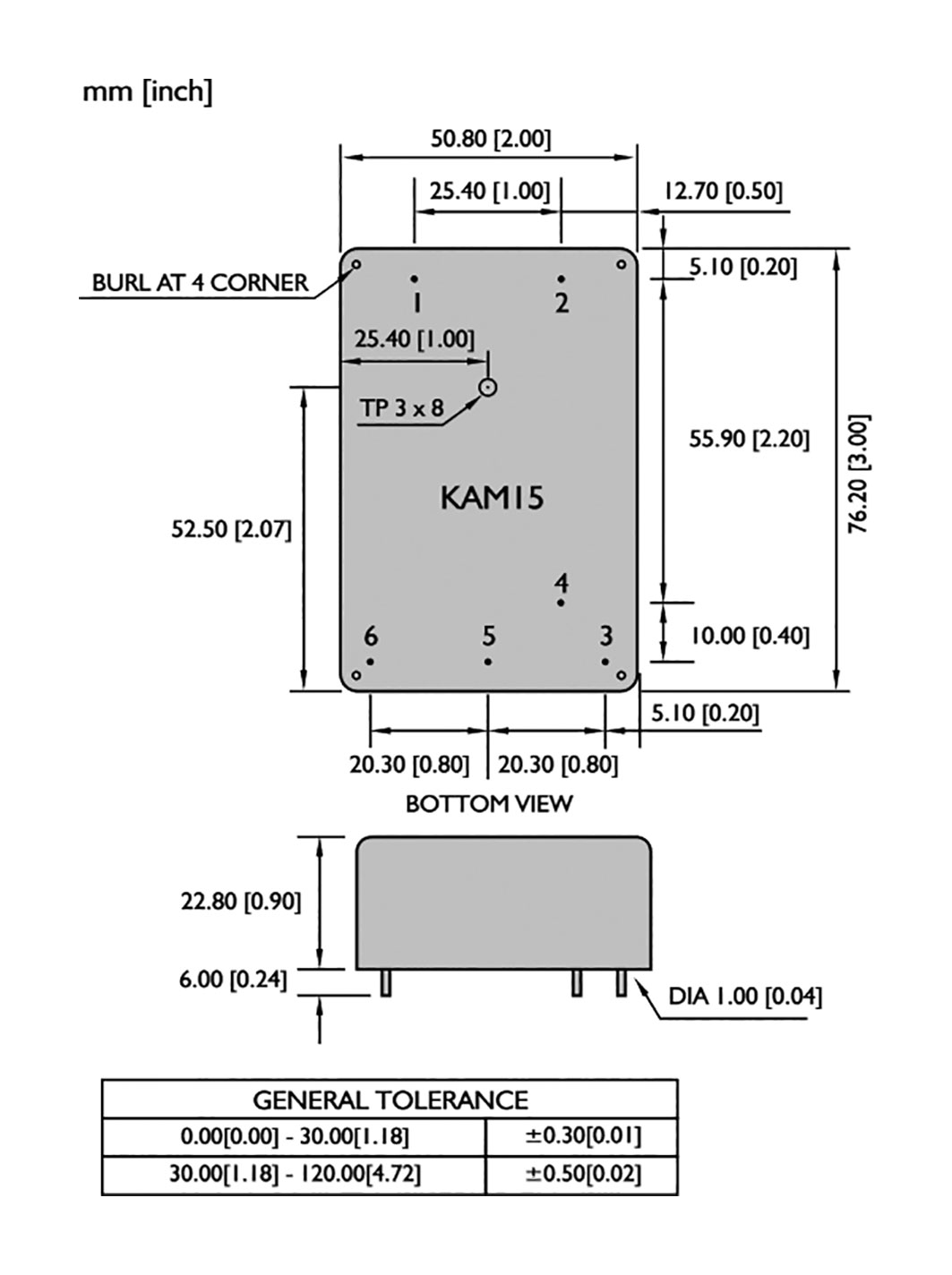

KAM1503 85...265 -40...71 15 4 3.3 - - 73 50.8x76.2x22.8 Fig. 5. 3 4242

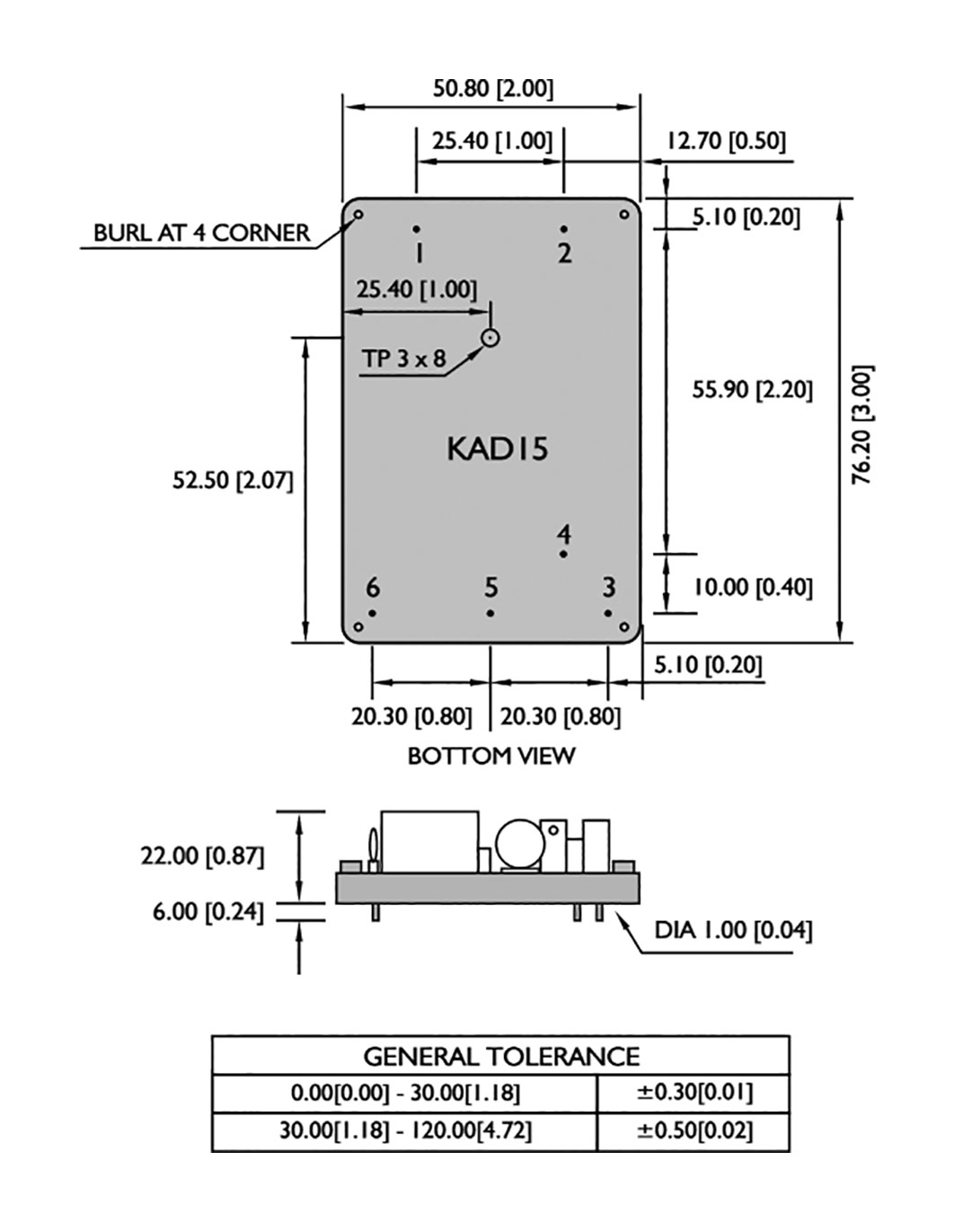

KAD1503 85...265 -40...71 15 4 3.3 - - 73 50.8x76.2x22 Fig. 6. 3 4242
KAM1505 85...265 -40...71 15 3 5 - - 76 50.8x76.2x22.8 Fig. 5. 3 4242
KAD1505 85...265 -40...71 15 3 5 - - 76 50.8x76.2x22 Fig. 6. 3 4242
KAM1512 85...265 -40...71 15 1.25 12 - - 82 50.8x76.2x22.8 Fig. 5. 3 4242
KAD1512 85...265 -40...71 15 1.25 12 - - 82 50.8x76.2x22 Fig. 6. 3 4242
KAM1515 85...265 -40...71 15 1.25 12 - - 82 50.8x76.2x22.8 Fig. 5. 3 4242
KAD1515 85...265 -40...71 15 1 15 - - 82 50.8x76.2x22 Fig. 6. 3 4242
KAM1524 85...265 -40...71 15 0.625 24 - - 82 50.8x76.2x22.8 Fig. 5. 3 4242
KAD1524 85...265 -40...71 15 0.625 24 - - 82 50.8x76.2x22 Fig. 6. 3 4242
KAM1512D 85...265 -40...71 15 0.625 12 0.625 -12 81 50.8x76.2x22.8 Fig. 5. 3 4242
KAD1512D 85...265 -40...71 15 0.625 12 0.625 -12 81 50.8x76.2x22 Fig. 6. 3 4242
KAM1515D 85...265 -40...71 15 0.5 15 0.5 -15 80 50.8x76.2x22.8 Fig. 5. 3 4242
KAD1515D 85...265 -40...71 15 0.5 15 0.5 -15 80 50.8x76.2x22 Fig. 6. 3 4242
KAM15503D 85...265 -40...71 15 1 5 3 3.3 74 50.8x76.2x22.8 Fig. 5. 3 4242
KAD15503D 85...265 -40...71 15 1 5 3 3.3 74 50.8x76.2x22 Fig. 6. 3 4242

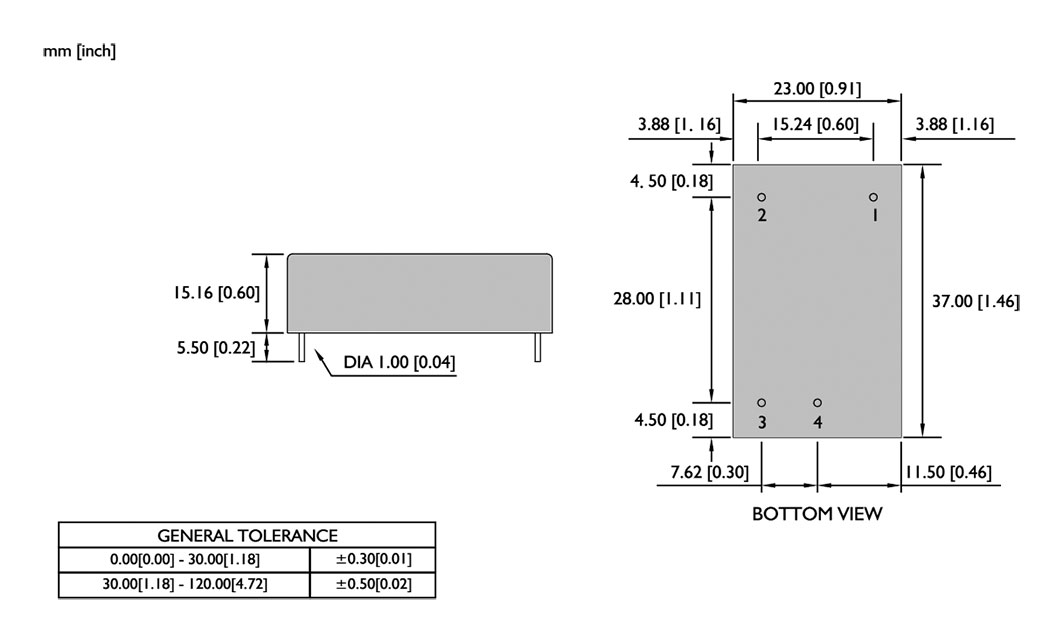

KAS0303 75...265 -35...71 3 0.9 3.3 - - 67 23x37x15.16 Fig. 7. 3 4242
KAS0305 75...265 -35...71 3 0.6 5 - - 69 23x37x15.16 Fig. 7. 3 4242
KAS0309 75...265 -35...71 3 0.335 9 - - 70 23x37x15.16 Fig. 7. 3 4242
KAS0312 75...265 -35...71 3 0.25 12 - - 71 23x37x15.16 Fig. 7. 3 4242
KAS0315 75...265 -35...71 3 0.2 15 - - 72 23x37x15.16 Fig. 7. 3 4242
KAS0324 75...265 -35...71 3 0.125 24 - - 72 23x37x15.16 Fig. 7. 3 4242

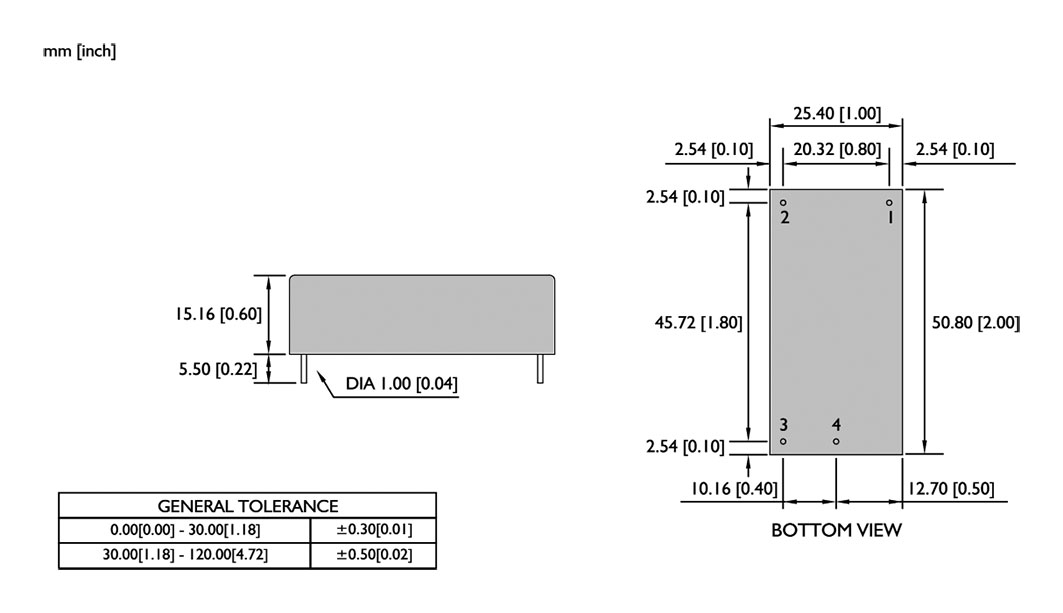

KAS0503 75...265 -40...71 5 1.5 3.3 - - 68 25.4x50.8x15.16 Fig. 8. 3 4242
KAS0505 75...265 -40...71 5 1 5 - - 69 25.4x50.8x15.16 Fig. 8. 3 4242
KAS0509 75...265 -40...71 5 0.56 9 - - 73 25.4x50.8x15.16 Fig. 8. 3 4242
KAS0512 75...265 -40...71 5 0.42 12 - - 73 25.4x50.8x15.16 Fig. 8. 3 4242
KAS0515 75...265 -40...71 5 0.34 15 - - 73 25.4x50.8x15.16 Fig. 8. 3 4242
KAS0524 75...265 -40...71 5.5 0.23 24 - - 73 25.4x50.8x15.16 Fig. 8. 3 4242

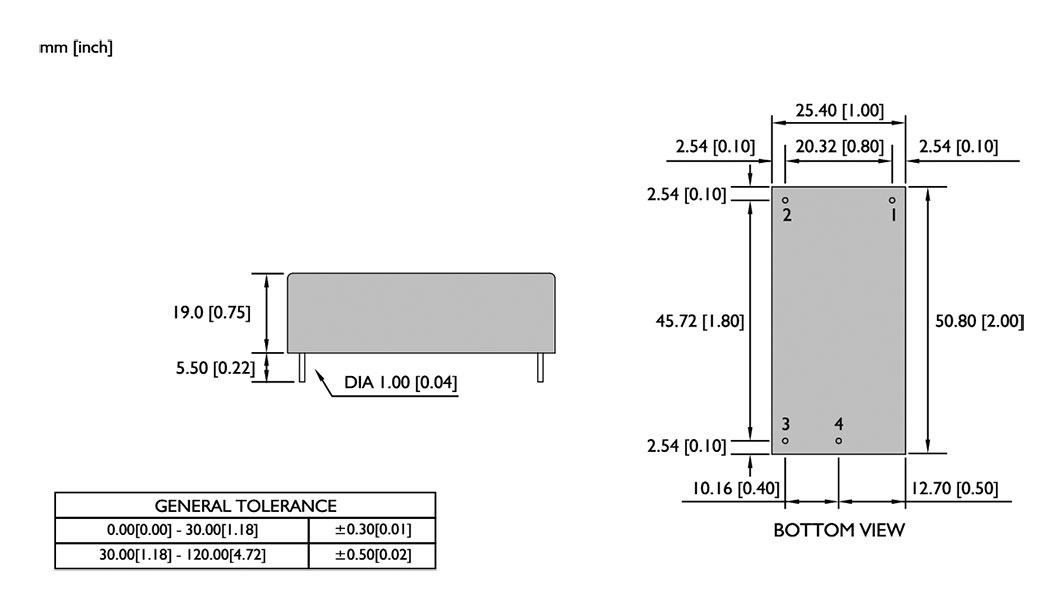

KAS0703 75...265 -40...71 6.6 2 3.3 - - 71 25.4x50.8x19 Fig. 9. 3 4242
KAS0705 75...265 -40...71 7 1.4 5 - - 71 25.4x50.8x19 Fig. 9. 3 4242
KAS0709 75...265 -40...71 7 0.78 9 - - 75 25.4x50.8x19 Fig. 9. 3 4242
KAS0712 75...265 -40...71 7.2 0.6 12 - - 75 25.4x50.8x19 Fig. 9. 3 4242
KAS0715 75...265 -40...71 7.2 0.48 15 - - 75 25.4x50.8x19 Fig. 9. 3 4242
KAS0724 75...265 -40...71 7.2 0.3 24 - - 75 25.4x50.8x19 Fig. 9. 3 4242

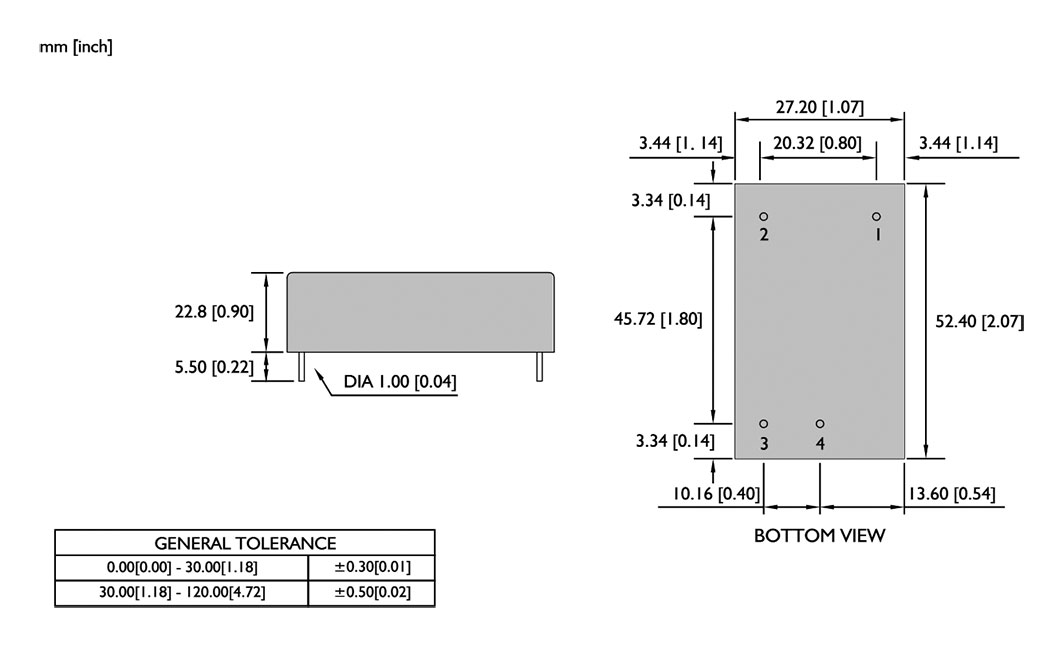

KAS1003 85...265 -40...71 8.2 2.5 3.3 - - 72 27.2x52.4x22.8 Fig. 10. 3 4242
KAS1005 85...265 -40...71 10 2 5 - - 74 27.2x52.4x22.8 Fig. 10. 3 4242
KAS1009 85...265 -40...71 10 1.12 9 - - 77 27.2x52.4x22.8 Fig. 10. 3 4242
KAS1012 85...265 -40...71 10 0.84 12 - - 77 27.2x52.4x22.8 Fig. 10. 3 4242
KAS1015 85...265 -40...71 10 0.67 15 - - 77 27.2x52.4x22.8 Fig. 10. 3 4242
KAS1024 85...265 -40...71 10 0.42 24 - - 77 27.2x52.4x22.8 Fig. 10. 3 4242
