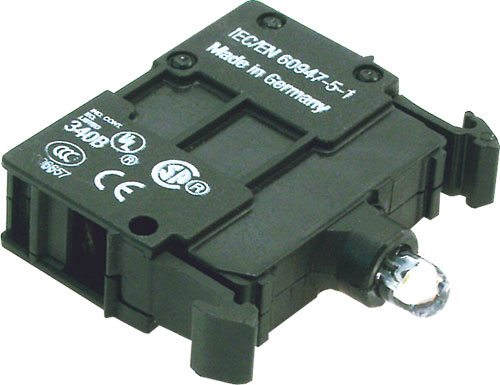

Accessories - fixing LED elements for M22 series
Fixing LED elements service life is 100 000 hrs at 25°C.
| Manufacturer | EATON ELECTRIC |
| Switch accessories | illuminating unit |
| Switch standard | 22mm |
| Application - series/manufacturer | RMQ-Titan |
| Illumination | LED |
| Symbol | Leads | Mounting | Usup | Usup | Ioper. |
|---|---|---|---|---|---|
| [V AC] | [V DC] | [mA] | |||
| M22-LED-W | screw terminals | front | 12...30 | 12...30 | 8...15 |
| M22-LED-R | screw terminals | front | 12...30 | 12...30 | 8...15 |
| M22-LED-G | screw terminals | front | 12...30 | 12...30 | 8...15 |
| M22-LED-B | screw terminals | front | 12...30 | 12...30 | 8...15 |
| M22-LED230-W | screw terminals | front | 85...264 | - | 5...15 |
| M22-LED230-R | screw terminals | front | 85...264 | - | 5...15 |
| M22-LED230-G | screw terminals | front | 85...264 | - | 5...15 |
| M22-LED230-B | screw terminals | front | 85...264 | - | 5...15 |
| M22-LEDC-W | screw terminals | for back plate | 12...30 | 12...30 | 8...15 |
| M22-LEDC-R | screw terminals | for back plate | 12...30 | 12...30 | 8...15 |
| M22-LEDC-G | screw terminals | for back plate | 12...30 | 12...30 | 8...15 |
| M22-LEDC-B | screw terminals | for back plate | 12...30 | 12...30 | 8...15 |
| M22-LEDC230-W | screw terminals | for back plate | 85...264 | - | 5...15 |
| M22-LEDC230-R | screw terminals | for back plate | 85...264 | - | 5...15 |
| M22-LEDC230-G | screw terminals | for back plate | 85...264 | - | 5...15 |
| M22-LEDC230-B | screw terminals | for back plate | 85...264 | - | 5...15 |
| M22-FLED-W | spring clamps | front | 12...30 | 12...30 | 8...15 |
| M22-FLED-R | spring clamps | front | 12...30 | 12...30 | 8...15 |
| M22-FLED-G | spring clamps | front | 12...30 | 12...30 | 8...15 |
| M22-FLED-B | spring clamps | front | 12...30 | 12...30 | 8...15 |
| M22-FLED-RG | spring clamps | front | - | 24 | 10...15 |
| M22-FLED-RGB | spring clamps | front | - | 24 | 8...15 |
| M22-CLEDC-W | spring clamps | for back plate | 12...30 | 12...30 | 8...15 |
| M22-CLEDC-R | spring clamps | for back plate | 12...30 | 12...30 | 8...15 |
| M22-CLEDC-G | spring clamps | for back plate | 12...30 | 12...30 | 8...15 |
| M22-CLEDC-B | spring clamps | for back plate | 12...30 | 12...30 | 8...15 |
| M22-CLED230-W | spring clamps | for back plate | 85...264 | - | 5...15 |
| M22-CLED230-R | spring clamps | for back plate | 85...264 | - | 5...15 |
| M22-CLED230-G | spring clamps | for back plate | 85...264 | - | 5...15 |
| M22-CLED230-B | spring clamps | for back plate | 85...264 | - | 5...15 |
| M22-CLED-W | spring clamps | front | 12...30 | 12...30 | - |
| M22-CLED-R | spring clamps | front | 12...30 | 12...30 | - |
| M22-CLED-G | spring clamps | front | 12...30 | 12...30 | - |
| M22-CLED-B | spring clamps | front | 12...30 | 12...30 | - |
| M22-SWD-LED-B | - | front | - | - | - |
| M22-SWD-LEDC-B | - | for back plate | - | - | - |
| M22-SWD-LEDC-G | - | for back plate | - | - | - |
| M22-SWD-LEDC-R | - | for back plate | - | - | - |
| M22-SWD-LEDC-W | - | for back plate | - | - | - |
| M22-SWD-LED-G | - | front | - | - | - |
| M22-SWD-LED-R | - | front | - | - | - |
| M22-SWD-LED-W | - | front | - | - | - |
| Symbol | Operating temperature | Features | Family | Interface | Lamp colour |
|---|---|---|---|---|---|
| [°C] | |||||
| M22-LED-W | -25...70 | - | - | - | white |
| M22-LED-R | -25...70 | - | - | - | red |
| M22-LED-G | -25...70 | - | - | - | green |
| M22-LED-B | -25...70 | - | - | - | blue |
| M22-LED230-W | -25...70 | - | - | - | white |
| M22-LED230-R | -25...70 | - | - | - | red |
| M22-LED230-G | -25...70 | - | - | - | green |
| M22-LED230-B | -25...70 | - | - | - | blue |
| M22-LEDC-W | -25...70 | - | - | - | white |
| M22-LEDC-R | -25...70 | - | - | - | red |
| M22-LEDC-G | -25...70 | - | - | - | green |
| M22-LEDC-B | -25...70 | - | - | - | blue |
| M22-LEDC230-W | -25...70 | - | - | - | white |
| M22-LEDC230-R | -25...70 | - | - | - | red |
| M22-LEDC230-G | -25...70 | - | - | - | green |
| M22-LEDC230-B | -25...70 | - | - | - | blue |
| M22-FLED-W | -25...70 | flat | RMQ Flat Design, RMQ Flat Rear | - | white |
| M22-FLED-R | -25...70 | flat | RMQ Flat Design, RMQ Flat Rear | - | red |
| M22-FLED-G | -25...70 | flat | RMQ Flat Design, RMQ Flat Rear | - | green |
| M22-FLED-B | -25...70 | flat | RMQ Flat Design, RMQ Flat Rear | - | blue |
| M22-FLED-RG | -25...70 | flat | RMQ Flat Design, RMQ Flat Rear | - | red/green |
| M22-FLED-RGB | -25...70 | flat | RMQ Flat Design, RMQ Flat Rear | - | RGB |
| M22-CLEDC-W | -25...70 | - | - | - | white |
| M22-CLEDC-R | -25...70 | - | - | - | red |
| M22-CLEDC-G | -25...70 | - | - | - | green |
| M22-CLEDC-B | -25...70 | - | - | - | blue |
| M22-CLED230-W | -25...70 | - | - | - | white |
| M22-CLED230-R | -25...70 | - | - | - | red |
| M22-CLED230-G | -25...70 | - | - | - | green |
| M22-CLED230-B | -25...70 | - | - | - | blue |
| M22-CLED-W | -30...70 | - | - | - | white |
| M22-CLED-R | -30...70 | - | - | - | red |
| M22-CLED-G | -30...70 | - | - | - | green |
| M22-CLED-B | -30...70 | - | - | - | blue |
| M22-SWD-LED-B | -30...70 | - | - | SmartWire-DT | blue |
| M22-SWD-LEDC-B | -30...70 | - | - | SmartWire-DT | blue |
| M22-SWD-LEDC-G | -30...70 | - | - | SmartWire-DT | green |
| M22-SWD-LEDC-R | -30...70 | - | - | SmartWire-DT | red |
| M22-SWD-LEDC-W | -30...70 | - | - | SmartWire-DT | white |
| M22-SWD-LED-G | -30...70 | - | - | SmartWire-DT | green |
| M22-SWD-LED-R | -30...70 | - | - | SmartWire-DT | red |
| M22-SWD-LED-W | -30...70 | - | - | SmartWire-DT | white |
