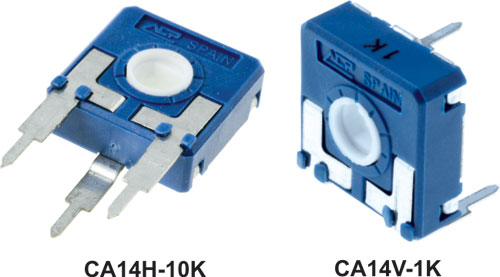

ACP trimmers, CA14 series
| Tolerance | ±20% |
| Characteristics | linear |
| Power | 250mW |
| Mechanical durability | 1000 cycles |
| Torque | max. 2.5Ncm |
| Mechanical rotation angle | 265 ±5° |
| Electrical rotation angle | 245 ±20° |
| Operating temperature | -25...70°C |
| Max operating voltage | 250V DC |
| Body dimensions | 14x14x6mm |
| Type of potentiometer | mounting |
| Potentiometer standard | 14mm |
| Kind of potentiometer | single turn |
| Track mat. | carbon |
| Symbol | Resistance | Term. pitch | Dimensions |
|---|---|---|---|
| [kΩ] | [mm] | ||
| CA14H-10K | 10 | 10x5 | Fig. 1. |
| CA14H-100K | 100 | 10x5 | Fig. 1. |
| CA14V-1K | 1 | 12.5x10 | Fig. 2. |
| CA14V-5K | 5 | 12.5x10 | Fig. 2. |
| CA14V-10K | 10 | 12.5x10 | Fig. 2. |
| CA14V-100K | 100 | 12.5x10 | Fig. 2. |
| CA14V-500K | 500 | 12.5x10 | Fig. 2. |
| CA14V-50K | 50 | 12.5x10 | Fig. 2. |
| CA14V-47K | 47 | 12.5x10 | Fig. 2. |
| CA14NV-47K | 47 | - | - |
