ALPHA & OMEGA SEMICONDUCTOR IGBT transistors

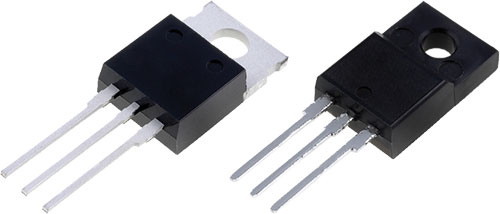

ALPHA & OMEGA SEMICONDUCTOR IGBT transistors, AOD5B60D, AOB5B60D, AOT5B60D, AOTF5B60D |EN|
ManufacturerALPHA & OMEGA SEMICONDUCTOR
Symbol Transistor Uce Ic Icm Uge Power dissipation QG t(on) t(off) Case Mounting Package Ucesat Eon Eoff
[V] [A] [A] [V] [W] [nC] [ns] [ns] [V] [mJ] [mJ]
AOD5B60D IGBT 600 5 20 ±20 21.7 9.4 27 124 TO252 SMD reel, tape 1.55 0.14 0.04
AOB5B60D IGBT 600 5 20 ±20 41.2 9.4 - - TO263 SMD reel, tape - - -
AOD6B60M1 IGBT 600 6 18 ±30 28 14 20 158 TO252 SMD reel, tape 1.7 0.12 0.09
AOB10B60D IGBT 600 10 40 ±20 82 17.4 - - TO263 SMD reel, tape - - -
AOT10B60D IGBT 600 10 40 ±20 82 17.4 25 80.8 TO220 THT tube 1.53 0.26 0.07
AOTF10B60D IGBT 600 10 40 ±20 16.7 17.4 25 80.8 TO220F THT tube 1.53 0.35 0.16
AOTF10B60D2 IGBT 600 10 20 ±20 12 9.4 26 124 TO220F THT tube 1.55 0.14 0.04
AOK10B60D IGBT 600 10 40 ±20 82 17.4 - - TO247 THT tube - - -
AOB15B60D IGBT 600 15 60 ±20 83.3 25.4 - - TO263 SMD reel, tape - - -
AOT15B60D IGBT 600 15 60 ±20 83.3 25.4 40 83 TO220 THT tube 1.6 0.42 0.11
AOTF15B60D IGBT 600 15 60 ±20 25 25.4 40 83 TO220F THT tube 1.6 0.42 0.11
AOTF15B60D2 IGBT 600 15 40 ±20 16.7 17.4 25 80.8 TO220F THT tube 1.53 0.26 0.07
AOK15B60D IGBT 600 15 60 ±20 83.3 25.4 - - TO247 THT tube - - -
AOK20B60D1 IGBT 600 20 74 ±20 83 24.6 45 107 TO247 THT tube 1.85 0.76 0.18
AOK30B60D IGBT 600 30 128 ±20 111 47 - - TO247 THT tube - - -
AOK30B60D1 IGBT 600 30 96 ±20 83 34 66 89 TO247 THT tube 1.85 1.1 0.24
AOKS30B60D1 IGBT 600 30 96 ±20 83 34 - - TO247 THT tube - - -
AOK40B60D1 IGBT 600 40 140 ±20 111 45 53 102 TO247 THT tube 1.85 1.55 0.3
AOK50B60D1 IGBT 600 50 168 ±20 125 64 98 104 TO247 THT tube 1.85 2.37 0.5
AOK75B60D1 IGBT 600 75 290 ±20 300 118 104 155 TO247 THT tube 1.72 3.7 1.3
AOD5B65M1 IGBT 650 5 15 ±30 28 14 21 157 TO252 SMD reel, tape 1.57 0.08 0.07
AOD5B65MQ1E IGBT 650 5 15 ±20 21 8.8 - - TO252 SMD reel, tape - - -
AOD5B65N1 IGBT 650 5 15 ±30 21 9.2 23 114 TO252 SMD reel, tape 2.5 0.081 0.049
AOB5B65M1 IGBT 650 5 15 ±30 42 14 21 161 TO263 SMD reel, tape 1.57 0.08 0.07
AOT5B65M1 IGBT 650 5 15 ±30 42 14 21 161 TO220 THT tube 1.57 0.08 0.07
AOTF5B65M1 IGBT 650 5 15 ±30 10 14 21 157 TO220F THT tube 1.87 0.09 0.12
AOD6B65MQ1E IGBT 650 6 18 ±20 38 13.5 - - TO252 SMD reel, tape - - -
AOD7B65M3 IGBT 650 7 21 ±30 28 14 21 136 TO252 SMD reel, tape 1.87 0.108 0.099
AOD8B65MQ1 IGBT 650 8 24 ±30 36 22 - - TO252 SMD reel, tape - - -
AOT8B65M3 IGBT 650 8 24 ±30 42 14 - - TO220 THT tube - - -
AOTF8B65MQ1 IGBT 650 8 24 ±30 12 22 - - TO220F THT tube - - -
AOB10B65M1 IGBT 650 10 30 ±30 75 24 - - TO263 SMD reel, tape - - -
AOT10B65M1 IGBT 650 10 30 ±30 75 24 27 137 TO220 THT tube 1.6 0.18 0.13
AOT10B65M2 IGBT 650 10 30 ±30 75 24 27 137 TO220 THT tube 1.6 0.18 0.13
AOT10B65MQ2 IGBT 650 10 30 ±30 75 24 - - TO220 THT tube - - -
AOTF10B65M1 IGBT 650 10 30 ±30 12 24 28 131 TO220F THT tube 1.6 0.18 0.13
AOTF10B65M2 IGBT 650 10 30 ±30 12 24 28 131 TO220F THT tube 1.6 0.18 0.13
AOB15B65M1 IGBT 650 15 45 ±30 107 32 - - TO263 SMD reel, tape - - -
AOB15B65MQ1 IGBT 650 15 45 ±30 107 32 - - TO263 SMD reel, tape - - -
AOT15B65M1 IGBT 650 15 45 ±30 107 32 33 108 TO220 THT tube 1.7 0.29 0.2
AOT15B65M3 IGBT 650 15 45 ±30 75 25.4 27 122 TO220 THT tube 1.95 0.28 0.19
AOT15B65MQ1 IGBT 650 15 45 ±30 107 32 - - TO220 THT tube - - -
AOTF15B65M1 IGBT 650 15 45 ±30 14 32 34 135 TO220F THT tube 1.7 0.29 0.2
AOTF15B65M2 IGBT 650 15 45 ±30 14 32 34 135 TO220F THT tube 1.7 0.29 0.2
AOTF15B65M3 IGBT 650 15 45 ±30 12 25.4 27 108 TO220F THT tube 1.95 0.28 0.19
AOTF15B65MQ1 IGBT 650 15 45 ±30 14 32 - - TO220F THT tube - - -
AOB20B65M1 IGBT 650 20 60 ±30 114 46 - - TO263 SMD reel, tape - - -
AOT20B65M1 IGBT 650 20 60 ±30 114 46 51 135 TO220 THT tube 1.7 0.47 0.27
AOTF20B65LN2 IGBT 650 20 60 ±30 18 52 - - TO220F THT tube - - -
AOTF20B65M1 IGBT 650 20 60 ±30 18 46 51 166 TO220F THT tube 1.7 0.47 0.27
AOTF20B65M2 IGBT 650 20 60 ±30 18 46 59 168 TO220F THT tube 1.7 0.58 0.28
AOK20B65M1 IGBT 650 20 60 ±30 114 46 51 178 TO247 THT tube 1.7 0.47 0.27
AOK20B65M2 IGBT 650 20 60 ±30 114 46 59 178 TO247 THT tube 1.7 0.58 0.28
AOBS30B65LN IGBT 650 30 90 ±30 114 52 - - TO263 SMD reel, tape - - -
AOK30B65M2 IGBT 650 30 90 ±30 150 63 76 193 TO247 THT tube 1.66 1.02 0.41
AOK40B65GQ1 IGBT 650 40 120 ±30 113 86 - - TO247 THT tube - - -
AOK40B65H1 IGBT 650 40 120 ±30 150 63 82 173 TO247 THT tube 1.9 1.27 0.46
AOK40B65H2AL IGBT 650 40 120 ±30 105 61 64 152 TO247 THT tube 2.05 1.17 0.54
AOK40B65HQ3 IGBT 650 40 120 ±30 156 74 - - TO247 THT tube - - -
AOK40B65M3 IGBT 650 40 120 ±30 150 59 80 175 TO247 THT tube 1.95 1.3 0.5
AOKS40B65H2AL IGBT 650 40 120 ±30 105 61 64 151 TO247 THT tube 2.05 1.17 0.54
AOK50B65H1 IGBT 650 50 150 ±30 188 76 111 206 TO247 THT tube 1.9 1.92 0.85
AOK50B65M2 IGBT 650 50 150 ±30 250 102 114 268 TO247 THT tube 1.72 2.09 1.03
AOK60B65H1 IGBT 650 60 180 ±30 250 90 118 268 TO247 THT tube 1.88 2.42 1.17
AOK60B65H2AL IGBT 650 60 180 ±30 166 84 113 270 TO247 THT tube 1.95 2.36 1.17
AOK75B65H1 IGBT 650 75 225 ±30 278 109 140 319 TO247 THT tube 1.85 3.77 2.04
AOK20B120E1 IGBT 1.2k 20 80 ±30 167 60.5 - 339 TO247 THT tube 1.68 - 0.83
AOK30B120D2 IGBT 1.2k 30 120 ±30 170 67 - 340 TO247 THT tube 1.77 - 1.28
AOK40B120H1 IGBT 1.2k 40 120 ±30 250 128 133 375 TO247 THT tube 1.8 2.45 1.24
AOK40B120N1 IGBT 1.2k 40 160 ±30 300 100 - - TO247 THT tube - - -
AOK40B120P1 IGBT 1.2k 40 160 ±30 300 202 - - TO247 THT tube - - -
AOK20B135D1 IGBT 1.35k 20 80 ±20 170 66 - 480 TO247 THT tube 1.57 - 1.05
AOK30B135C1 IGBT 1.35k 30 120 ±30 144 65 - - TO247 THT tube - - -
AOK30B135W1 IGBT 1.35k 30 120 ±30 170 62 - 362 TO247 THT tube 1.8 - 1.47
