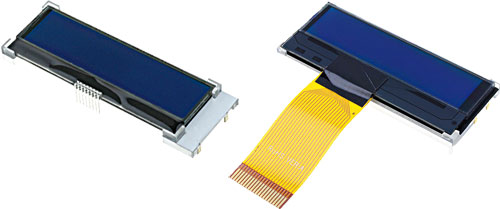

Alphanumeric LCD, COG modules, RAYSTAR
| Manufacturer | RAYSTAR OPTRONICS |
| Type of display | LCD |
| Kind of display | alphanumeric |
| Illumination | LED |
| Backlight colour | white |
| Symbol | Number of characters | Technology | Window dimensions | Backgr. colour |
|---|---|---|---|---|
| [mm] | ||||
| RX1602A2-FHW-TS | 16x2 | COG, FSTN Positive | 61x15.1 | - |
| RX1602A2-GHW-TS | 16x2 | COG, STN Positive | 61x15.1 | grey |
| RX1602A2-TIW-TS | 16x2 | COG, FSTN Negative | 61x15.1 | - |
| RX1602A2-YHW-TS | 16x2 | COG, STN Positive | 61x15.1 | yellow-green |
| RX1602A3-BIW-TS | 16x2 | COG, STN Negative | 61x15.1 | blue |
| RX1602A3-FHW-TS | 16x2 | COG, FSTN Positive | 61x15.1 | - |
| RX1602A3-GHW-TS | 16x2 | COG, STN Positive | 61x15.1 | grey |
| RX1602A3-TIW-TS | 16x2 | COG, FSTN Negative | 61x15.1 | - |
| RX1602A3-YHW-TS | 16x2 | COG, STN Positive | 61x15.1 | yellow-green |
| RX1602A4-BIW-TS | 16x2 | COG, STN Negative | 51.5x12.23 | blue |
| RX1602A4-FHW-TS | 16x2 | COG, FSTN Positive | 51.5x12.23 | - |
| RX1602A4-GHW-TS | 16x2 | COG, STN Positive | 51.5x12.23 | grey |
| RX1602A4-TIW-TS | 16x2 | COG, FSTN Negative | 51.5x12.23 | - |
| RX1602A4-YHW-TS | 16x2 | COG, STN Positive | 51.5x12.23 | yellow-green |
| RX1602A5-BIW-TS | 16x2 | COG, STN Negative | 40x10 | blue |
| RX1602A5-FHW-TS | 16x2 | COG, FSTN Positive | 40x10 | - |
| RX1602A5-GHW-TS | 16x2 | COG, STN Positive | 40x10 | grey |
| RX1602A5-TIW-TS | 16x2 | COG, FSTN Negative | 40x10 | blue |
| RX1602A5-YHW-TS | 16x2 | COG, STN Positive | 40x10 | green |
| RX2002A-BIW-TS | 20x2 | COG, STN Negative | 61x15.1 | blue |
| RX2002A-FHW-TS | 20x2 | COG, FSTN Positive | 61x15.1 | - |
| RX2002A-TIW-TS | 20x2 | COG, FSTN Negative | 61x15.1 | - |
| RX2002A-YHW-TS | 20x2 | COG, STN Positive | 61x15.1 | green |
| RX2004B-BIW | 20x4 | COG, STN Negative | 60.5x22.18 | blue |
| RX2004B-FHW | 20x4 | COG, FSTN Positive | 60.5x22.18 | - |
| RX2004C-BIW | 20x4 | COG, STN Negative | 60.5x22.18 | blue |
| RX2004C-FHW | 20x4 | COG, FSTN Positive | 60.5x22.18 | - |
Dimensions:
- 72.1x29.6x9.4mm (RX1602A2-xxW-TS)
- 74.2x25.2x6.3mm (RX1602A3-xxW-TS, RX2002A-BIW-TS, RX2002A-FHW-TS, RX2002A-TIW-TS)
- 62.8x23x6.3mm (RX1602A4-xxW-TS)
- 51.2x20.7x6.3mm (RX1602A5-xxW-TS)
- 74.2x25.2mm (RX2002A-YHW-TS)
- 74.3x36.4x6mm (RX2004B-BIW, RX2004B-FHW)
- 68.3x36.4x6mm (RX2004C-BIW, RX2004C-FHW)
Number of pins:
- 8 (RX1602A3-xxW-TS, RX1602A4-xxW-TS, RX1602A5-xxW-TS, RX2002A-xxW-TS)
- 10 (RX2004B-BIW, RX2004B-FHW)
- 12 (RX2004C-BIW, RX2004C-FHW)
- 20 (RX1602A2-xxW-TS)
Layout:
- 1x10 (RX2004B-BIW, RX2004B-FHW)
- 1x12 (RX2004C-BIW, RX2004C-FHW)
- 1x20 (RX1602A2-xxW-TS)
- 1x8 (RX1602A3-xxW-TS, RX1602A4-xxW-TS, RX1602A5-xxW-TS, RX2002A-xxW-TS)
Pitch:
- 1.27mm (RX1602A3-xxW-TS, RX1602A4-xxW-TS, RX1602A5-xxW-TS, RX2002A-xxW-TS, RX2004B-BIW, RX2004B-FHW)
Pitch:
- 1mm (RX1602A2-xxW-TS)
Controller:
- IST3602 (RX2004xxxW)
- ST7032 (RX1602A2-xxW-TS)
- ST7032i (RX1602A3-xxW-TS, RX1602A4-xxW-TS, RX1602A5-xxW-TS)
- ST7036 (RX2002A-YHW-TS)
- ST7036i (RX2002A-BIW-TS, RX2002A-FHW-TS, RX2002A-TIW-TS)
Usup:
- 2.7...3.3V DC (RX2004xxxW)
- 3...5V DC (RX1602AxxxW-TS)
- 3.4...3.5V DC (RX2002A-BIW-TS, RX2002A-FHW-TS, RX2002A-TIW-TS)
- 3.4...3.6V DC (RX2002A-YHW-TS)
Digit height:
- 5.55mm (RX1602A2-xxW-TS, RX1602A3-xxW-TS)
- 4.67mm (RX1602A4-xxW-TS, RX200xxx)
- 3.79mm (RX1602A5-xxW-TS)
Character width:
- 2.95mm (RX1602A2-xxW-TS, RX1602A3-xxW-TS)
- 2.6mm (RX1602A4-xxW-TS)
- 2mm (RX1602A5-xxW-TS)
- 2.45mm (RX200xxx)
Supported character set:
- English (RXxxxW-TS)
- Europe (RXxxxW-TS)
- Japanese (RXxxxW-TS)
