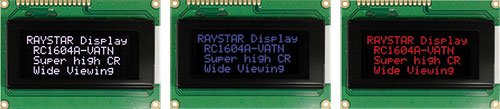

Alphanumeric LCD modules made with VA technology, RAYSTAR
| Manufacturer | RAYSTAR OPTRONICS |
| Type of display | LCD |
| Kind of display | alphanumeric |
| Illumination | LED |
| Contacts pitch | 2.54mm |
| Display technology | VA Negative |
| Number of pins | 16 |
| Usup | 4.5...5.5V DC |
| Symbol | Layout | Interface | Controller |
|---|---|---|---|
| RC0802A1-LLB-JWVE | 2x8 | - | RW1063 |
| RC0802A1-LLG-JWVE | 2x8 | - | RW1063 |
| RC0802A1-LLH-JWV | 2x8 | - | RW1063 |
| RC0802A1-LLR-JWVE | 2x8 | - | RW1063 |
| RC1602B4-LLH-JWV | 1x16 | SPI | - |
| RC1602B5-LLH-JWV | 1x16 | I2C | - |
| RC1602B-LLB-JWVE | 1x16 | - | RW1063 |
| RC1602B-LLG-JWVE | 1x16 | - | RW1063 |
| RC1602B-LLH-JWV | 1x16 | - | RW1063 |
| RC1602B-LLR-JWVE | 1x16 | - | RW1063 |
| RC1602B-LLY-JWVE | 1x16 | - | RW1063 |
| RC1602Y-LLB-JWVE | 1x16 | - | RW1063 |
| RC1602Y-LLG-JWVE | 1x16 | - | RW1063 |
| RC1602Y-LLH-JWV | 1x16 | - | RW1063 |
| RC1602Y-LLY-JWVE | 1x16 | - | RW1063 |
| RC1604A-LLB-JWVE | 1x16 | - | RW1063 |
| RC1604A-LLG-JWVE | 1x16 | - | RW1063 |
| RC1604A-LLH-JWV | 1x16 | - | RW1063 |
| RC1604A-LLY-JWVE | 1x16 | - | RW1063 |
| RC2002A2-LLB-JSVE | 2x8 | - | ST7066U |
| RC2002A2-LLG-JSVE | 2x8 | - | ST7066U |
| RC2002A2-LLH-JSV | 2x8 | - | ST7066U |
| RC2002A2-LLR-JSVE | 2x8 | - | ST7066U |
| RC2002A2-LLY-JSVE | 2x8 | - | ST7066U |
| RC2004A-LLB-JSVE | 1x16 | - | ST7066U |
| RC2004A-LLG-JSVE | 1x16 | - | ST7066U |
| RC2004A-LLH-JSV | 1x16 | - | ST7066U |
| RC2004A-LLR-JSVE | 1x16 | - | ST7066U |
| RC2004A-LLY-JSVE | 1x16 | - | ST7066U |
| Symbol | Number of characters | Backlight colour | Dimensions | Window dimensions |
|---|---|---|---|---|
| [mm] | [mm] | |||
| RC0802A1-LLB-JWVE | 8x2 | blue | 58x32x13.2 | 38x16 |
| RC0802A1-LLG-JWVE | 8x2 | green | 58x32x13.2 | 38x16 |
| RC0802A1-LLH-JWV | 8x2 | white | 58x32x13.2 | 38x16 |
| RC0802A1-LLR-JWVE | 8x2 | red | 58x32x13.2 | 38x16 |
| RC1602B4-LLH-JWV | 16x2 | white | 80x36x13.2 | 66x16 |
| RC1602B5-LLH-JWV | 16x2 | white | 80x36x13.2 | 66x16 |
| RC1602B-LLB-JWVE | 16x2 | blue | 80x36x13.2 | 66x16 |
| RC1602B-LLG-JWVE | 16x2 | green | 80x36x13.2 | 66x16 |
| RC1602B-LLH-JWV | 16x2 | white | 80x36x13.2 | 66x16 |
| RC1602B-LLR-JWVE | 16x2 | red | 80x36x13.2 | 66x16 |
| RC1602B-LLY-JWVE | 16x2 | yellow-green | 80x36x13.2 | 66x16 |
| RC1602Y-LLB-JWVE | 16x2 | blue | 122x44x13.6 | 99x24 |
| RC1602Y-LLG-JWVE | 16x2 | green | 122x44x13.6 | 99x24 |
| RC1602Y-LLH-JWV | 16x2 | white | 122x44x13.6 | 99x24 |
| RC1602Y-LLY-JWVE | 16x2 | yellow-green | 122x44x13.6 | 99x24 |
| RC1604A-LLB-JWVE | 16x4 | blue | 87x60x13.6 | 62x26 |
| RC1604A-LLG-JWVE | 16x4 | green | 87x60x13.6 | 62x26 |
| RC1604A-LLH-JWV | 16x4 | white | 87x60x13.6 | 62x26 |
| RC1604A-LLY-JWVE | 16x4 | yellow-green | 87x60x13.6 | 62x26 |
| RC2002A2-LLB-JSVE | 20x2 | blue | 115x36x13.9 | 85x18.6 |
| RC2002A2-LLG-JSVE | 20x2 | green | 115x36x13.9 | 85x18.6 |
| RC2002A2-LLH-JSV | 20x2 | white | 115x36x13.9 | 85x18.6 |
| RC2002A2-LLR-JSVE | 20x2 | red | 115x36x13.9 | 85x18.6 |
| RC2002A2-LLY-JSVE | 20x2 | yellow | 115x36x13.9 | 85x18.6 |
| RC2004A-LLB-JSVE | 20x4 | blue | 98x60x13.6 | 77x25.2 |
| RC2004A-LLG-JSVE | 20x4 | green | 98x60x13.6 | 77x25.2 |
| RC2004A-LLH-JSV | 20x4 | white | 98x60x13.6 | 77x25.2 |
| RC2004A-LLR-JSVE | 20x4 | red | 98x60x13.6 | 77x25.2 |
| RC2004A-LLY-JSVE | 20x4 | yellow-green | 98x60x13.6 | 77x25.2 |
Digit height:
- 5.56mm (RC0802A1-LLxxx)
- 5.55mm (RC1602Bxxx, RC2002A2-LLxxx)
- 9.22mm (RC1602Y-LLxxx)
- 4.75mm (RC1604A-LLxxx, RC2004A-LLxxx)
Character width:
- 2.96mm (RC0802A1-LLxxx)
- 2.95mm (RC1602Bxxx, RC1604A-LLxxx, RC2004A-LLxxx)
- 4.8mm (RC1602Y-LLxxx)
- 3.2mm (RC2002A2-LLxxx)
Supported character set:
- English
- Europe (RC0802A1-LLxxx, RC160xxx)
- Japanese
