Ammeter; analogue; CROMPTON / TE CONNECTIVITY
| Manufacturer | CROMPTON / TE CONNECTIVITY |
| Type of meter | ammeter |
| Kind of meter | analogue, mounting |
| Mounting | on panel |
| IP rating | IP52 |
| Measurement | DC current |
| Accuracy class | 1.5 |
Kind of measurement:
- direct (E242-89A-G-21, E243-01A-G-01, E243-01A-G-02, E243-01A-G-03, E243-01A-G-04, E243-01A-G-06, E243-01A-G-07, E244-01A-G-01, E244-01A-G-02, E244-01A-G-03, E244-01A-G-04, E244-01A-G-05, E244-01A-G-06, E244-01A-G-07, E244-01A-G-08)
- indirect with 60mV shunt (E242-89A-G-0x, E242-89A-G-1x, E242-89A-G-20, E243-01A-G-08, E243-01A-G-09, E243-01A-G-1x, E243-01A-G-2x, E244-01A-G-09, E244-01A-G-1x, E244-01A-G-2x)
Features:
- meters without dial plates (E24xxx-G)
| Symbol | I DC | Iin | Dimensions (W x H x D) |
|---|---|---|---|
| [A] | [mA] | [mm] | |
| E242-89A-G | - | 0...20 | 48x48 |

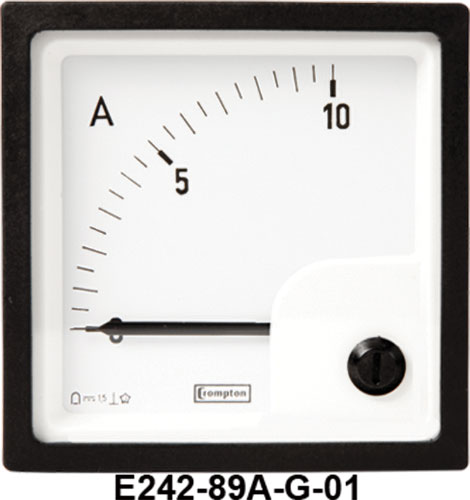

| E242-89A-G-01 | 0...10 | - | 48x48 |
| E242-89A-G-02 | 0...15 | - | 48x48 |
| E242-89A-G-03 | 0...20 | - | 48x48 |
| E242-89A-G-04 | 0...30 | - | 48x48 |
| E242-89A-G-05 | 0...40 | - | 48x48 |
| E242-89A-G-06 | 0...50 | - | 48x48 |
| E242-89A-G-07 | 0...60 | - | 48x48 |
| E242-89A-G-08 | 0...80 | - | 48x48 |
| E242-89A-G-09 | 0...100 | - | 48x48 |
| E242-89A-G-10 | 0...150 | - | 48x48 |
| E242-89A-G-11 | 0...200 | - | 48x48 |
| E242-89A-G-12 | 0...250 | - | 48x48 |
| E242-89A-G-13 | 0...300 | - | 48x48 |
| E242-89A-G-14 | 0...400 | - | 48x48 |
| E242-89A-G-15 | 0...500 | - | 48x48 |
| E242-89A-G-16 | 0...600 | - | 48x48 |
| E242-89A-G-17 | 0...800 | - | 48x48 |
| E242-89A-G-18 | 0...1k | - | 48x48 |
| E242-89A-G-19 | 0...1.5k | - | 48x48 |
| E242-89A-G-20 | 0...2k | - | 48x48 |
| E242-89A-G-21 | 0...15 | - | 48x48 |
| E242-89R-G | - | 4...20 | 48x48 |
| E243-01A-G | - | 0...20 | 72x72 |
| E243-01A-G-01 | 0...5 | - | 72x72 |
| E243-01A-G-02 | 0...10 | - | 72x72 |
| E243-01A-G-03 | 0...15 | - | 72x72 |
| E243-01A-G-04 | 0...20 | - | 72x72 |
| E243-01A-G-06 | 0...30 | - | 72x72 |
| E243-01A-G-07 | 0...40 | - | 72x72 |
| E243-01A-G-08 | 0...80 | - | 72x72 |
| E243-01A-G-09 | 0...100 | - | 72x72 |
| E243-01A-G-10 | 0...150 | - | 72x72 |
| E243-01A-G-11 | 0...200 | - | 72x72 |
| E243-01A-G-12 | 0...250 | - | 72x72 |
| E243-01A-G-13 | 0...300 | - | 72x72 |
| E243-01A-G-14 | 0...400 | - | 72x72 |
| E243-01A-G-15 | 0...500 | - | 72x72 |
| E243-01A-G-16 | 0...600 | - | 72x72 |
| E243-01A-G-17 | 0...800 | - | 72x72 |
| E243-01A-G-18 | 0...1k | - | 72x72 |
| E243-01A-G-19 | 0...1.5k | - | 72x72 |
| E243-01A-G-20 | 0...2k | - | 72x72 |
| E243-01A-G-21 | 0...10 | - | 72x72 |
| E243-01A-G-22 | 0...15 | - | 72x72 |
| E243-01A-G-23 | 0...20 | - | 72x72 |
| E243-01A-G-24 | 0...30 | - | 72x72 |
| E243-01A-G-25 | 0...40 | - | 72x72 |
| E243-01A-G-26 | 0...50 | - | 72x72 |
| E243-01A-G-27 | 0...60 | - | 72x72 |
| E243-01R-G | - | 4...20 | 72x72 |
| E244-01A-G-01 | 0...1 | - | 96x96 |
| E244-01A-G-02 | 0...5 | - | 96x96 |
| E244-01A-G-03 | 0...10 | - | 96x96 |
| E244-01A-G-04 | 0...15 | - | 96x96 |
| E244-01A-G-05 | 0...20 | - | 96x96 |
| E244-01A-G-06 | 0...25 | - | 96x96 |
| E244-01A-G-07 | 0...30 | - | 96x96 |
| E244-01A-G-08 | 0...40 | - | 96x96 |
| E244-01A-G-09 | 0...100 | - | 96x96 |
| E244-01A-G-10 | 0...150 | - | 96x96 |
| E244-01A-G-11 | 0...200 | - | 96x96 |
| E244-01A-G-12 | 0...250 | - | 96x96 |
| E244-01A-G-13 | 0...300 | - | 96x96 |
| E244-01A-G-14 | 0...400 | - | 96x96 |
| E244-01A-G-15 | 0...500 | - | 96x96 |
| E244-01A-G-16 | 0...600 | - | 96x96 |
| E244-01A-G-17 | 0...800 | - | 96x96 |
| E244-01A-G-18 | 0...1k | - | 96x96 |
| E244-01A-G-19 | 0...1.5k | - | 96x96 |
| E244-01A-G-20 | 0...2k | - | 96x96 |
| E244-01A-G-21 | 0...10 | - | 96x96 |
| E244-01A-G-22 | 0...15 | - | 96x96 |
| E244-01A-G-23 | 0...20 | - | 96x96 |
| E244-01A-G-24 | 0...30 | - | 96x96 |
| E244-01A-G-25 | 0...40 | - | 96x96 |
| E244-01A-G-26 | 0...50 | - | 96x96 |
| E244-01A-G-27 | 0...60 | - | 96x96 |
| E244-01A-G-28 | 0...80 | - | 96x96 |
| E244-01R-G | - | 4...20 | 96x96 |
