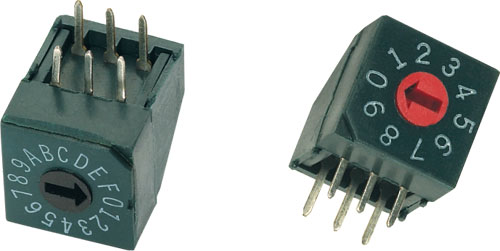

Angled encoding switches
| Manufacturer | ECE |
| Type of switch | encoding switch |
| Leads | for PCB |
| Soldering temperature | 260°C / 5 s |
| Flammability rating | UL94V-0 |
| Switching torque | 5Ncm |
| Max. contact resistance: | 100mΩ |
| Min. insulation resistance | 1000MΩ |
| Contact material | copper alloy |
| Contact plating | gold-plated |
| Terminal pitch | 2.54mm |
| Operating temperature | -40...85°C |
| Features | without knob |
| DC contacts rating @R* | 0.1A / 50V DC |
| Package | tube |
* at resistive load
| Symbol | Mounting | Dimensions | Body dim. | Kind of encoding switch | Positions |
|---|---|---|---|---|---|
| [mm] | |||||
| ERD110RFZ | THT | Fig. 1. | 10x10x7.55 | DEC/BCD | 10 |
| ERD116RFZ | THT | Fig. 1. | 10x10x7.55 | HEX/BCD | 16 |
| ERD408RDZ | THT | - | 10x10x4.35 | DEC/BCD | 8 |
| ERD408RFZ | THT | - | 10x10x4.35 | DEC/BCD | 8 |
| ERD408RMZ | SMT | - | 10x10x4.35 | DEC/BCD | 8 |
| ERD408RRZ | THT | - | 10x10x4.35 | DEC/BCD | 8 |
| ERD408RSZ | THT | - | 10x10x4.35 | DEC/BCD | 8 |
| ERD410RDZ | THT | - | 10x10x4.35 | DEC/BCD | 10 |
| ERD410RFZ | THT | - | 10x10x4.35 | DEC/BCD | 10 |
| ERD410RMZ | SMT | - | 10x10x4.35 | DEC/BCD | 10 |
| ERD410RRZ | THT | - | 10x10x4.35 | DEC/BCD | 10 |
| ERD410RSZ | THT | - | 10x10x4.35 | DEC/BCD | 10 |
| ERD416RDZ | THT | - | 10x10x4.35 | HEX/BCD | 16 |
| ERD416RFZ | THT | - | 10x10x4.35 | HEX/BCD | 16 |
| ERD416RMZ | SMT | - | 10x10x4.35 | HEX/BCD | 16 |
| ERD416RRZ | THT | - | 10x10x4.35 | HEX/BCD | 16 |
| ERD416RSZ | THT | - | 10x10x4.35 | HEX/BCD | 16 |
