ANYTEK Relays

ManufacturerAMPHENOL ANYTEK
Symbol Type of relay Ucoil Mounting Contacts configuration Contact material Contact current max. AC load rating @R* DC contacts rating @R* Operating temperature Rcoil Pcoil Body dimensions Dimensions Output configuration Manufacturer series
[A] [°C] [Ω] [W] [mm]
AHQSH105LM100G electromagnetic 5V DC PCB SPST-NO silver alloy 10 10A / 250V AC 10A / 30V DC -40...105 125 200m 10x18.2x14.9 Fig. 1-1. Fig. 2-1. AHQ
AHQSH112DM2F00G electromagnetic 12V DC PCB SPST-NO silver alloy 16 16A / 277V AC - -40...105 400 360m 10x18.2x15 Fig. 1-2. Fig. 2-2. AHQ
AHQSH112LM100G electromagnetic 12V DC PCB SPST-NO silver alloy 10 10A / 250V AC 10A / 30V DC -40...105 720 200m 10x18.2x14.9 Fig. 1-1. Fig. 2-1. AHQ
AHQSH112LM1F00G electromagnetic 12V DC PCB SPST-NO silver alloy 10 10A / 250V AC 10A / 30V DC -40...105 720 200m 10x18.2x14.9 Fig. 1-1. Fig. 2-1. AHQ
AHQSH115LM1F00G electromagnetic 15V DC PCB SPST-NO silver alloy 10 10A / 250V AC 10A / 30V DC -40...105 1125 200m 10x18.2x14.9 Fig. 1-1. Fig. 2-1. AHQ
AHQSH124LM100G electromagnetic 24V DC PCB SPST-NO silver alloy 10 10A / 250V AC 10A / 30V DC -40...105 2.88k 200m 10x18.2x14.9 Fig. 1-1. Fig. 2-1. AHQ
AHQSH124LM1F00G electromagnetic 24V DC PCB SPST-NO silver alloy 10 10A / 250V AC 10A / 30V DC -40...105 2.88k 200m 10x18.2x14.9 Fig. 1-1. Fig. 2-1. AHQ
AHQSS105DM2FA0G electromagnetic 5V DC PCB SPST-NO silver alloy 16 16A / 277V AC - -40...105 70 360m 10x18.2x15 Fig. 1-2. Fig. 2-2. AHQ
AKE105D00G electromagnetic 5V DC PCB SPDT silver alloy 5 5A / 250V AC 5A / 30V DC -40...85 125 200m 10x20x10.5 Fig. 1-3. Fig. 2-3. AKE
AKE105DM00G electromagnetic 5V DC PCB SPST-NO silver alloy 8 8A / 250V AC 8A / 30V DC -40...85 125 200m 10x20x10.5 Fig. 1-4. Fig. 2-4. AKE
AKE106D00G electromagnetic 6V DC PCB SPDT silver alloy 5 5A / 250V AC 5A / 30V DC -40...85 180 200m 10x20x10.5 Fig. 1-3. Fig. 2-3. AKE
AKE109D00G electromagnetic 9V DC PCB SPDT silver alloy 5 5A / 250V AC 5A / 30V DC -40...85 405 200m 10x20x10.5 Fig. 1-3. Fig. 2-3. AKE
AKE112D00G electromagnetic 12V DC PCB SPDT silver alloy 5 5A / 250V AC 5A / 30V DC -40...85 720 200m 10x20x10.5 Fig. 1-3. Fig. 2-3. AKE
AKE112DM00G electromagnetic 12V DC PCB SPST-NO silver alloy 8 8A / 250V AC 8A / 30V DC -40...85 720 200m 10x20x10.5 Fig. 1-4. Fig. 2-4. AKE
AKE112DMN00G electromagnetic 12V DC PCB SPST-NO silver alloy 8 8A / 250V AC 8A / 30V DC -40...85 720 200m 10x20x10.5 Fig. 1-4. Fig. 2-4. AKE
AKE124D00G electromagnetic 24V DC PCB SPDT silver alloy 5 5A / 250V AC 5A / 30V DC -40...85 2.88k 200m 10x20x10.5 Fig. 1-3. Fig. 2-3. AKE
AKE124DM00G electromagnetic 24V DC PCB SPST-NO silver alloy 8 8A / 250V AC 8A / 30V DC -40...85 2.88k 200m 10x20x10.5 Fig. 1-4. Fig. 2-4. AKE
AL2C10PCLA22000G electromagnetic industrial 220V AC PCB DPDT AgSnO2 10 10A / 240V AC 10A / 28V DC - 15k 1.2 21.5x28x36 Fig. 1-5. - AL2C
AL2C10PCLD02400G electromagnetic industrial 24V DC PCB DPDT AgSnO2 10 10A / 240V AC 10A / 28V DC - 650 1.1 21.5x28x36 Fig. 1-5. - AL2C
AL2C20PCLA22000G electromagnetic industrial 220V AC PCB DPDT AgSnO2 20 20A / 277V AC 20A / 28V DC - 15k 1.2 21.5x28x36 Fig. 1-5. - AL2C
AL2C20PCLD02400G electromagnetic industrial 24V DC PCB DPDT AgSnO2 20 20A / 277V AC 20A / 28V DC - 650 1.1 21.5x28x36 Fig. 1-5. - AL2C
AL2C20SCLA22000G electromagnetic industrial 220V AC socket DPDT AgSnO2 20 20A / 277V AC 20A / 28V DC - 15k 1.2 21.5x28x36 Fig. 1-6. - AL2C
AL2C10SCLA22000G electromagnetic industrial 220V AC socket DPDT AgSnO2 10 10A / 240V AC 10A / 28V DC - 15k 1.2 21.5x28x36 Fig. 1-6. - AL2C
AL2C10SCLD02400G electromagnetic industrial 24V DC socket DPDT AgSnO2 10 10A / 240V AC 10A / 28V DC - 650 1.1 21.5x28x36 Fig. 1-6. - AL2C
AL2C20SCLD02400G electromagnetic industrial 24V DC socket DPDT AgSnO2 20 20A / 277V AC 20A / 28V DC - 650 1.1 21.5x28x36 Fig. 1-6. - AL2C
AL2C10PCM4LD02400G electromagnetic industrial 24V DC PCB DPDT AgSnO2 10 10A / 240V AC 10A / 28V DC - 650 1.1 21.5x28x36 Fig. 1-7. - AL2C
AL2C10PCM4LA22000G electromagnetic industrial 220V AC PCB DPDT AgSnO2 10 10A / 240V AC 10A / 28V DC - 15k 1.2 21.5x28x36 Fig. 1-7. - AL2C
AL2C20PCM4LA22000G electromagnetic industrial 220V AC PCB DPDT AgSnO2 20 20A / 277V AC 20A / 28V DC - 15k 1.2 21.5x28x36 Fig. 1-7. - AL2C

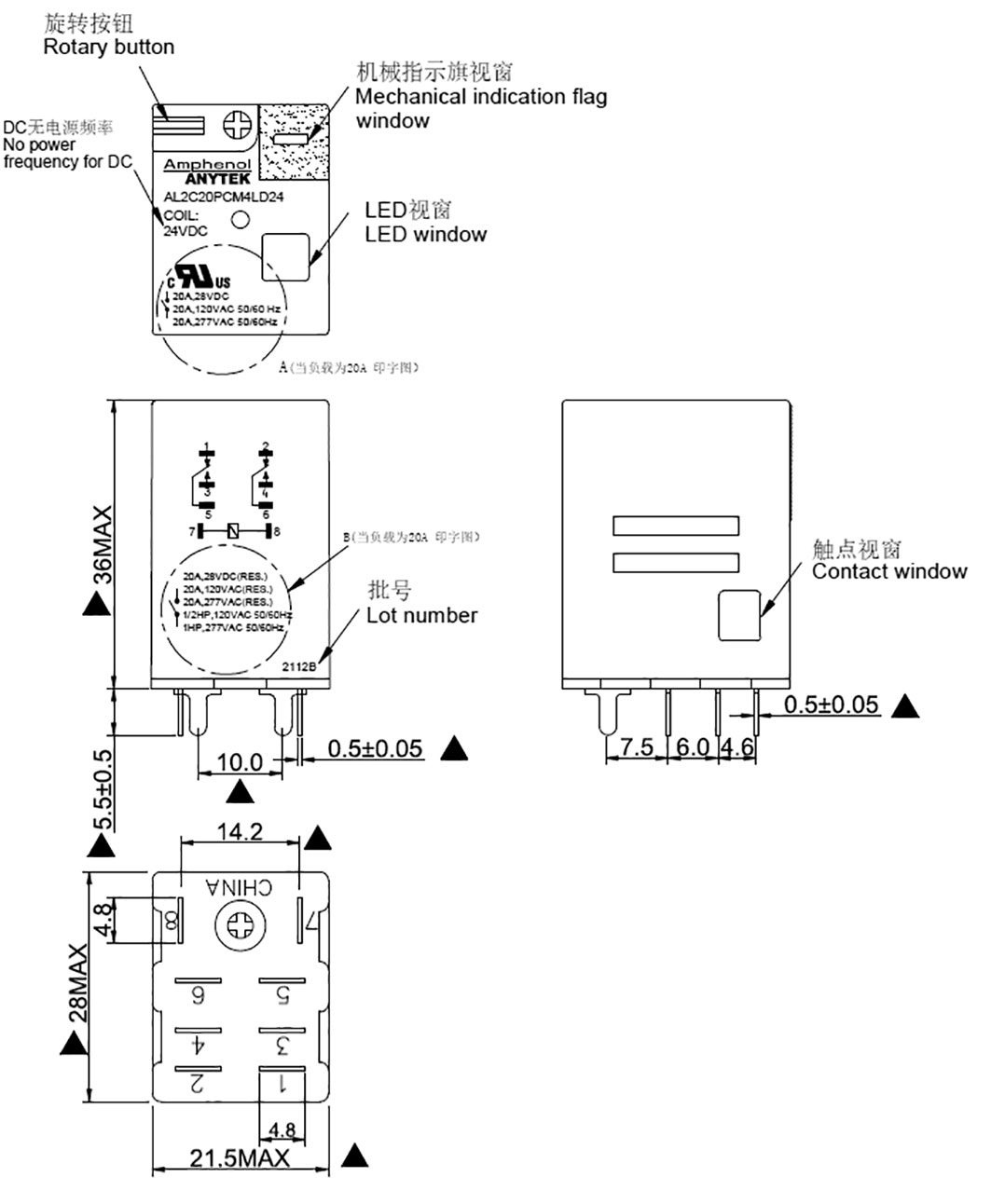

AL2C20PCM4LD02400G electromagnetic industrial 24V DC PCB DPDT AgSnO2 20 20A / 277V AC 20A / 28V DC - 650 1.1 21.5x28x36 Fig. 1-7. - AL2C
AL2C10SCM4LD02400G electromagnetic industrial 24V DC socket DPDT AgSnO2 10 10A / 240V AC 10A / 28V DC - 650 1.1 21.5x28x36 Fig. 1-8. - AL2C

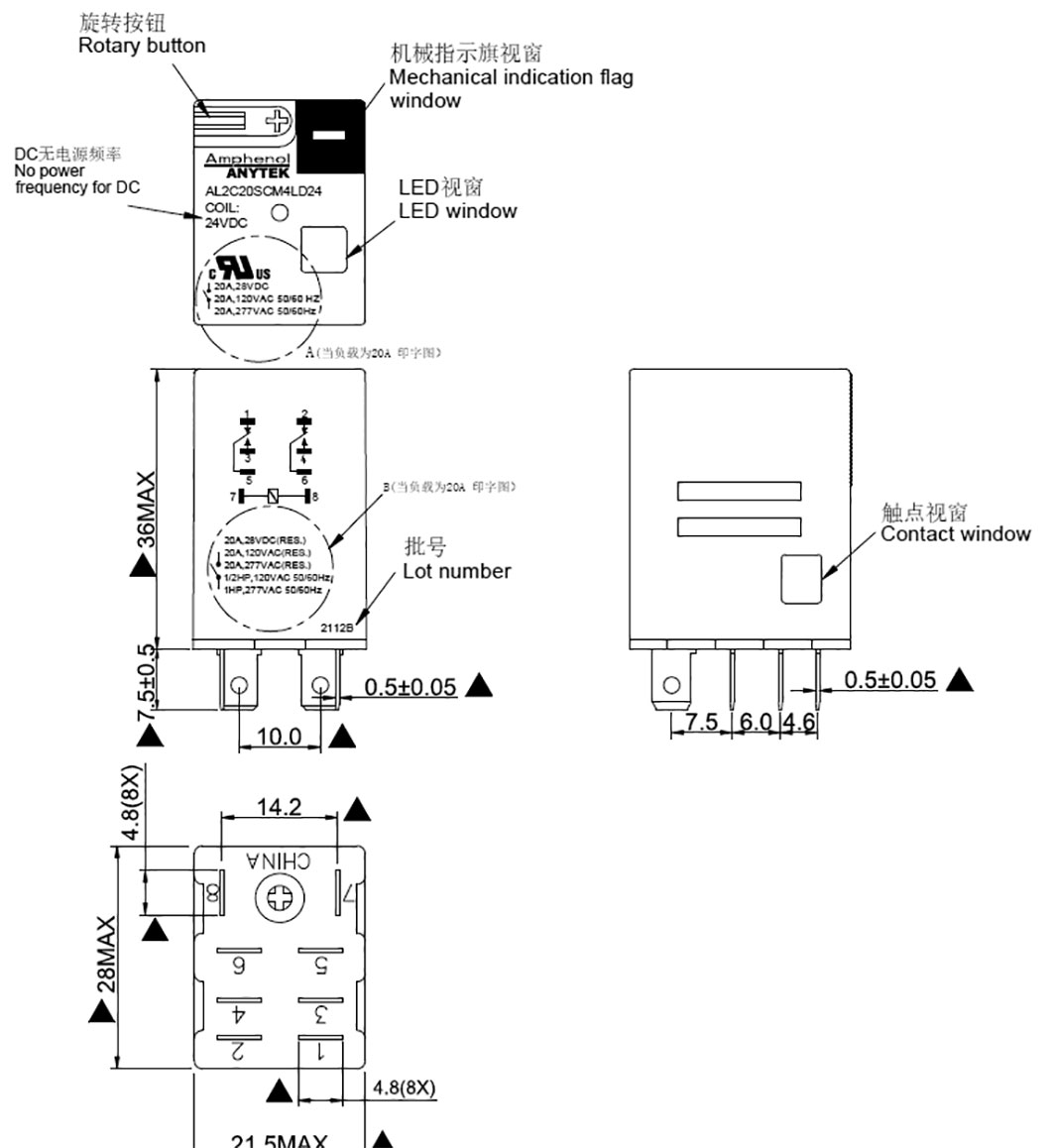

AL2C20SCM4LA22000G electromagnetic industrial 220V AC socket DPDT AgSnO2 20 20A / 277V AC 20A / 28V DC - 15k 1.2 21.5x28x36 Fig. 1-8. - AL2C
AL2C10SCM4LA22000G electromagnetic industrial 220V AC socket DPDT AgSnO2 10 10A / 240V AC 10A / 28V DC - 15k 1.2 21.5x28x36 Fig. 1-8. - AL2C
AL4C10PCLA22000G electromagnetic industrial 220V AC PCB 4PDT AgSnO2 10 10A / 240V AC 10A / 28V DC - 15k 1.2 40.8x27.4x35 Fig. 1-9. - AL4C
AL4C12PCLA22000G electromagnetic industrial 220V AC PCB 4PDT AgSnO2 12 12A / 277V AC 12A / 28V DC - 15k 1.2 40.8x27.4x35 Fig. 1-9. - AL4C
AL4C10PCLD02400G electromagnetic industrial 24V DC PCB 4PDT AgSnO2 10 10A / 240V AC 10A / 28V DC - 650 1.1 40.8x27.4x35 Fig. 1-9. - AL4C
AL4C12PCLD02400G electromagnetic industrial 24V DC PCB 4PDT AgSnO2 12 12A / 277V AC 12A / 28V DC - 650 1.1 40.8x27.4x35 Fig. 1-9. - AL4C
AL4C10SCLA22000G electromagnetic industrial 220V AC socket 4PDT AgSnO2 10 10A / 240V AC 10A / 28V DC - 15k 1.2 40.8x27.4x35 Fig. 1-10. - AL4C
AL4C12SCLA22000G electromagnetic industrial 220V AC socket 4PDT AgSnO2 12 12A / 277V AC 12A / 28V DC - 15k 1.2 40.8x27.4x35 Fig. 1-10. - AL4C
AL4C10SCLD02400G electromagnetic industrial 24V DC socket 4PDT AgSnO2 10 10A / 240V AC 10A / 28V DC - 650 1.1 40.8x27.4x35 Fig. 1-10. - AL4C
AL4C12SCLD02400G electromagnetic industrial 24V DC socket 4PDT AgSnO2 12 12A / 277V AC 12A / 28V DC - 650 1.1 40.8x27.4x35 Fig. 1-10. - AL4C
AM2C05PCLA22000G electromagnetic industrial 220V AC PCB DPDT AgNi 5 5A / 277V AC 5A / 28V DC - 15k 1.2 21.5x28x36 Fig. 1-11. - AM2C
AM2C05PCLD02400G electromagnetic industrial 24V DC PCB DPDT AgNi 5 5A / 277V AC 5A / 28V DC - 650 1.1 21.5x28x36 Fig. 1-11. - AM2C
AM2C05SCLA22000G electromagnetic industrial 220V AC socket DPDT AgNi 5 5A / 277V AC 5A / 28V DC - 15k 1.2 21.5x28x36 Fig. 1-12. - AM2C
AM2C05SCLD02400G electromagnetic industrial 24V DC socket DPDT AgNi 5 5A / 277V AC 5A / 28V DC - 650 1.1 21.5x28x36 Fig. 1-12. - AM2C
AM2C10SCLA22000G electromagnetic industrial 220V AC socket DPDT AgNi 10 10A / 240V AC 10A / 28V DC - 15k 1.2 21.5x28x36 Fig. 1-12. - AM2C
AM2C10SCLD02400G electromagnetic industrial 24V DC socket DPDT AgNi 10 10A / 240V AC 10A / 28V DC - 650 1.1 21.5x28x36 Fig. 1-12. - AM2C
AM2C05PCM4LA22000G electromagnetic industrial 220V AC PCB DPDT AgNi 5 5A / 277V AC 5A / 28V DC - 15k 1.2 21.5x28x36 Fig. 1-13. - AM2C
AM2C05PCM4LD02400G electromagnetic industrial 24V DC PCB DPDT AgNi 5 5A / 277V AC 5A / 28V DC - 650 1.1 21.5x28x36 Fig. 1-13. - AM2C
AM2C05SCM4LA22000G electromagnetic industrial 220V AC socket DPDT AgNi 5 5A / 277V AC 5A / 28V DC - 15k 1.2 21.5x28x36 Fig. 1-14. - AM2C
AM2C05SCM4LD02400G electromagnetic industrial 24V DC socket DPDT AgNi 5 5A / 277V AC 5A / 28V DC - 650 1.1 21.5x28x36 Fig. 1-14. - AM2C
AM2C10SCM4LA22000G electromagnetic industrial 220V AC socket DPDT AgNi 10 10A / 240V AC 10A / 28V DC - 15k 1.2 21.5x28x36 Fig. 1-14. - AM2C
AM2C10SCM4LD02400G electromagnetic industrial 24V DC socket DPDT AgNi 10 10A / 240V AC 10A / 28V DC - 650 1.1 21.5x28x36 Fig. 1-14. - AM2C
AM4C05PCLA22000G electromagnetic industrial 220V AC PCB 4PDT AgNi 5 5A / 277V AC 5A / 28V DC - 15k 1.2 21.5x28x36 Fig. 1-15. - AM4C
AM4C05PCLD02400G electromagnetic industrial 24V DC PCB 4PDT AgNi 5 5A / 277V AC 5A / 28V DC - 650 1.1 21.5x28x36 Fig. 1-15. - AM4C
AM4C10PCLA22000G electromagnetic industrial 220V AC PCB 4PDT AgNi 10 10A / 240V AC 10A / 28V DC - 15k 1.2 21.5x28x36 Fig. 1-15. - AM4C
AM4C10PCLD02400G electromagnetic industrial 24V DC PCB 4PDT AgNi 10 10A / 240V AC 10A / 28V DC - 650 1.1 21.5x28x36 Fig. 1-15. - AM4C
AM4C05SCLA22000G electromagnetic industrial 220V AC socket 4PDT AgNi 5 5A / 277V AC 5A / 28V DC - 15k 1.2 21.5x28x36 Fig. 1-16. - AM4C

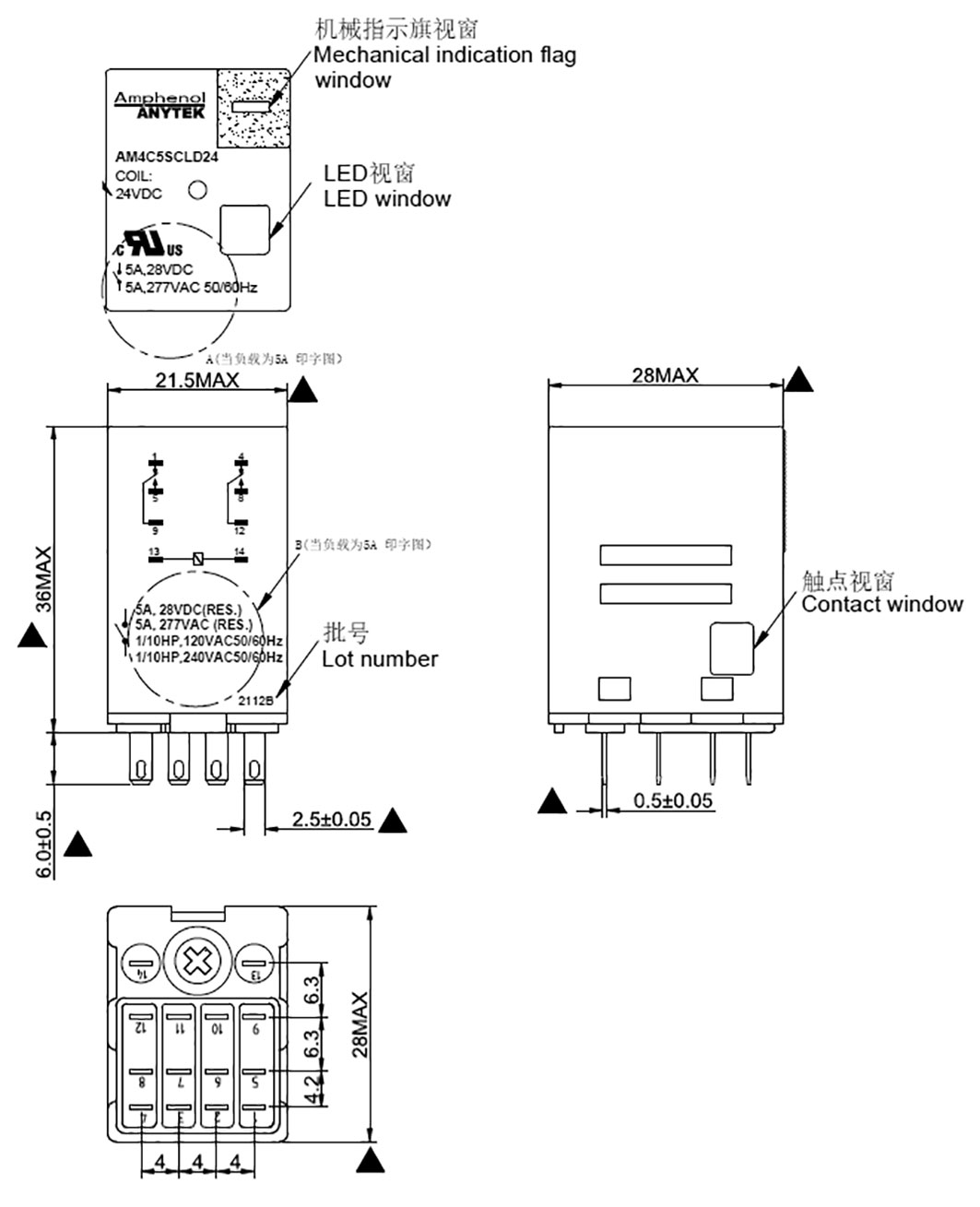

AM4C05SCLD02400G electromagnetic industrial 24V DC socket 4PDT AgNi 5 5A / 277V AC 5A / 28V DC - 650 1.1 21.5x28x36 Fig. 1-16. - AM4C
AM4C10SCLA22000G electromagnetic industrial 220V AC socket 4PDT AgNi 10 10A / 240V AC 10A / 28V DC - 15k 1.2 21.5x28x36 Fig. 1-16. - AM4C
AM4C10SCLD02400G electromagnetic industrial 24V DC socket 4PDT AgNi 10 10A / 240V AC 10A / 28V DC - 650 1.1 21.5x28x36 Fig. 1-16. - AM4C
AM4C05PCM4LA22000G electromagnetic industrial 220V AC PCB 4PDT AgNi 5 5A / 277V AC 5A / 28V DC - 15k 1.2 21.5x28x36 Fig. 1-17. - AM4C
AM4C05PCM4LD02400G electromagnetic industrial 24V DC PCB 4PDT AgNi 5 5A / 277V AC 5A / 28V DC - 650 1.1 21.5x28x36 Fig. 1-17. - AM4C
AM4C10PCM4LA22000G electromagnetic industrial 220V AC PCB 4PDT AgNi 10 10A / 240V AC 10A / 28V DC - 15k 1.2 21.5x28x36 Fig. 1-17. - AM4C
AM4C10PCM4LD02400G electromagnetic industrial 24V DC PCB 4PDT AgNi 10 5A / 277V AC 5A / 28V DC - 650 1.1 21.5x28x36 Fig. 1-17. - AM4C

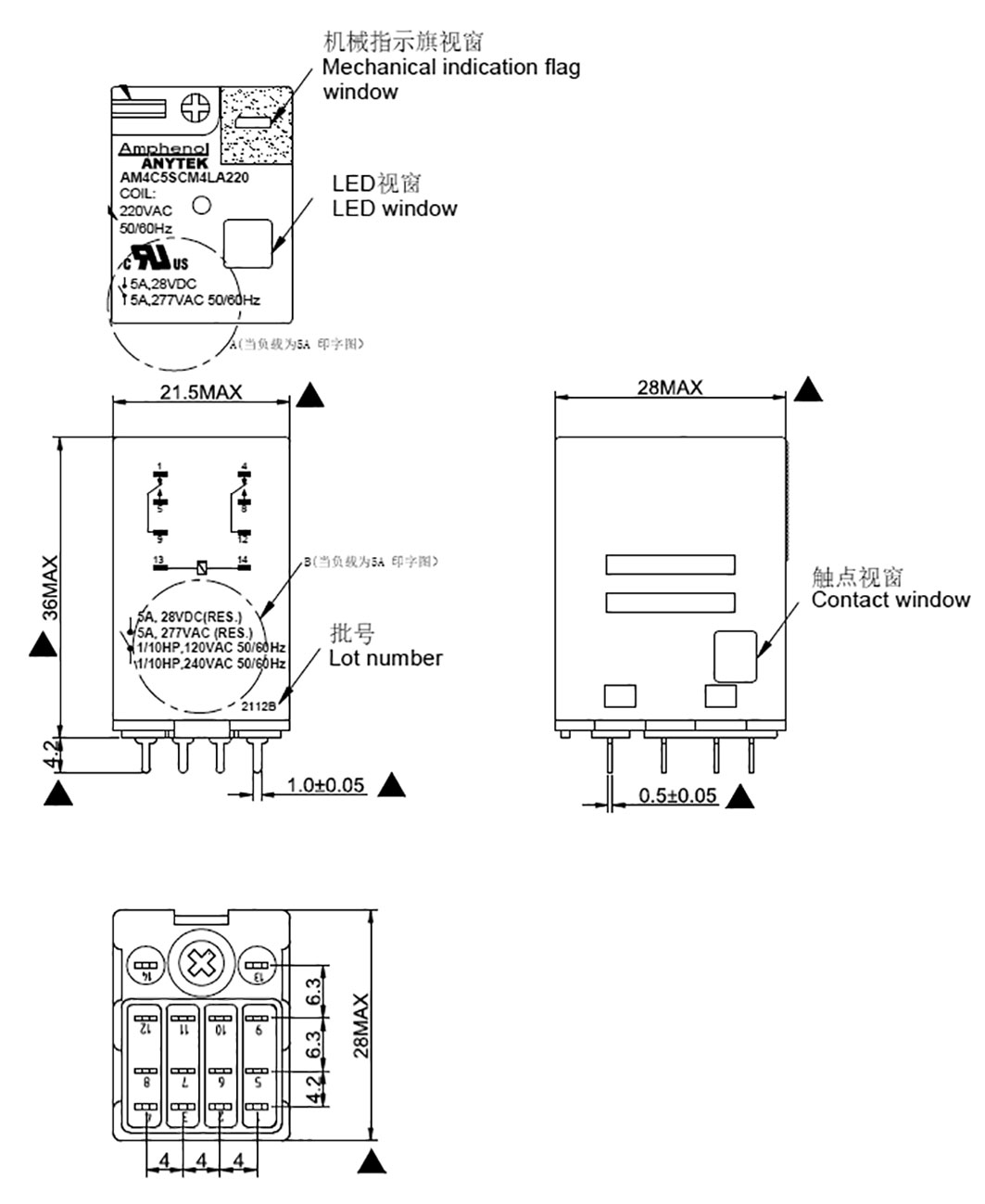

AM4C05SCM4LA22000G electromagnetic industrial 220V AC socket 4PDT AgNi 5 5A / 277V AC 5A / 28V DC - 15k 1.2 21.5x28x36 Fig. 1-18. - AM4C
AM4C05SCM4LD02400G electromagnetic industrial 24V DC socket 4PDT AgNi 5 5A / 277V AC 5A / 28V DC - 650 1.1 21.5x28x36 Fig. 1-18. - AM4C
AM4C10SCM4LA22000G electromagnetic industrial 220V AC socket 4PDT AgNi 10 10A / 240V AC 10A / 28V DC - 15k 1.2 21.5x28x36 Fig. 1-18. - AM4C
AM4C10SCM4LD02400G electromagnetic industrial 24V DC socket 4PDT AgNi 10 10A / 240V AC 10A / 28V DC - 650 1.1 21.5x28x36 Fig. 1-18. - AM4C
AMISH1230A00G electromagnetic 230V AC PCB SPDT silver alloy 12 8A / 250V AC 8A / 30V DC -40...85 32.5k 790m 12.8x29.4x17.45 Fig. 1-19. Fig. 2-5. AMI
AMISH2115A00G electromagnetic 115V AC PCB DPDT silver alloy 8 8A / 250V AC 8A / 30V DC -40...85 8.1k 880m 12.8x29.4x17.45 Fig. 1-19. Fig. 2-5. AMI
AMISH212FIF00G electromagnetic 12V DC PCB DPDT silver alloy 8 8A / 250V AC 8A / 30V DC -40...85 360 400m 12.8x29.4x17.45 Fig. 1-19. Fig. 2-5. AMI
AMISH2230A00G electromagnetic 230V AC PCB DPDT silver alloy 8 8A / 250V AC 8A / 30V DC -40...85 32.5k 790m 12.8x29.4x17.45 Fig. 1-19. Fig. 2-5. AMI
AMISH224FIF00G electromagnetic 24V DC PCB DPDT silver alloy 8 8A / 250V AC 8A / 30V DC -40...85 1.44k 400m 12.8x29.4x17.45 Fig. 1-19. Fig. 2-5. AMI
AMISH248FIF00G electromagnetic 48V DC PCB DPDT silver alloy 8 8A / 250V AC 8A / 30V DC -40...85 5.52k 400m 12.8x29.4x17.45 Fig. 1-19. Fig. 2-5. AMI
AP2CD01200G electromagnetic power 12V DC PCB DPDT AgNi 5 5A / 250V AC 5A / 30V DC - 275 530m 29x12.7x25.5 Fig. 1-20. - AP
AP2CD02400G electromagnetic power 24V DC PCB DPDT AgNi 5 5A / 250V AC 5A / 30V DC - 1.1k 530m 29x12.7x25.5 Fig. 1-20. - AP
AWHSH105D00G electromagnetic 5V DC PCB SPDT silver alloy 15 12A / 250V AC 15A / 24V DC -30...85 70 360m 15.4x19x15 Fig. 1-21. Fig. 2-6. AWH
AWHSH112D00G electromagnetic 12V DC PCB SPDT silver alloy 15 12A / 250V AC 15A / 24V DC -30...85 400 360m 15.4x19x15 Fig. 1-21. Fig. 2-6. AWH
AWHSH112DM00G electromagnetic 12V DC PCB SPST-NO silver alloy 15 12A / 250V AC 15A / 24V DC -30...85 400 360m 15.4x19x15 Fig. 1-21. Fig. 2-6. AWH
AWHSH124D00G electromagnetic 24V DC PCB SPDT silver alloy 15 12A / 250V AC 15A / 24V DC -30...85 1.6k 360m 15.4x19x15 Fig. 1-21. Fig. 2-6. AWH
AWHSH124DM00G electromagnetic 24V DC PCB SPST-NO silver alloy 15 12A / 250V AC 15A / 24V DC -30...85 1.6k 360m 15.4x19x15 Fig. 1-21. Fig. 2-6. AWH
* at resistive load
