CARLO GAVAZZI
| Manufacturer | CARLO GAVAZZI |
| Power supply | external |
| Leads | screw terminals |
| Operating temperature | -20...60°C |
| IP rating | IP20 |
| Type of automation module | current monitoring relay |
| Symbol | Mounting | Manufacturer series | Controlled parameter | Kind of output 1 | Body dimensions | Usup | Usup | Controlled parameter range |
|---|---|---|---|---|---|---|---|---|
| [mm] | [V DC] | [V AC] | ||||||

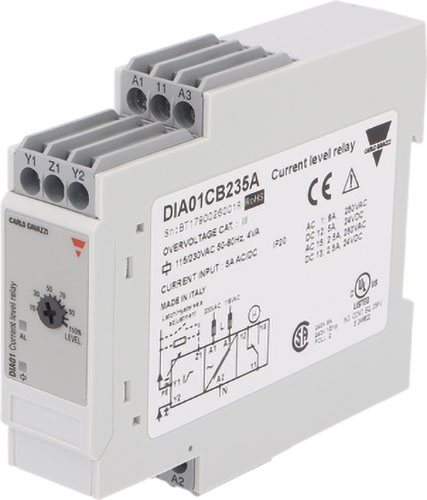

| DIA01CB235A | for DIN rail mounting | DIA | AC/DC current | SPDT | 22.5x80x99.5 | - | 115/230 | 500mA...5A |
| DIA01CD485A | for DIN rail mounting | DIA | AC/DC current | SPDT | 22.5x80x99.5 | 24...48 | 24...48 | 500mA...5A |
| DIA02CB235A | for DIN rail mounting | DIA | AC/DC current | SPDT | 22.5x80x99.5 | - | 115/230 | 500mA...5A |
| DIA02CD485A | for DIN rail mounting | DIA | AC/DC current | SPDT | 22.5x80x99.5 | 24...48 | - | 500mA...5A |
| DIA53S72420A | for DIN rail mounting | DIA | AC current | OC, PNP/NPN | 17.5x81x67.2 | - | - | 2...20A |
| DIA53S72450A | for DIN rail mounting | DIA | AC current | OC, PNP/NPN | 17.5x81x67.2 | - | - | 5...50A |
| DIA53S724100A | for DIN rail mounting | DIA | AC current | OC, PNP/NPN | 17.5x81x67.2 | - | - | 10...100A |
| DIA53S72420AF | for DIN rail mounting | DIA | AC current | OC, PNP/NPN | 17.5x81x67.2 | - | - | 2...20A |
| DIA53S72450AF | for DIN rail mounting | DIA | AC current | OC, PNP/NPN | 17.5x81x67.2 | - | - | 5...50A |
| DIA53S724100AF | for DIN rail mounting | DIA | AC current | OC, PNP/NPN | 17.5x81x67.2 | - | - | 10...100A |
| DIB01CD485MA | for DIN rail mounting | DIB | AC/DC current | SPDT | 22.5x80x99.5 | 24...48 | 24...48 | 0.1...5mA |
| DIB01CD4850MA | for DIN rail mounting | DIB | AC/DC current | SPDT | 22.5x80x99.5 | 24...48 | 24...48 | 1...50mA |
| DIB01CD48500MA | for DIN rail mounting | DIB | AC/DC current | SPDT | 22.5x80x99.5 | 24...48 | 24...48 | 10...500mA |
| DIB01CD485A | for DIN rail mounting | DIB | AC/DC current | SPDT | 22.5x80x99.5 | 24...48 | 24...48 | 100mA...5A |
| DIB01CD4810A | for DIN rail mounting | DIB | AC/DC current | SPDT | 22.5x80x99.5 | 24...48 | 24...48 | 1...10A |
| DIB01CB235MA | for DIN rail mounting | DIB | AC/DC current | SPDT | 22.5x80x99.5 | - | 115/230 | 0.1...5mA |
| DIB01CB2350MA | for DIN rail mounting | DIB | AC/DC current | SPDT | 22.5x80x99.5 | - | 115/230 | 1...50mA |
| DIB01CB23500MA | for DIN rail mounting | DIB | AC/DC current | SPDT | 22.5x80x99.5 | - | 115/230 | 10...500mA |
| DIB01CB235A | for DIN rail mounting | DIB | AC/DC current | SPDT | 22.5x80x99.5 | - | 115/230 | 100mA...5A |
| DIB01CB2310A | for DIN rail mounting | DIB | AC/DC current | SPDT | 22.5x80x99.5 | - | 115/230 | 1...10A |
| DIB01CM24100A | for DIN rail mounting | DIB | AC current | SPDT | 22.5x80x99.5 | 24 | 24...240 | 2...100A |
| DIB02CB23150MV | for DIN rail mounting | DIB | AC/DC current | SPDT | 22.5x80x99.5 | - | 115/230 | 6...150mV |
| DIB02CD48150MV | for DIN rail mounting | DIB | AC/DC current | SPDT | 22.5x80x99.5 | 24...48 | 24...48 | 6...150mV |
| DIB71CB485MA | for DIN rail mounting | DIB | AC/DC current | SPDT | 33.5x81x67.2 | - | 24...48 | 0.1...5mA |
| DIB71CB4850MA | for DIN rail mounting | DIB | AC/DC current | SPDT | 33.5x81x67.2 | - | 24...48 | 1...50mA |
| DIB71CB48500MA | for DIN rail mounting | DIB | AC/DC current | SPDT | 33.5x81x67.2 | - | 24...48 | 10...500mA |
| DIB71CB485A | for DIN rail mounting | DIB | AC/DC current | SPDT | 33.5x81x67.2 | - | 24...48 | 100mA...5A |
| DIB71CB235MA | for DIN rail mounting | DIB | AC/DC current | SPDT | 33.5x81x67.2 | - | 115/230 | 0.1...5mA |
| DIB71CB2350MA | for DIN rail mounting | DIB | AC/DC current | SPDT | 33.5x81x67.2 | - | 115/230 | 1...50mA |
| DIB71CB23500MA | for DIN rail mounting | DIB | AC/DC current | SPDT | 33.5x81x67.2 | - | 115/230 | 10...500mA |
| DIB71CB235A | for DIN rail mounting | DIB | AC/DC current | SPDT | 33.5x81x67.2 | - | 115/230 | 100mA...5A |
| DIC01DB23AV0 | for DIN rail mounting | DIC | AC/DC current | SPDT x2 | 45x80x99.5 | - | 115/230 | 0.5...20mA |
| DIC01DD48AV0 | for DIN rail mounting | DIC | AC/DC current | SPDT x2 | 45x80x99.5 | 24...48 | 24...48 | 0.5...20mA |
| PIA01CD485A | plug-in | PIA | AC/DC current | SPDT | 36x80x94 | 24...48 | 24...48 | 0...5A |
| PIA01CB235A | plug-in | PIA | AC/DC current | SPDT | 36x80x94 | - | 115/230 | 0...5A |
| PIB01CD485MA | plug-in | PIB | AC/DC current | SPDT | 36x80x94 | 24...48 | 24...48 | 0.5...5mA |
| PIB01CD4850MA | plug-in | PIB | AC/DC current | SPDT | 36x80x94 | 24...48 | 24...48 | 1...50mA |
| PIB01CD48500MA | plug-in | PIB | AC/DC current | SPDT | 36x80x94 | 24...48 | 24...48 | 10...500mA |
| PIB01CD485A | plug-in | PIB | AC/DC current | SPDT | 36x80x94 | 24...48 | 24...48 | 0.1...5A |
| PIB01CD4810A | plug-in | PIB | AC/DC current | SPDT | 36x80x94 | 24...48 | 24...48 | 1...10A |
| PIB01CB235MA | plug-in | PIB | AC/DC current | SPDT | 36x80x94 | - | 115/230 | 0.5...5mA |
| PIB01CB2350MA | plug-in | PIB | AC/DC current | SPDT | 36x80x94 | - | 115/230 | 1...50mA |
| PIB01CB23500MA | plug-in | PIB | AC/DC current | SPDT | 36x80x94 | - | 115/230 | 10...500mA |
| PIB01CB235A | plug-in | PIB | AC/DC current | SPDT | 36x80x94 | - | 115/230 | 0.1...5A |
| PIB01CB2310A | plug-in | PIB | AC/DC current | SPDT | 36x80x94 | - | 115/230 | 1...10A |
| PIB02CB23150MV | plug-in | PIB | AC/DC current | SPDT | 36x80x94 | - | 115/230 | 6...150mV |
| PIB02CD48150MV | plug-in | PIB | AC/DC current | SPDT | 36x80x94 | 24/48 | 6...150mV | |
| PIC01CB23AV0 | plug-in | PIC | AC/DC current | SPDT | 36x80x94 | - | 115/230 | 0.5...20mA |
| PIC01CD48AV0 | plug-in | PIC | AC/DC current | SPDT | 36x80x94 | 24...48 | 24...48 | 0.5...20mA |
