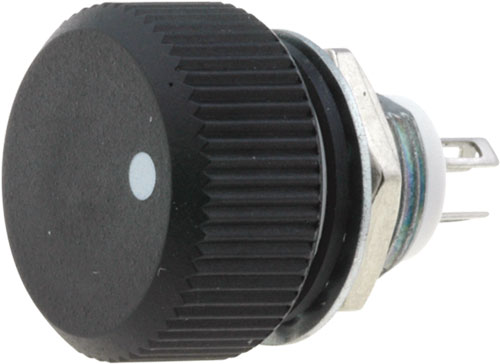

Cermet knob potentiometers
| Type of potentiometer | shaft |
| Track mat. | cermet |
| Temp. coefficient | 150ppm/°C |
| Electrical rotation angle | 270° |
| Characteristics | linear |
| Panel cutout diameter | 10mm |
| Leads | solder lugs |
| IP rating | IP67 |
| Features | for industrial use; with knob |
| Power | 1W |
| Symbol | Operating temperature | Knob dimensions | Tolerance | Resist. | Colour | Kind of indicator |
|---|---|---|---|---|---|---|
| [°C] | [mm] | [%] | [Ω] | |||
| P16NP101MA | -40...125 | Ø16x8.8 | ±20 | 100 | - | - |
| P16NM102MAB15 | -40...125 | Ø16x9.4 | ±20 | 1k | metallic black | - |
| P16NM102MAB15F1 | -40...125 | Ø16x9.4 | ±20 | 1k | metallic black | line |
| P16NM102MAB15F2 | -40...125 | Ø16x9.4 | ±20 | 1k | metallic black | 10 graduations |
| P16NM102MAB15F3 | -40...125 | Ø16x9.4 | ±20 | 1k | metallic black | 5 graduations |
| P16NM102MAB15F4 | -40...125 | Ø16x9.4 | ±20 | 1k | metallic black | gradient |
| P16NP102MA | -40...85 | Ø16x8 | ±20 | 1k | - | - |
| P16WM102MAB15 | -40...125 | Ø16x9.4 | ±20 | 1k | metallic white | - |
| P16WM102MAB15F1 | -40...125 | Ø16x9.4 | ±20 | 1k | metallic white | line |
| P16WM102MAB15F2 | -40...125 | Ø16x9.4 | ±20 | 1k | metallic white | 10 graduations |
| P16WM102MAB15F3 | -40...125 | Ø16x9.4 | ±20 | 1k | metallic white | 5 graduations |
| P16WM102MAB15F4 | -40...125 | Ø16x9.4 | ±20 | 1k | metallic white | gradient |
| P16NM222MAB15 | -40...125 | Ø16x9.4 | ±20 | 2.2k | metallic black | - |
| P16NM222MAB15F1 | -40...125 | Ø16x9.4 | ±20 | 2.2k | metallic black | line |
| P16NM222MAB15F2 | -40...125 | Ø16x9.4 | ±20 | 2.2k | metallic black | 10 graduations |
| P16NM222MAB15F3 | -40...125 | Ø16x9.4 | ±20 | 2.2k | metallic black | 5 graduations |
| P16NM222MAB15F4 | -40...125 | Ø16x9.4 | ±20 | 2.2k | metallic black | gradient |
| P16NP222MA | -40...85 | Ø16x8 | ±20 | 2.2k | - | - |
| P16WM222MAB15 | -40...125 | Ø16x9.4 | ±20 | 2.2k | metallic white | - |
| P16WM222MAB15F1 | -40...125 | Ø16x9.4 | ±20 | 2.2k | metallic white | line |
| P16WM222MAB15F2 | -40...125 | Ø16x9.4 | ±20 | 2.2k | metallic white | 10 graduations |
| P16WM222MAB15F3 | -40...125 | Ø16x9.4 | ±20 | 2.2k | metallic white | 5 graduations |
| P16WM222MAB15F4 | -40...125 | Ø16x9.4 | ±20 | 2.2k | metallic white | gradient |
| P16NM472MAB15 | -40...125 | Ø16x9.4 | ±20 | 4.7k | metallic black | - |
| P16NM472MAB15F1 | -40...125 | Ø16x9.4 | ±20 | 4.7k | metallic black | line |
| P16NM472MAB15F2 | -40...125 | Ø16x9.4 | ±20 | 4.7k | metallic black | 10 graduations |
| P16NM472MAB15F3 | -40...125 | Ø16x9.4 | ±20 | 4.7k | metallic black | 5 graduations |
| P16NM472MAB15F4 | -40...125 | Ø16x9.4 | ±20 | 4.7k | metallic black | gradient |
| P16NP472MA | -40...85 | Ø16x8 | ±20 | 4.7k | - | - |
| P16WM472MAB15 | -40...125 | Ø16x9.4 | ±20 | 4.7k | metallic white | - |
| P16WM472MAB15F1 | -40...125 | Ø16x9.4 | ±20 | 4.7k | metallic white | line |
| P16WM472MAB15F2 | -40...125 | Ø16x9.4 | ±20 | 4.7k | metallic white | 10 graduations |
| P16WM472MAB15F3 | -40...125 | Ø16x9.4 | ±20 | 4.7k | metallic white | 5 graduations |
| P16WM472MAB15F4 | -40...125 | Ø16x9.4 | ±20 | 4.7k | metallic white | gradient |
| P16NM103MAB15 | -40...125 | Ø16x9.4 | ±20 | 10k | metallic black | - |
| P16NM103MAB15F1 | -40...125 | Ø16x9.4 | ±20 | 10k | metallic black | line |
| P16NM103MAB15F2 | -40...125 | Ø16x9.4 | ±20 | 10k | metallic black | 10 graduations |
| P16NM103MAB15F3 | -40...125 | Ø16x9.4 | ±20 | 10k | metallic black | 5 graduations |
| P16NM103MAB15F4 | -40...125 | Ø16x9.4 | ±20 | 10k | metallic black | gradient |
| P16NP103KAB15 | -40...85 | Ø16x8 | ±10 | 10k | - | - |
| P16NP103MA | -40...85 | Ø16x8 | ±20 | 10k | - | - |
| P16WM103MAB15 | -40...125 | Ø16x9.4 | ±20 | 10k | metallic white | - |
| P16WM103MAB15F1 | -40...125 | Ø16x9.4 | ±20 | 10k | metallic white | line |
| P16WM103MAB15F2 | -40...125 | Ø16x9.4 | ±20 | 10k | metallic white | 10 graduations |
| P16WM103MAB15F3 | -40...125 | Ø16x9.4 | ±20 | 10k | metallic white | 5 graduations |
| P16WM103MAB15F4 | -40...125 | Ø16x9.4 | ±20 | 10k | metallic white | gradient |
| P16NM223MAB15 | -40...125 | Ø16x9.4 | ±20 | 22k | metallic black | - |
| P16NM223MAB15F1 | -40...125 | Ø16x9.4 | ±20 | 22k | metallic black | line |
| P16NM223MAB15F2 | -40...125 | Ø16x9.4 | ±20 | 22k | metallic black | 10 graduations |
| P16NM223MAB15F3 | -40...125 | Ø16x9.4 | ±20 | 22k | metallic black | 5 graduations |
| P16NM223MAB15F4 | -40...125 | Ø16x9.4 | ±20 | 22k | metallic black | gradient |
| P16NP223MA | -40...85 | Ø16x8 | ±20 | 22k | - | - |
| P16WM223MAB15 | -40...125 | Ø16x9.4 | ±20 | 22k | metallic white | - |
| P16WM223MAB15F1 | -40...125 | Ø16x9.4 | ±20 | 22k | metallic white | line |
| P16WM223MAB15F2 | -40...125 | Ø16x9.4 | ±20 | 22k | metallic white | 10 graduations |
| P16WM223MAB15F3 | -40...125 | Ø16x9.4 | ±20 | 22k | metallic white | 5 graduations |
| P16WM223MAB15F4 | -40...125 | Ø16x9.4 | ±20 | 22k | metallic white | gradient |
| P16NM473MAB15 | -40...125 | Ø16x9.4 | ±20 | 47k | metallic black | - |
| P16NM473MAB15F1 | -40...125 | Ø16x9.4 | ±20 | 47k | metallic black | line |
| P16NM473MAB15F2 | -40...125 | Ø16x9.4 | ±20 | 47k | metallic black | 10 graduations |
| P16NM473MAB15F3 | -40...125 | Ø16x9.4 | ±20 | 47k | metallic black | 5 graduations |
| P16NM473MAB15F4 | -40...125 | Ø16x9.4 | ±20 | 47k | metallic black | gradient |
| P16NP473MA | -40...85 | Ø16x8 | ±20 | 47k | - | - |
| P16WM473MAB15 | -40...125 | Ø16x9.4 | ±20 | 47k | metallic white | - |
| P16WM473MAB15F1 | -40...125 | Ø16x9.4 | ±20 | 47k | metallic white | line |
| P16WM473MAB15F2 | -40...125 | Ø16x9.4 | ±20 | 47k | metallic white | 10 graduations |
| P16WM473MAB15F3 | -40...125 | Ø16x9.4 | ±20 | 47k | metallic white | 5 graduations |
| P16WM473MAB15F4 | -40...125 | Ø16x9.4 | ±20 | 47k | metallic white | gradient |
| P16NM104MAB15 | -40...125 | Ø16x9.4 | ±20 | 100k | metallic black | - |
| P16NM104MAB15F1 | -40...125 | Ø16x9.4 | ±20 | 100k | metallic black | line |
| P16NM104MAB15F2 | -40...125 | Ø16x9.4 | ±20 | 100k | metallic black | 10 graduations |
| P16NM104MAB15F3 | -40...125 | Ø16x9.4 | ±20 | 100k | metallic black | 5 graduations |
| P16NM104MAB15F4 | -40...125 | Ø16x9.4 | ±20 | 100k | metallic black | gradient |
| P16NP104MA | -40...85 | Ø16x8 | ±20 | 100k | - | - |
| P16WM104MAB15 | -40...125 | Ø16x9.4 | ±20 | 100k | metallic white | - |
| P16WM104MAB15F1 | -40...125 | Ø16x9.4 | ±20 | 100k | metallic white | line |
| P16WM104MAB15F2 | -40...125 | Ø16x9.4 | ±20 | 100k | metallic white | 10 graduations |
| P16WM104MAB15F3 | -40...125 | Ø16x9.4 | ±20 | 100k | metallic white | 5 graduations |
| P16WM104MAB15F4 | -40...125 | Ø16x9.4 | ±20 | 100k | metallic white | gradient |
| P16NM224MAB15 | -40...125 | Ø16x9.4 | ±20 | 220k | metallic black | - |
| P16NM224MAB15F1 | -40...125 | Ø16x9.4 | ±20 | 220k | metallic black | line |
| P16NM224MAB15F2 | -40...125 | Ø16x9.4 | ±20 | 220k | metallic black | 10 graduations |
| P16NM224MAB15F3 | -40...125 | Ø16x9.4 | ±20 | 220k | metallic black | 5 graduations |
| P16NM224MAB15F4 | -40...125 | Ø16x9.4 | ±20 | 220k | metallic black | gradient |
| P16NP224MA | -40...85 | Ø16x8 | ±20 | 220k | - | - |
| P16WM224MAB15 | -40...125 | Ø16x9.4 | ±20 | 220k | metallic white | - |
| P16WM224MAB15F1 | -40...125 | Ø16x9.4 | ±20 | 220k | metallic white | line |
| P16WM224MAB15F2 | -40...125 | Ø16x9.4 | ±20 | 220k | metallic white | 10 graduations |
| P16WM224MAB15F3 | -40...125 | Ø16x9.4 | ±20 | 220k | metallic white | 5 graduations |
| P16WM224MAB15F4 | -40...125 | Ø16x9.4 | ±20 | 220k | metallic white | gradient |
| P16NM474MAB15 | -40...125 | Ø16x9.4 | ±20 | 470k | metallic black | - |
| P16NM474MAB15F1 | -40...125 | Ø16x9.4 | ±20 | 470k | metallic black | line |
| P16NM474MAB15F2 | -40...125 | Ø16x9.4 | ±20 | 470k | metallic black | 10 graduations |
| P16NM474MAB15F3 | -40...125 | Ø16x9.4 | ±20 | 470k | metallic black | 5 graduations |
| P16NM474MAB15F4 | -40...125 | Ø16x9.4 | ±20 | 470k | metallic black | gradient |
| P16NP474MA | -40...85 | Ø16x8 | ±20 | 470k | - | - |
| P16WM474MAB15 | -40...125 | Ø16x9.4 | ±20 | 470k | metallic white | - |
| P16WM474MAB15F1 | -40...125 | Ø16x9.4 | ±20 | 470k | metallic white | line |
| P16WM474MAB15F2 | -40...125 | Ø16x9.4 | ±20 | 470k | metallic white | 10 graduations |
| P16WM474MAB15F3 | -40...125 | Ø16x9.4 | ±20 | 470k | metallic white | 5 graduations |
| P16WM474MAB15F4 | -40...125 | Ø16x9.4 | ±20 | 470k | metallic white | gradient |
| P16NM105MAB15 | -40...125 | Ø16x9.4 | ±20 | 1M | metallic black | - |
| P16NM105MAB15F1 | -40...125 | Ø16x9.4 | ±20 | 1M | metallic black | line |
| P16NM105MAB15F2 | -40...125 | Ø16x9.4 | ±20 | 1M | metallic black | 10 graduations |
| P16NM105MAB15F3 | -40...125 | Ø16x9.4 | ±20 | 1M | metallic black | 5 graduations |
| P16NM105MAB15F4 | -40...125 | Ø16x9.4 | ±20 | 1M | metallic black | gradient |
| P16NP105MA | -40...85 | Ø16x8 | ±20 | 1M | - | - |
| P16WM105MAB15 | -40...125 | Ø16x9.4 | ±20 | 1M | metallic white | - |
| P16WM105MAB15F1 | -40...125 | Ø16x9.4 | ±20 | 1M | metallic white | line |
| P16WM105MAB15F2 | -40...125 | Ø16x9.4 | ±20 | 1M | metallic white | 10 graduations |
| P16WM105MAB15F3 | -40...125 | Ø16x9.4 | ±20 | 1M | metallic white | 5 graduations |
| P16WM105MAB15F4 | -40...125 | Ø16x9.4 | ±20 | 1M | metallic white | gradient |
