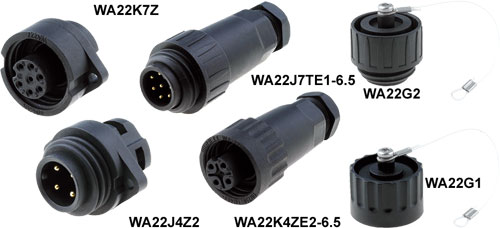

Connector; Connector accessories; WEIPU
| Manufacturer | WEIPU |
| Manufacturer series | WA22 |
| Locking system | threaded joint |
| Symbol | Type of connector | No. of pins | Connector | Kind | Electrical mounting | Mechanical mounting | Locking system | Øext. cable |
|---|---|---|---|---|---|---|---|---|
| [mm] | ||||||||
| WA22G1 | - | - | - | - | - | - | internal thread | - |
| WA22G2 | - | - | - | - | - | - | external thread | - |
| WA22G2-19CM | - | - | - | - | - | - | external thread | - |
| WA22J4TE2-10.5 | circular | 4 | plug | male | screw terminal | - | external thread | 9...10.5 |
| WA22J4TE2-6.5 | circular | 4 | plug | male | screw terminal | - | external thread | 5...6.5 |
| WA22J4TE2-8.5 | circular | 4 | plug | male | screw terminal | - | external thread | 7...8.5 |
| WA22J4TK2 | circular | 4 | plug | male | screw terminal | - | external thread | 7...12 |
| WA22J4TK2I | circular | 4 | plug | male | screw terminal | - | external thread | 4.5...7 |
| WA22J4Z2 | circular | 4 | socket | male | screw terminal | flange (2 holes), for panel mounting | external thread | - |
| WA22J7TE1-10.5 | circular | 7 | plug | male | soldering | - | external thread | 9...10.5 |
| WA22J7TE1-6.5 | circular | 7 | plug | male | soldering | - | external thread | 5...6.5 |
| WA22J7TE1-8.5 | circular | 7 | plug | male | soldering | - | external thread | 7...8.5 |
| WA22J7TL1 | circular | 7 | plug | male | soldering | - | external thread | 7...12 |
| WA22J7TL1-I | circular | 7 | plug | male | soldering | - | external thread | 4.5...7 |
| WA22J7Z1 | circular | 7 | socket | male | soldering | flange (2 holes), for panel mounting | external thread | - |
| WA22K4TK2 | circular | 4 | plug | female | screw terminal | - | internal thread | 7...12 |
| WA22K4TK2I | circular | 4 | plug | female | screw terminal | - | internal thread | 4.5...7 |
| WA22K4Z2 | circular | 4 | socket | female | screw terminal | flange (2 holes), for panel mounting | internal thread | - |
| WA22K4ZE2-10.5 | circular | 4 | plug | female | screw terminal | - | internal thread | 9...10.5 |
| WA22K4ZE2-6.5 | circular | 4 | plug | female | screw terminal | - | internal thread | 5...6.5 |
| WA22K4ZE2-8.5 | circular | 4 | plug | female | screw terminal | - | internal thread | 7...8.5 |
| WA22K7Z | circular | 7 | socket | female | soldering | flange (2 holes), for panel mounting | internal thread | - |
| WA22K7ZE1-10.5 | circular | 7 | plug | female | soldering | - | internal thread | 9...10.5 |
| WA22K7ZE1-6.5 | circular | 7 | plug | female | soldering | - | internal thread | 5...6.5 |
| WA22K7ZE1-8.5 | circular | 7 | plug | female | soldering | - | internal thread | 7...8.5 |
| Symbol | Urated | Connector accessories | Layout | Inom |
|---|---|---|---|---|
| [V] | [A] | |||
| WA22G1 | - | protection cover | - | - |
| WA22G2 | - | protection cover | - | - |
| WA22G2-19CM | - | protection cover | - | - |
| WA22J4TE2-10.5 | 400 | - | 3+PE | 16 |
| WA22J4TE2-6.5 | 400 | - | 3+PE | 16 |
| WA22J4TE2-8.5 | 400 | - | 3+PE | 16 |
| WA22J4TK2 | 400 | - | 3+PE | 16 |
| WA22J4TK2I | 400 | - | 3+PE | 16 |
| WA22J4Z2 | 400 | - | 3+PE | 16 |
| WA22J7TE1-10.5 | 250 | - | 6+PE | 10 |
| WA22J7TE1-6.5 | 250 | - | 6+PE | 10 |
| WA22J7TE1-8.5 | 250 | - | 6+PE | 10 |
| WA22J7Z1 | 250 | - | 6+PE | 10 |
| WA22K4TK2 | 400 | - | 3+PE | 16 |
| WA22K4TK2I | 400 | - | 3+PE | 16 |
| WA22K4Z2 | 400 | - | 3+PE | 16 |
| WA22K4ZE2-10.5 | 400 | - | 3+PE | 16 |
| WA22K4ZE2-6.5 | 400 | - | 3+PE | 16 |
| WA22K4ZE2-8.5 | 400 | - | 3+PE | 16 |
| WA22K7Z | 250 | - | 6+PE | 10 |
| WA22K7ZE1-10.5 | 250 | - | 6+PE | 10 |
| WA22K7ZE1-6.5 | 250 | - | 6+PE | 10 |
| WA22K7ZE1-8.5 | 250 | - | 6+PE | 10 |
| Symbol: (WA22G1, WA22G2) | |
|---|---|
| IP rating | IP67 |
| Symbol: (WA22G2-19CM) | |
| IP rating | IP67 |
| Length | 190mm |
| Symbol: (WA22J4xxx, WA22J7TE1-xx.5, WA22J7Z1, WA22Kxxx) | |
| IP rating | IP67 |
| Contact plating | gold-plated |
