Connector; LUMBERG

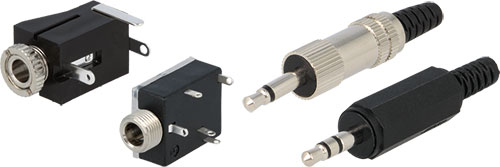

Connector; LUMBERG, 1501-05, 1502-02, 1502-07, 1502-08, 1503-02, 1503-03, 1503-09, 1503-15VP3 |EN|
ManufacturerLUMBERG

Symbol Type of connector Connector Type Design Electr. mounting Mech. mounting Orientation No. of ways Kind Enclos. mat. IP rating
1501-05 Jack 2,5mm socket stereo - THT on PCBs angled 90° 3 female - -
1502-02 Jack 3,5mm socket stereo special - soldering for panel mounting, front side nut, screwed straight 4 female - -
1502-07 Jack 3,5mm socket stereo - THT on PCBs straight 3 female - -
1502-08 Jack 3,5mm socket stereo - soldering, THT for panel mounting, on PCBs straight 3 female - -
1503-02 Jack 3,5mm socket stereo - SMT on PCBs angled 90° 3 female - -
1503-03 Jack 3,5mm socket stereo - SMT on PCBs angled 90° 3 female - -
1503-09 Jack 3,5mm socket stereo; with double switch - THT on PCBs angled 90° 3 female - -
1503-15VP3 Jack 3,5mm socket stereo special - SMT on PCBs angled 90° 4 female - -
1503-16 Jack 3,5mm socket stereo special - THT on PCBs angled 90° 4 female - IP67, IPX7
1503-17 Jack 3,5mm socket stereo; with double switch - THT on PCBs angled 90° 3 female - -
1503-29 Jack 3,5mm socket stereo - THT on PCBs angled 90° 3 female - -
1503-30 Jack 3,5mm socket stereo - THT on PCBs angled 90° 3 female - -
1503-31-VP3 Jack 3,5mm socket stereo special - SMT on PCBs angled 90° 4 female - -
1503-35 Jack 3,5mm socket stereo - THT on PCBs angled 90° 4 female - -
1505-01 Jack 6,3mm socket stereo; with double switch - soldering for panel mounting, front side nut straight 3 female - -
1522-02 Jack 3,5mm plug mono; with strain relief - soldering for cable straight 2 female plastic -
1532-02 Jack 3,5mm plug stereo special; with strain relief - soldering for cable straight 4 male plastic -
1532-06 Jack 3,5mm plug mono; with strain relief - soldering for cable straight 2 male plastic -
KLB-1 Jack 2,5mm socket mono - soldering for panel mounting, front side nut, screwed straight 2 female - -
KLB13 Jack 2,5mm socket stereo - soldering for panel mounting, front side nut, screwed straight 3 female - -
KLB-3 Jack 6,3mm socket stereo - soldering for panel mounting, front side nut, screwed straight 3 female - -
KLBM-3 Jack 6,3mm socket mono - soldering for panel mounting, front side nut, screwed straight 2 female - -
KLBP-3 Jack 6,3mm socket stereo - soldering for panel mounting, front side nut, screwed straight 3 female - -
KLBPS-3 Jack 6,3mm socket stereo on/off switch soldering for panel mounting, front side nut, screwed straight 3 female - -
KLBR-4 Jack 3,5mm socket stereo - THT on PCBs angled 90° 3 female - -
KLK3B Jack 6,3mm plug stereo; with strain relief - soldering for cable straight 3 female plastic -
KLS10B Jack 2,5mm plug mono; with strain relief - soldering for cable straight 2 male plastic -
KLS13 Jack 2,5mm plug stereo; with strain relief - soldering for cable straight 3 male plastic -
KLS1B Jack 2,5mm plug mono; with strain relief - soldering for cable straight 2 male plastic -
KLS22 Jack 3,5mm plug mono; with strain relief - soldering for cable straight 2 male metal -
KLS2B Jack 3,5mm plug mono; with strain relief - soldering for cable straight 2 male plastic -
KLS3B Jack 6,3mm plug stereo; with strain relief - soldering for cable straight 3 male plastic -
WKLS40 Jack 3,5mm plug stereo - soldering for cable angled 90° 3 male plastic -
