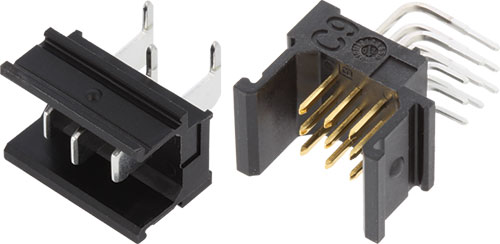

Connector: PCB to PCB; HARTING
| Manufacturer | HARTING |
| Manufacturer series | har-modular® |
| Type of connector | PCB to PCB |
| Electrical mounting | THT |
| Mechanical mounting | on PCBs |
| Symbol | Width | Type | Related items | Kind | Pin | Spatial orientation | Contacts pitch |
|---|---|---|---|---|---|---|---|
| [mm] | [mm] | ||||||
| 02519091101 | 10.16 | C9 module | - | male | 9 | angled | 2.54 |
| 02519091102 | 10.16 | C9 module | - | male | 9 | angled | 2.54 |
| 02519091103 | 10.16 | C9 module | - | male | 9 | angled | 2.54 |
| 02539091101 | 10.16 | C9 module | - | male | 9 | straight | 2.54 |
| 02539091102 | 10.16 | C9 module | - | male | 9 | straight | 2.54 |
| 02539091103 | 10.16 | C9 module | - | male | 9 | straight | 2.54 |
| 02529091101 | 10.16 | C9 module | - | female | 9 | straight | 2.54 |
| 02519041201 | 10.16 | F4 module | - | male | 4 | angled | - |
| 02519041202 | 10.16 | F4 module | - | male | 4 | angled | - |
| 02539041201 | 10.16 | F4 module | - | male | 4 | straight | - |
| 02539041202 | 10.16 | F4 module | - | male | 4 | straight | - |
| 02529041201 | 10.16 | F4 module | - | female | 4 | straight | - |
| 02519031301 | 20.32 | H3 module | - | male | 3 | angled | - |
| 02539031301 | 20.32 | H3 module | - | male | 3 | straight | - |
| 02529031301 | 20.32 | H3 module | - | female | 3 | straight | - |
| 02519010401 | 10.16 | w/o contacts; M1 coax module; M1 FO module; M1 high-voltage module; M1 power module | 09030006101, 09030006102, 09030006103, 09030006104, 09030006110, 09030006113, 09030006114, 09030006115, 09030006127, 09030006133, 09030006134, 09030006140, 09030006260, 09030006261, 09030006262, 09030006269, 09030006274, 09140006221, 20100014211, 20101254212, 20102304211 | male | 1 | angled | - |
| 02539010451 | 10.16 | w/o contacts; M1 power module | 09030006136 | male | 1 | straight | - |
| 02539010401 | 10.16 | w/o contacts; M1 coax module; M1 FO module; M1 high-voltage module; M1 power module | 09030006101, 09030006102, 09030006103, 09030006113, 09030006114, 09030006115, 09030006133, 09030006140, 09030006260, 09030006261, 09030006274, 09140006221, 20100014211, 20101254212, 20102304211 | male | 1 | straight | - |
| 02529010451 | 10.16 | w/o contacts; M1 coax module; M1 power module | 09030006182, 09030006225 | female | 1 | straight | - |
| 02529010401 | 10.16 | w/o contacts; M1 coax module; M1 FO module; M1 high-voltage module; M1 power module | 09030006160, 09030006161, 09030006181, 09030006201, 09030006202, 09030006203, 09030006213, 09030006214, 09030006215, 09030006240, 20100014221, 20101254222, 20102304221 | female | 1 | straight | - |
| 02519000002 | 5.08 | P module | 09060019979 | male | - | angled | - |
| 02539000002 | 5.08 | P module | 09060019979 | male | - | straight | - |
| 02539000005 | 5.08 | P module | 09060019979 | male | - | straight | - |
| 02539000006 | 5.08 | P module | 09060019979 | female | - | straight | - |
| 02529000001 | 5.08 | P module | 09060019979 | female | - | straight | - |
| 02529000002 | 5.08 | P module | 09060019979 | female | - | straight | - |
| 02529000004 | 5.08 | P module | 09060019979 | female | - | straight | - |
| 02519000001 | 10.16 | T module | 09060019979 | male | - | angled | - |
| 02519000003 | 10.16 | T module | 09060019979 | male | - | angled | - |
| 02539000001 | 10.16 | T module | 09060019979 | male | - | straight | - |
| 02539000003 | 10.16 | T module | 09060019979 | male | - | straight | - |
| 02539000004 | 10.16 | T module | 09060019979 | male | - | straight | - |
| 02529000003 | 10.16 | T module | 02095000004 | female | - | straight | - |
