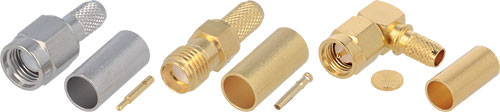

Connector; TELEGÄRTNER
| Manufacturer | TELEGÄRTNER |
| Contact plating | gold-plated |
| Insulator material | PTFE |
| Wave imp. | 50Ω |
| Symbol | Connector | Mech. mounting | Kind | Mounting | Orientation | Max. frequency | Cable |
|---|---|---|---|---|---|---|---|
| [GHz] | |||||||
| J01150A0031 | plug | for cable | male | soldering, crimped | straight | 18 | RG142, RG223 |
| J01150A0039 | plug | for cable | male | soldering, crimped | straight | 18 | RG142, RG223, RG400 |
| J01150A0041 | plug | for cable | male | soldering, crimped | straight | 18 | B7806A, B9907, CNT-195, HPF 195, KX15, LMR195, RG58C/U, WCX195 |
| J01150A0049 | plug | for cable | male | soldering, crimped | straight | 18 | RG58C/U |
| J01150A0061 | plug | for cable | male | soldering, crimped | angled 90° | 12.4 | KX22A, KX3B, RG174, RG188, RG316 |
| J01150A0081 | plug | for cable | male | soldering, crimped | angled 90° | 12.4 | RG142, RG223, RG400 |
| J01150A0091 | plug | for cable | male | soldering, crimped | angled 90° | 12.4 | B9907, KX15, RG58C/U |
| J01150A0161 | socket | flange (2 holes), for panel mounting | male | soldering | straight | 18 | - |
| J01150A0521 | plug | for cable | male | soldering, crimped | angled 90° | 12.4 | B7808A, CNT-240, H155, LMR240 |
| J01150A0588 | plug | for cable | male | crimped | straight | 18 | B7810A, B9913, CNT-400, LMR400 |
| J01150A0611 | plug | for cable | male | crimped | straight | 18 | B7808A, CNT-240, H155, LMR240 |
| J01150A0618 | plug | for cable | male | crimped | straight | 18 | B7808A, CNT-240, H155, LMR240 |
| J01151A0051 | plug | for cable | female | soldering, crimped | straight | 18 | KX22A, KX3B, MRC 100 Flex, RG174U, RG187A/U, RG316U |
| J01151A0059 | plug | for cable | female | soldering, crimped | straight | 18 | KX22A, KX3B, RG174, RG188, RG316 |
| J01151A0151 | socket | flange (2 holes), for panel mounting | female | soldering | straight | 18 | - |
| J01151A0491 | plug | for cable | female | soldering, crimped | straight | 18 | B9907, KX15, RG58C/U |
| J01151A0491Z | plug | for cable | female | soldering, crimped | straight | 18 | RG58C/U |
| J01151A0611 | plug | for cable | female | soldering, crimped | straight | 18 | RG142, RG223, RG400 |
| J01151A0741 | socket | for panel mounting, screwed | female | soldering | straight | 18 | - |
| J01151R0021 | plug | for cable | male; reverse | soldering, crimped | straight | 18 | B7806A, B9907, CNT-195, HPF 195, KX15, LMR195, RG58C/U, WCX195 |
| Symbol: (J01150A0xxx, J01151A0xxx) | |
|---|---|
| Type of connector | SMA |
| Symbol: (J01151R0021) | |
| Type of connector | RP-SMA |
