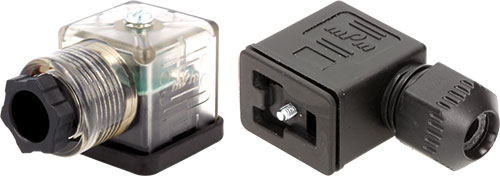

Connector: valve connector; MOLEX
| Manufacturer | MOLEX |
| Type of connector | valve connector |
| Application | for solenoid valves |
| Conform to | DIN 43650 DIN EN 175301-803 |
| Connector family | industrial |
| Symbol | Manufacturer series | Case | No. of pins | Layout | Connector | Kind | Wire | Mech. mounting | Electr. mounting | Contacts ph | Øext. cable | Imax | Urated | IP rating | Colour | Type | Cable length | Plating | Gland |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [mm2] | [mm] | [mm] | [A] | [V] | [m] | ||||||||||||||
| MX-1210120013 | mPm | form A | 3 | 2+PE | socket | male | 1 | for panel mounting | soldering, screw terminal | 18 | - | 16 | 250 | IP65, IP67 | black | - | - | silver plated | - |
| MX-121012-0019 | mPm | form A | 4 | 3+PE | socket | male | - | for panel mounting | soldering | 18 | - | - | 250 | - | black | - | - | - | - |
| MX-121012-0078 | mPm | form A | 4 | 3+PE | socket | male | - | for panel mounting | soldering | 18 | - | - | - | - | black | - | - | - | - |
| MX-121012-0107 | mPm | form C | 4 | 3+PE | socket | male | - | for panel mounting | soldering | 9.4 | - | 10 | 300 | IP65, IP67 | black | - | - | tinned | - |
| MX-121012-0168 | mPm | form A | 3 | 2+PE | socket | male | 1 | for panel mounting | soldering | 18 | - | 16 | 300 | IP65, IP67 | black | - | - | silver plated | - |
| MX-1210230122 | mPm | form B | 3 | 2+PE | plug | female | 1.5 | for cable | screw terminal | 11 | 6...8 | 16 | 250 | IP65 | black | - | - | silver plated | PG9 |
| MX-1210230229 | mPm | form A | 3 | 2+PE | plug | female | 1.5 | for cable | screw terminal | 18 | 6...8 | 16 | 250 | IP65 | grey | - | - | silver plated | PG9 |
| MX-1210230238 | mPm | form A | 3 | 2+PE | plug | female | 1.5 | for cable | screw terminal | 18 | 6...8 | 16 | 250 | IP65 | black | - | - | silver plated | PG9 |
| MX-1210230278 | mPm | form A | 3 | 2+PE | plug | female | 1.5 | for cable | screw terminal | 18 | 8...10 | 16 | 250 | IP65 | black | - | - | silver plated | PG11 |
| MX-1210230341 | mPm | form A | 4 | 3+PE | plug | female | 1.5 | for cable | screw terminal | 18 | 6...8 | 16 | 250 | IP65 | black | - | - | silver plated | PG9 |
| MX-1210230377 | mPm | form A | 4 | 3+PE | plug | female | 1.5 | for cable | screw terminal | 18 | 8...10 | 16 | 250 | IP65 | black | - | - | silver plated | PG11 |
| MX-1210230438 | mPm | form C | 3 | 2+PE | plug | female | 0.75 | for cable | screw terminal | 9.4 | 4...6 | 10 | 250 | IP65 | black | - | - | silver plated | PG7 |
| MX-121023-0465 | mPm | form C | 4 | 3+PE | plug | female | 0.75 | for cable | screw terminal | 9.4 | 4...6 | 16 | 300 | IP65 | black | - | - | silver plated | PG7 |
| MX-121023-0467 | mPm | form C | 4 | 3+PE | plug | female | 0.75 | for cable | screw terminal | 9.4 | 4...6 | 10 | 250 | IP65 | black | - | - | silver plated | PG7 |
| MX-121023-0694 | mPm | form A | 4 | 3+PE | plug | female | - | for cable | screw terminal | 18 | - | - | 250 | - | black | - | - | silver plated | M12 |
| MX-12105-01962 | mPm | form A | 4 | - | plug | female | 0.75 | for cable | cables | 18 | 6.3...6.7 | - | - | - | black | with LED; with varistor | 3 | - | - |
| MX-121050-3364 | mPm | form A | 3 | 2+PE | plug | female | 0.75 | for cable | cables | 18 | 6...6.8 | 5 | 24 | - | black | with LED; with varistor | 0.5 | silver plated | - |
| MX-1210640097 | mPm | form B | 3 | 2+PE | plug | female | 1.5 | for cable | screw terminal | 11 | 6...8 | 16 | 24 | IP65 | transparent | with LED; with varistor | - | silver plated | PG9 |
| MX-1210640545 | mPm | form A | 3 | 2+PE | plug | female | 1.5 | for cable | screw terminal | 18 | 6...8 | 16 | 24 | IP65 | transparent | with LED | - | silver plated | PG9 |
| MX-1210640570 | mPm | form A | 3 | 2+PE | plug | female | 1.5 | for cable | screw terminal | 18 | 6...8 | 16 | 24 | IP65 | transparent | with LED; with protective diode | - | silver plated | PG9 |
| MX-1210640579 | mPm | form A | 3 | 2+PE | plug | female | 1.5 | for cable | screw terminal | 18 | 6...8 | 16 | 24 | IP65 | transparent | with LED; with protective diode | - | silver plated | PG9 |
| MX-121064-0646 | mPm | form A | 3 | 2+PE | plug | female | 1.5 | for cable | screw terminal | 18 | 8...10 | 16 | 48 | - | transparent | with LED | - | silver plated | PG11 |
| MX-121064-0674 | mPm | form A | 3 | 2+PE | plug | female | - | for cable | screw terminal | 18 | - | - | 24 | - | transparent | with LED; with varistor | - | silver plated | PG11 |
| MX-1212010001 | mPm | form A | 3 | 2+PE | plug | female | 1.5 | for cable | soldering | 18 | 4...9 | 16 | 250 | IP65, IP67 | black | - | - | silver plated | - |
| MX-1212010002 | mPm | form A | 4 | 3+PE | plug | female | 1.5 | for cable | soldering | 18 | 4...9 | 16 | 250 | IP65, IP67 | black | - | - | silver plated | - |
| MX-121201-0034 | mPm | form A | 3 | 2+PE | plug | female | 1.5 | for cable | screw terminal | 18 | 4...9 | 16 | 300 | IP65, IP67 | black | - | - | silver plated | - |
| MX-1212010046 | mPm | form A | 3 | 2+PE | plug | female | - | for cable | screw terminal | 18 | 4...9 | 16 | 250 | IP65, IP67 | black | - | - | - | - |
| MX-121202-0012 | mPm | form B | 3 | 2+PE | plug | female | 1.5 | for cable | screw terminal | 11 | 4...9 | 16 | 300 | IP65, IP67 | black | - | - | silver plated | - |
| MX-121203-0001 | - | form B | 3 | 2+PE | plug | female | - | for cable | screw terminal | 11 | - | - | - | - | - | - | - | - | - |
| MX-121204-0010 | mPm | form C | 3 | 2+PE | plug | female | 0.75 | for cable | screw terminal | 8 | 3...5.5 | 10 | 300 | IP65, IP67 | black | - | - | silver plated | - |
| MX-121205-0012 | mPm | form C | 3 | 2+PE | plug | female | 0.75 | for cable | screw terminal | 9.4 | 3...5.5 | 10 | 250 | IP65, IP67 | black | - | - | silver plated | - |
| MX-121207-0004 | mPm | form A | 3 | 2+PE | plug | female | - | for cable | screw terminal | 18 | 4...9 | 16 | 24 | IP65, IP67 | - | with LED; with varistor | - | silver plated | - |
| MX-121207-0358 | mPm | form A | 3 | 2+PE | plug | female | 1.5 | for cable | screw terminal | 18 | 4...9 | 16 | 24 | IP65, IP67 | transparent | with LED; with varistor | - | silver plated | - |
