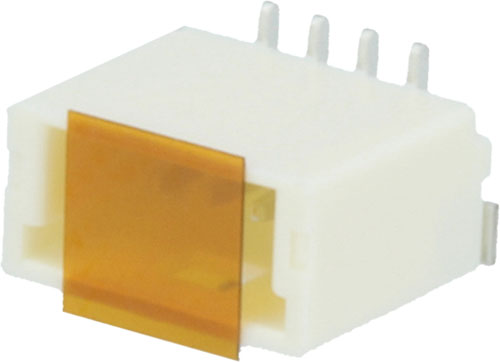

Connector: wire-board; MOLEX
| Manufacturer | MOLEX |
| Contacts pitch | 1mm |
| Connector | socket |
| Kind | male |
| Maximum current | 1A |
| Electrical mounting | SMT |
| Type of connector | wire-board |
| Manufacturer series | Pico-Clasp |
| Symbol | Contact plating | Number of pins | Pin configuration | Locking system | Spatial orientation |
|---|---|---|---|---|---|
| MX-202396-0207 | gold-plated | 2 | 1x2 | latch | horizontal |
| MX-501331-0207 | tinned | 2 | 1x2 | latch | vertical |
| MX-504449-0207 | gold-plated | 2 | 1x2 | latch | vertical |
| MX-501331-0307 | tinned | 3 | 1x3 | latch | vertical |
| MX-501940-0303 | gold-plated | 3 | 1x3 | latch | vertical |
| MX-501953-0305 | gold-plated | 3 | 1x3 | - | horizontal |
| MX-202396-0407 | gold-plated | 4 | 1x4 | latch | horizontal |
| MX-501331-0407 | tinned | 4 | 1x4 | latch | vertical |
| MX-501568-0407 | tinned | 4 | 1x4 | latch | horizontal |
| MX-504449-0407 | gold-plated | 4 | 1x4 | latch | vertical |
| MX-501331-0507 | tinned | 5 | 1x5 | latch | vertical |
| MX-501940-0503 | gold-plated | 5 | 1x5 | latch | vertical |
| MX-501953-0505 | gold-plated | 5 | 1x5 | - | horizontal |
| MX-202396-0607 | gold-plated | 6 | 1x6 | latch | horizontal |
| MX-501331-0607 | tinned | 6 | 1x6 | latch | vertical |
| MX-504449-0607 | gold-plated | 6 | 1x6 | latch | vertical |
| MX-501331-0707 | tinned | 7 | 1x7 | latch | vertical |
| MX-501331-0807 | tinned | 8 | 1x8 | latch | vertical |
| MX-501331-0907 | tinned | 9 | 1x9 | latch | vertical |
| MX-501331-1007 | tinned | 10 | 1x10 | latch | vertical |
| MX-501331-1107 | tinned | 11 | 1x11 | latch | vertical |
| MX-202396-1207 | gold-plated | 12 | 1x12 | latch | horizontal |
| MX-501331-1207 | tinned | 12 | 1x12 | latch | vertical |
| MX-504449-1207 | gold-plated | 12 | 1x12 | latch | vertical |
| MX-501331-1307 | tinned | 13 | 1x13 | latch | vertical |
| MX-501331-1407 | tinned | 14 | 1x14 | latch | vertical |
| MX-202396-1507 | gold-plated | 15 | 1x15 | latch | horizontal |
| MX-501331-1507 | tinned | 15 | 1x15 | latch | vertical |
| MX-504449-1507 | gold-plated | 15 | 1x15 | latch | vertical |
| MX-501190-2027 | gold-plated | 20 | 2x10 | latch | horizontal |
| MX-501571-2007 | gold-plated | 20 | 2x10 | latch | horizontal |
| MX-501190-2017 | gold-plated | 20 | 2x10 | latch | horizontal |
| MX-501190-3027 | gold-plated | 30 | 2x15 | latch | horizontal |
| MX-501190-4027 | gold-plated | 40 | 2x20 | latch | horizontal |
| MX-501190-5027 | gold-plated | 50 | 2x25 | latch | horizontal |
| Symbol: (MX-202396-xx07, MX-501331-xx07, MX-5019xxx, MX-501568-0407, MX-501571-2007, MX-501190-x027, MX-504449-xx07) | |
|---|---|
| Rated voltage | 50V |
| Symbol: (MX-501190-2017) | |
| Rated voltage | 100V |
