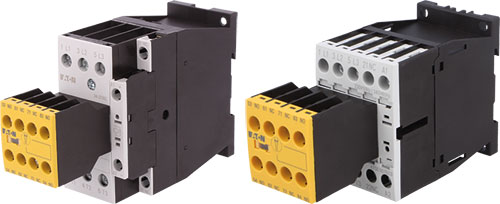

Contactors, DILMS series
| Manufacturer | EATON ELECTRIC |
| Type of contactor | 3-pole |
| Mounting | on panel, for DIN rail mounting |
| Contacts configuration | NO x3 |
| Leads | screw terminals |
| Auxiliary contacts current | 10A |
| Insulation voltage | 690V |
| Operating temperature | -25...40°C |
| Manufacturer series | DILMS |
| Symbol | Ioper. max | Ucntrl | Auxiliary contacts | Dimensions |
|---|---|---|---|---|
| [A] | ||||

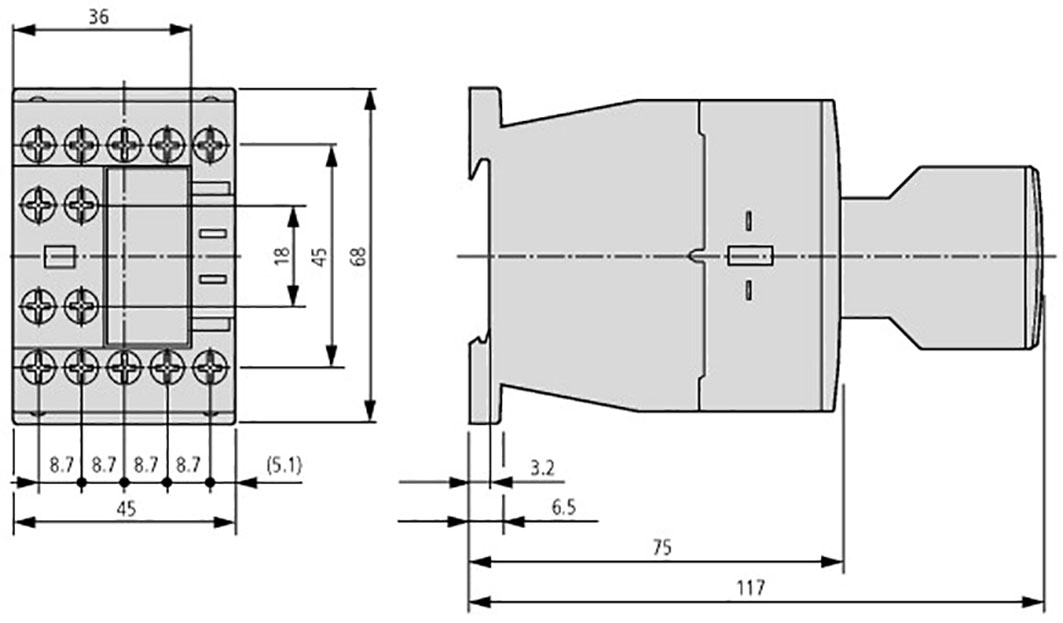

| DILMS7-23-110VAC | 7 | 110...120V AC | NC x3, NO x2 | Fig. 1. |
| DILMS7-R23-110VAC | 7 | 110...120V AC | NC x2, NO, NO + NC | Fig. 1. |
| DILMS7-23-24VDC | 7 | 24V DC | NC x3, NO x2 | Fig. 1. |
| DILMS7-R23-24VDC | 7 | 24V DC | NC x2, NO, NO + NC | Fig. 1. |
| DILMS9-23-110VAC | 9 | 110...120V AC | NC x3, NO x2 | Fig. 1. |
| DILMS9-R23-110VAC | 9 | 110...120V AC | NC x2, NO, NO + NC | Fig. 1. |
| DILMS9-23-230VAC | 9 | 230...240V AC | NC x3, NO x2 | Fig. 1. |
| DILMS9-R23-24VDC | 9 | 24V DC | NC x2, NO, NO + NC | Fig. 1. |
| DILMS12-23-110VAC | 12 | 110...120V AC | NC x3, NO x2 | Fig. 1. |
| DILMS12-R23-110VAC | 12 | 110...120V AC | NC x2, NO, NO + NC | Fig. 1. |
| DILMS12-23-230VAC | 12 | 230...240V AC | NC x3, NO x2 | Fig. 1. |
| DILMS12-23-24VDC | 12 | 24V DC | NC x3, NO x2 | Fig. 1. |

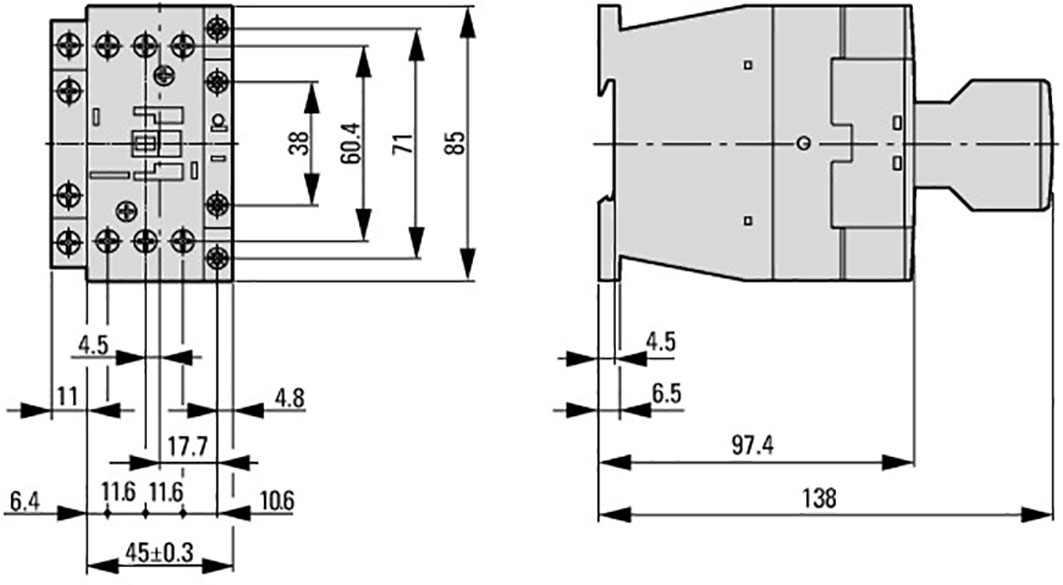

| DILMS17-23-110VAC | 17 | 110...120V AC | NC x3, NO x2 | Fig. 2. |
| DILMS17-R23-110VAC | 17 | 110...120V AC | NC x2, NO, NO + NC | Fig. 2. |
| DILMS17-23-230VAC | 17 | 230...240V AC | NC x3, NO x2 | Fig. 2. |
| DILMS17-23-24VDC | 17 | 24V DC | NC x3, NO x2 | Fig. 2. |
| DILMS17-R23-24VDC | 17 | 24V DC | NC x2, NO, NO + NC | Fig. 2. |
| DILMS25-23-110VAC | 25 | 110...120V AC | NC x3, NO x2 | Fig. 2. |
| DILMS25-R23-110VAC | 25 | 110...120V AC | NC x2, NO, NO + NC | Fig. 2. |
| DILMS25-23-24VDC | 25 | 24V DC | NC x3, NO x2 | Fig. 2. |
| DILMS25-R23-24VDC | 25 | 24V DC | NC x2, NO, NO + NC | Fig. 2. |
| DILMS32-23-110VAC | 32 | 110...120V AC | NC x3, NO x2 | Fig. 2. |
| DILMS32-R23-110VAC | 32 | 110...120V AC | NC x2, NO, NO + NC | Fig. 2. |
| DILMS32-23-230VAC | 32 | 230...240V AC | NC x3, NO x2 | Fig. 2. |
| DILMS32-R23-230VAC | 32 | 230...240V AC | NC x2, NO, NO + NC | Fig. 2. |
| DILMS32-23-24VDC | 32 | 24V DC | NC x3, NO x2 | Fig. 2. |
| DILMS32-R23-24VDC | 32 | 24V DC | NC x2, NO, NO + NC | Fig. 2. |

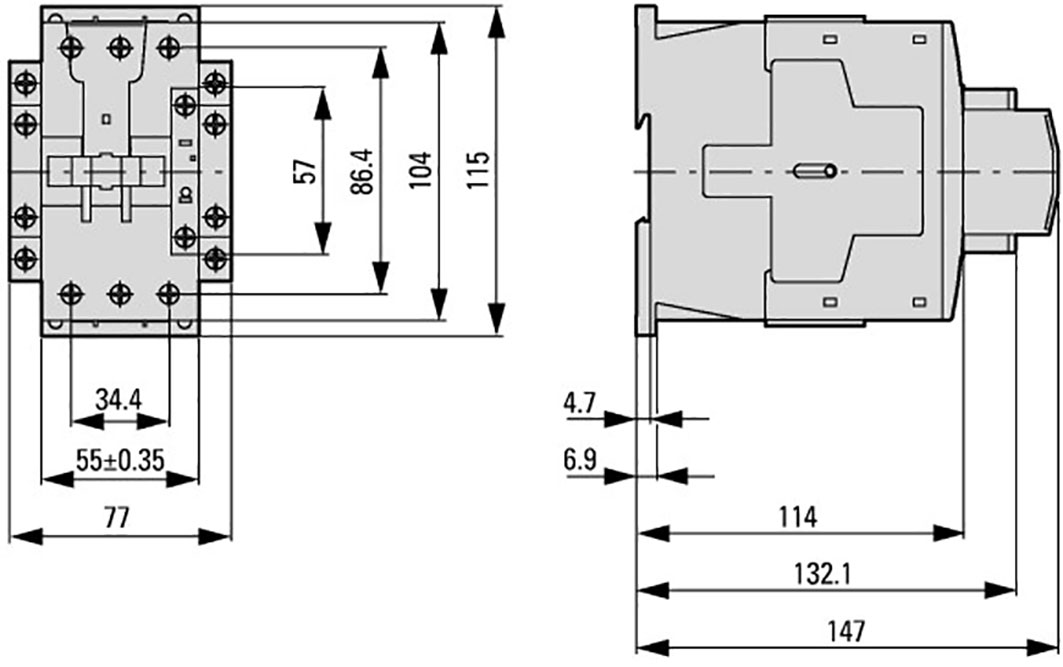

| DILMS40-22-110VAC | 40 | 110...120V AC | NC x2, NO x2 | Fig. 3. |
| DILMS40-22-230VAC | 40 | 230...240V AC | NC x2, NO x2 | Fig. 3. |
| DILMS40-22-24VDC | 40 | 24V DC | NC x2, NO x2 | Fig. 3. |
| DILMS50-22-110VAC | 50 | 110...120V AC | NC x2, NO x2 | Fig. 3. |
| DILMS50-22-230VAC | 50 | 230...240V AC | NC x2, NO x2 | Fig. 3. |
| DILMS50-22-24VDC | 50 | 24V DC | NC x2, NO x2 | Fig. 3. |
| DILMS65-22-110VAC | 65 | 110...120V AC | NC x2, NO x2 | Fig. 3. |
| DILMS65-22-230VAC | 65 | 230...240V AC | NC x2, NO x2 | Fig. 3. |
| DILMS65-22-24VDC | 65 | 24V DC | NC x2, NO x2 | Fig. 3. |

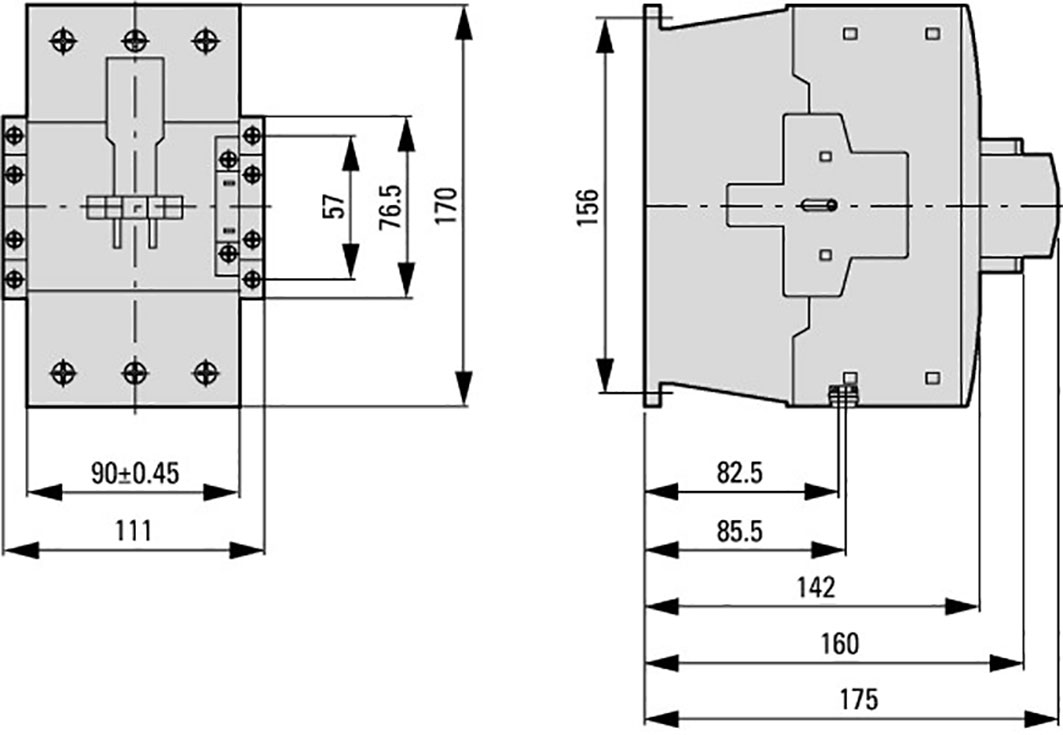

| DILMS80-22-110VAC | 80 | 110...120V AC | NC x2, NO x2 | Fig. 4. |
| DILMS80-22-230VAC | 80 | 230...240V AC | NC x2, NO x2 | Fig. 4. |
| DILMS80-22-24VDC | 80 | 24V DC | NC x2, NO x2 | Fig. 4. |
| DILMS95-22-110VAC | 95 | 110...120V AC | NC x2, NO x2 | Fig. 4. |
| DILMS95-22-230VAC | 95 | 230...240V AC | NC x2, NO x2 | Fig. 4. |
| DILMS95-22-24VDC | 95 | 24V DC | NC x2, NO x2 | Fig. 4. |
| DILMS115-22-110VAC | 115 | 110...120V AC | NC x2, NO x2 | Fig. 4. |
| DILMS115-22-230VAC | 115 | 230...240V AC | NC x2, NO x2 | Fig. 4. |
| DILMS115-22-24VDC | 115 | 24V DC | NC x2, NO x2 | Fig. 4. |
| DILMS150-22-110VAC | 150 | 110...120V AC | NC x2, NO x2 | Fig. 4. |
| DILMS150-22-230VAC | 150 | 230...240V AC | NC x2, NO x2 | Fig. 4. |
| DILMS150-22-24VDC | 150 | 24V DC | NC x2, NO x2 | Fig. 4. |
