Converter: AC/DC; PCB; AME; AIMTEC
| Manufacturer | AIMTEC |
| Type of converter | AC/DC |
| Mounting | PCB |
| Manufacturer series | AME |
Power consumption without load:
- <0.3W (AME1-xxSNJZ, AME2-xxSNJZ, AME3-xxxSCJZ, AME30-xxS480JZ-B, AMEL5-xxxJZ, AMEL12-5SCJZ)
- <0.5W (AME3-3.3SBJZ, AME3-15SBJZ, AME3-5SNJZ, AME3-24SNJZ, AME40-xxxJZ, AME60-9SMJZ, AMEL10-xxxSMJZ, AMEL45-24SJZ, AMEL60-48SJZ)
- <0.2W (AME3-xxSHAVZ-144, AMEM5-xxxSY, AMEM3-15S277HAVZ, AMEM3-24S277HAVZ)
- <0.1W (AMEL10-15S277HAVZB, AMEL10-12S277HAVZ, AMEL10-24S277HAVZ, AMEL10-3S277HAVZ, AMEL10-5S277HAVZ, AMEL10S-xxS277HAVZ, AMEL15-3S277HAVZ-B, AMEL15-24S277HAVZB, AMEL15-24S277HAVZ, AMEL15-12S277HAVZ, AMEL15-5S277HAVZ, AMEL1524S277HAVZ-2, AMEL15S-xxS277HAVZ, AMEL20-3S277HAVZB, AMEL20-12S277HAVZ, AMEL20-9S277HAVZ, AMEL20-24S277HAVZ, AMEL20-5S277HAVZ, AMEL30-xxx, AMEM3-3S277HAVZB, AMEM3-3S277HAVZ, AMEM3-12S277HAVZ, AMEM3-12S277HAVZ-2, AMEM3-5S277HAVZ, AMEM5-24S277HAVZB, AMEM5-24S277HAVZ, AMEM5-12S277HAVZ, AMEM5-12S277HAVZ-2, AMEM5-3S277HAVZ, AMEM5-5S277HAVZ, AME15-3.3SMAZ-E, AME15-3.3SMAZ-E-T, AME15-5SMAZ-E, AME15-5SMAZ-E-T, AME15-12SMAZ-E, AME15-12SMAZ-E-T, AME15-15SMAZ-E, AME15-15SMAZ-E-T)
Input voltage:
- 85...264V AC (AME3-3.3SCJZ, AME3-5SCJZ, AME3-9SCJZ, AME3-12SCJZ, AME3-12SHAVZ-144, AME3-15SCJZ, AME3-05SHAVZ-144, AME3-24SHAVZ-144, AME5-3.3SCJZ, AME5-3.3SVZ, AME5-5SCJZ, AME5-5SVZ, AME5-5DCJZ, AME5-515DCJZ, AME5-515TCJZ, AME5-524DCJZ, AME5-505TCJZ, AME5-15SCJZ, AME5-15DCJZ, AME5-12DCJZ, AME5-12SVZ, AME5-24SCJZ, AME5-24SVZ, AME5-24DCJZ, AME10-9SCJZ, AME10-1xxxZ, AME10-515TCJZ, AME10-524DCJZ, AME10-3.3SVZ, AME15-3.3SCJZ, AME15-3.3SVZ, AME15-15DCJZ, AME15-5xxxCJZ, AME20-9SCJZ, AME20-9SVZ, AME20-15SCJZ, AME20-15SVZ, AME20-12SVZ, AME20-24SCJZ, AME20-5xxxCJZ, AME20-3.3SVZ, AME25-3.3SCJZ, AME25-3.3SVZ, AME25-5SCJZ, AME25-5SVZ, AME25-9SCJZ, AME25-15SCJZ, AME25-48SCJZ, AME25-48SVZ, AME40-xxxJZ, AME60-48SVZ, AMEL3-xxxSVZ, AMEL5-9SCJZ, AMEL5-15SMJZ, AMEL5-3.3SVZ, AMEL5-5SVZ, AMEL5-24SVZ, AMEL6xxxZ, AMEL1xxxJZ, AMEL45-15SJZ, AMEL45-24SJZ, AMEM5-xxxSY)
- 85...305V AC (AME1-3.3SJZ, AME1-15SJZ, AME10-3.3SJZ, AME10-9SJZ, AME15-3.3SJZ, AME15-48S277VZ, AME2-3.3SJZ, AME2-15SJZ, AME20-3.3SJZ, AME20-15SJZ, AME25-3.3SJZ, AME25-5SJZ, AME25-5S277VZ, AME25-15SJZ, AME25-48S277VZ, AME5-3.3SJZ, AME5-9SJZ, AME5-12SJZ, AME5-15SJZ, AME5-24SJZ, AME5-512T277NZ, AME40-48S277VZ, AME60-24S277VZ, AME60-48S277VZ, AMEL5-5S277NZ, AMEL5-9SJZ, AMEL2-xxxS277NZ, AMEL20-3S277HAVZB, AMEL20-12S277HAVZ, AMEL20-9S277HAVZ, AMEL20-24S277HAVZ, AMEL20-5S277HAVZ, AMEL10-3.3S277NZ, AMEL10-3S277HAVZ, AMEL10-15S277HAVZB, AMEL10-12S277HAVZ, AMEL10-24S277HAVZ, AMEL10-5S277HAVZ, AMEL10S-xxS277HAVZ, AMEL15-3S277HAVZ-B, AMEL15-24S277HAVZB, AMEL15-24S277HAVZ, AMEL15-12S277HAVZ, AMEL15-5S277HAVZ, AMEL1524S277HAVZ-2, AMEL15S-xxS277HAVZ, AMEL30-xxx, AMEM3-xxx, AMEM5-24S277HAVZB, AMEM5-24S277HAVZ, AMEM5-12S277HAVZ, AMEM5-12S277HAVZ-2, AMEM5-3S277HAVZ, AMEM5-5S277HAVZ)
- 90...264V AC (AME15-5SMAZxxx, AME15-12SMAZxxx, AME15-15SMAZxxx, AME15-24SMAZ, AME15-3.3SMAZ-E, AME15-3.3SMAZ-E-T, AME40-5DMAZ, AME60-9SMJZ, AMEL5-xxxMAZ, AMEL10-xxxAZ, AMEL20-xxxMAZ)
- 90...305V AC (AME2-5SAZ, AME2-12SAZ, AMEL5-5SAZ, AMEL5-12SAZ, AMEL20-5SAZ, AMEL20-24SAZ, AME1-5SAZ)
- 90...528V AC (AME1-5SBAZ, AME10-5SBJZ, AME3-3.3SBJZ, AME3-15SBJZ, AME20-xxxSBJZ)
- 165...264V AC (AMExxxSNJZ)
- 176...528V AC (AME30-xxS480JZ-B)
- 100...370V DC (AME3-xxxSCJZ, AME5-xxxSVZ, AME1xxxSVZ, AME20-xxxSVZ, AME40-xxxCJZ, AME60-48SVZ, AMEL3-xxxSVZ, AMEL5-9SCJZ, AMEL5-15SMJZ, AMEL5-3.3SVZ, AMEL5-5SVZ, AMEL5-24SVZ, AMEL6xxxZ, AMEL1xxxJZ, AMEL45-15SJZ, AMEL45-24SJZ)
- 100...430V DC (AME5-3.3SJZ, AME5-9SJZ, AME5-12SJZ, AME5-15SJZ, AME5-24SJZ, AME5-512T277NZ, AME10-3.3SJZ, AME10-9SJZ, AME15-3.3SJZ, AME15-48S277VZ, AME20-3.3SJZ, AME20-15SJZ, AME25-3.3SJZ, AME25-5SJZ, AME25-5S277VZ, AME25-15SJZ, AME25-48S277VZ, AME40-48S277VZ, AME60-24S277VZ, AME60-48S277VZ, AMEL5-5S277NZ, AMEL5-9SJZ, AMEL10-3.3S277NZ, AMEL10-3S277HAVZ, AMEL10-15S277HAVZB, AMEL10-12S277HAVZ, AMEL10-24S277HAVZ, AMEL10-5S277HAVZ, AMEL10S-xxS277HAVZ, AMEL15-3S277HAVZ-B, AMEL15-24S277HAVZB, AMEL15-24S277HAVZ, AMEL15-12S277HAVZ, AMEL15-5S277HAVZ, AMEL1524S277HAVZ-2, AMEL15S-xxS277HAVZ, AMEL20-3S277HAVZB, AMEL20-12S277HAVZ, AMEL20-9S277HAVZ, AMEL20-24S277HAVZ, AMEL20-5S277HAVZ, AMEL30-xxx, AMEM3-xxx, AMEM5-24S277HAVZB, AMEM5-24S277HAVZ, AMEM5-12S277HAVZ, AMEM5-12S277HAVZ-2, AMEM5-3S277HAVZ, AMEM5-5S277HAVZ)
- 100...745V DC (AMExxxSBJZ)
- 120...370V DC (AME3-xxSHAVZ-144, AME5-xxxCJZ, AME1xxxCJZ, AME20-xxxCJZ, AME25-3.3SCJZ, AME25-3.3SVZ, AME25-5SCJZ, AME25-5SVZ, AME25-9SCJZ, AME25-15SCJZ, AME25-48SCJZ, AME25-48SVZ, AME40-48SMJZ, AMEM5-xxxSY)
- 120...430V DC (AME1-3.3SJZ, AME1-15SJZ, AME2-3.3SJZ, AME2-15SJZ, AMEL2-xxxS277NZ)
- 122...370V DC (AME60-9SMJZ)
- 130...370V DC (AME15-5SMAZxxx, AME15-12SMAZxxx, AME15-15SMAZxxx, AME15-24SMAZ, AME15-3.3SMAZ-E, AME15-3.3SMAZ-E-T, AME40-5DMAZ, AMEL5-xxxMAZ, AMEL10-xxxAZ, AMEL20-xxxMAZ)
- 130...430V DC (AME2-5SAZ, AME2-12SAZ, AMEL5-5SAZ, AMEL5-12SAZ, AMEL20-5SAZ, AMEL20-24SAZ, AME1-5SAZ)
- 130...745V DC (AME1-5SBAZ)
- 233...370V DC (AMExxxSNJZ)
- 248...746V DC (AME30-xxS480JZ-B)
| Symbol | Insulation volt. | Power | Output voltage | Output current | Uout2 | Iout2 | Uout3 | Iout3 | Efficiency | Body dim. | Dimensions | Operating temperature | Protection | Additional functions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [V] | [W] | [V DC] | [A] | [V DC] | [A] | [V DC] | [A] | [%] | [mm] | [°C] | ||||

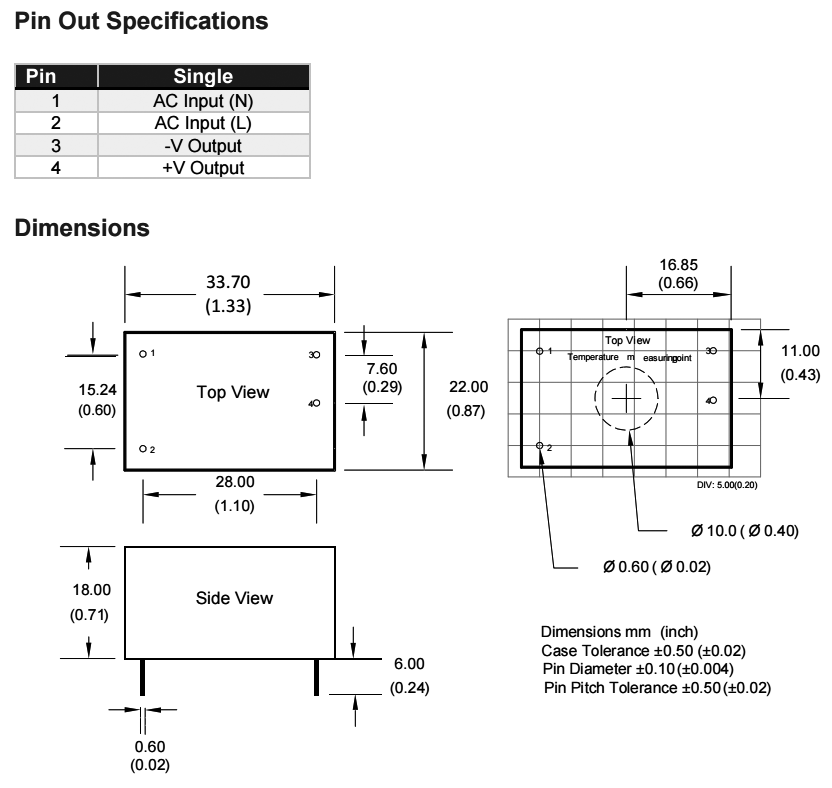

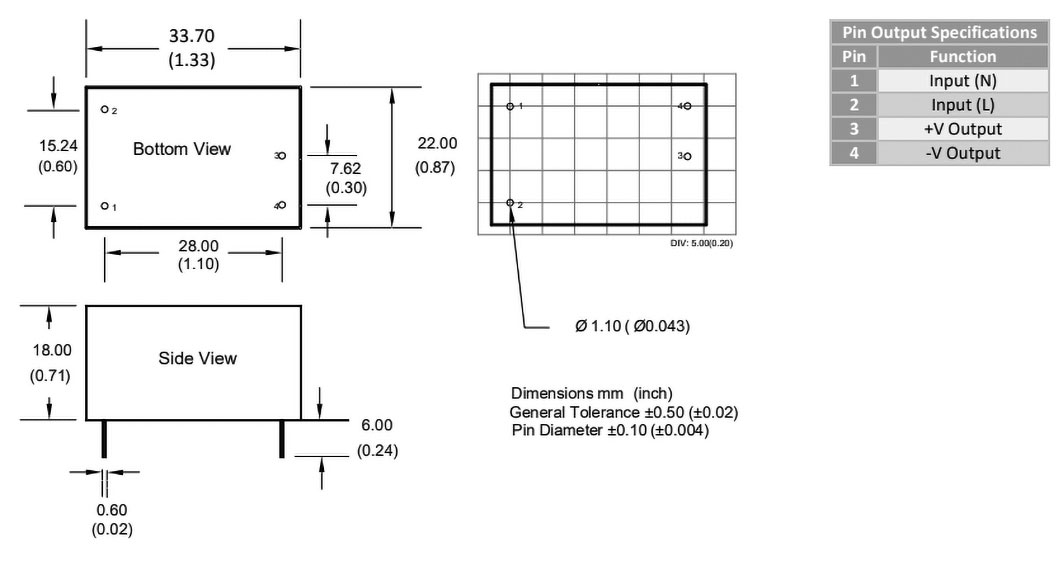

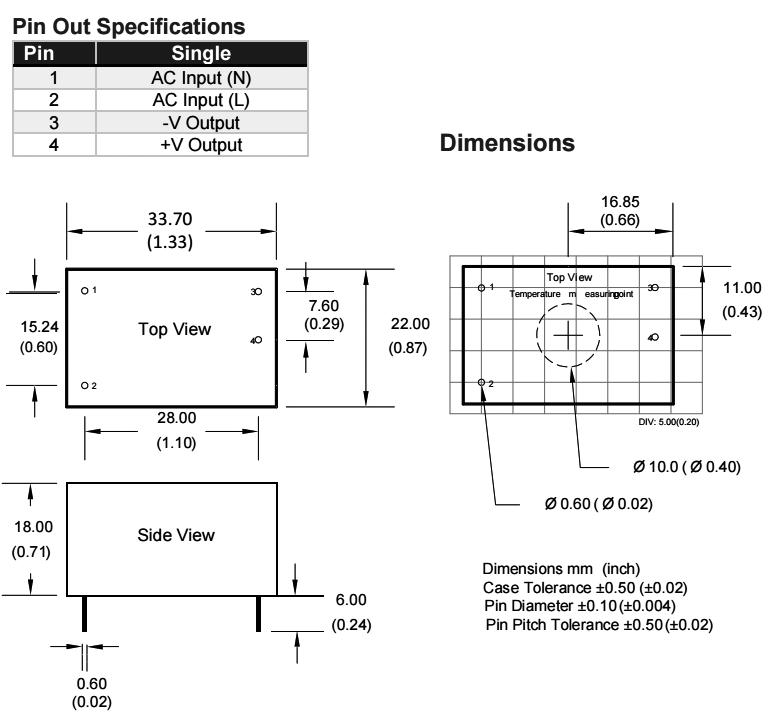

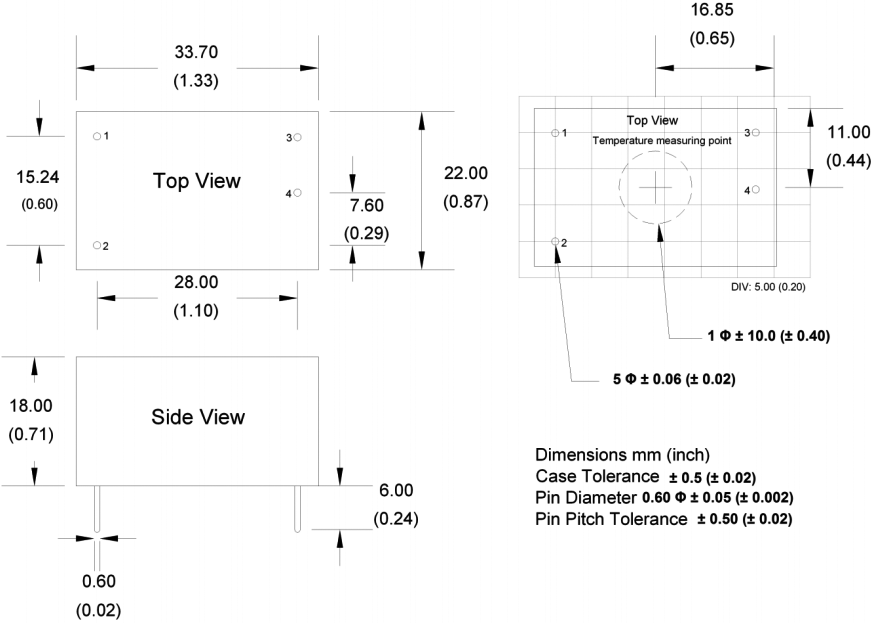

| AME1-5SBAZ | 3k | 1 | 5 | 0.2 | - | - | - | - | 57 | 33.7x22.2x18 | Fig. 1. | -40...80 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |

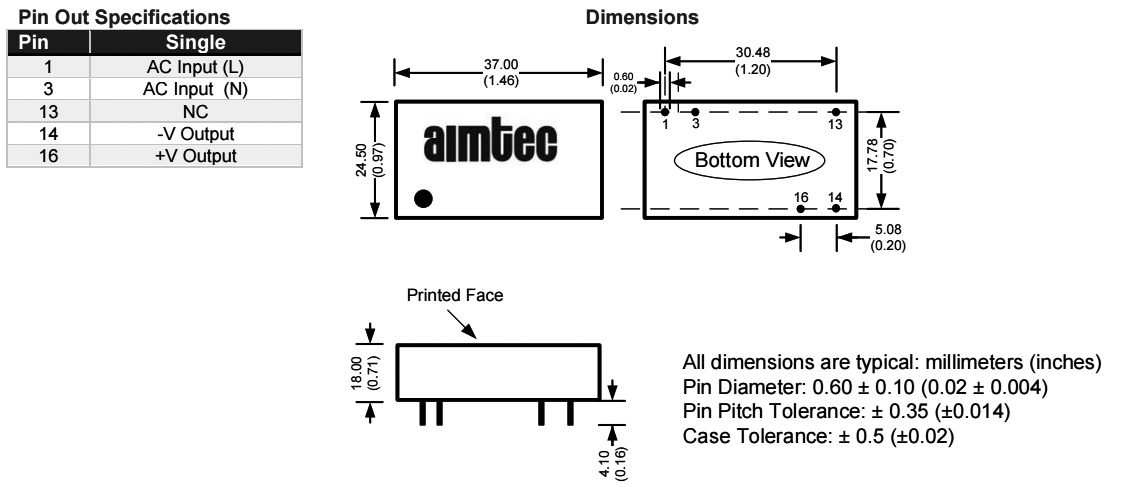

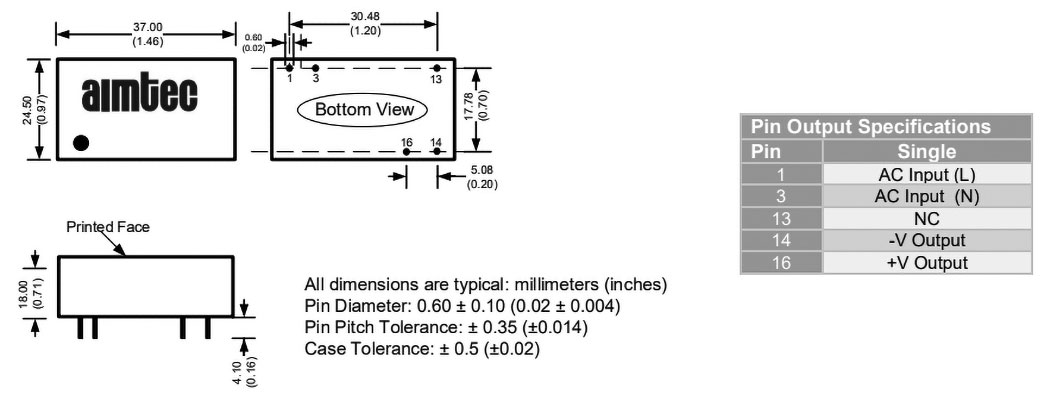

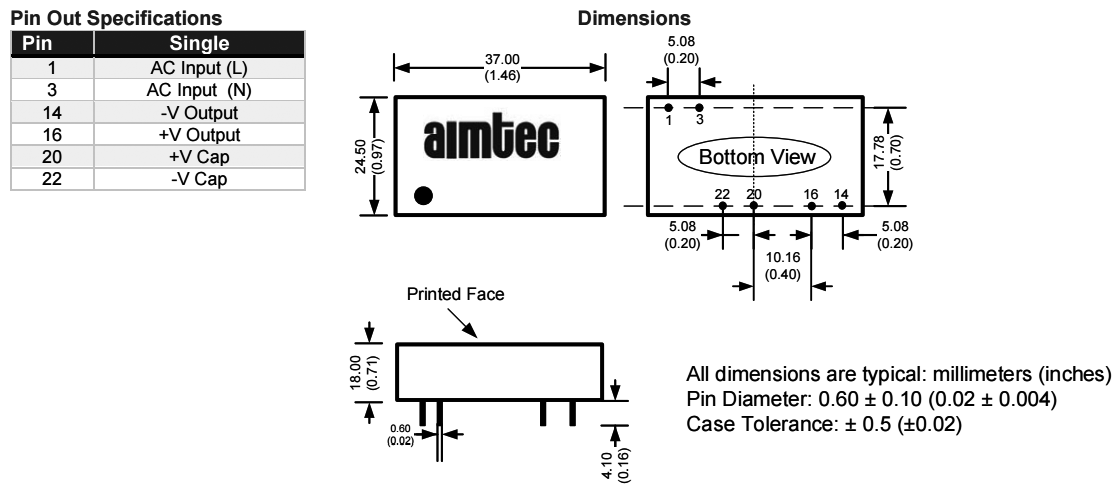

| AME1-5SNJZ | 3k | 1 | 5 | 0.2 | - | - | - | - | 68 | 37x24.5x18 | Fig. 2. | -40...70 | anti-overload OPP, short circuit protection SCP | - |
| AME1-12SNJZ | 3k | 1 | 12 | 0.083 | - | - | - | - | 69 | 37x24.5x18 | Fig. 2. | -40...70 | anti-overload OPP, short circuit protection SCP | - |
| AME1-24SNJZ | 3k | 1 | 24 | 0.042 | - | - | - | - | 69 | 37x24.5x18 | Fig. 2. | -40...70 | anti-overload OPP, short circuit protection SCP | - |
| AME1-3.3SJZ | 3k | 1 | 3.3 | 0.3 | - | - | - | - | 63 | 33.7x22.2x18 | Fig. 3. | -25...70 | anti-overload OPP, short circuit protection SCP | - |
| AME1-15SJZ | 3k | 1 | 15 | 0.067 | - | - | - | - | 74 | 33.7x22.2x18 | Fig. 3. | -25...70 | anti-overload OPP, short circuit protection SCP | - |
| AME2-5SAZ | 3k | 2 | 5 | 0.4 | - | - | - | - | 66 | 33.7x22.2x18 | Fig. 1. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME2-12SAZ | 3k | 2 | 12 | 0.166 | - | - | - | - | 72 | 33.7x22.2x18 | Fig. 1. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME2-5SNJZ | 3k | 2 | 5 | 0.4 | - | - | - | - | 70 | 37x24.5x18 | Fig. 2. | -40...70 | anti-overload OPP, short circuit protection SCP | - |
| AME2-12SNJZ | 3k | 2 | 12 | 0.167 | - | - | - | - | 76 | 37x24.5x18 | Fig. 2. | -40...70 | anti-overload OPP, short circuit protection SCP | - |
| AME2-24SNJZ | 3k | 2 | 24 | 0.083 | - | - | - | - | 78 | 37x24.5x18 | Fig. 2. | -40...70 | anti-overload OPP, short circuit protection SCP | - |
| AME2-3.3SJZ | 3k | 2 | 3.3 | 0.6 | - | - | - | - | 65 | 33.7x22.2x18 | Fig. 4. | -25...70 | anti-overload OPP, short circuit protection SCP | - |
| AME2-15SJZ | 3k | 2 | 15 | 0.133 | - | - | - | - | 76 | 33.7x22.2x18 | Fig. 4. | -25...70 | anti-overload OPP, short circuit protection SCP | - |

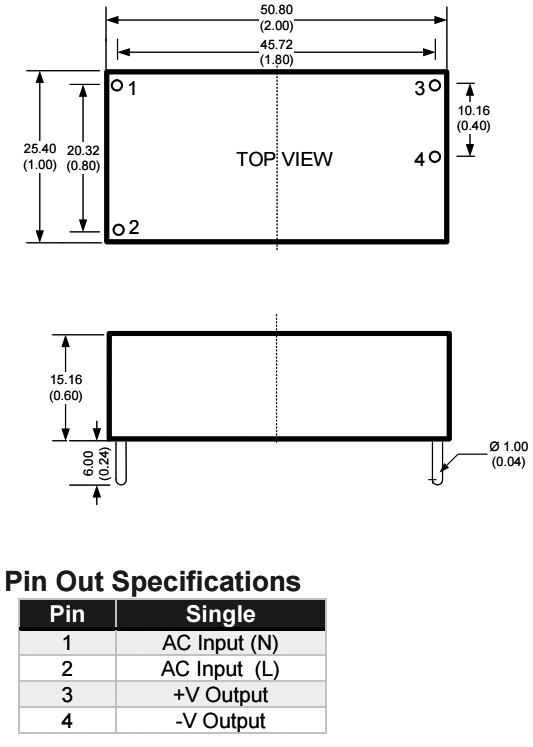

| AME3-3.3SBJZ | 3 | 3 | 3.3 | 500m | - | - | - | - | 63 | 50.8x25.4x15.16 | Fig. 5. | -40...70 | anti-overload OPP, short circuit protection SCP | - |
| AME3-15SBJZ | 3 | 3 | 15 | 200m | - | - | - | - | 76 | 50.8x25.4x15.16 | Fig. 5. | -40...70 | anti-overload OPP, short circuit protection SCP | - |
| AME3-5SNJZ | 3k | 3 | 5 | 0.6 | - | - | - | - | 71 | 37x24.5x18 | Fig. 2. | -40...70 | anti-overload OPP, short circuit protection SCP | - |
| AME3-24SNJZ | 3k | 3 | 24 | 0.125 | - | - | - | - | 76 | 37x24.5x18 | Fig. 2. | -40...70 | anti-overload OPP, short circuit protection SCP | - |
| AME3-3.3SCJZ | 3k | 3 | 3.3 | 0.7 | - | - | - | - | 66 | 37x24.5x18 | Fig. 6. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME3-5SCJZ | 3k | 3 | 5 | 0.6 | - | - | - | - | 74 | 37x24.5x18 | Fig. 6. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME3-9SCJZ | 3k | 3 | 9 | 0.33 | - | - | - | - | 75 | 37x24.5x18 | Fig. 6. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME3-12SCJZ | 3k | 3 | 12 | 0.25 | - | - | - | - | 77 | 37x24.5x18 | Fig. 6. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME3-15SCJZ | 3k | 3 | 15 | 0.2 | - | - | - | - | 77 | 37x24.5x18 | Fig. 6. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |

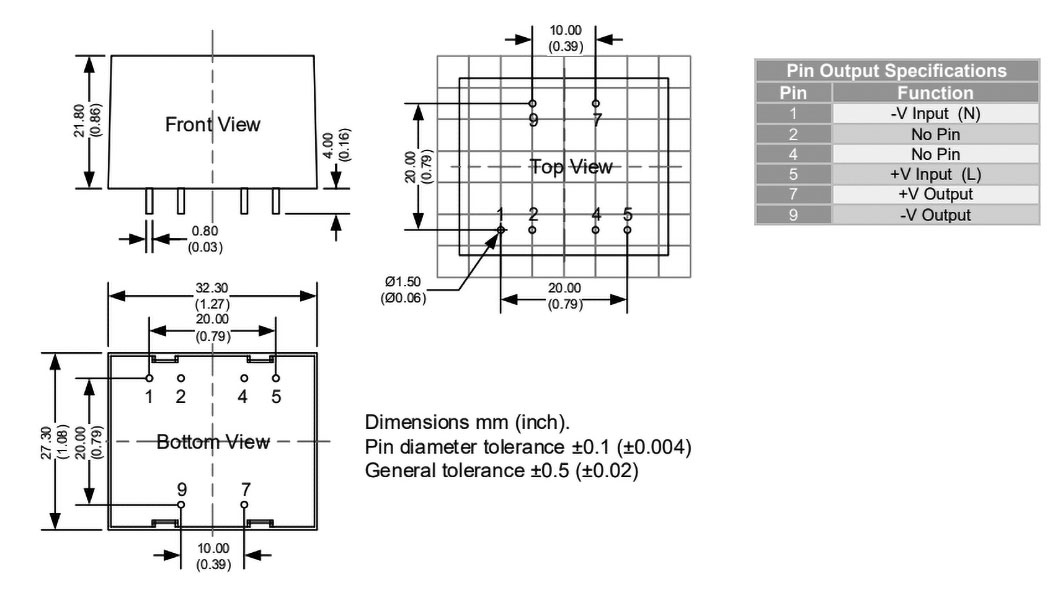

| AME3-05SHAVZ-144 | 4k | 3 | 5 | 0.6 | - | - | - | - | 72 | 32.3x27.3x21.8 | Fig. 7. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME3-12SHAVZ-144 | 4k | 3 | 12 | 0.25 | - | - | - | - | 74 | 32.3x27.3x21.8 | Fig. 7. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME3-24SHAVZ-144 | 4k | 3 | 24 | 0.125 | - | - | - | - | 75 | 32.3x27.3x21.8 | Fig. 7. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |

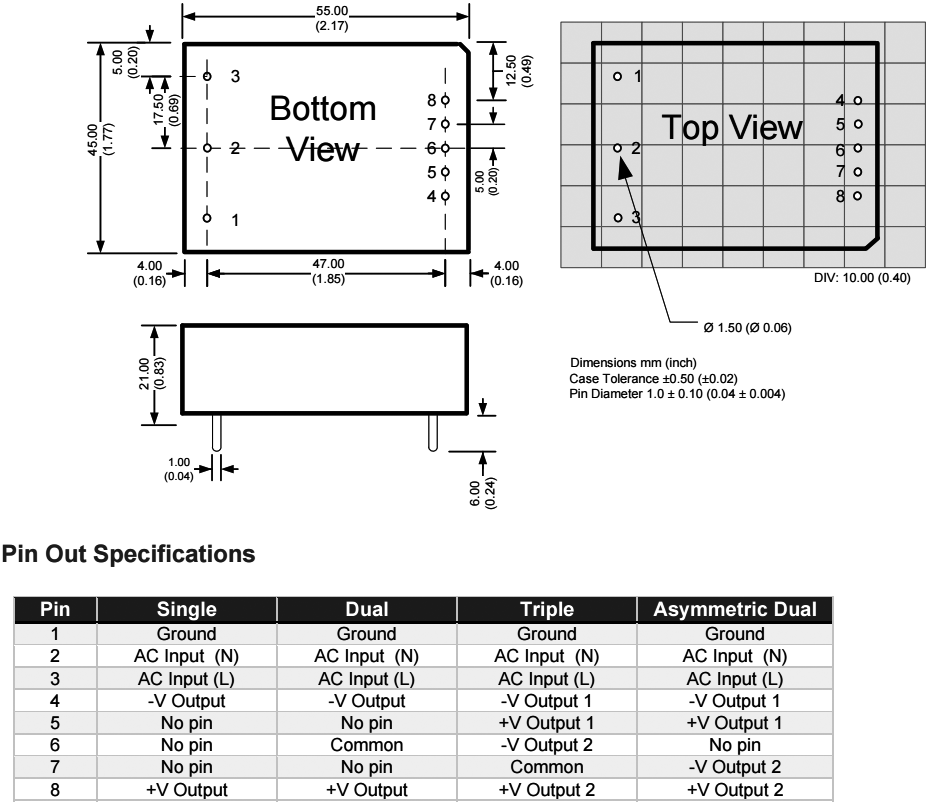

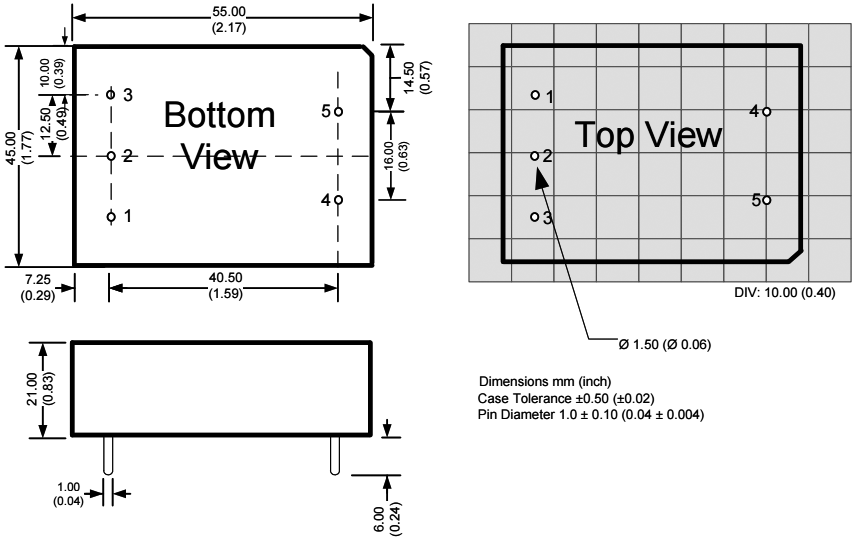

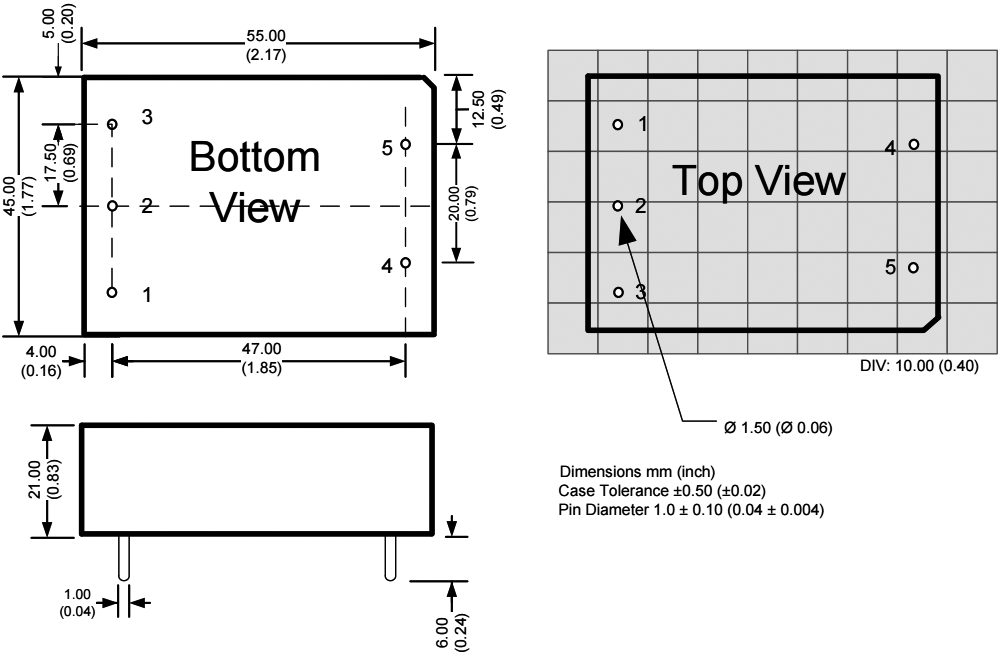

| AME5-3.3SJZ | 3k | 5 | 3.3 | 1.25 | - | - | - | - | 72 | 55x45x21 | Fig. 8. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME5-9SJZ | 3k | 5 | 9 | 0.55 | - | - | - | - | 79 | 55x45x21 | Fig. 8. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME5-12SJZ | 3k | 5 | 12 | 0.42 | - | - | - | - | 81 | 55x45x21 | Fig. 8. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME5-15SJZ | 3k | 5 | 15 | 0.33 | - | - | - | - | 82 | 55x45x21 | Fig. 8. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME5-24SJZ | 3k | 5 | 24 | 0.23 | - | - | - | - | 84 | 55x45x21 | Fig. 8. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |

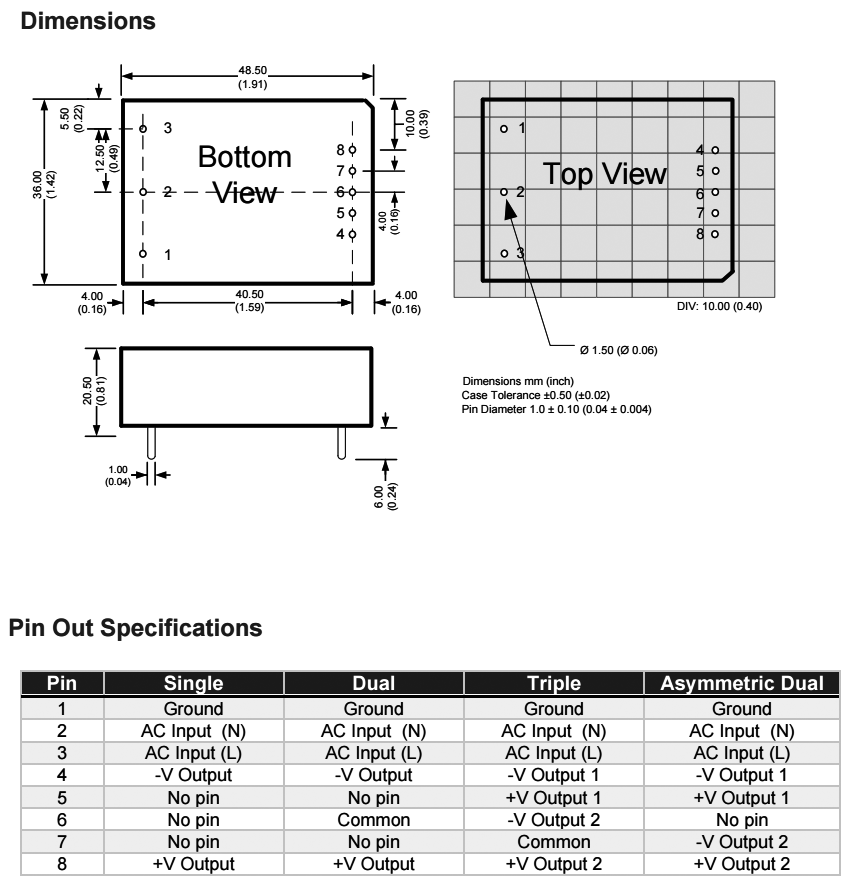

| AME5-3.3SCJZ | 3k | 5 | 3.3 | 1.25 | - | - | - | - | 70 | 48.5x36x20.5 | Fig. 9. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME5-5SCJZ | 3k | 5 | 5 | 1 | - | - | - | - | 75 | 48.5x36x20.5 | Fig. 9. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME5-15SCJZ | 3k | 5 | 15 | 0.33 | - | - | - | - | 80 | 48.5x36x20.5 | Fig. 9. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME5-24SCJZ | 3k | 5 | 24 | 0.23 | - | - | - | - | 82 | 48.5x36x20.5 | Fig. 9. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME5-5DCJZ | 3k | 5 | 5 | 0.5 | -5 | 0.5 | - | - | 75 | 48.5x36x20.5 | Fig. 9. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME5-12DCJZ | 3k | 5 | 12 | 0.21 | -12 | 0.21 | - | - | 79 | 48.5x36x20.5 | Fig. 9. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME5-15DCJZ | 3k | 5 | 15 | 0.16 | -15 | 0.16 | - | - | 79 | 48.5x36x20.5 | Fig. 9. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME5-24DCJZ | 3k | 5 | 24 | 0.1 | -24 | 0.1 | - | - | 80 | 48.5x36x20.5 | Fig. 9. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME5-515DCJZ | 3k | 5 | 5 | 0.7 | 15 | 0.1 | - | - | 73 | 48.5x36x20.5 | Fig. 9. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME5-524DCJZ | 3k | 5 | 5 | 0.6 | 24 | 0.1 | - | - | 75 | 48.5x36x20.5 | Fig. 9. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME5-505TCJZ | 3k | 5 | 5 | 0.8 | 5 | 0.1 | -5 | 0.1 | 70 | 48.5x36x20.5 | Fig. 9. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME5-515TCJZ | 3k | 5 | 5 | 0.6 | 15 | 0.08 | -15 | 0.08 | 74 | 48.5x36x20.5 | Fig. 9. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |

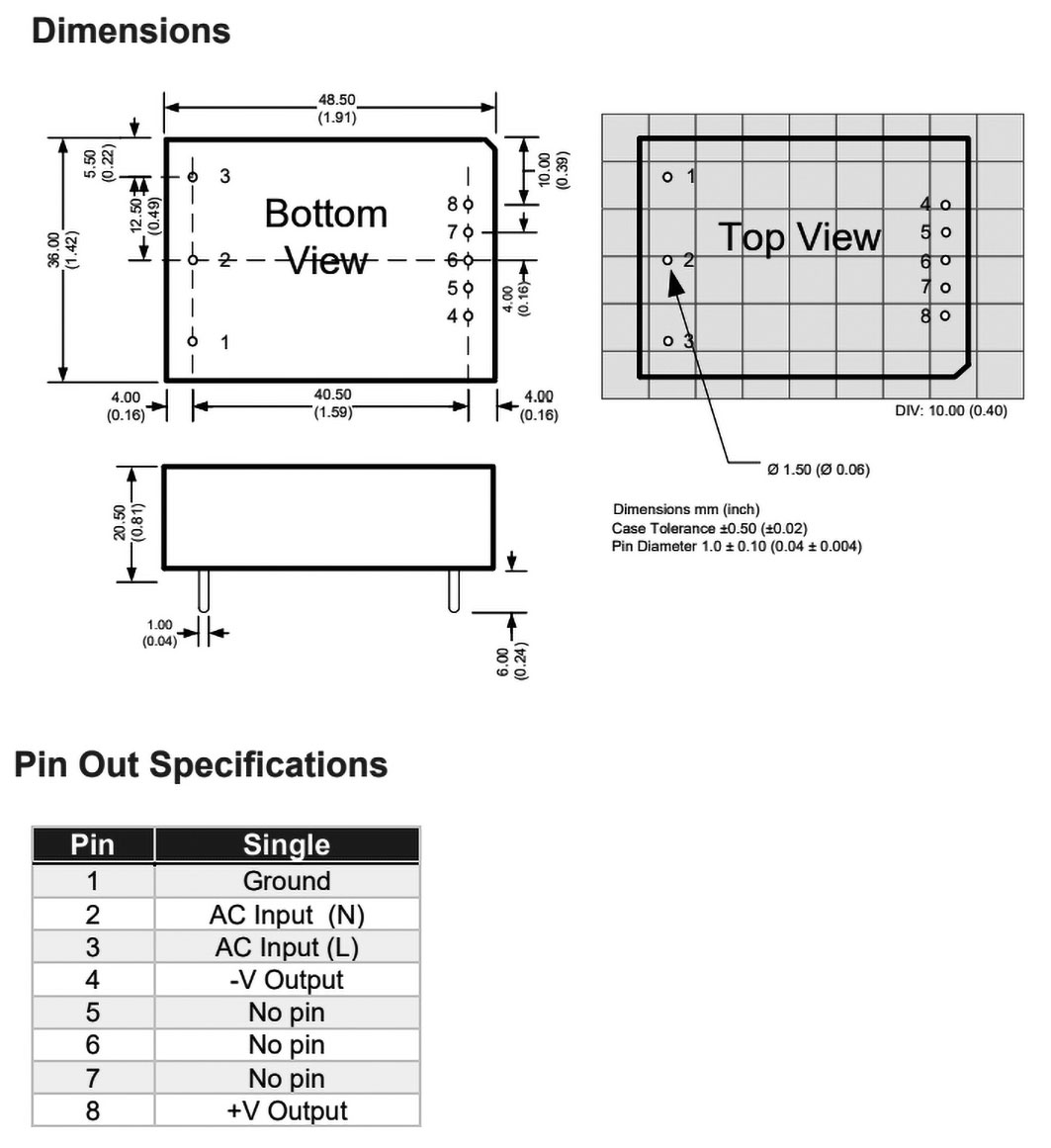

| AME5-5SVZ | 4k | 5 | 5 | 1 | - | - | - | - | 75 | 48.5x36x20.5 | Fig. 10. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME5-12SVZ | 4k | 5 | 12 | 0.42 | - | - | - | - | 79 | 48.5x36x20.5 | Fig. 10. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME5-24SVZ | 4k | 5.5 | 24 | 0.23 | - | - | - | - | 82 | 48.5x36x20.5 | Fig. 10. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME5-3.3SVZ | 4k | 5 | 3.3 | 1.25 | - | - | - | - | 70 | 48.5x36x20.5 | Fig. 10. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME5-512T277NZ | 3k | 4.8 | 12 | 0.35 | 5 | 0.1 | -12 | 0.01 | 71 | 48.5x36x20.5 | - | -40...80 | anti-overvoltage OVP, short circuit protection SCP | - |
| AME10-3.3SJZ | 3k | 10 | 3.3 | 2 | - | - | - | - | 70 | 55x45x21 | Fig. 11. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME10-9SJZ | 3k | 10 | 9 | 1.1 | - | - | - | - | 78 | 55x45x21 | Fig. 11. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |

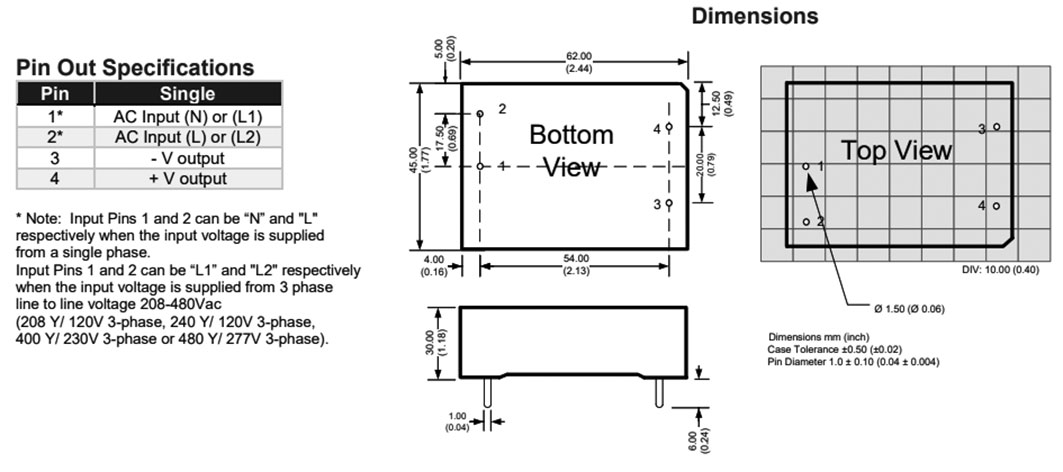

| AME10-5SBJZ | 4 | 10 | 5 | 2 | - | - | - | - | 76 | 62x45x30 | Fig. 12. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME10-9SCJZ | 3k | 10 | 9 | 1.1 | - | - | - | - | 78 | 55x45x21 | Fig. 13. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME10-15DCJZ | 3k | 10 | 15 | 0.35 | -15 | 0.35 | - | - | 81 | 55x45x21 | Fig. 13. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME10-515TCJZ | 3k | 10 | 5 | 0.9 | 15 | 0.2 | -15 | 0.2 | 75 | 55x45x21 | Fig. 13. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME10-524DCJZ | 3k | 10 | 5 | 1 | 24 | 0.2 | - | - | 81 | 55x45x21 | Fig. 13. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |

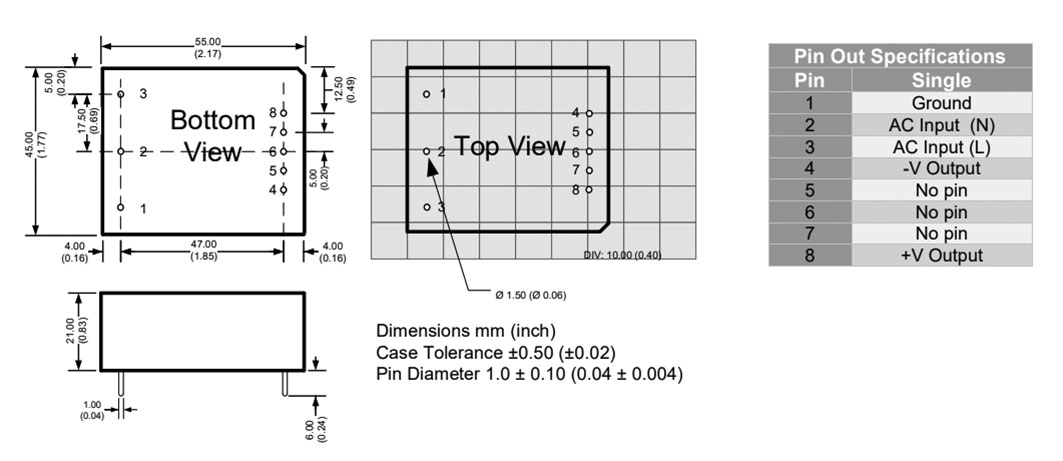

| AME10-3.3SVZ | 4k | 6.6 | 3.3 | 2 | - | - | - | - | 70 | 55x45x21 | Fig. 14. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME10-12SVZ | 4k | 10.8 | 12 | 0.9 | - | - | - | - | 80 | 55x45x21 | Fig. 14. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME10-15SVZ | 4k | 10.5 | 15 | 0.7 | - | - | - | - | 81 | 55x45x21 | Fig. 14. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |

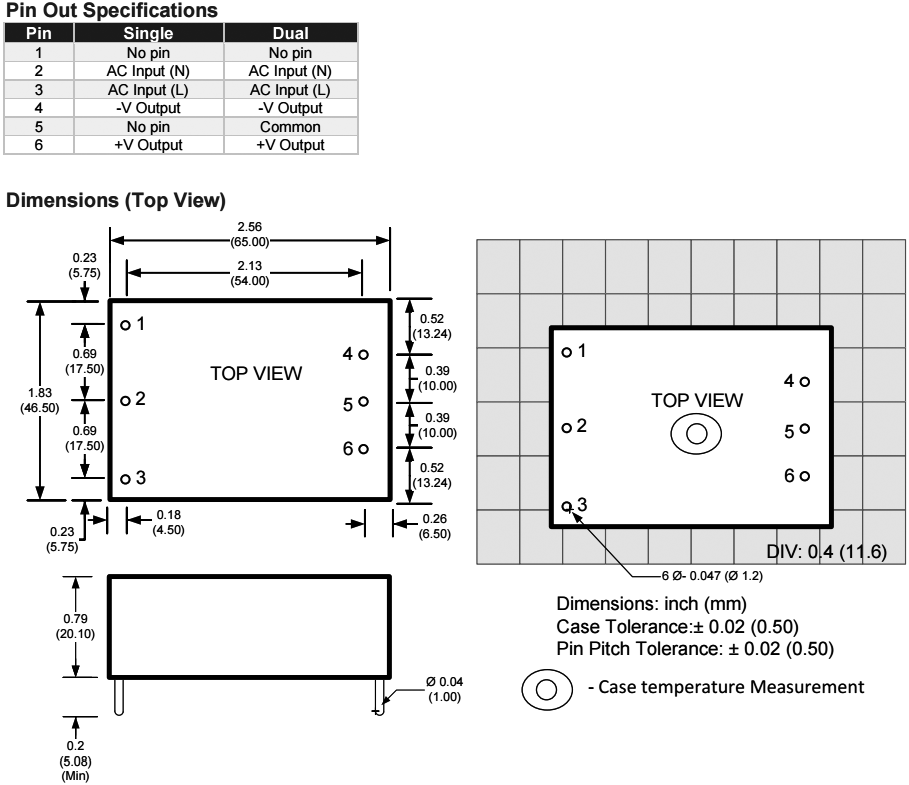

| AME15-5SMAZ | 4k | 15 | 5 | 3 | - | - | - | - | 78 | 65x46.5x20.1 | Fig. 15. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME15-12SMAZ | 4k | 15 | 12 | 1.25 | - | - | - | - | 79 | 65x46.5x20.1 | Fig. 15. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME15-15SMAZ | 4k | 15 | 15 | 1 | - | - | - | - | 82 | 65x46.5x20.1 | Fig. 15. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME15-24SMAZ | 4k | 15 | 24 | 0.63 | - | - | - | - | 84 | 65x46.5x20.1 | Fig. 15. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |

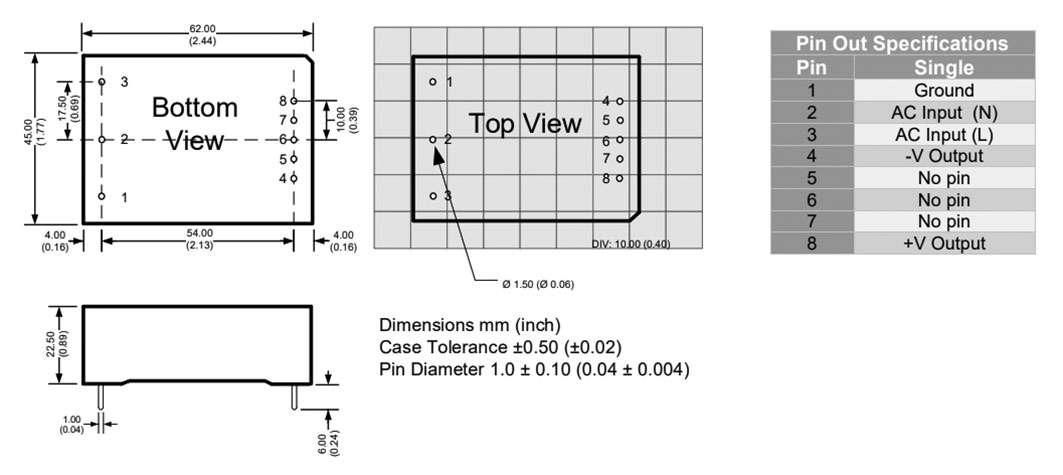

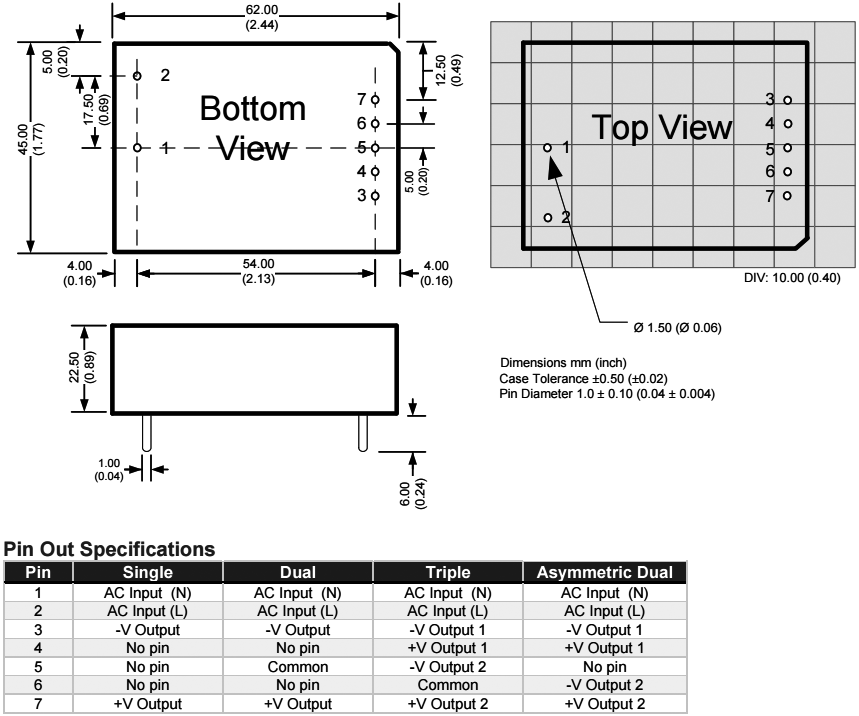

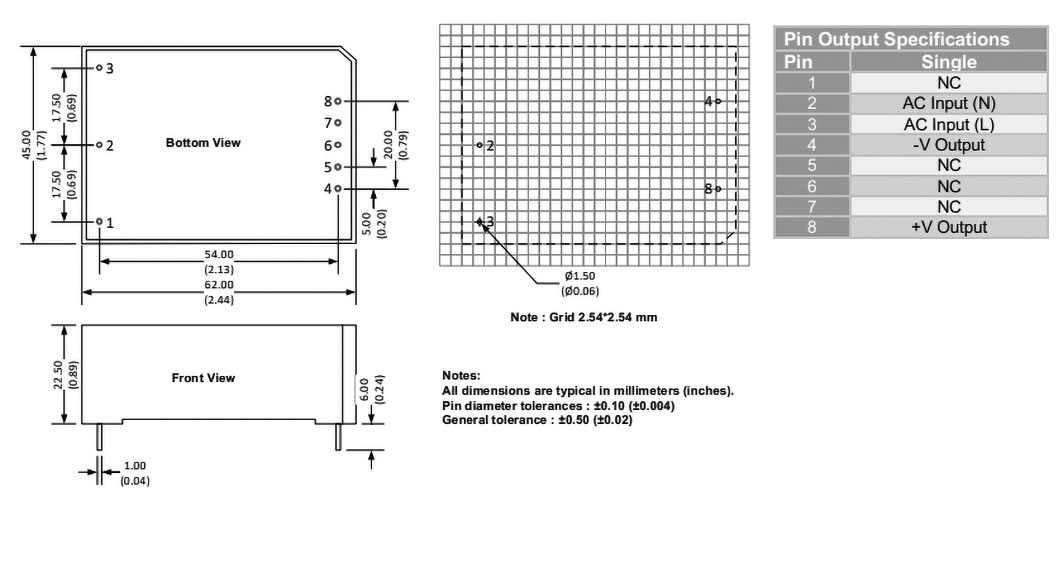

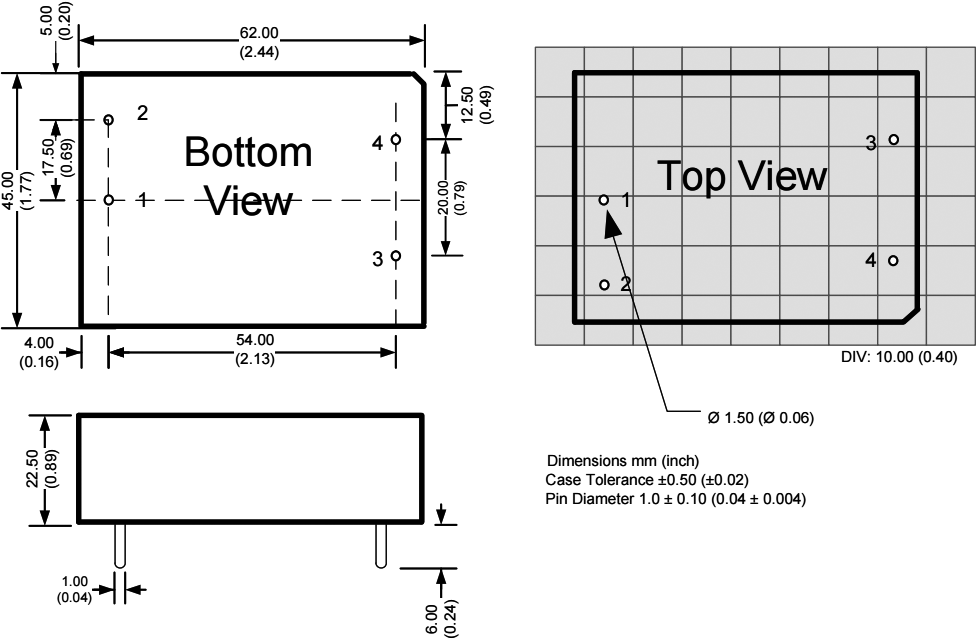

| AME15-3.3SJZ | 3k | 15 | 3.3 | 3 | - | - | - | - | 74 | 62x45x22.5 | Fig. 16. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME15-3.3SCJZ | 3k | 15 | 3.3 | 3 | - | - | - | - | 73 | 62x45x22.5 | Fig. 17. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME15-15DCJZ | 3k | 15 | 15 | 0.5 | -15 | 0.5 | - | - | 83 | 62x45x22.5 | Fig. 17. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME15-505TCJZ | 3k | 15 | 5 | 2 | 5 | 0.5 | -5 | 0.5 | 75 | 62x45x22.5 | Fig. 17. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME15-512TCJZ | 3k | 15 | 5 | 2 | 12 | 0.2 | -12 | 0.2 | 77 | 62x45x22.5 | Fig. 17. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME15-515TCJZ | 3k | 15 | 5 | 1.8 | 15 | 0.2 | -15 | 0.2 | 78 | 62x45x22.5 | Fig. 17. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME15-524TCJZ | 3k | 15 | 5 | 2 | 24 | 0.1 | -24 | 0.1 | 78 | 62x45x22.5 | Fig. 17. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME15-505DCJZ | 3k | 15 | 5 | 2.2 | 5 | 0.8 | - | - | 76 | 62x45x22.5 | Fig. 17. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |

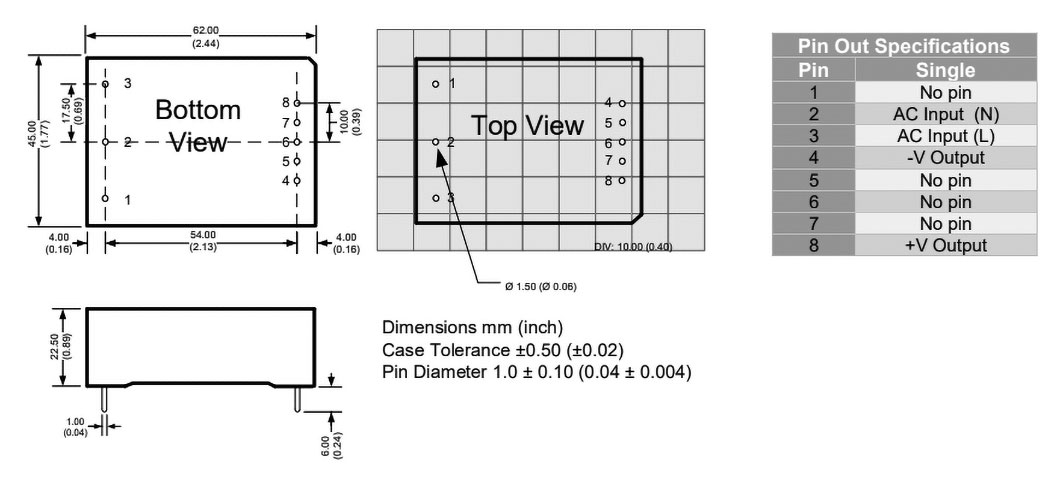

| AME15-3.3SVZ | 4k | 9.9 | 3.3 | 3 | - | - | - | - | 73 | 62x45x22.5 | Fig. 18. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |

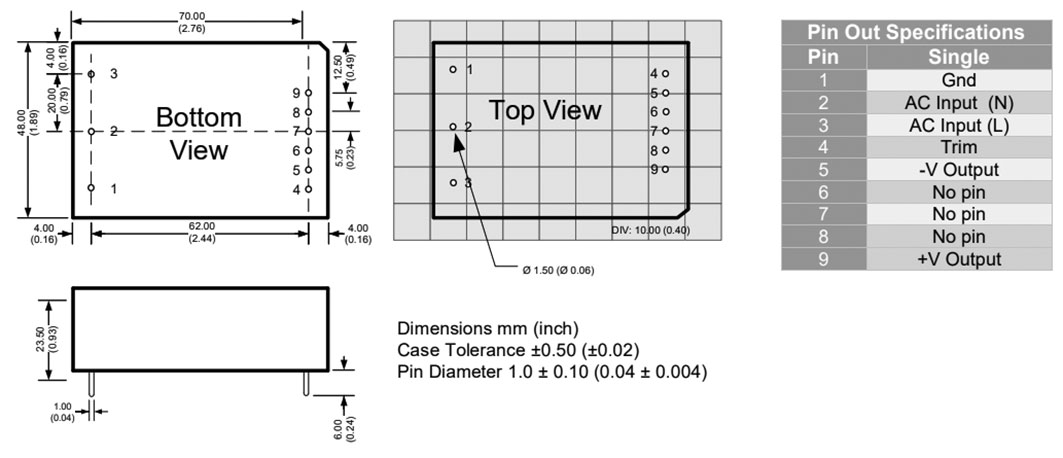

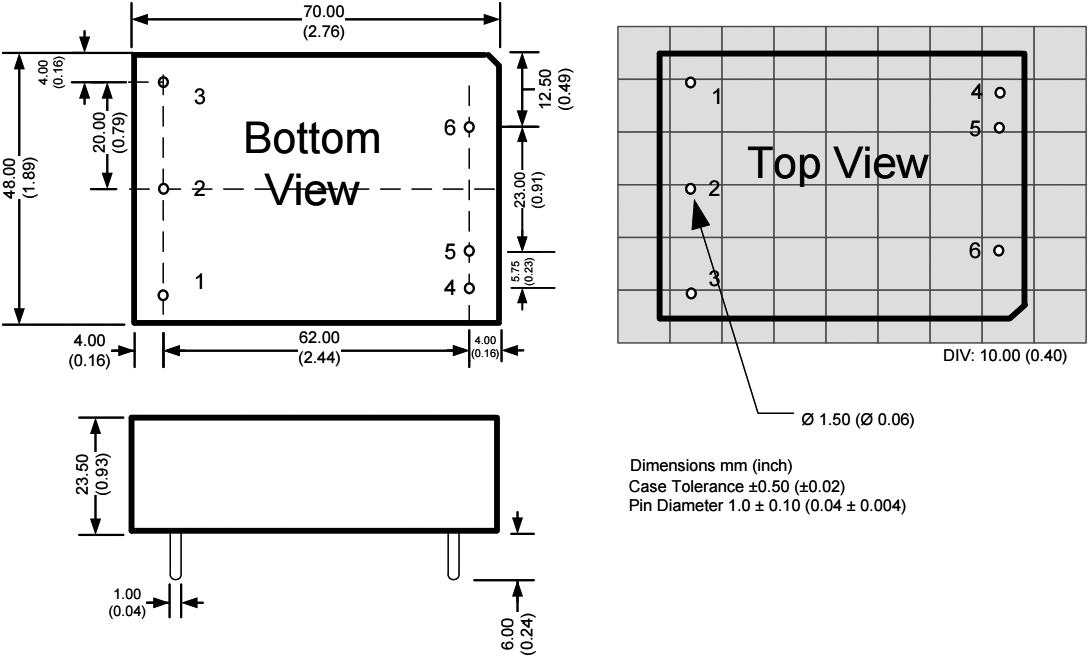

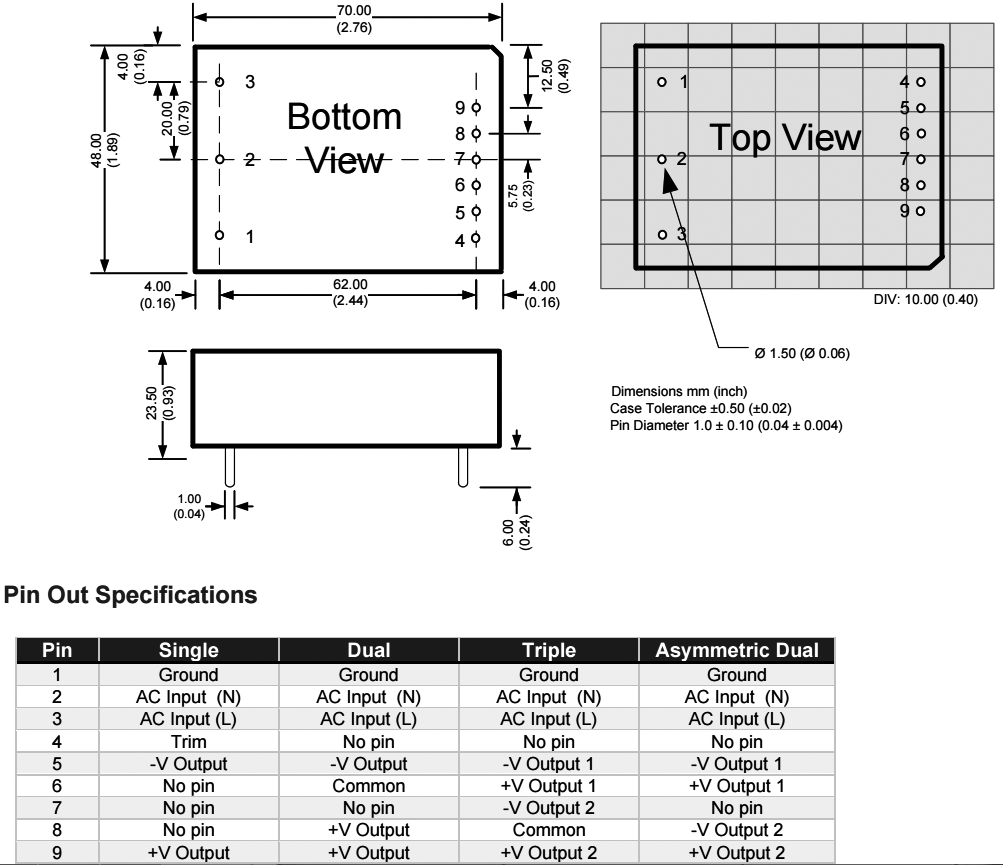

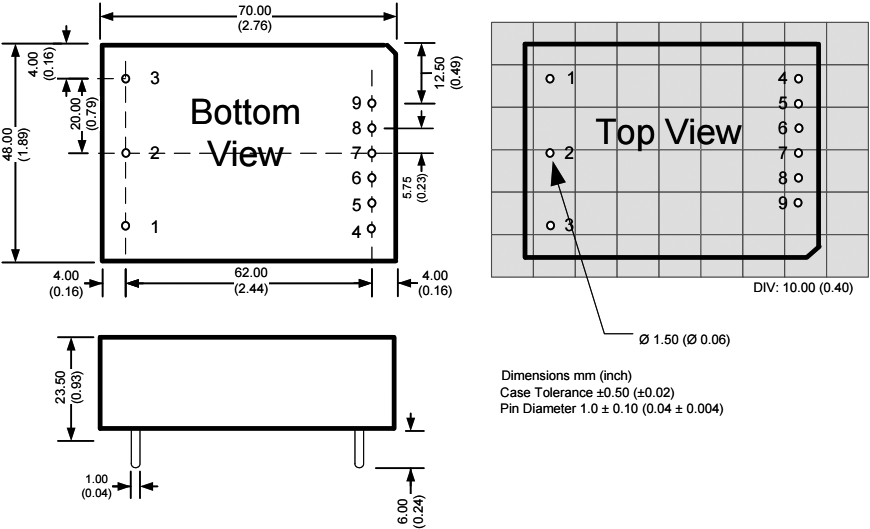

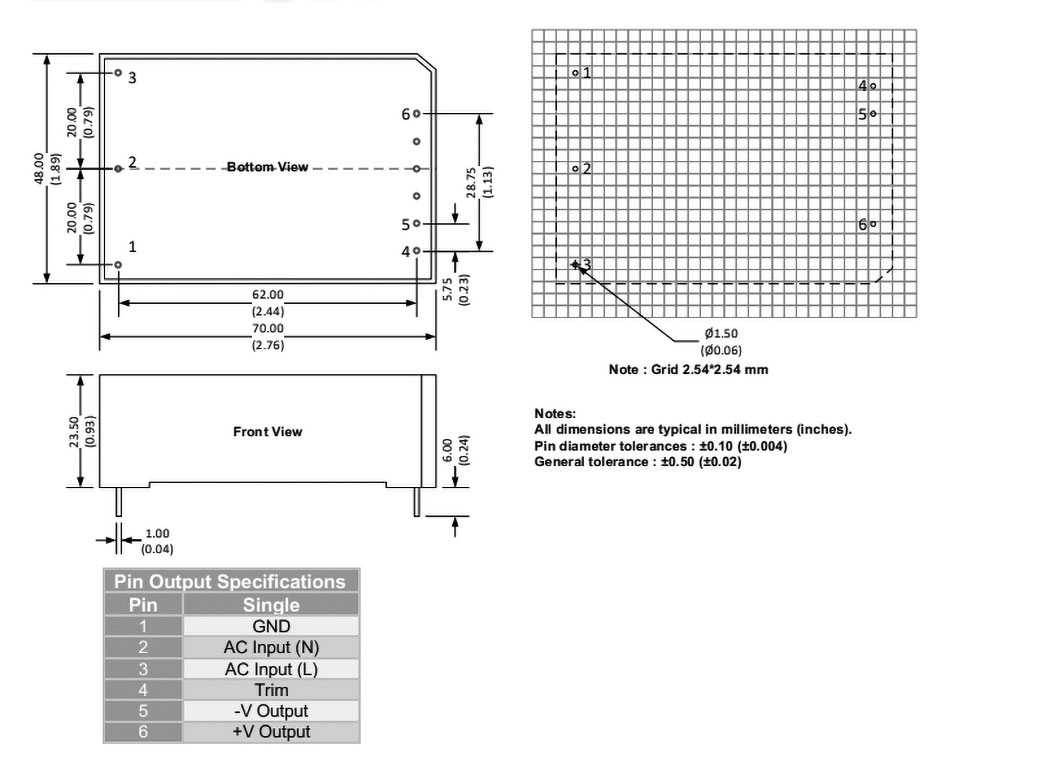

| AME20-3.3SJZ | 3k | 20 | 3.3 | 3.5 | - | - | - | - | 75 | 70x48x23.5 | Fig. 19. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME20-15SJZ | 3k | 20 | 15 | 1.3 | - | - | - | - | 84 | 70x48x23.5 | Fig. 19. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME20-9SCJZ | 3k | 20 | 9 | 2.1 | - | - | - | - | 77 | 70x48x23.5 | Fig. 20. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME20-15SCJZ | 3k | 20 | 15 | 1.3 | - | - | - | - | 83 | 70x48x23.5 | Fig. 20. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME20-24SCJZ | 3k | 20 | 24 | 0.85 | - | - | - | - | 85 | 70x48x23.5 | Fig. 20. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME20-505TCJZ | 3k | 20 | 5 | 2.5 | 5 | 0.5 | -5 | 0.5 | 74 | 70x48x23.5 | Fig. 20. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME20-512TCJZ | 3k | 20 | 5 | 2 | 12 | 0.4 | -12 | 0.4 | 75 | 70x48x23.5 | Fig. 20. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME20-524DCJZ | 3k | 20 | 5 | 2.5 | 24 | 0.3 | - | - | 77 | 70x48x23.5 | Fig. 20. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME20-3.3SVZ | 4k | 11.5 | 3.3 | 3.5 | - | - | - | - | 73 | 62x45x22.5 | Fig. 21. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME20-9SVZ | 4k | 18.9 | 9 | 2.1 | - | - | - | - | 79 | 62x45x22.5 | Fig. 21. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME20-12SVZ | 4k | 19.2 | 12 | 1.6 | - | - | - | - | 81 | 62x45x22.5 | Fig. 21. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME20-15SVZ | 4k | 19.5 | 15 | 1.3 | - | - | - | - | 82 | 62x45x22.5 | Fig. 21. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME25-3.3SJZ | 3k | 25 | 3.3 | 4.1 | - | - | - | - | 75 | 70x48x23.5 | Fig. 22. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME25-5SJZ | 3k | 25 | 5 | 4.1 | - | - | - | - | 78 | 70x48x23.5 | Fig. 22. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME25-15SJZ | 3k | 25 | 15 | 1.6 | - | - | - | - | 84 | 70x48x23.5 | Fig. 22. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME25-3.3SCJZ | 3k | 25 | 3.3 | 4.1 | - | - | - | - | 73 | 70x48x23.5 | Fig. 23. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME25-5SCJZ | 3k | 25 | 5 | 4.1 | - | - | - | - | 74 | 70x48x23.5 | Fig. 23. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME25-9SCJZ | 3k | 25 | 9 | 2.5 | - | - | - | - | 78 | 70x48x23.5 | Fig. 23. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME25-15SCJZ | 3k | 25 | 15 | 1.6 | - | - | - | - | 83 | 70x48x23.5 | Fig. 23. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME25-48SCJZ | 3k | 25 | 48 | 0.5 | - | - | - | - | 87 | 70x48x23.5 | Fig. 23. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME25-3.3SVZ | 4k | 13.5 | 3.3 | 4.1 | - | - | - | - | 74 | 70x48x23.5 | Fig. 24. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME25-5SVZ | 4k | 20.5 | 5 | 4.1 | - | - | - | - | 79 | 70x48x23.5 | Fig. 24. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME25-48SVZ | 4k | 24 | 48 | 0.5 | - | - | - | - | 87 | 70x48x23.5 | Fig. 24. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |

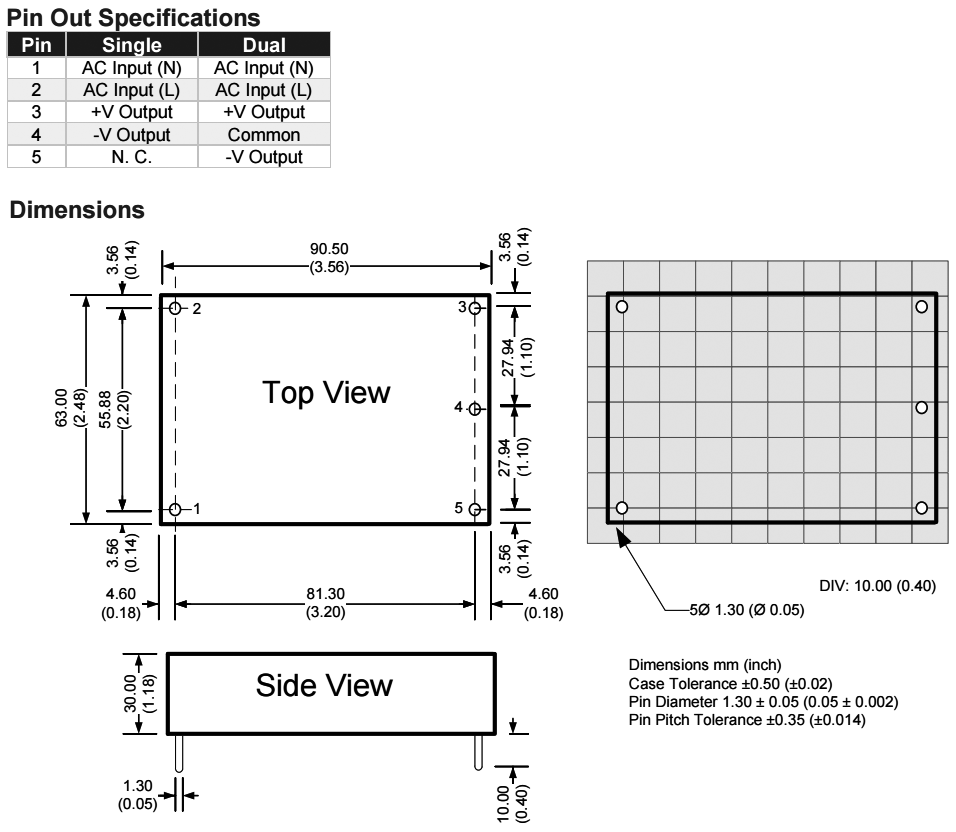

| AME40-5DMAZ | 4k | 40 | 5 | 4 | -5 | 4 | - | - | 80 | 90.5x63x30 | Fig. 25. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |

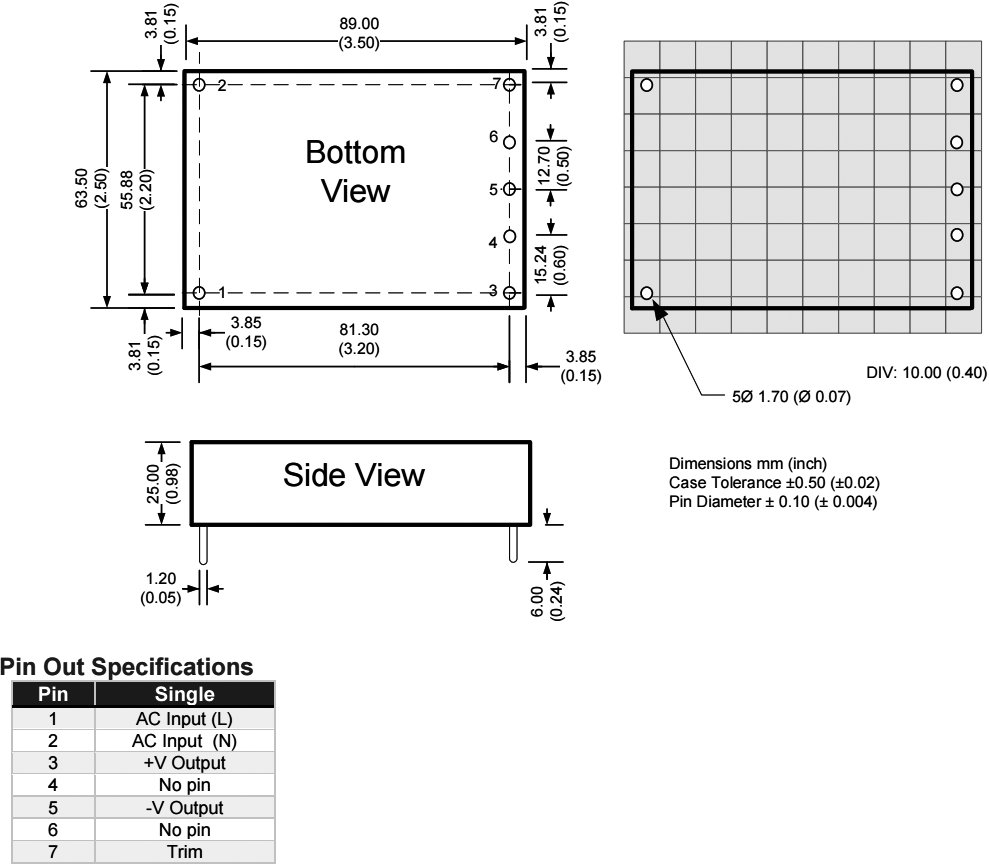

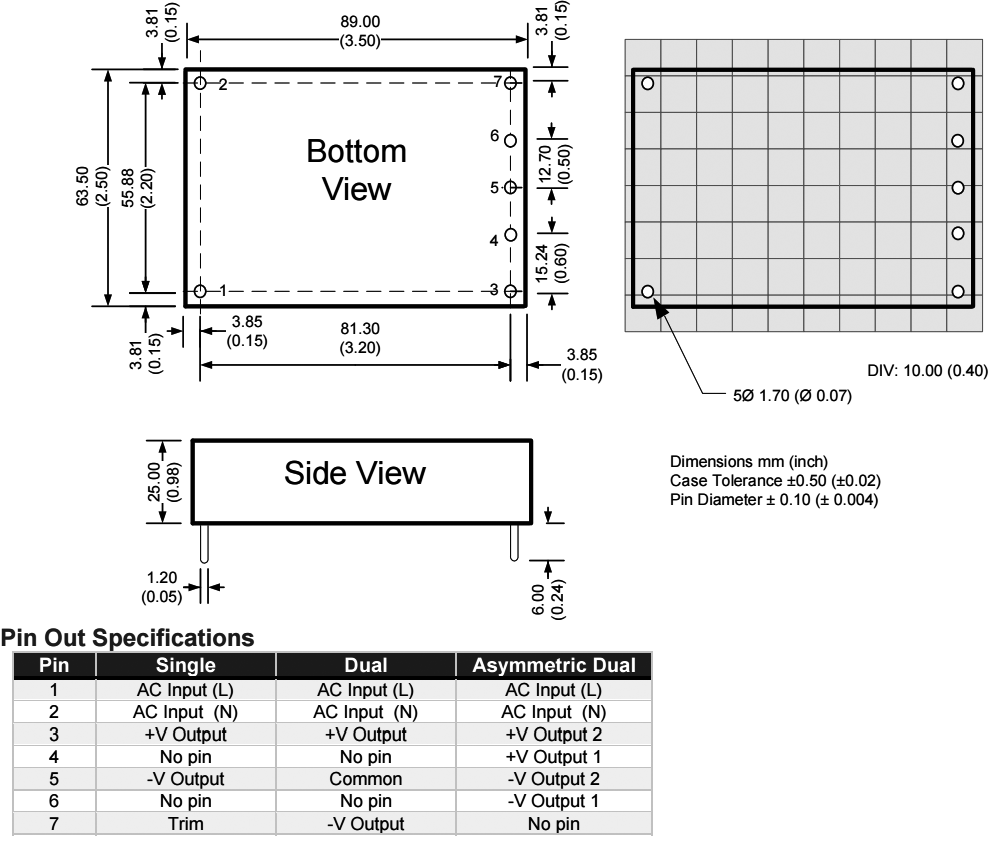

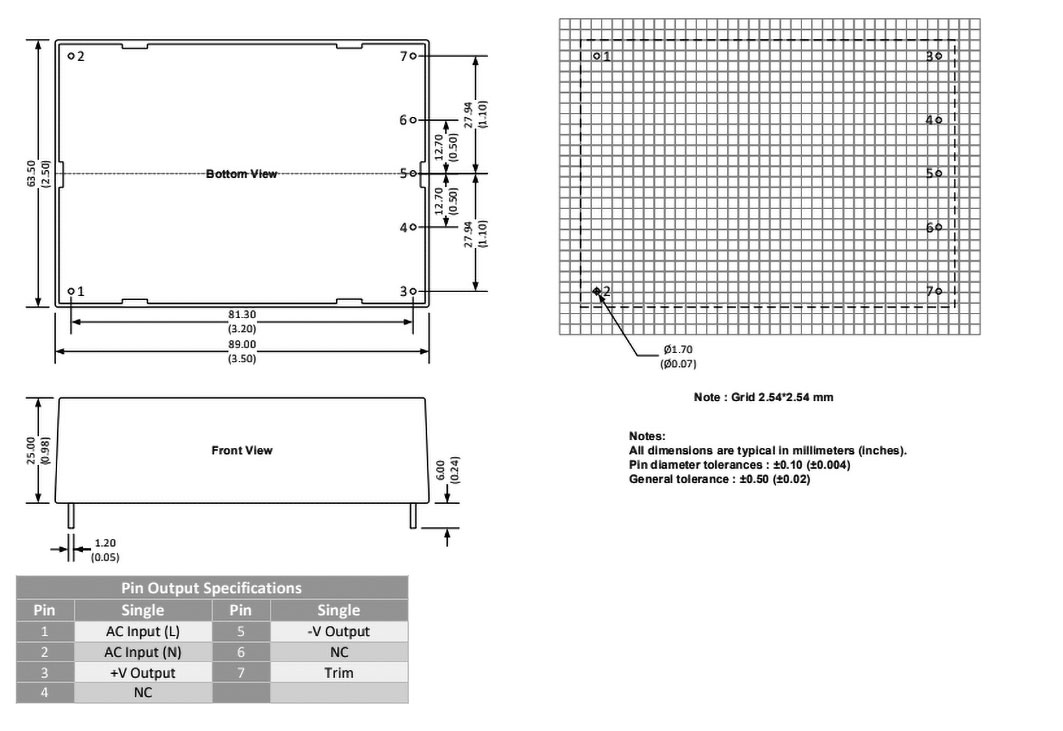

| AME40-12SCJZ | 3k | 40 | 12 | 3.33 | - | - | - | - | 84 | 89x63.5x25 | Fig. 26. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME40-24SCJZ | 3k | 40 | 24 | 1.66 | - | - | - | - | 84 | 89x63.5x25 | Fig. 26. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME40-5DCJZ | 3k | 40 | 5 | 4 | -5 | 4 | - | - | 82 | 89x63.5x25 | Fig. 26. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME40-12DCJZ | 3k | 40 | 12 | 1.66 | -12 | 1.66 | - | - | 84 | 89x63.5x25 | Fig. 26. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME40-48SMJZ | 4k | 40 | 48 | 0.83 | - | - | - | - | 84 | 89x63.5x25 | Fig. 27. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |

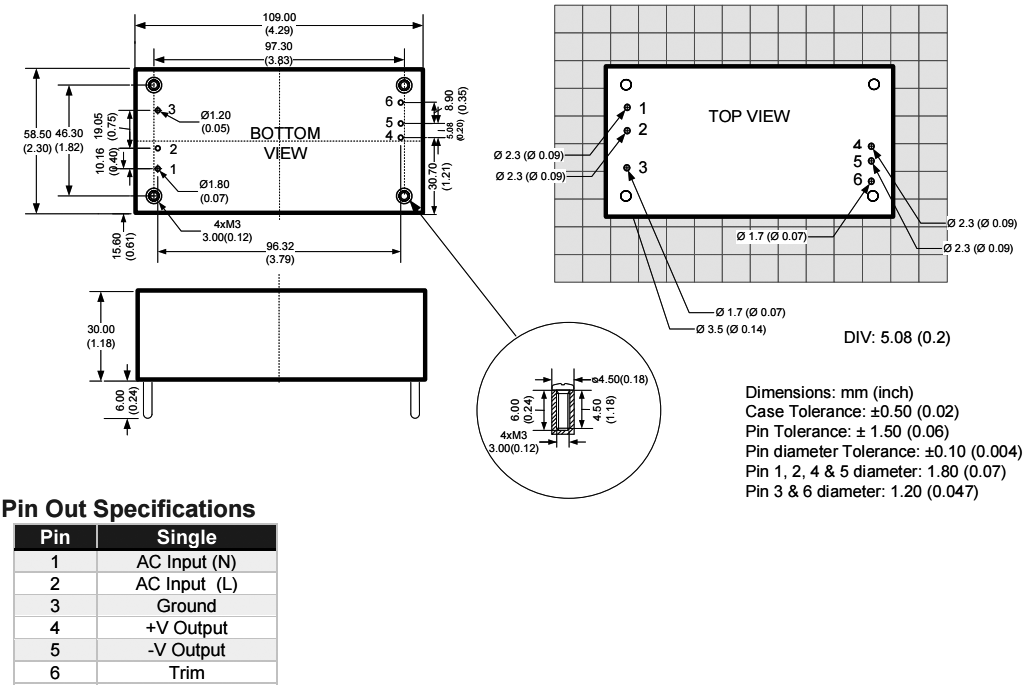

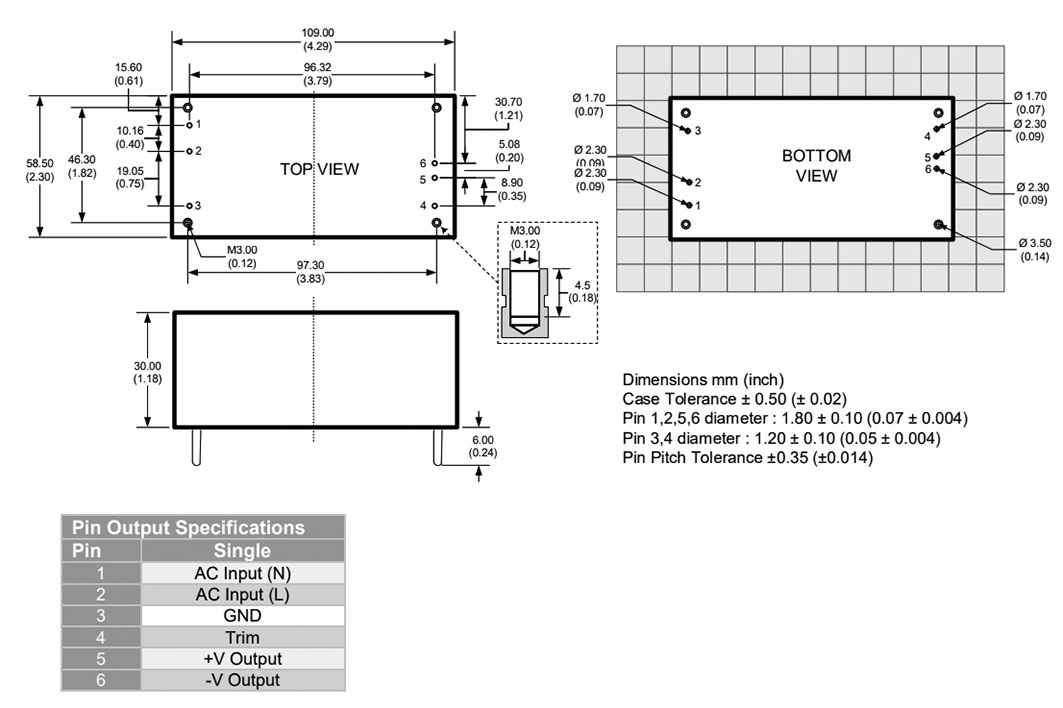

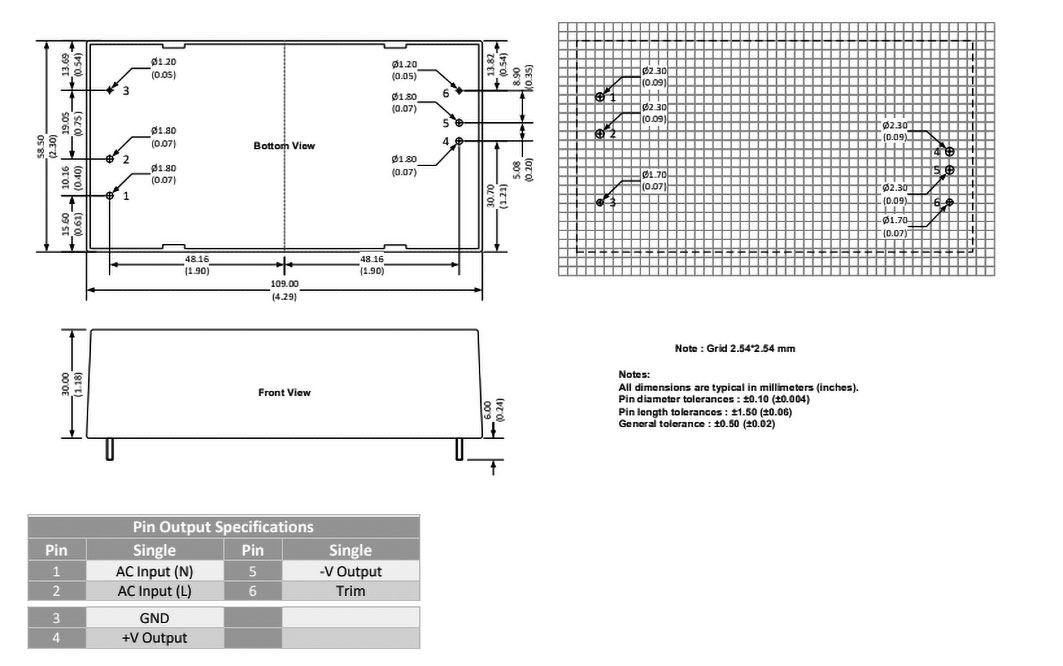

| AME60-9SMJZ | 4k | 60 | 9 | 6.6 | - | - | - | - | 84 | 109x58.5x30 | Fig. 28. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | adjustable output voltage |
| AME60-48SVZ | 4k | 60 | 48 | 1.25 | - | - | - | - | 86 | 109x58.5x30 | Fig. 29. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME15-48S277VZ | 4k | 15 | 48 | 0.32 | - | - | - | - | 85 | 62x45x22.5 | Fig. 30. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME25-5S277VZ | 4k | 25 | 5 | 4.1 | - | - | - | - | 78 | 70x48x23.5 | Fig. 31. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME25-48S277VZ | 4k | 25 | 48 | 0.5 | - | - | - | - | 87 | 70x48x23.5 | Fig. 31. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME40-48S277VZ | 4k | 40 | 48 | 0.83 | - | - | - | - | 84 | 89x63.5x25 | Fig. 32. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME60-24S277VZ | 4k | 60 | 24 | 2.5 | - | - | - | - | 86 | 109x58.5x30 | Fig. 33. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME60-48S277VZ | 4k | 60 | 48 | 1.25 | - | - | - | - | 86 | 109x58.5x30 | Fig. 33. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL3-3.3SVZ | 4k | 2.3 | 3.3 | 0.7 | - | - | - | - | 66 | 37x24.5x18 | Fig. 34. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL3-5SVZ | 4k | 3 | 5 | 0.6 | - | - | - | - | 74 | 37x24.5x18 | Fig. 34. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL3-12SVZ | 4k | 3 | 12 | 0.25 | - | - | - | - | 77 | 37x24.5x18 | Fig. 34. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |

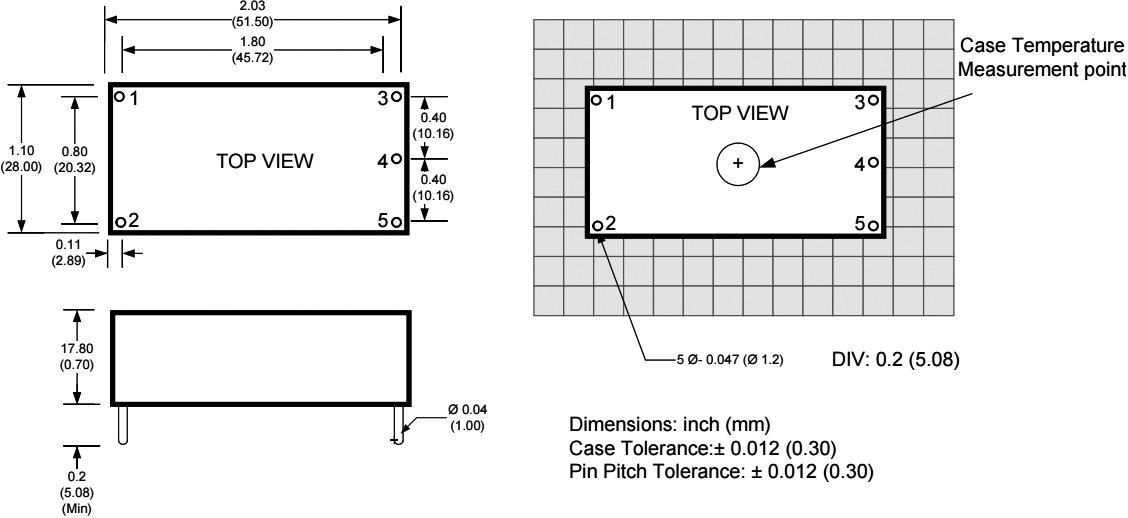

| AMEL5-5SAZ | 3k | 5 | 5 | 1 | - | - | - | - | 73 | 51.5x28x17.8 | Fig. 35. | -40...95 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL5-12SAZ | 3k | 5 | 12 | 0.42 | - | - | - | - | 76 | 51.5x28x17.8 | Fig. 35. | -40...95 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL5-3.3SMAZ | 4k | 5 | 3.3 | 1.5 | - | - | - | - | 70 | 51.5x28x17.8 | Fig. 35. | -25...80 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL5-5SMAZ | 4k | 5 | 5 | 1 | - | - | - | - | 71 | 51.5x28x17.8 | Fig. 35. | -25...80 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL5-12SMAZ | 4k | 5 | 12 | 0.42 | - | - | - | - | 75 | 51.5x28x17.8 | Fig. 35. | -25...80 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL5-5S277NZ | 4k | 5 | 5 | 1 | - | - | - | - | 76 | 50.8x25.4x15.36 | Fig. 36. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL5-15SMAZ | 4k | 5 | 15 | 0.333 | - | - | - | - | 74 | 51.5x28x17.8 | Fig. 35. | -25...80 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL5-24SMAZ | 4k | 5 | 24 | 0.21 | - | - | - | - | 75 | 51.5x28x17.8 | Fig. 35. | -25...80 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL5-12DMAZ | 4k | 5 | 12 | 0.21 | 12 | 0.21 | - | - | 73 | 51.5x28x17.8 | Fig. 35. | -25...80 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL5-5DEMAZ | 4k | 5 | 5 | 0.5 | -5 | 0.5 | - | - | 72 | 51.5x28x17.8 | Fig. 35. | -40...80 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL5-15DEMAZ | 4k | 5 | 15 | 0.168 | -15 | 0.168 | - | - | 73 | 51.5x28x17.8 | Fig. 35. | -40...80 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL5-9SJZ | 4k | 5 | 9 | 0.55 | - | - | - | - | 78 | 50.8x25.4x15.16 | Fig. 37. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL5-9SCJZ | 4k | 5 | 9 | 0.55 | - | - | - | - | 78 | 50.8x25.4x15.16 | Fig. 37. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |

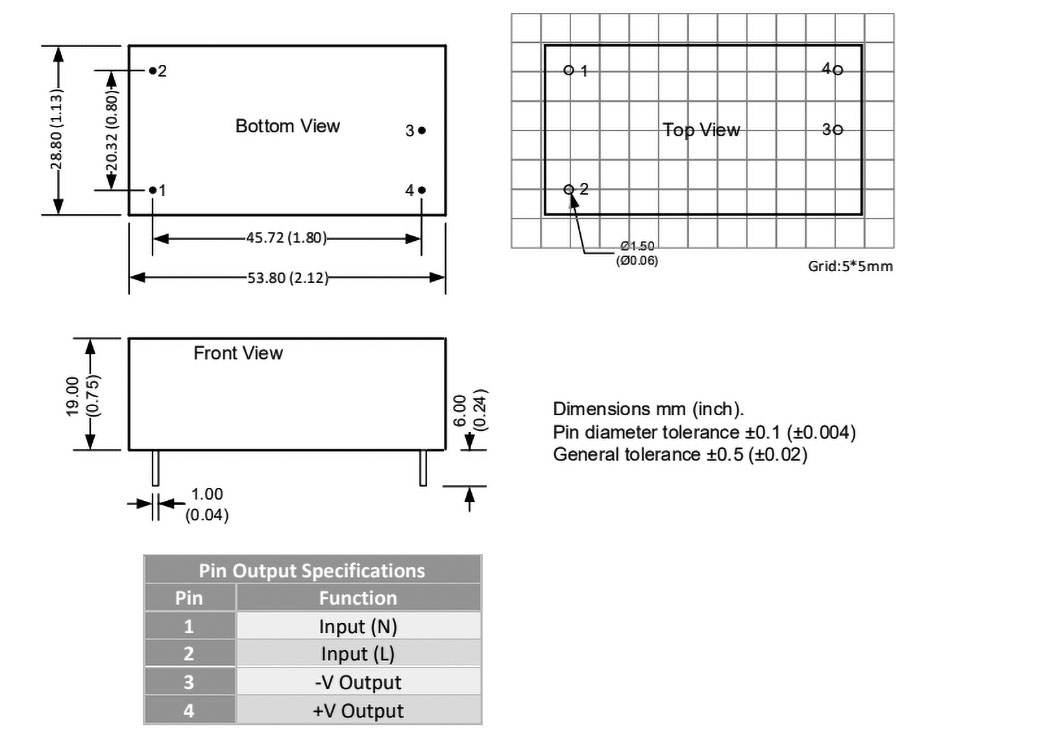

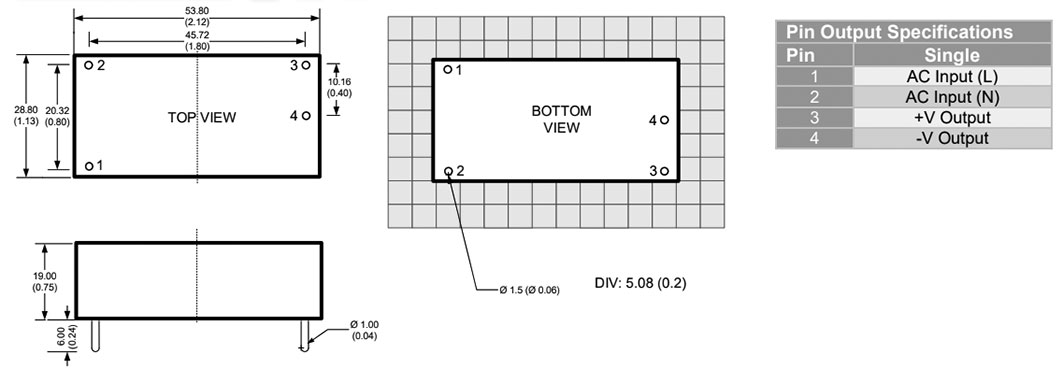

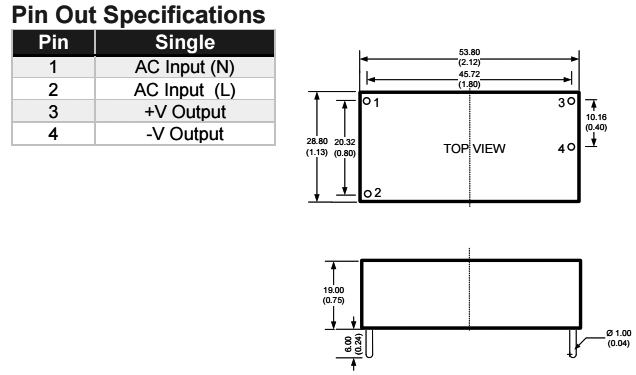

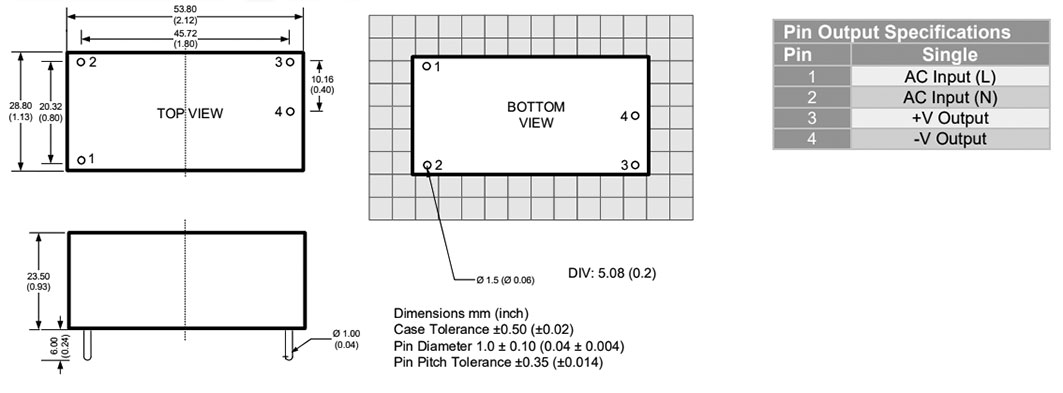

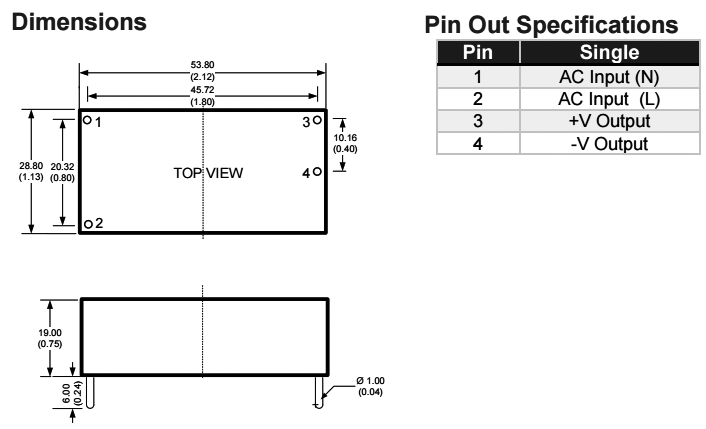

| AMEL5-15SMJZ | 4k | 5 | 15 | 0.333 | - | - | - | - | 81 | 53.8x28.8x19 | Fig. 38. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL5-3.3SVZ | 4k | 3.3 | 3.3 | 1 | - | - | - | - | 68 | 37x24.5x18 | Fig. 39. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL5-5SVZ | 4k | 5 | 5 | 1 | - | - | - | - | 75 | 37x24.5x18 | Fig. 39. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL5-24SVZ | 4k | 5 | 24 | 0.21 | - | - | - | - | 81 | 37x24.5x18 | Fig. 39. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |

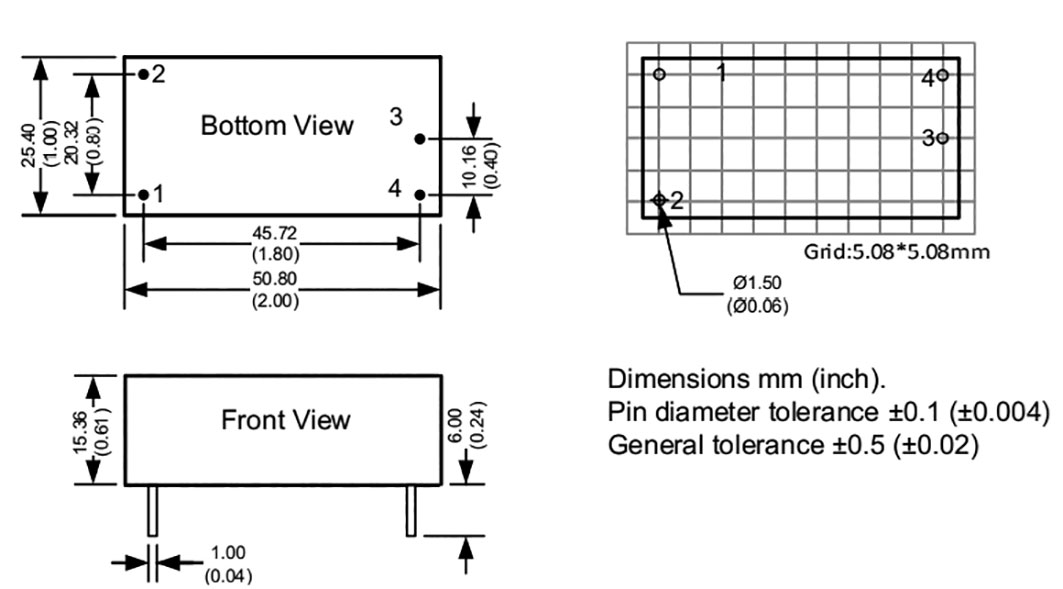

| AMEL6-5SVZ | 4k | 6 | 5 | 1.2 | - | - | - | - | 76 | 50.8x25.4x15.36 | Fig. 40. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL6-24SVZ | 4k | 6 | 24 | 0.25 | - | - | - | - | 80 | 50.8x25.4x15.36 | Fig. 40. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |

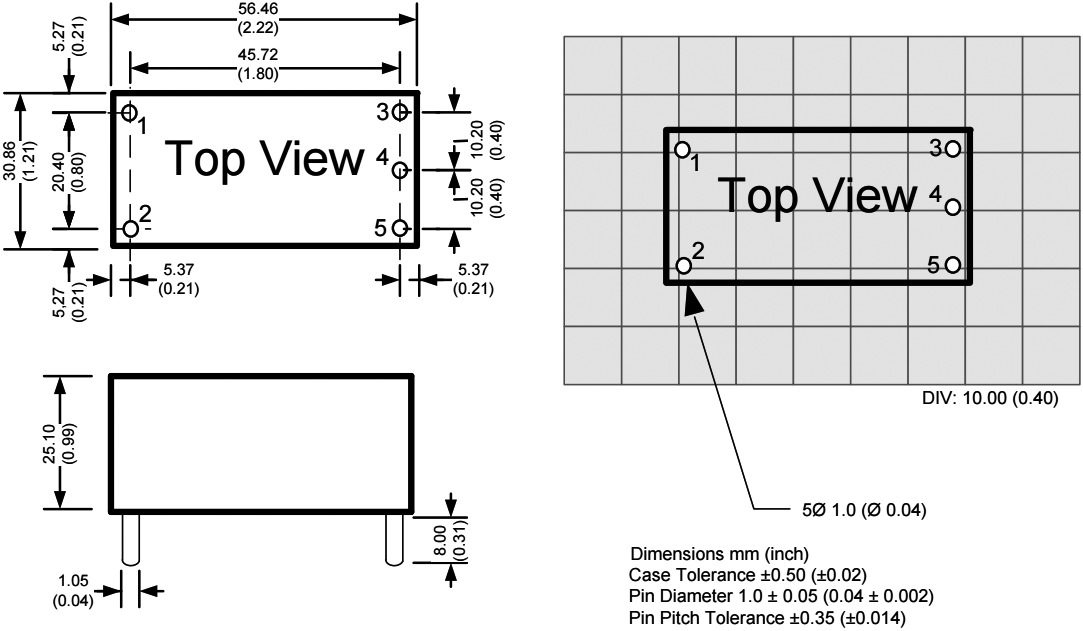

| AMEL10-5SAZ | 4k | 9.9 | 5 | 2 | - | - | - | - | 75 | 56.5x30.9x25 | Fig. 41. | -40...80 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL10-12SAZ | 4k | 10 | 12 | 0.84 | - | - | - | - | 82 | 56.5x30.9x25 | Fig. 41. | -40...80 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL10-24SAZ | 4k | 10 | 24 | 0.42 | - | - | - | - | 81 | 56.5x30.9x25 | Fig. 41. | -40...80 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL10-3.3SMAZ | 4k | 9.9 | 3.3 | 3 | - | - | - | - | 75 | 56.5x30.9x25 | Fig. 41. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL10-15SMAZ | 4k | 10 | 15 | 0.67 | - | - | - | - | 80 | 56.5x30.9x25 | Fig. 41. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL10-24SMAZ | 4k | 10 | 24 | 0.42 | - | - | - | - | 80 | 56.5x30.9x25 | Fig. 41. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL10-3.35DMAZ | 4k | 7.9 | 3.3 | 0.9 | 5 | 1 | - | - | 74 | 56.5x30.9x25 | Fig. 41. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL10-3.312DMAZ | 4k | 8 | 3.3 | 0.9 | 12 | 0.41 | - | - | 77 | 56.5x30.9x25 | Fig. 41. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL10-512DMAZ | 4k | 8 | 5 | 0.6 | 12 | 0.41 | - | - | 75 | 56.5x30.9x25 | Fig. 41. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL10-1215DMAZ | 4k | 8 | 12 | 0.25 | 15 | 0.33 | - | - | 76 | 56.5x30.9x25 | Fig. 41. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL10-3.3N12DMAZ | 4k | 8 | -3.3 | 0.9 | 12 | 0.41 | - | - | 75 | 56.5x30.9x25 | Fig. 41. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL10-3.3N15DMAZ | 4k | 8 | -3.3 | 0.9 | 15 | 0.33 | - | - | 75 | 56.5x30.9x25 | Fig. 41. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL10-5N12DMAZ | 4k | 8 | -5 | 0.6 | 12 | 0.41 | - | - | 74 | 56.5x30.9x25 | Fig. 41. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL10-5N15DMAZ | 4k | 8 | -5 | 0.6 | 15 | 0.33 | - | - | 74 | 56.5x30.9x25 | Fig. 41. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL10-12N12DMAZ | 4k | 8 | -12 | 0.25 | 12 | 0.41 | - | - | 76 | 56.5x30.9x25 | Fig. 41. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL10-12N15DMAZ | 4k | 8 | -12 | 0.25 | 15 | 0.33 | - | - | 75 | 56.5x30.9x25 | Fig. 41. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL10-3.3SMJZ | 4k | 6.6 | 3.3 | 2 | - | - | - | - | 71 | 53.8x28.8x19 | Fig. 42. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL10-9SMJZ | 4k | 10 | 9 | 1.1 | - | - | - | - | 80 | 53.8x28.8x19 | Fig. 42. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL10-15SMJZ | 4k | 10 | 15 | 0.7 | - | - | - | - | 82 | 53.8x28.8x19 | Fig. 42. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL10-3.3SJZ | 4k | 6.6 | 3.3 | 2 | - | - | - | - | 71 | 53.8x28.8x19 | Fig. 43. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |

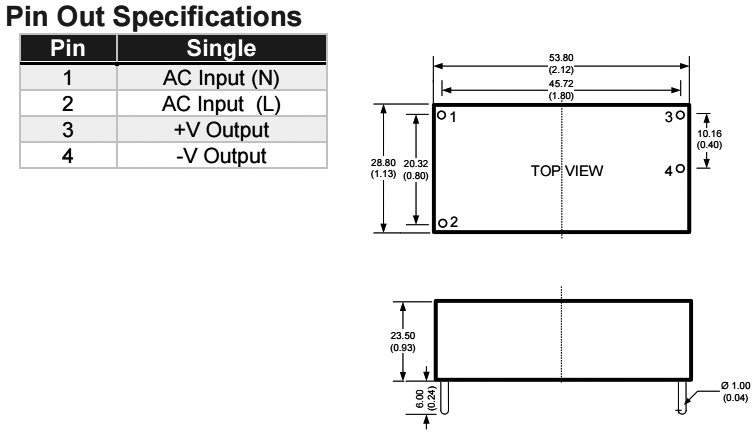

| AMEL12-5SCJZ | 4k | 12 | 5 | 2.4 | - | - | - | - | 78 | 53.8x28.8x23.5 | Fig. 44. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL15-3.3SJZ | 4k | 8.9 | 3.3 | 2.7 | - | - | - | - | 72 | 53.8x28.8x23.5 | Fig. 45. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL15-9SJZ | 4k | 15 | 9 | 1.66 | - | - | - | - | 77 | 53.8x28.8x23.5 | Fig. 45. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL15-15SJZ | 4k | 15 | 15 | 1 | - | - | - | - | 81 | 53.8x28.8x23.5 | Fig. 45. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME20-3.3SBJZ | 4k | 11.88 | 3.3 | 3.6 | - | - | - | - | 74 | 70x28x30 | Fig. 46. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME20-5SBJZ | 4k | 18 | 5 | 3.6 | - | - | - | - | 78 | 70x28x30 | Fig. 46. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME20-12SBJZ | 4k | 12 | 12 | 2.23 | - | - | - | - | 82 | 70x28x30 | Fig. 46. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL20-5SAZ | 4k | 20 | 5 | 4 | - | - | - | - | 77 | 56.5x30.9x25 | Fig. 41. | -40...80 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL20-24SAZ | 4k | 20 | 24 | 0.84 | - | - | - | - | 80 | 56.5x30.9x25 | Fig. 41. | -40...80 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL20-3.3SMAZ | 4k | 13.2 | 3.3 | 4 | - | - | - | - | 73 | 56.5x30.9x25 | Fig. 41. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL20-5SMAZ | 4k | 20 | 5 | 4 | - | - | - | - | 78 | 56.5x30.9x25 | Fig. 41. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL20-12SMAZ | 4k | 20 | 12 | 1.66 | - | - | - | - | 81 | 56.5x30.9x25 | Fig. 41. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL20-15SMAZ | 4k | 20 | 15 | 1.33 | - | - | - | - | 81 | 56.5x30.9x25 | Fig. 41. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL20-24SMAZ | 4k | 20 | 24 | 0.84 | - | - | - | - | 82 | 56.5x30.9x25 | Fig. 41. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL20-3.315DMAZ | 4k | 18 | 3.3 | 1.4 | 15 | 0.89 | - | - | 77 | 56.5x30.9x25 | Fig. 41. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL20-524DMAZ | 4k | 18 | 5 | 1.6 | 24 | 0.46 | - | - | 77 | 56.5x30.9x25 | Fig. 41. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL20-1524DMAZ | 4k | 18 | 15 | 0.54 | 24 | 0.42 | - | - | 81 | 56.5x30.9x25 | Fig. 41. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL20-3.3N5DMAZ | 4k | 14.8 | -3.3 | 0.7 | 5 | 2.5 | - | - | 76 | 56.5x30.9x25 | Fig. 41. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL20-3.3N12DMAZ | 4k | 18 | -3.3 | 1.4 | 12 | 1.1 | - | - | 77 | 56.5x30.9x25 | Fig. 41. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL20-3.3N15DMAZ | 4k | 18 | -3.3 | 1.4 | 15 | 0.89 | - | - | 77 | 56.5x30.9x25 | Fig. 41. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL20-5N5DMAZ | 4k | 14 | -5 | 0.8 | 5 | 2 | - | - | 76 | 56.5x30.9x25 | Fig. 41. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL20-5N15DMAZ | 4k | 18 | -5 | 1.6 | 15 | 0.66 | - | - | 76 | 56.5x30.9x25 | Fig. 41. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL45-15SJZ | 4k | 45 | 15 | 3 | - | - | - | - | 85 | 87x52x29.5 | - | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL60-15SJZ | 4k | 60 | 15 | 4 | - | - | - | - | 88 | 87x52x29.5 | - | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL2-3.3S277NZ | 4k | 2 | 3.3 | 0.6 | - | - | - | - | 65 | 33.7x22.2x18 | Fig. 47. | -40...70 | anti-overload OPP, short circuit protection SCP | - |
| AMEL2-5S277NZ | 4k | 2 | 5 | 0.4 | - | - | - | - | 70 | 33.7x22.2x18 | Fig. 47. | -40...70 | anti-overload OPP, short circuit protection SCP | - |
| AMEL2-12S277NZ | 4k | 2 | 12 | 0.167 | - | - | - | - | 76 | 33.7x22.2x18 | Fig. 47. | -40...70 | anti-overload OPP, short circuit protection SCP | - |
| AMEL10-3.3S277NZ | 4k | 6.6 | 3.3 | 2 | - | - | - | - | 72 | 53.8x28.8x19 | Fig. 48. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |

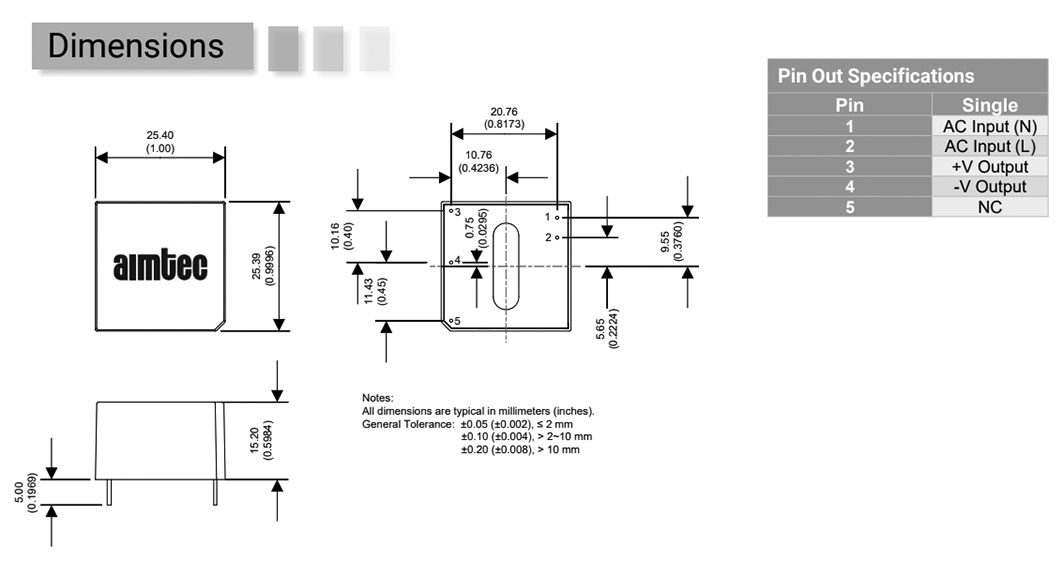

| AMEM5-3.3SY | 4k | 5 | 3.3 | 1.51 | - | - | - | - | 74 | 25.4x25.4x15.2 | Fig. 49. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEM5-5SY | 4k | 5 | 5 | 1 | - | - | - | - | 74 | 25.4x25.4x15.2 | Fig. 49. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEM5-9SY | 4k | 5 | 9 | 0.55 | - | - | - | - | 78 | 25.4x25.4x15.2 | Fig. 49. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEM5-12SY | 4k | 5 | 12 | 0.41 | - | - | - | - | 78 | 25.4x25.4x15.2 | Fig. 49. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEM5-15SY | 4k | 5 | 15 | 0.33 | - | - | - | - | 78 | 25.4x25.4x15.2 | Fig. 49. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEM5-24SY | 4k | 5 | 24 | 0.2 | - | - | - | - | 78 | 25.4x25.4x15.2 | Fig. 49. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEM5-36SY | 4k | 5 | 36 | 0.135 | - | - | - | - | 78 | 25.4x25.4x15.2 | Fig. 49. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEM5-48SY | 4k | 5 | 48 | 0.1 | - | - | - | - | 78 | 25.4x25.4x15.2 | Fig. 49. | -25...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME1-5SAZ | 3k | 1 | 5 | 0.2 | - | - | - | - | 57 | 33.7x22.2x18 | Fig. 1. | -40...80 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |

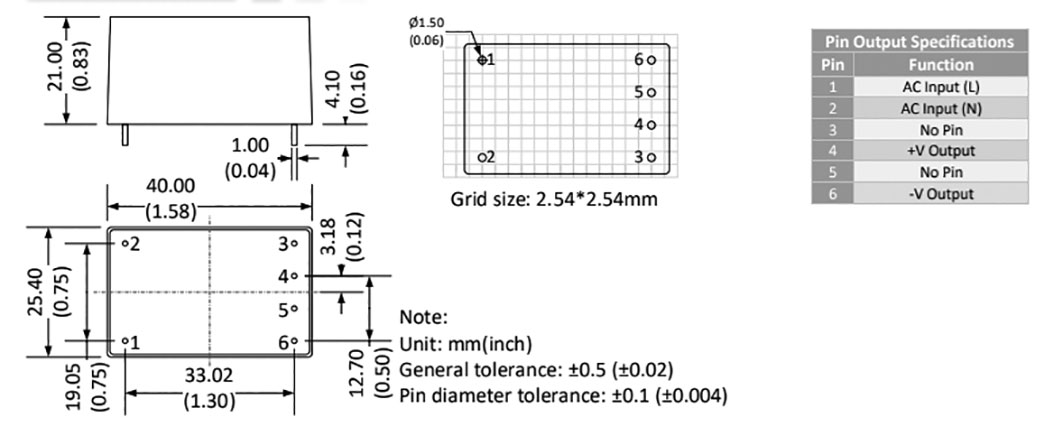

| AMEL10-15S277HAVZB | 4k | 10 | 15 | 0.66 | - | - | - | - | 84 | 25.4x40x21 | Fig. 50. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |

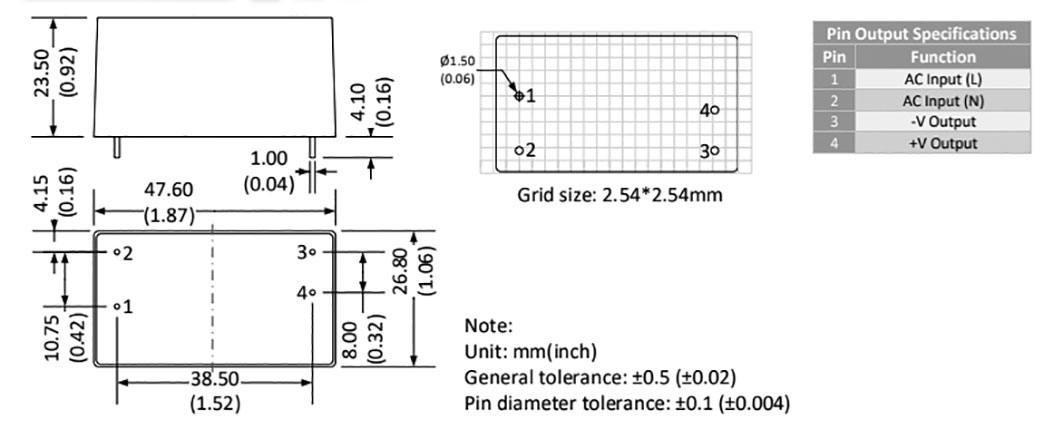

| AMEL15-3S277HAVZ-B | 4k | 13.2 | 3.3 | 4 | - | - | - | - | 76 | 26.8x47.6x23.5 | Fig. 51. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL15-24S277HAVZB | 4k | 15 | 24 | 0.625 | - | - | - | - | 72 | 26.8x47.6x23.5 | Fig. 51. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL15-12S277HAVZ | 4k | 15 | 12 | 1.25 | - | - | - | - | 85 | 47.6x26.8x23.5 | Fig. 51. | -25...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL15-24S277HAVZ | 4k | 15 | 24 | 0.625 | - | - | - | - | 85 | 47.6x26.8x23.5 | Fig. 51. | -25...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL15-5S277HAVZ | 4k | 15 | 5 | 3 | - | - | - | - | 85 | 47.6x26.8x23.5 | Fig. 51. | -25...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL1524S277HAVZ-2 | 4k | 15 | 24 | 0.625 | - | - | - | - | 86 | 47.6x26.8x23.5 | Fig. 51. | -25...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |

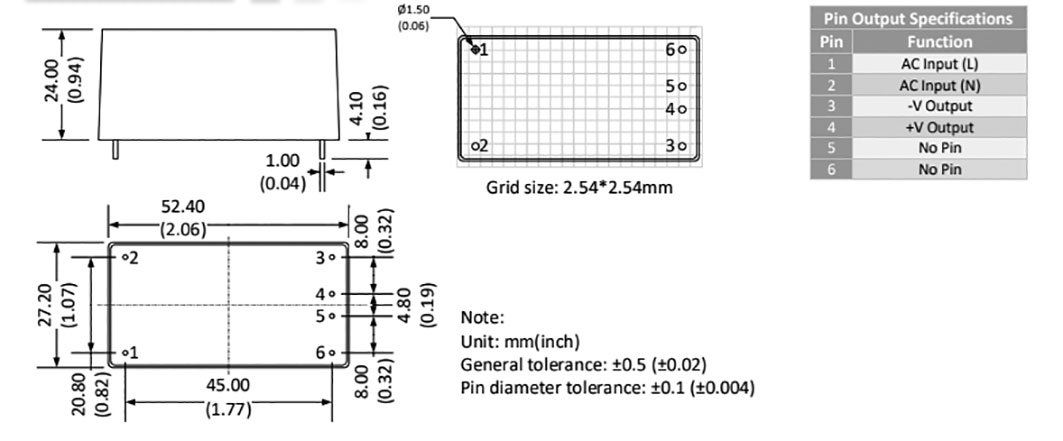

| AMEL20-3S277HAVZB | 4k | 15 | 3.3 | 4.5 | - | - | - | - | 78 | 27.2x52.4x24 | Fig. 52. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL20-12S277HAVZ | 4k | 20 | 12 | 1.67 | - | - | - | - | 86 | 52.4x27.2x24 | Fig. 52. | -25...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL20-9S277HAVZ | 4k | 20 | 9 | 2.2 | - | - | - | - | 84 | 52.4x27.2x24 | Fig. 52. | -25...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |

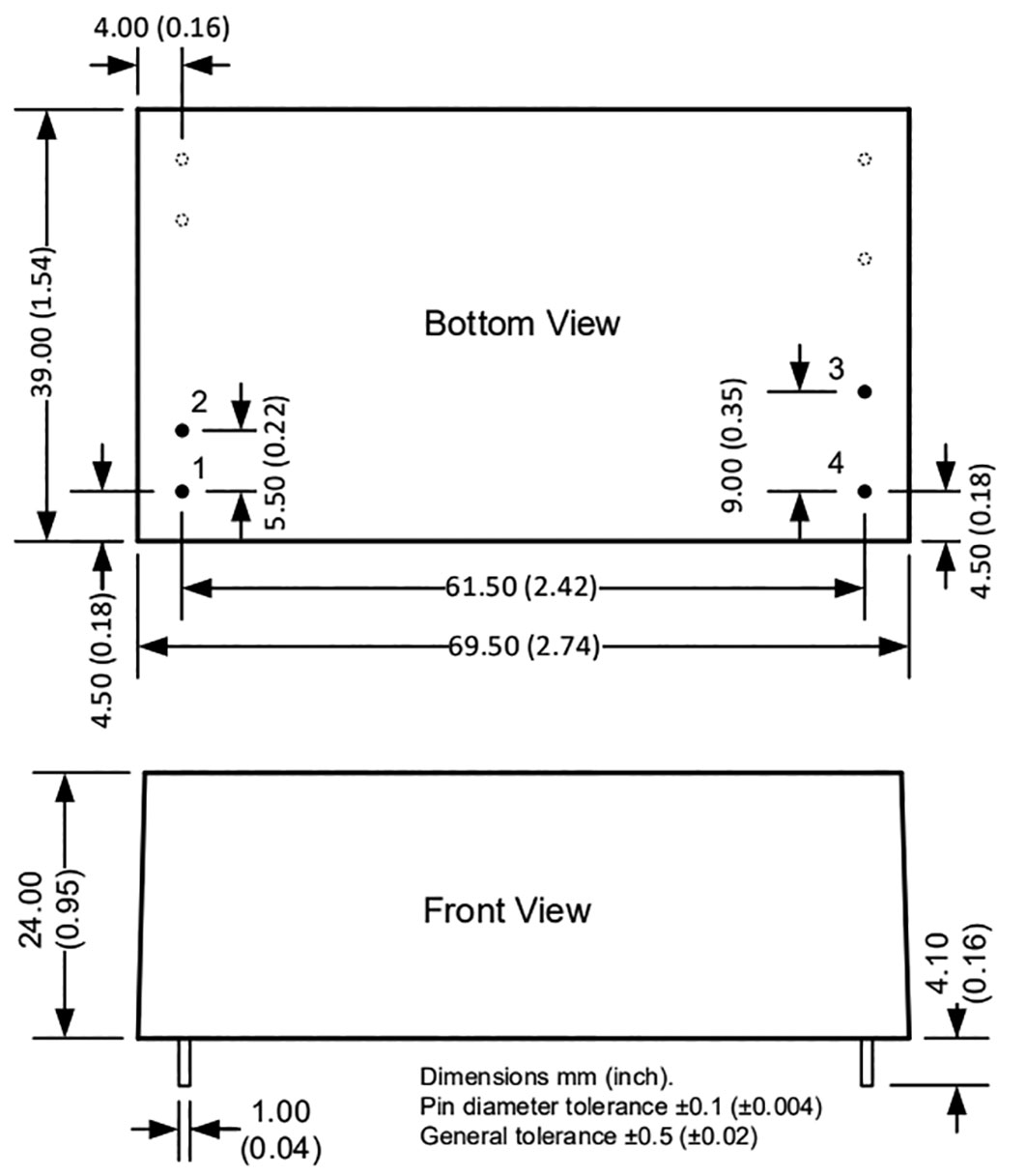

| AMEL30-3S277HAVZ | 4.2k | 20 | 3.3 | 6 | - | - | - | - | 85 | 69.5x39x24 | Fig. 53. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL30-5S277HAVZ | 4.2k | 30 | 5 | 6 | - | - | - | - | 86 | 69.5x39x24 | Fig. 53. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL30-9S277HAVZ | 4.2k | 30 | 9 | 3.4 | - | - | - | - | 88 | 69.5x39x24 | Fig. 53. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL30-12S277HAVZ | 4.2k | 30 | 12 | 2.5 | - | - | - | - | 90 | 69.5x39x24 | Fig. 53. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL30-15S277HAVZ | 4.2k | 30 | 15 | 2 | - | - | - | - | 90 | 69.5x39x24 | Fig. 53. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL30-24S277HAVZ | 4.2k | 30 | 24 | 1.3 | - | - | - | - | 88 | 69.5x39x24 | Fig. 53. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL30-48S277HAVZ | 4.2k | 30 | 48 | 0.63 | - | - | - | - | 90 | 69.5x39x24 | Fig. 53. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |

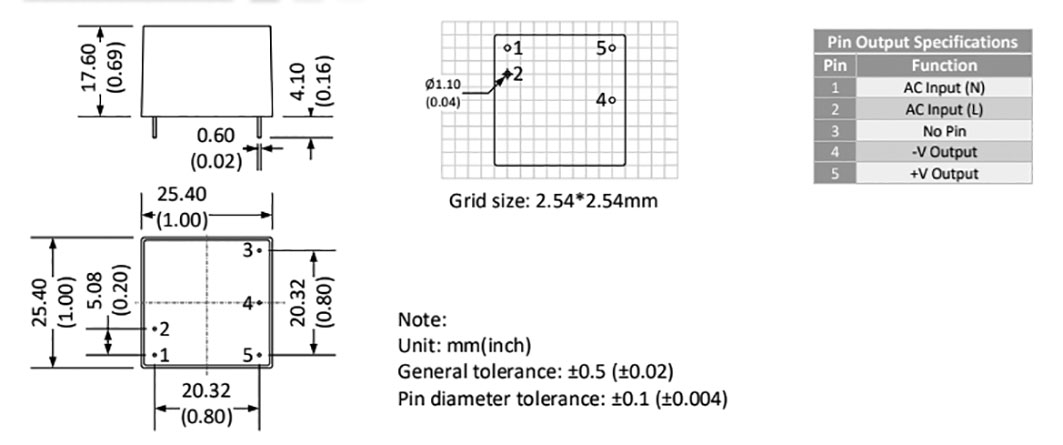

| AMEM3-3S277HAVZB | 4k | 3 | 3.3 | 0.9 | - | - | - | - | 72 | 25.4x25.4x17.6 | Fig. 54. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEM5-24S277HAVZB | 4k | 5 | 24 | 0.208 | - | - | - | - | 81.5 | 25.4x25.4x17.6 | Fig. 54. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME15-3.3SMAZ-E | 4k | 15 | 3.3 | 3 | - | - | - | - | 86 | 65x46.5x21 | - | -25...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME15-3.3SMAZ-E-T | 4k | 15 | 3.3 | 3 | - | - | - | - | 86 | 65x46.5x21 | - | -25...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME15-5SMAZ-E | 4k | 15 | 5 | 3 | - | - | - | - | 76 | 65x46.5x21 | - | -25...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME15-5SMAZ-E-T | 4k | 15 | 5 | 3 | - | - | - | - | 76 | 65x46.5x21 | - | -25...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME15-12SMAZ-E | 4k | 15 | 12 | 1.25 | - | - | - | - | 78 | 65x46.5x21 | - | -25...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME15-12SMAZ-E-T | 4k | 15 | 12 | 1.25 | - | - | - | - | 78 | 65x46.5x21 | - | -25...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME15-15SMAZ-E | 4k | 15 | 15 | 1 | - | - | - | - | 79 | 65x46.5x21 | - | -25...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME15-15SMAZ-E-T | 4k | 15 | 15 | 1 | - | - | - | - | 79 | 65x46.5x21 | - | -25...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEM3-15S277HAVZ | 4k | 3 | 15 | 0.2 | - | - | - | - | 79 | 25.4x25.4x17.6 | Fig. 54. | -25...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEM3-24S277HAVZ | 4k | 3 | 24 | 0.125 | - | - | - | - | 79 | 25.4x25.4x17.6 | Fig. 54. | -25...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |

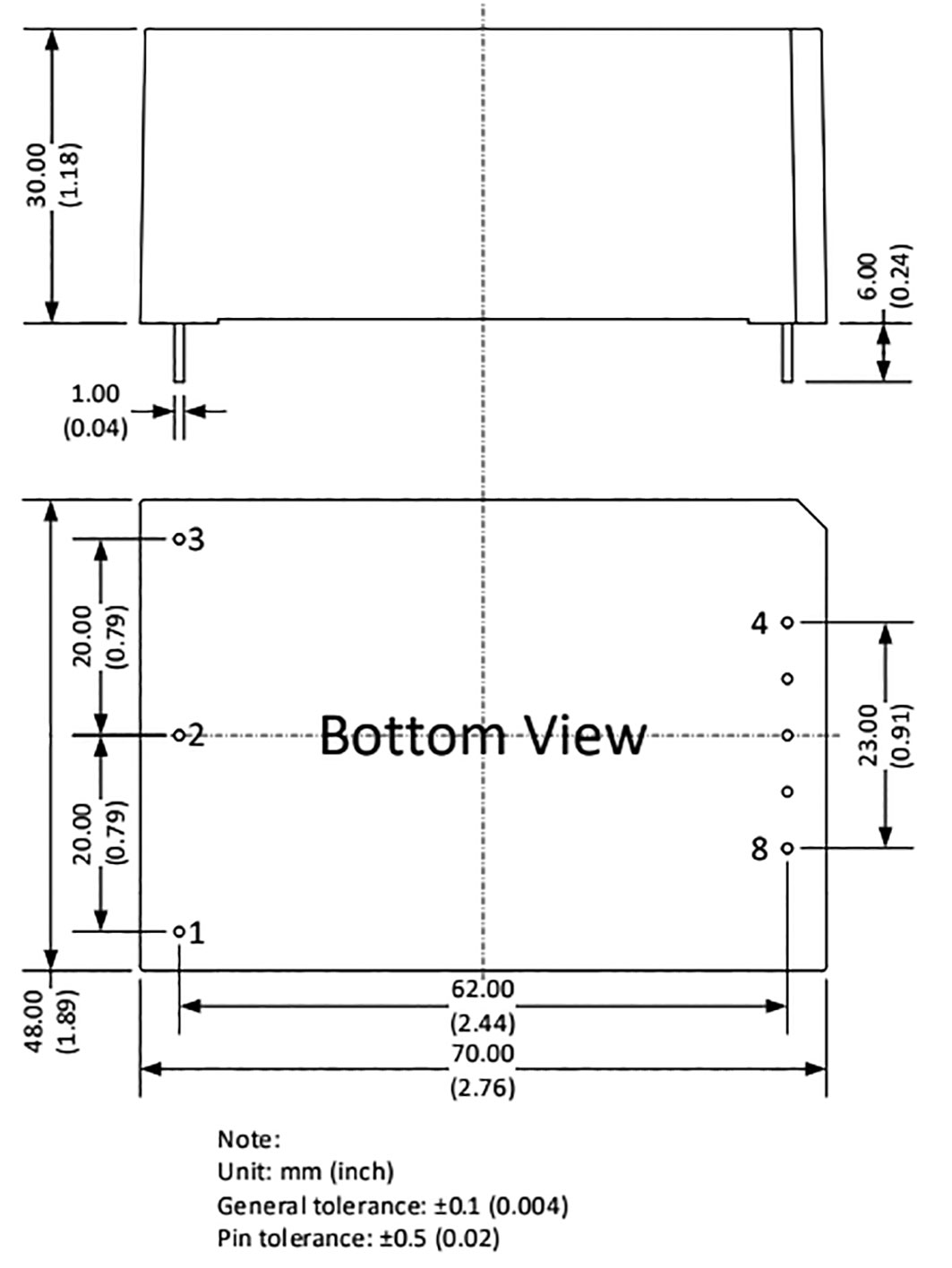

| AME30-48S480JZ-B | 4k | 30 | 48 | 0.625 | - | - | - | - | 88 | 70x48x30 | Fig. 55. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME30-5S480JZ-B | 4k | 30 | 5 | 6 | - | - | - | - | 84 | 70x48x30 | Fig. 55. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME30-3S480JZ-B | 4k | 19.8 | 3.3 | 6 | - | - | - | - | 82 | 70x48x30 | Fig. 55. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AME30-9S480JZ-B | 4k | 30 | 9 | 3.34 | - | - | - | - | 85 | 70x48x30 | Fig. 55. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |

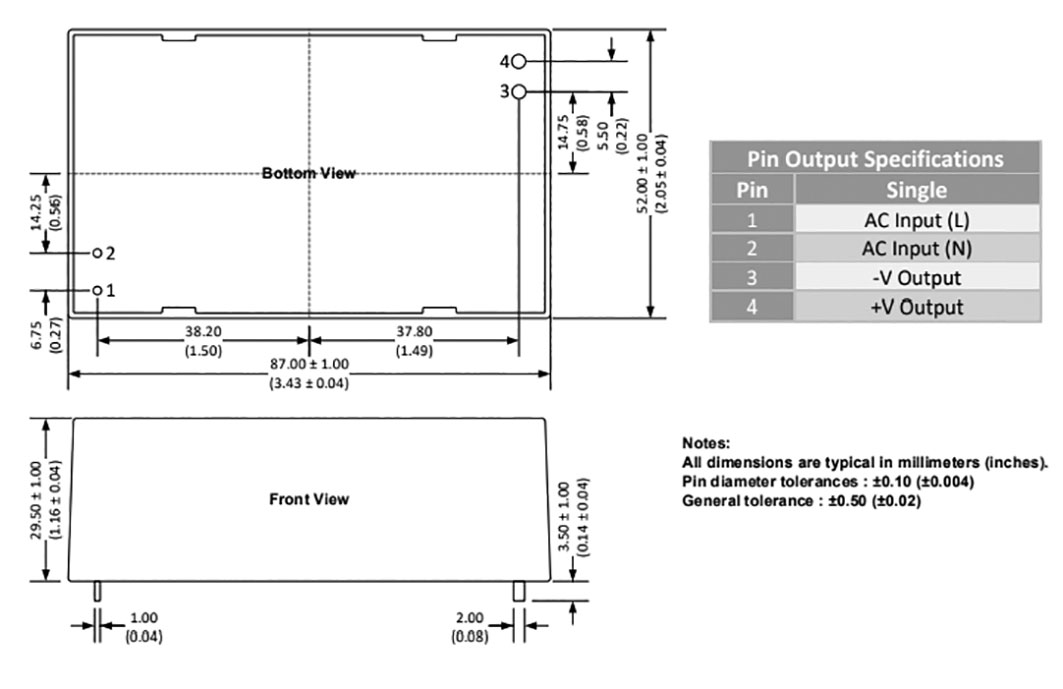

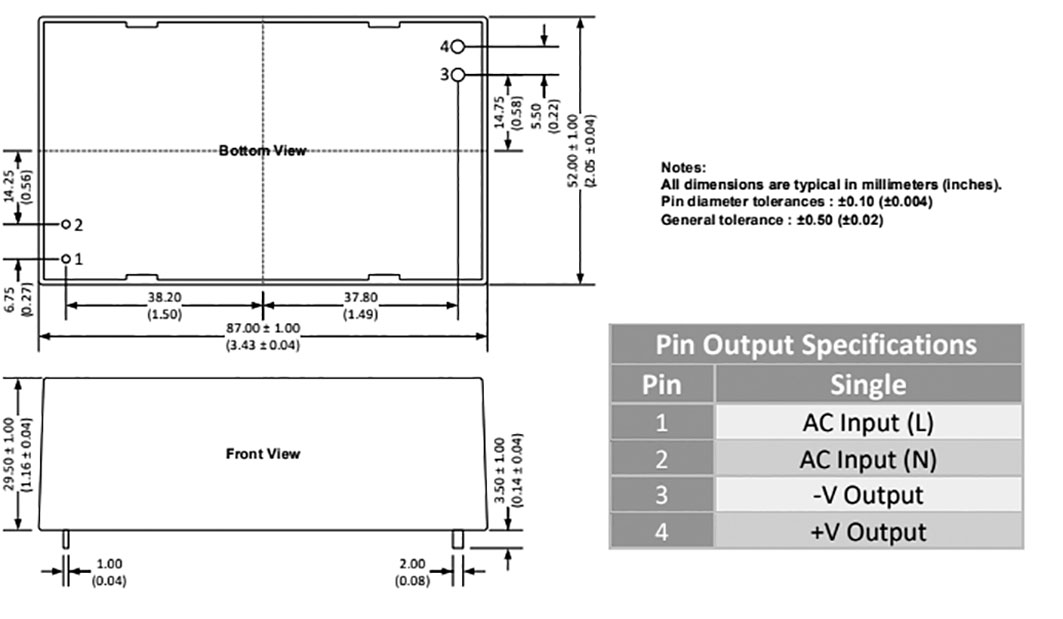

| AMEL45-24SJZ | 4k | 45 | 24 | 1.9 | - | - | - | - | 86 | 87x52x29.5 | Fig. 56. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL60-48SJZ | 4k | 60 | 48 | 1.25 | - | - | - | - | 90 | 87x52x29.5 | Fig. 57. | -40...70 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL10-12S277HAVZ | 4k | 10 | 12 | 0.83 | - | - | - | - | 84 | 25.4x40x21 | Fig. 50. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL10-24S277HAVZ | 4k | 10 | 24 | 0.41 | - | - | - | - | 85 | 25.4x40x21 | Fig. 50. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL10-3S277HAVZ | 4k | 8.6 | 3.3 | 2.6 | - | - | - | - | 74 | 25.4x40x21 | Fig. 50. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL10-5S277HAVZ | 4k | 10 | 5 | 2 | - | - | - | - | 79 | 25.4x40x21 | Fig. 50. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL20-24S277HAVZ | 4k | 20 | 24 | 0.83 | - | - | - | - | 87 | 27.2x52.4x24 | Fig. 52. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL20-5S277HAVZ | 4k | 20 | 5 | 4 | - | - | - | - | 85 | 27.2x52.4x24 | Fig. 52. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL30-12S277HA002 | 4.2k | 30 | 12 | 2.5 | - | - | - | - | 90 | 39x69.5x24 | - | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEM3-12S277HAVZ | 4k | 3 | 12 | 0.25 | - | - | - | - | 78 | 25.4x25.4x17.6 | Fig. 54. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEM3-3S277HAVZ | 4k | 3 | 3.3 | 0.9 | - | - | - | - | 72 | 25.4x25.4x17.6 | Fig. 54. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEM3-5S277HAVZ | 4k | 3 | 5 | 0.6 | - | - | - | - | 76 | 25.4x25.4x17.6 | Fig. 54. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEM3-12S277HAVZ-2 | 4k | 3 | 12 | 0.25 | - | - | - | - | 78 | 25.4x25.4x17.6 | Fig. 54. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEM5-12S277HAVZ | 4k | 5 | 12 | 0.416 | - | - | - | - | 80.5 | 25.4x25.4x17.6 | Fig. 54. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEM5-12S277HAVZ-2 | 4k | 5 | 12 | 0.416 | - | - | - | - | 80.5 | 25.4x25.4x17.6 | Fig. 54. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEM5-24S277HAVZ | 4k | 5 | 24 | 0.208 | - | - | - | - | 81.5 | 25.4x25.4x17.6 | Fig. 54. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEM5-3S277HAVZ | 4k | 5 | 3.3 | 1.515 | - | - | - | - | 71.5 | 25.4x25.4x17.6 | Fig. 54. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEM5-5S277HAVZ | 4k | 5 | 5 | 1 | - | - | - | - | 77.5 | 25.4x25.4x17.6 | Fig. 54. | -40...85 | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | - |

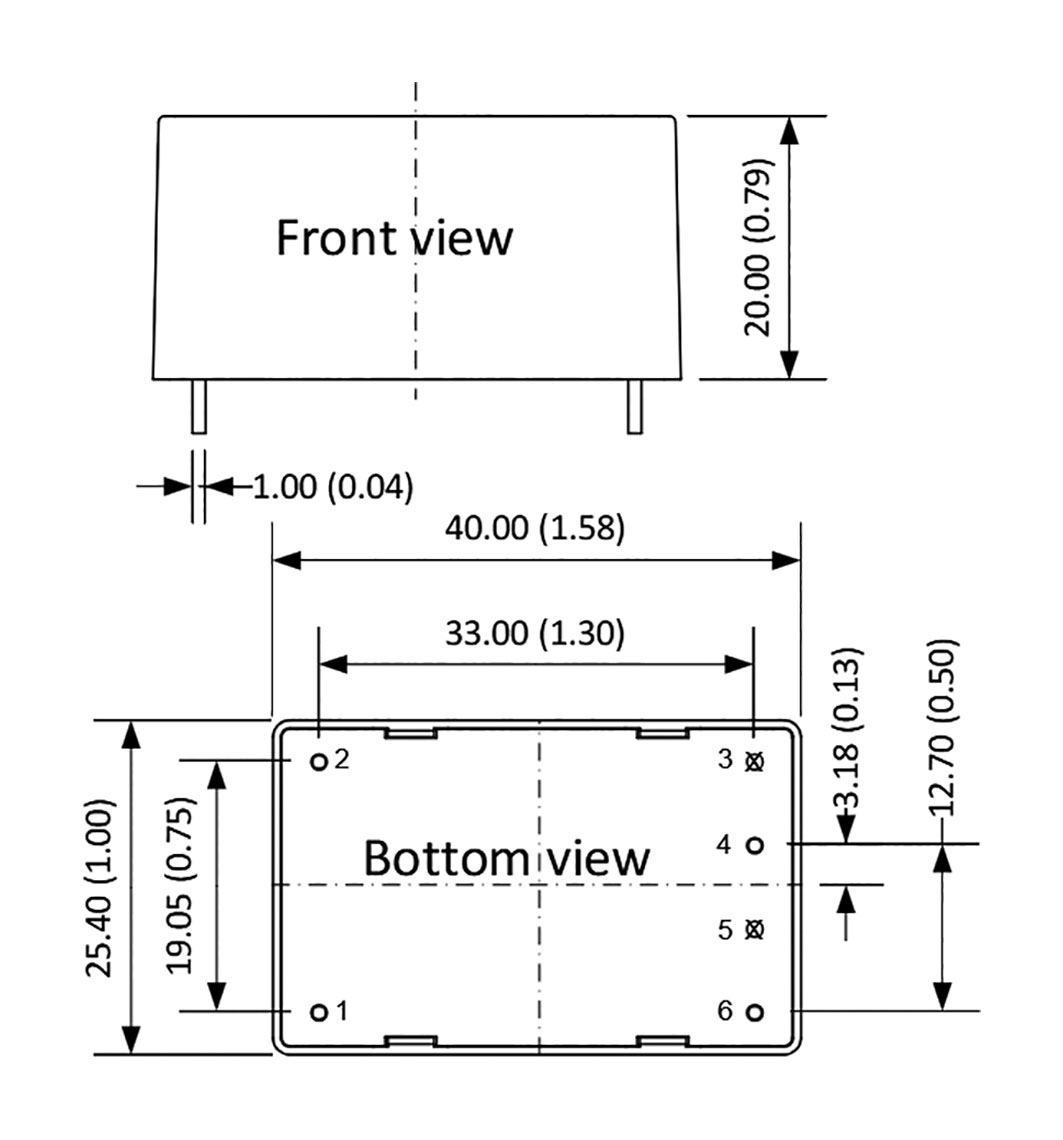

| AMEL10S-5S277HAVZ | 4k | 10 | 5 | 2 | - | - | - | - | 80 | 40x25.4x20 | Fig. 58. | -40...85 | over current OCP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL10S-7S277HAVZ | 4k | 10 | 7 | 1.33 | - | - | - | - | 80 | 40x25.4x20 | Fig. 58. | -40...85 | over current OCP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL10S-9S277HAVZ | 4k | 10 | 9 | 1.11 | - | - | - | - | 81 | 40x25.4x20 | Fig. 58. | -40...85 | over current OCP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL10S-12S277HAVZ | 4k | 10 | 12 | 0.83 | - | - | - | - | 83 | 40x25.4x20 | Fig. 58. | -40...85 | over current OCP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL10S-15S277HAVZ | 4k | 10 | 15 | 0.66 | - | - | - | - | 84 | 40x25.4x20 | Fig. 58. | -40...85 | over current OCP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL10S-24S277HAVZ | 4k | 10 | 24 | 0.45 | - | - | - | - | 84 | 40x25.4x20 | Fig. 58. | -40...85 | over current OCP, anti-overvoltage OVP, short circuit protection SCP | - |

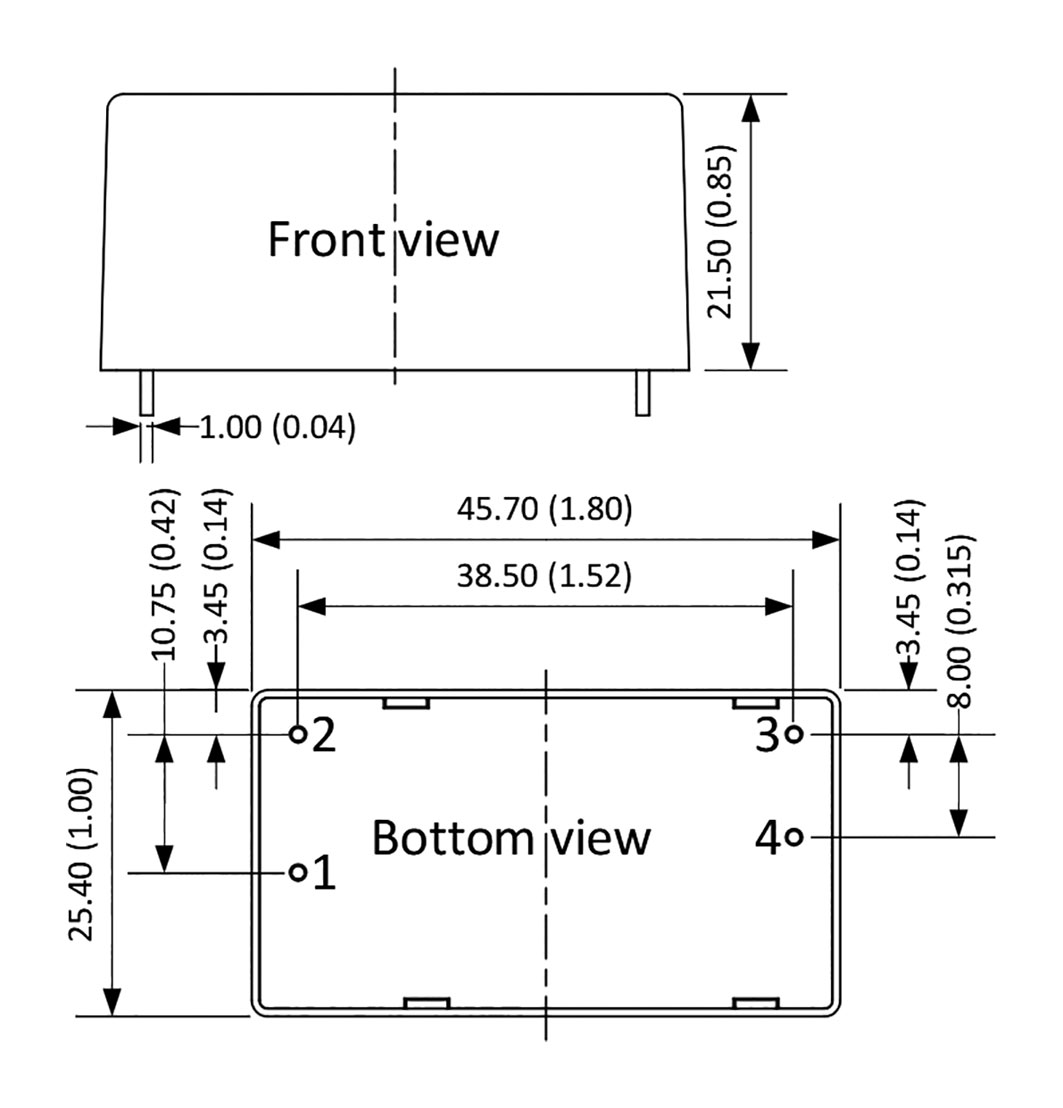

| AMEL15S-5S277HAVZ | 4k | 15 | 5 | 3 | - | - | - | - | 83 | 45.7x25.4x21.5 | Fig. 59. | -40...85 | over current OCP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL15S-9S277HAVZ | 4k | 15 | 9 | 1.67 | - | - | - | - | 84 | 45.7x25.4x21.5 | Fig. 59. | -40...85 | over current OCP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL15S-12S277HAVZ | 4k | 15 | 12 | 1.25 | - | - | - | - | 86 | 45.7x25.4x21.5 | Fig. 59. | -40...85 | over current OCP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL15S-15S277HAVZ | 4k | 15 | 15 | 1 | - | - | - | - | 86 | 45.7x25.4x21.5 | Fig. 59. | -40...85 | over current OCP, anti-overvoltage OVP, short circuit protection SCP | - |
| AMEL15S-24S277HAVZ | 4k | 15 | 24 | 0.625 | - | - | - | - | 87 | 45.7x25.4x21.5 | Fig. 59. | -40...85 | over current OCP, anti-overvoltage OVP, short circuit protection SCP | - |
