Converter: AC/DC; PCB; MEAN WELL
| Manufacturer | MEAN WELL |
| Type of converter | AC/DC |
| Number of outputs | 1 |
| Protection | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP |
| Mounting | PCB |
| Caution! | rated parameters obtained at full load |
| Symbol | Power | Output voltage | Out. curr. | Efficiency | Body dim. | Dimensions |
|---|---|---|---|---|---|---|
| [W] | [V DC] | [mA] | [%] | [mm] | ||

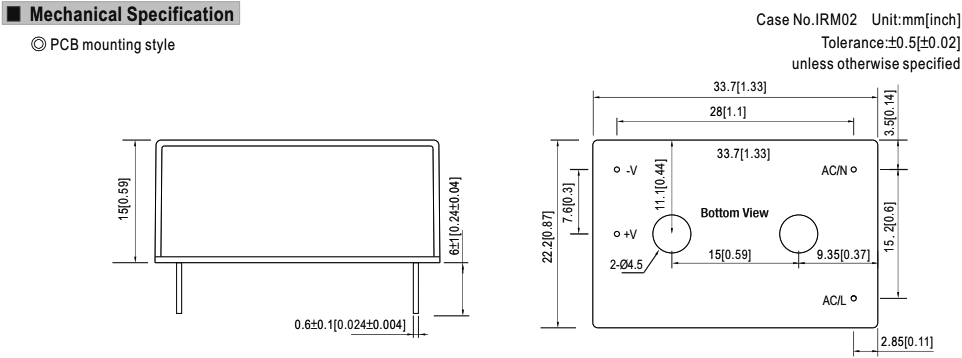

| IRM-01-3.3 | 1 | 3.3 | 300 | 66 | 33.7x22.2x15 | Fig. 1. |
| IRM-01-5 | 1 | 5 | 200 | 70 | 33.7x22.2x15 | Fig. 1. |
| IRM-01-9 | 1 | 9 | 111 | 72 | 33.7x22.2x15 | Fig. 1. |
| IRM-01-12 | 1 | 12 | 83 | 74 | 33.7x22.2x15 | Fig. 1. |
| IRM-01-15 | 1 | 15 | 67 | 75 | 33.7x22.2x15 | Fig. 1. |
| IRM-01-24 | 1 | 24 | 42 | 77 | 33.7x22.2x15 | Fig. 1. |

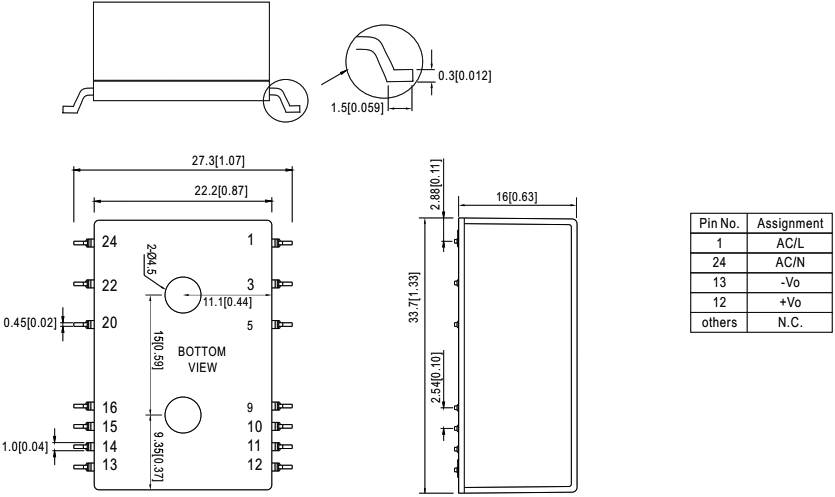

| IRM-01-5S | 1 | 5 | 200 | 70 | 33.7x22.2x16 | Fig. 2. |
| IRM-01-9S | 1 | 9 | 111 | 72 | 33.7x22.2x16 | Fig. 2. |
| IRM-01-12S | 1 | 12 | 83 | 74 | 33.7x22.2x16 | Fig. 2. |
| IRM-01-15S | 1 | 15 | 67 | 75 | 33.7x22.2x16 | Fig. 2. |
| IRM-01-24S | 1 | 24 | 42 | 77 | 33.7x22.2x16 | Fig. 2. |
| IRM-02-3.3 | 2 | 3.3 | 600 | 66 | 33.7x22.2x15 | Fig. 1. |
| IRM-02-5 | 2 | 5 | 400 | 70 | 33.7x22.2x15 | Fig. 1. |
| IRM-02-9 | 2 | 9 | 222 | 72 | 33.7x22.2x15 | Fig. 1. |
| IRM-02-12 | 2 | 12 | 167 | 74 | 33.7x22.2x15 | Fig. 1. |
| IRM-02-15 | 2 | 15 | 133 | 75 | 33.7x22.2x15 | Fig. 1. |
| IRM-02-24 | 2 | 24 | 83 | 77 | 33.7x22.2x15 | Fig. 1. |
| IRM-02-3.3S | 2 | 3.3 | 600 | 66 | 33.7x22.2x16 | Fig. 2. |
| IRM-02-5S | 2 | 5 | 400 | 70 | 33.7x22.2x16 | Fig. 2. |
| IRM-02-9S | 2 | 9 | 222 | 72 | 33.7x22.2x16 | Fig. 2. |
| IRM-02-12S | 2 | 12 | 167 | 74 | 33.7x22.2x16 | Fig. 2. |
| IRM-02-15S | 2 | 15 | 133 | 75 | 33.7x22.2x16 | Fig. 2. |
| IRM-02-24S | 2 | 24 | 83 | 77 | 33.7x22.2x16 | Fig. 2. |
| IRM-03-3.3 | 3 | 3.3 | 900 | 68 | 37x24x15 | Fig. 3. |
| IRM-03-5 | 3 | 5 | 600 | 72 | 37x24x15 | Fig. 3. |
| IRM-03-9 | 3 | 9 | 333 | 77 | 37x24x15 | Fig. 3. |
| IRM-03-12 | 3 | 12 | 250 | 78 | 37x24x15 | Fig. 3. |
| IRM-03-15 | 3 | 15 | 200 | 78 | 37x24x15 | Fig. 3. |
| IRM-03-24 | 3 | 24 | 125 | 80 | 37x24x15 | Fig. 3. |

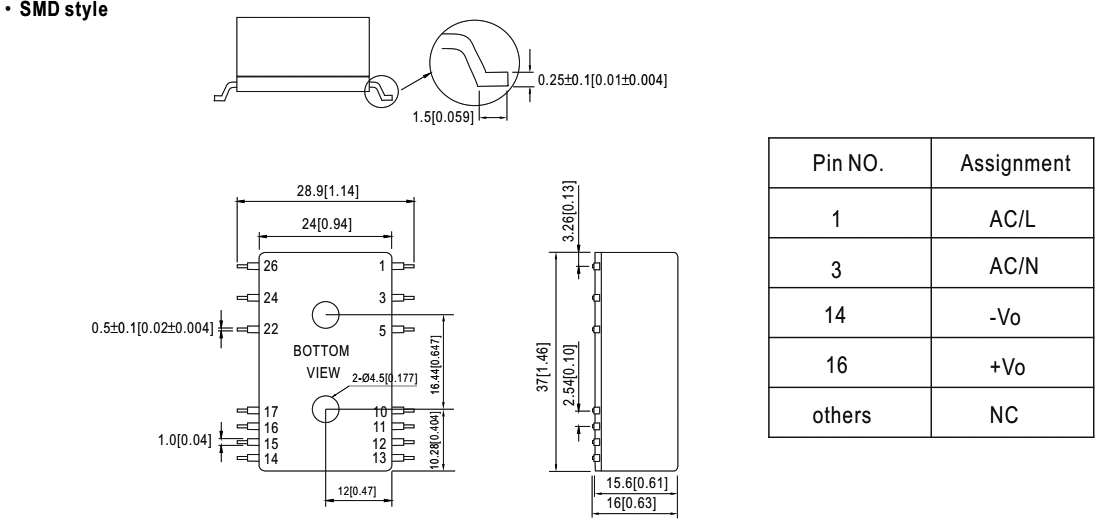

| IRM-03-3.3S | 3 | 3.3 | 900 | 68 | 37x24x16 | Fig. 4. |
| IRM-03-5S | 3 | 5 | 600 | 72 | 37x24x16 | Fig. 4. |
| IRM-03-9S | 3 | 9 | 333 | 77 | 37x24x16 | Fig. 4. |
| IRM-03-12S | 3 | 12 | 250 | 78 | 37x24x16 | Fig. 4. |
| IRM-03-15S | 3 | 15 | 200 | 78 | 37x24x16 | Fig. 4. |
| IRM-03-24S | 3 | 24 | 125 | 80 | 37x24x16 | Fig. 4. |

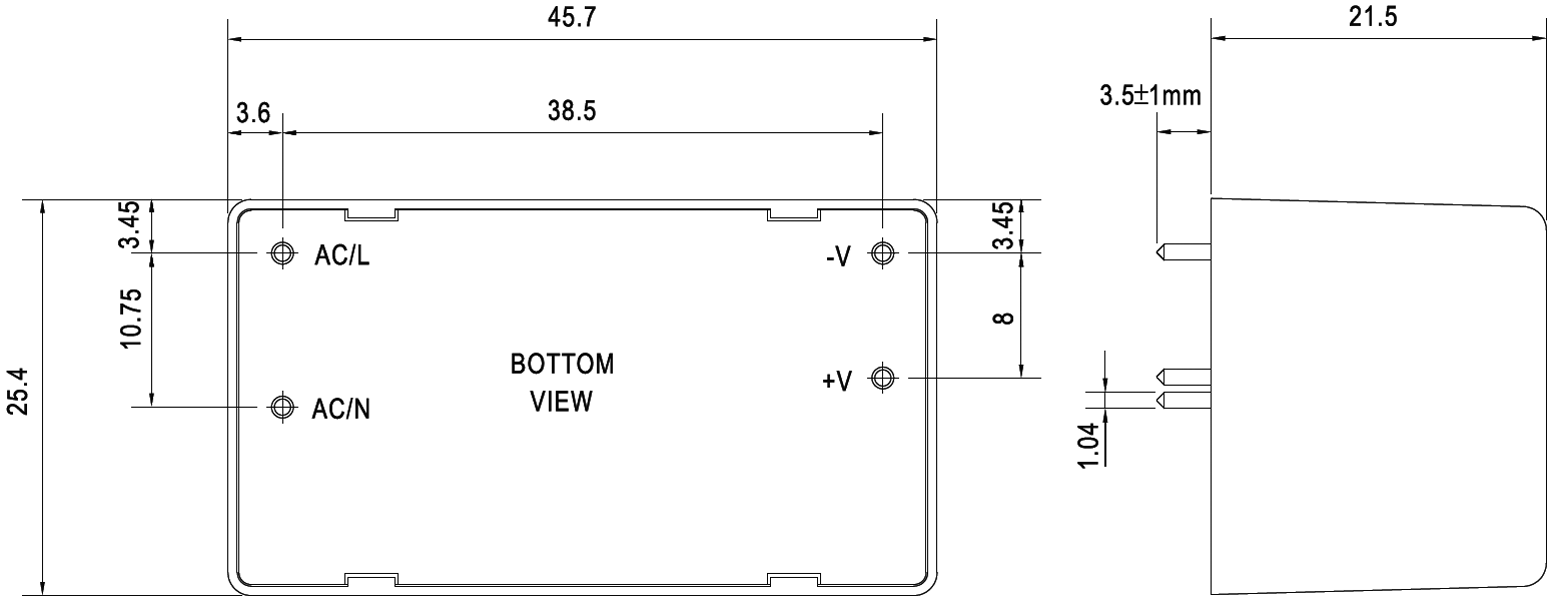

| IRM-05-3.3 | 4.125 | 3.3 | 1250 | 68 | 45.7x25.4x21.5 | Fig. 5. |
| IRM-05-5 | 5 | 5 | 1000 | 71 | 45.7x25.4x21.5 | Fig. 5. |
| IRM-05-12 | 5.04 | 12 | 420 | 75 | 45.7x25.4x21.5 | Fig. 5. |
| IRM-05-15 | 4.95 | 15 | 330 | 75 | 45.7x25.4x21.5 | Fig. 5. |
| IRM-05-24 | 5.52 | 24 | 230 | 77 | 45.7x25.4x21.5 | Fig. 5. |
| IRM-10-3.3 | 8.25 | 3.3 | 2500 | 74 | 45.7x25.4x21.5 | Fig. 6. |
| IRM-10-5 | 10 | 5 | 2000 | 77 | 45.7x25.4x21.5 | Fig. 6. |
| IRM-10-12 | 10.2 | 12 | 850 | 82 | 45.7x25.4x21.5 | Fig. 6. |
| IRM-10-15 | 10.05 | 15 | 670 | 82 | 45.7x25.4x21.5 | Fig. 6. |
| IRM-10-24 | 10.08 | 24 | 420 | 82 | 45.7x25.4x21.5 | Fig. 6. |

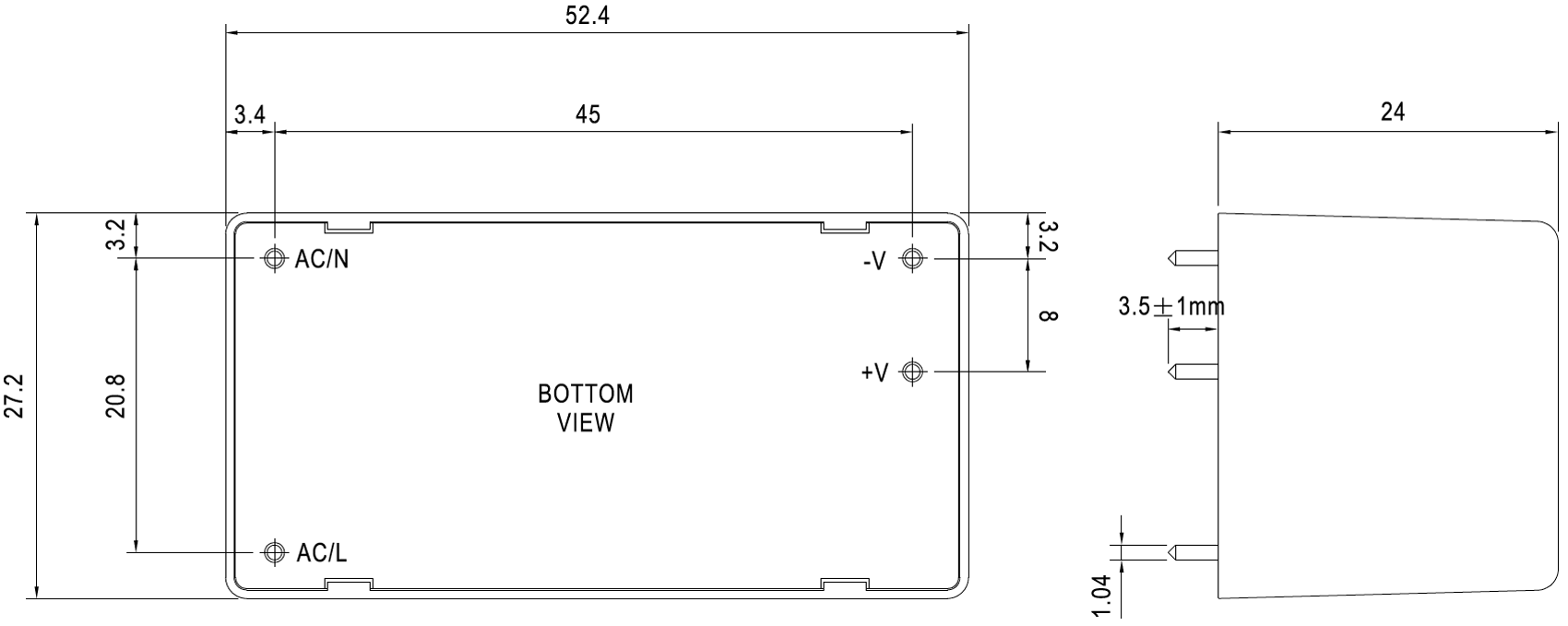

| IRM-15-3.3 | 11.55 | 3.3 | 3500 | 74 | 52.4x27.2x24 | Fig. 7. |
| IRM-15-5 | 15 | 5 | 3000 | 78 | 52.4x27.2x24 | Fig. 7. |
| IRM-15-12 | 15 | 12 | 1250 | 82 | 52.4x27.2x24 | Fig. 7. |
| IRM-15-15 | 15 | 15 | 1000 | 82 | 52.4x27.2x24 | Fig. 7. |
| IRM-15-24 | 15.12 | 24 | 630 | 83 | 52.4x27.2x24 | Fig. 7. |

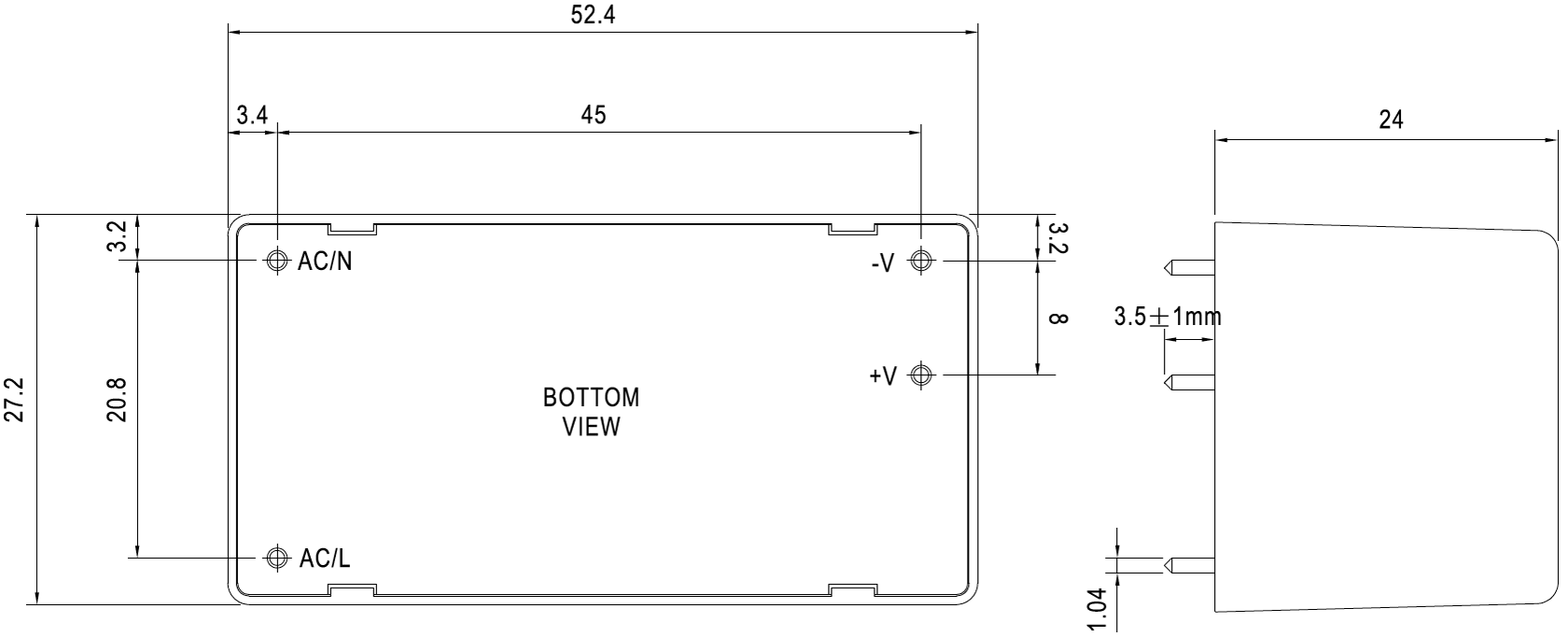

| IRM-20-3.3 | 14.85 | 3.3 | 4500 | 76 | 52.4x27.2x24 | Fig. 8. |
| IRM-20-5 | 20 | 5 | 4000 | 79 | 52.4x27.2x24 | Fig. 8. |
| IRM-20-12 | 21.6 | 12 | 1800 | 84 | 52.4x27.2x24 | Fig. 8. |
| IRM-20-15 | 21 | 15 | 1400 | 84 | 52.4x27.2x24 | Fig. 8. |
| IRM-20-24 | 21.6 | 24 | 900 | 85 | 52.4x27.2x24 | Fig. 8. |

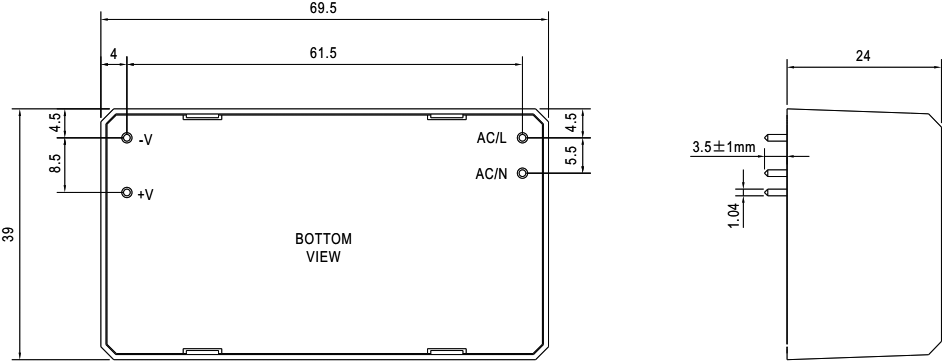

| IRM-30-5 | 30 | 5 | 6000 | 83 | 69.5x39x24 | Fig. 9. |
| IRM-30-12 | 30 | 12 | 2500 | 88 | 69.5x39x24 | Fig. 9. |
| IRM-30-15 | 30 | 15 | 2000 | 88 | 69.5x39x24 | Fig. 9. |
| IRM-30-24 | 31.2 | 24 | 1300 | 88.5 | 69.5x39x24 | Fig. 9. |
| IRM-30-48 | 30.2 | 48 | 630 | 90 | 69.5x39x24 | Fig. 9. |

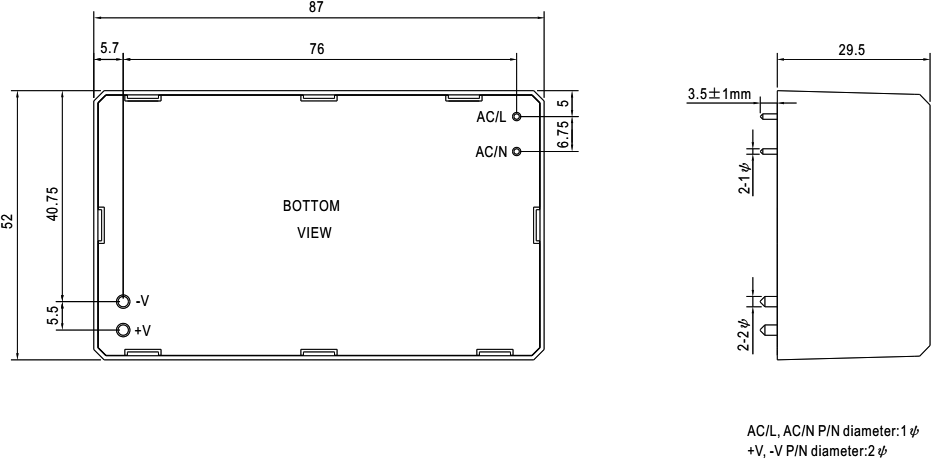

| IRM-45-5 | 40 | 5 | 8000 | 83.5 | 87x52x29.5 | Fig. 10. |
| IRM-45-12 | 45.6 | 12 | 3800 | 87.5 | 87x52x29.5 | Fig. 10. |
| IRM-45-15 | 45 | 15 | 3000 | 88.5 | 87x52x29.5 | Fig. 10. |
| IRM-45-24 | 45.6 | 24 | 1900 | 89.5 | 87x52x29.5 | Fig. 10. |
| IRM-45-48 | 45.12 | 48 | 940 | 90.5 | 87x52x29.5 | Fig. 10. |
| IRM-60-5 | 50 | 5 | 10000 | 84 | 87x52x29.5 | Fig. 10. |
| IRM-60-12 | 60 | 12 | 5000 | 87.5 | 87x52x29.5 | Fig. 10. |
| IRM-60-15 | 60 | 15 | 4000 | 89 | 87x52x29.5 | Fig. 10. |
| IRM-60-24 | 60 | 24 | 2500 | 90 | 87x52x29.5 | Fig. 10. |
| IRM-60-48 | 60 | 48 | 1250 | 91 | 87x52x29.5 | Fig. 10. |
| IRM-90-12 | 80 | 12 | 6700 | 92 | 87x52x29.5 | Fig. 11. |
| IRM-90-15 | 85 | 15 | 5670 | 92.5 | 87x52x29.5 | Fig. 11. |
| IRM-90-24 | 90 | 24 | 3750 | 93 | 87x52x29.5 | Fig. 11. |
| IRM-90-48 | 90 | 48 | 1880 | 93 | 87x52x29.5 | Fig. 11. |
Manufacturer series:
- IRM-01 (IRM-01-xxx)
- IRM-02 (IRM-02-xxx)
- IRM-03 (IRM-03-xxx)
- IRM-05 (IRM-05-xxx)
- IRM-10 (IRM-10-xxx)
- IRM-15 (IRM-15-xxx)
- IRM-20 (IRM-20-xxx)
- IRM-30 (IRM-30-xx)
- IRM-45 (IRM-45-xx)
- IRM-60 (IRM-60-xx)
- IRM-90 (IRM-90-xx)
Operating temperature:
- -30...70°C (IRM-05-xxx, IRM-1xxx, IRM-20-xxx, IRM-30-xx, IRM-45-xx, IRM-60-xx)
- -30...80°C (IRM-90-xx)
- -30...85°C (IRM-01-xxx, IRM-02-xxx, IRM-03-xxx)
Electrical connection:
Input voltage:
- 80...305V AC (IRM-90-xx)
- 85...264V AC (IRM-05-xxx, IRM-1xxx, IRM-20-xxx, IRM-30-5, IRM-30-15, IRM-30-24, IRM-30-48, IRM-45-xx, IRM-60-xx)
- 85...305V AC (IRM-01-xxx, IRM-02-xxx, IRM-03-xxx, IRM-30-12)
- 113...431V DC (IRM-90-xx)
- 120...370V DC (IRM-05-xxx, IRM-1xxx, IRM-20-xxx)
- 120...430V DC (IRM-01-xxx, IRM-02-xxx)
Power consumption without load:
- <0.1W (IRM-0xxx, IRM-1xxx, IRM-20-xxx, IRM-30-xx, IRM-45-xx, IRM-60-xx)
- <0.2W (IRM-90-xx)
