Converter: DC/DC; AIMTEC
| Manufacturer | AIMTEC |
| Symbol | Dimensions | Case | Uinsul | Power | Uin | Uout | Iout | Efficiency | Mounting | Number of outputs |
|---|---|---|---|---|---|---|---|---|---|---|
| [V DC] | [W] | [V DC] | [V DC] | [mA] | [%] | |||||
| AM1/4LS-1209S-NZ | Fig. 1. | - | 1500 | 0.25 | 10.8...13.2 | 9 | 28 | 79 | SMT | 1 |
| AM1/4LS-1212S-NZ | Fig. 1. | - | 1500 | 0.25 | 10.8...13.2 | 12 | 21 | 77 | SMT | 1 |
| AM1/4LS-2405S-NZ | Fig. 1. | - | 1500 | 0.25 | 21.6...26.4 | 5 | 50 | 69 | SMT | 1 |
| AM1/4S-0505SZ | Fig. 2. | SIP4 | 1000 | 0.25 | 4.5...5.5 | 5 | 50 | 66 | - | 1 |
| AM1/4S-1212SZ | Fig. 2. | SIP4 | 1000 | 0.25 | 10.8...13.2 | 12 | 21 | 68 | - | 1 |
| AM1/4S-4805SZ | Fig. 2. | SIP4 | 1000 | 0.25 | 43.2...52.8 | 5 | 50 | 67 | - | 1 |
| AM1/4S-0503SH30Z | Fig. 2. | SIP4 | 3000 | 0.25 | 4.5...5.5 | 3.3 | 75.7 | 66 | - | 1 |
| AM1/4S-0505SH30Z | Fig. 2. | SIP4 | 3000 | 0.25 | 4.5...5.5 | 5 | 50 | 66 | - | 1 |
| AM1/4SS-0303S-NZ | Fig. 3. | SIP4 | 1500 | 0.25 | 2.97...3.63 | 3.3 | 76 | 74 | - | 1 |
| AM1/4SS-0503S-NZ | Fig. 3. | SIP4 | 1500 | 0.25 | 4.5...5.5 | 3.3 | 76 | 74 | - | 1 |
Manufacturer series:
- AM1/4LS-NZ (AM1/4LS-xxxS-NZ)
- AM1/4S-Z (AM1/4S-xxxZ)
- AM1/4SS-NZ (AM1/4SS-0303S-NZ, AM1/4SS-0503S-NZ)
Operating temperature:
- -40...85°C (AM1/4S-xxxZ)
- -40...105°C (AM1/4xxxS-NZ)
Body dim.:

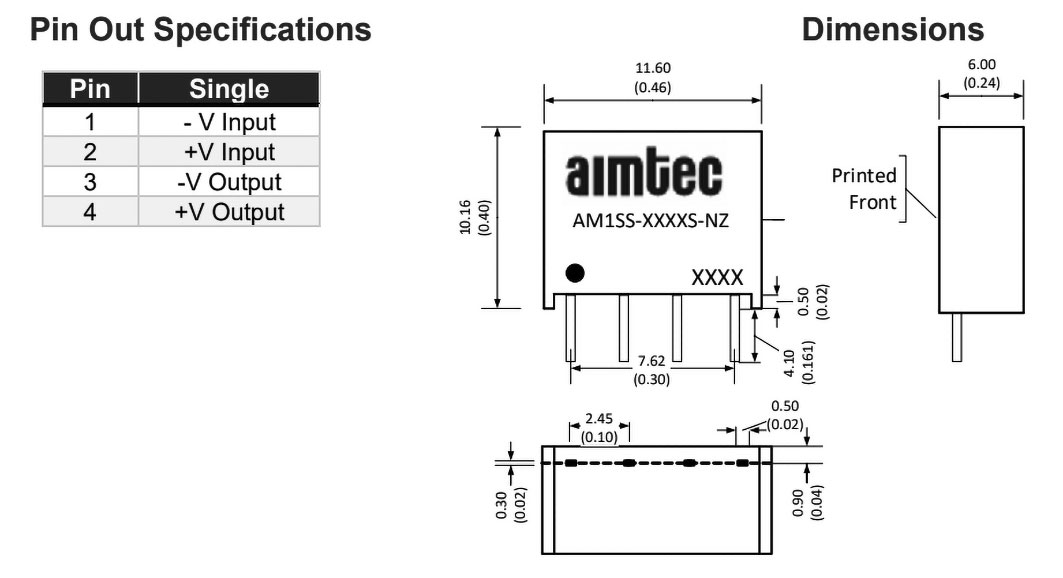

- 11.6x6x10.16mm (AM1/4SS-0303S-NZ, AM1/4SS-0503S-NZ)

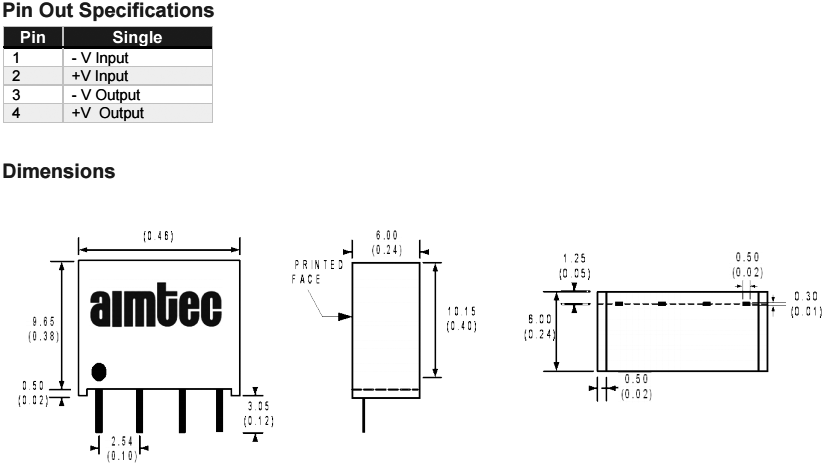

- 11.7x6x9.65mm (AM1/4S-xxxZ)

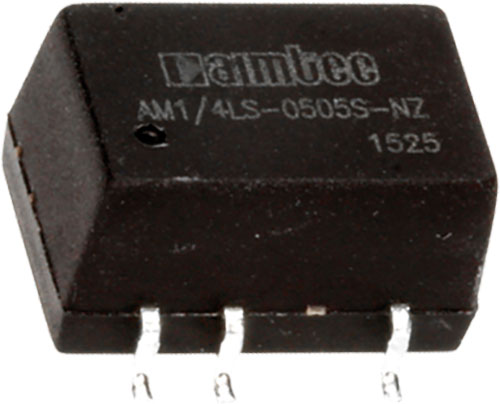

- 12.7x11.2x7.25mm (AM1/4LS-xxxS-NZ)
