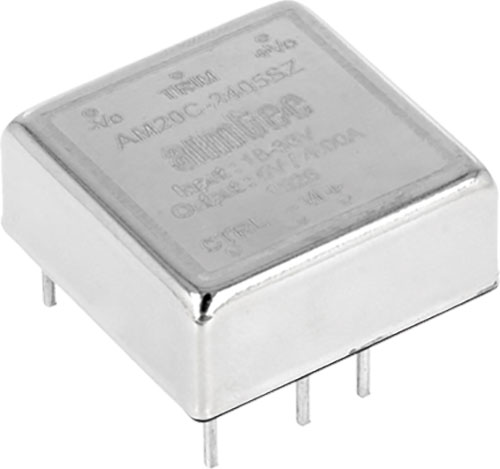

Converter: DC/DC; AIMTEC

Converter: DC/DC; AIMTEC, AM20C-2405SZ, AM20C-2412SZ, AM20C-2415DZ, AM20CW-4805SZ |EN|
ManufacturerAIMTEC
Type of converterDC/DC
Symbol Power Manufacturer series Dimensions Uinsul Uin Output voltage Iout Uout2 Iout2 Efficiency Number of outputs Dimensions
[W] [V DC] [V DC] [V DC] [A] [V DC] [A] [%] ["]
AM20C-2405SZ 20 AM20C-Z Fig. 1. 1600 18...36 5 4 - - 89 1 1x1
AM20C-2412SZ 20 AM20C-Z Fig. 1. 1600 18...36 12 1.67 - - 89 1 1x1
AM20C-2415DZ 20 AM20C-Z Fig. 1. 1600 18...36 15 670m -15 670m 89 2 1x1
AM20CW-4805SZ 20 AM20CW-Z Fig. 1. 1600 18...75 5 4 - - 89 1 1x1
AM20CW-4812SZ 20 AM20CW-Z Fig. 1. 1600 18...75 12 1.67 - - 89 1 1x1
AM20CW-2405S-FZ-K 20 AM20CW-FZ Fig. 2. 1500 9...36 5 4 - - 88 - 1x1
AM20CW-2412S-FZ-K 20 AM20CW-FZ Fig. 2. 1500 9...36 12 1.67 - - 90 - 1x1
AM20CW-4812S-FZ-K 20 AM20CW-FZ Fig. 2. 1500 18...75 12 1.67 - - 90 1 1x1
AM20CWR-2403SZK 20 AM20CWR-ZK Fig. 3. 3000 13...70 3.3 4.5 - - 87 1 1x1
AM20CWR-2405SZK 20 AM20CWR-ZK Fig. 3. 3000 13...70 5 4 - - 88 1 1x1
AM20CWR-2415SZK 20 AM20CWR-ZK Fig. 3. 3000 13...70 15 1.33 - - 90 1 1x1
AM20CWR-11003SZK 20 AM20CWR-ZK Fig. 3. 3000 42...176 3.3 4.5 - - 86 1 1x1
AM20CWR-11005SZK 20 AM20CWR-ZK Fig. 3. 3000 42...176 5 4 - - 89 1 1x1
AM20CWR-11012SZK 20 AM20CWR-ZK Fig. 3. 3000 42...176 12 1.67 - - 86 1 1x1
AM20CWR-11015SZK 20 AM20CWR-ZK Fig. 3. 3000 42...176 15 1.33 - - 86 1 1x1
AM20CWR-2405DZK 20 AM20CWR-ZK Fig. 3. 3000 13...70 5 2 -5 2 86 2 1x1
AM20CWR-2412DZK 20 AM20CWR-ZK Fig. 3. 3000 13...70 12 833m -12 833m 90 2 1x1
AM20CWR-2415DZK 20 AM20CWR-ZK Fig. 3. 3000 13...70 15 666m -15 666m 90 2 1x1
AM20CWR-11005DZK 20 AM20CWR-ZK Fig. 3. 3000 42...176 5 2 -5 2 84 2 1x1
AM20CWR-11012DZK 20 AM20CWR-ZK Fig. 3. 3000 42...176 12 833m -12 833m 87 2 1x1
AM20CWR-11015DZK 20 AM20CWR-ZK Fig. 3. 3000 42...176 15 666m -15 666m 87 2 1x1
AM20EW-2405SZ 20 AM20EW-Z Fig. 4. 1600 9...36 5 4 - - 91 1 2x1
AM20EW-2415DZ 20 AM20EW-Z Fig. 4. 1600 9...36 15 670m -15 670m 89 2 2x1
AM20EW-11005S-NZ 20 AM20EW-NZ Fig. 5. 1500 40...160 5 4 - - 89 1 2x1
AM20EW-2403SH30-NZ 20 AM20EW-NZ Fig. 5. 3000 9...36 3.3 5 - - 86 1 2x1
AM20EW-4803SH30-NZ 20 AM20EW-NZ Fig. 5. 3000 18...75 3.3 5 - - 86 1 2x1
AM20EW-4809S-NZ-K 20 AM20EW-NZ Fig. 5. 1500 18...75 9 2222m - - 89 1 2x1
AM20EW-11005S-NZ-K 20 AM20EW-NZ Fig. 5. 1500 40...160 5 4 - - 89 - 2x1
AM20EW-11012S-NZ-K 20 AM20EW-NZ Fig. 5. 1500 40...160 12 1667m - - 88 1 2x1
AM20EW-11015S-NZ-K 20 AM20EW-NZ Fig. 5. 1500 40...160 15 1333m - - 88 - 2x1
AM20EW-2412D-NZ-K 20 AM20EW-NZ Fig. 5. 1500 9...36 12 834m -12 834m 88 2 2x1
AM20EWM-4812SH50NZ 20 AM20EWM-NZ Fig. 6. 5000 18...75 12 1666m - - 87 1 2x1
AM25EUW-7205SH30ZK 25 AM25EUW-ZK Fig. 7. 3000 16...160 5 5 - - 57 1 2x1
AM25EUW-7212SH30ZK 25 AM25EUW-ZK Fig. 7. 3000 16...160 12 2.08 - - 84 1 2x1
AM25EUW-7215SH30ZK 25 AM25EUW-ZK Fig. 7. 3000 16...160 15 1.67 - - 85 1 2x1
AM25EUW-7224SH30ZK 25 AM25EUW-ZK Fig. 7. 3000 16...160 24 1.04 - - 85 1 2x1
Protection:
  • anti-overload OPP
  • anti-overvoltage OVP
  • short circuit protection SCP (AM20CWR-xxxZK, AM20EWxxx, AM25EUW-72xxSH30ZK)
Features:
  • build-in heatsink (AM2xxxK)
Operating temperature:
  • -40...75°C (AM20CxxxZ)
  • -40...85°C (AM20CW-xxxS-FZ-K, AM20EWxxx)
  • -40...100°C (AM2xxxZK)
Body dim.:
