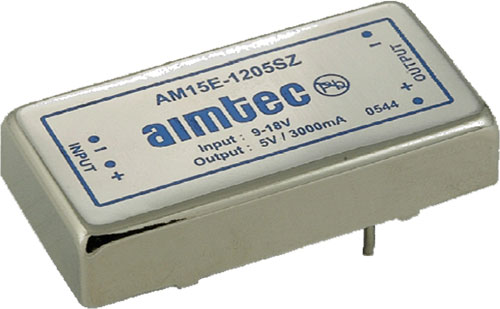

Converter: DC/DC; AIMTEC
| Manufacturer | AIMTEC |
| Type of converter | DC/DC |
Body dim.:
- 25.4x25.4x10.16mm (AM15C-24xxxZ, AM15C-4805SZ, AM15C-4805DZ, AM15C-4812SZ, AM15C-4812DZ, AM15CW-4815SZ, AM15CW-4805DZ, AM15CW-2412DZ)

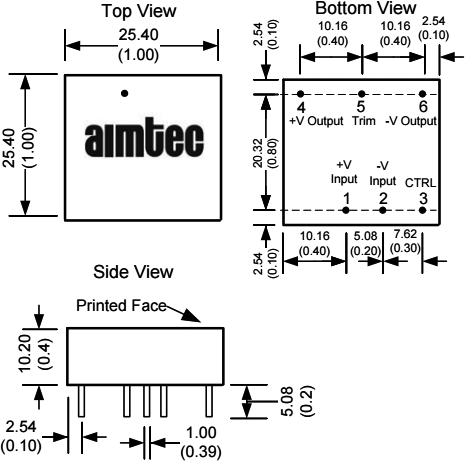

- 25.4x25.4x10.2mm (AM15CW-2405S-FZ, AM15CW-2412S-FZ)
- 25.4x25.4x11.7mm (AM15C-4805S-NZ)

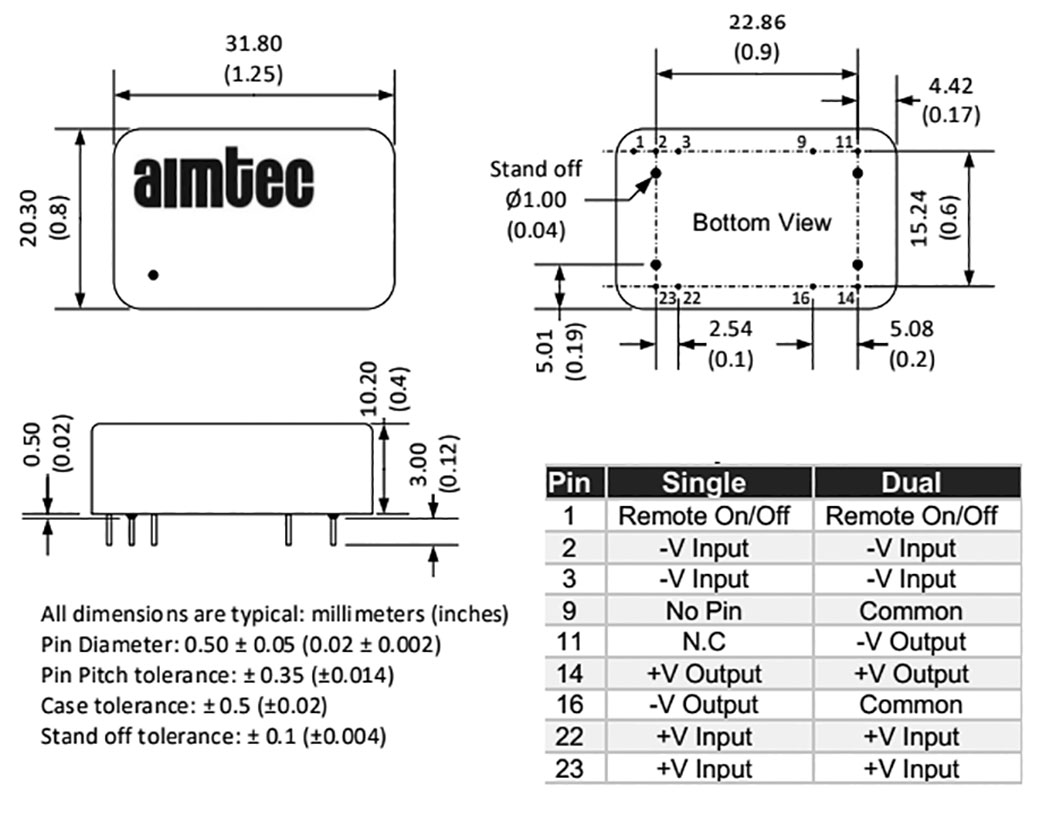

- 31.8x20.3x10.2mm (AM15TxxxZ)
- 38.7x27.2x6.2mm (AM15OW-2403SNZ, AM15OW-4805SNZ)

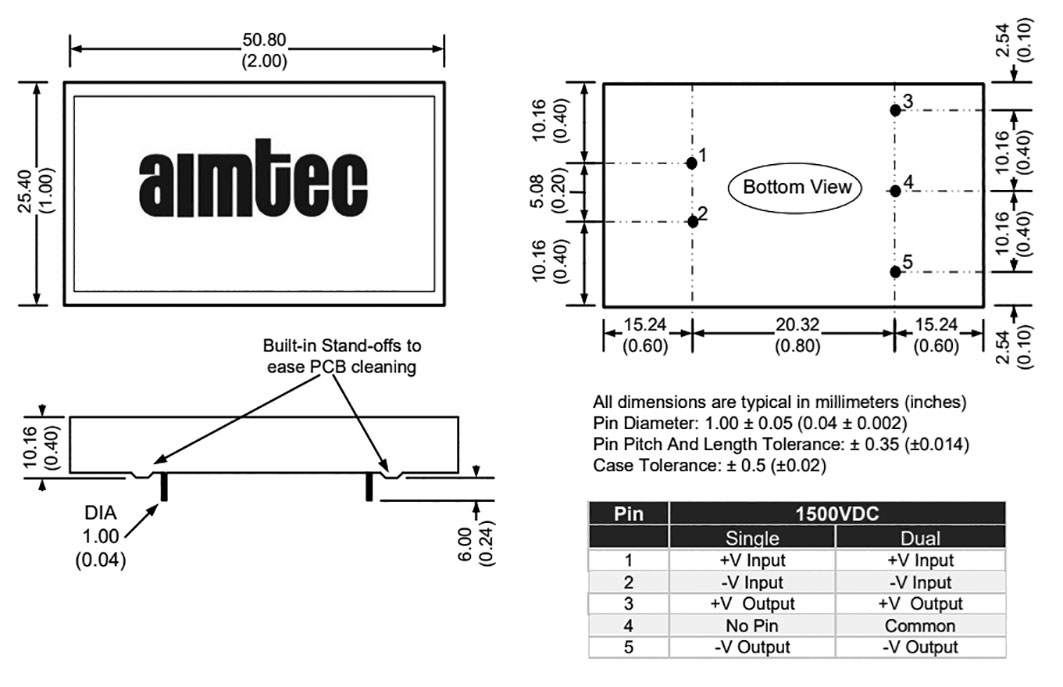

- 50.8x25.4x10.16mm (AM15E-xxxZ, AM15EW-241xxZ)
- 50.8x25.4x10.5mm (AM15EW-11005SIZ)
- 50.8x25.4x11.8mm (AM15EW-110xxS-NZ)
- 96.1x54x32mm (AM15W-60024S-NZ-ST)
Manufacturer series:
- AM15C-NZ (AM15C-4805S-NZ)
- AM15C-Z (AM15C-24xxxZ, AM15C-4805SZ, AM15C-4805DZ, AM15C-4812SZ, AM15C-4812DZ)
- AM15CW-Z (AM15CW-4815SZ, AM15CW-4805DZ, AM15CW-2412DZ)
- AM15CW-FZ (AM15CW-2405S-FZ, AM15CW-2412S-FZ)
- AM15E-Z (AM15E-xxxZ)
- AM15EW-Z (AM15EW-241xxZ)
- AM15EW-IZ (AM15EW-11005SIZ)
- AM15EW-NZ (AM15EW-110xxS-NZ)
- AM15OW-NZ (AM15OW-2403SNZ, AM15OW-4805SNZ)
- AM15T-Z (AM15T-xxxSZ)
- AM15W-NZ (AM15W-60024S-NZ-ST)
- AM15TW-Z (AM15TW-4815DZ)
- AM15CW-NZ (AM15CW-4815SNZK-ST, AM15CW-4815SNZKSTD, AM15CW-4824SNZKSTD)
Dimensions:

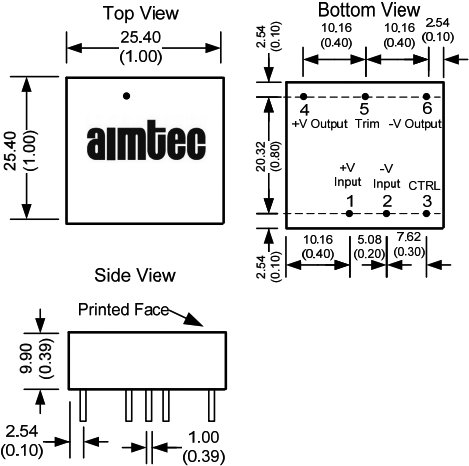

- Fig. 1. (AM15C-24xxxZ, AM15C-4805SZ, AM15C-4805DZ, AM15C-4812SZ, AM15C-4812DZ, AM15CW-4815SZ, AM15CW-4805DZ, AM15CW-2412DZ)
- Fig. 2. (AM15CW-2405S-FZ, AM15CW-2412S-FZ)

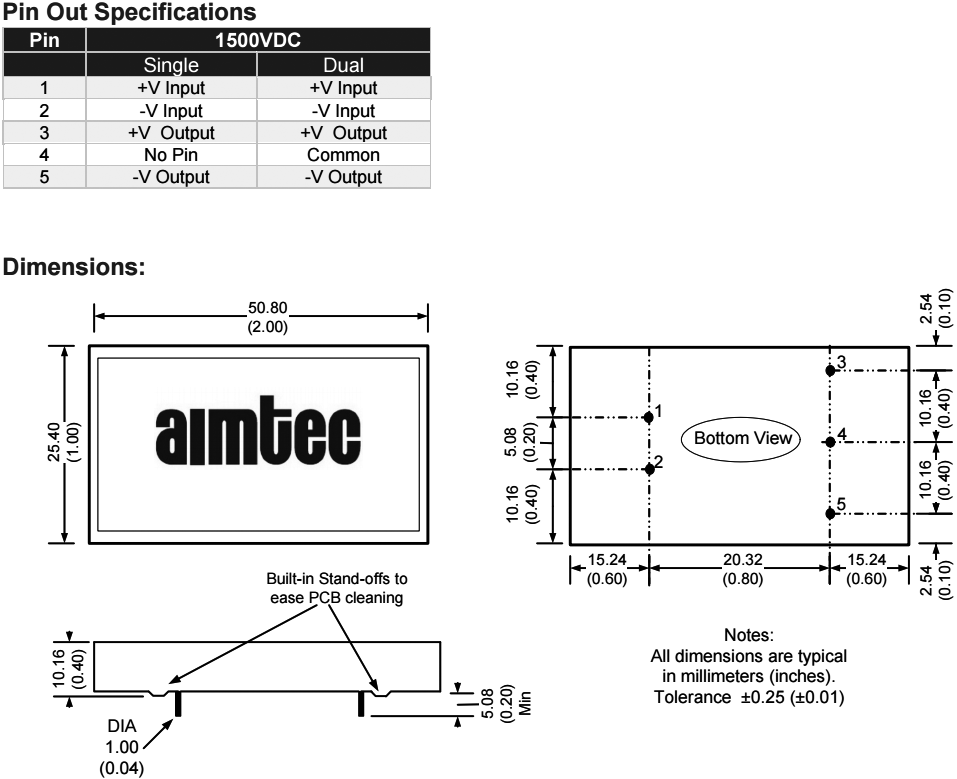

- Fig. 3. (AM15E-2405SZ, AM15E-2415SZ, AM15E-2418SZ, AM15E-2424SZ, AM15E-4803SZ, AM15E-1224DZ)

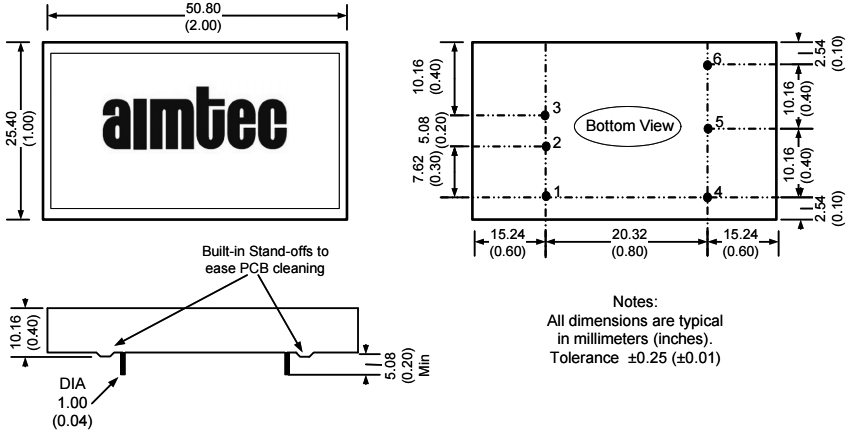

- Fig. 4. (AM15EW-241xxZ)

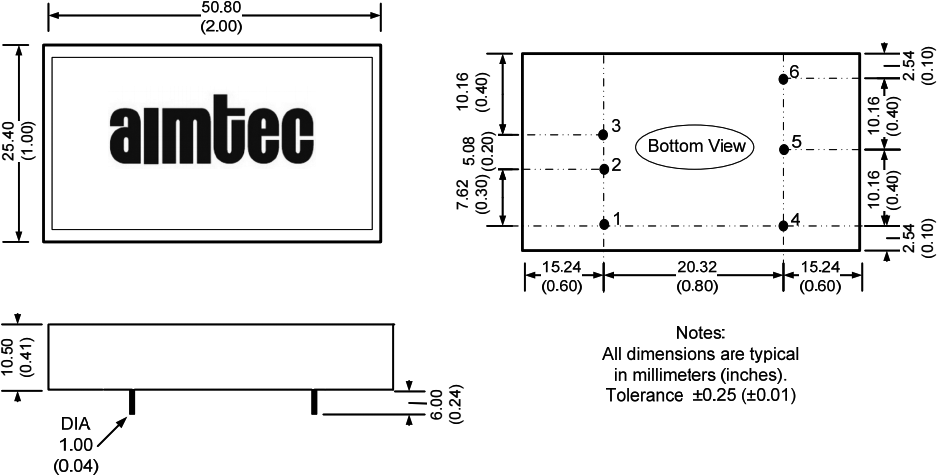

- Fig. 5. (AM15EW-11005SIZ)

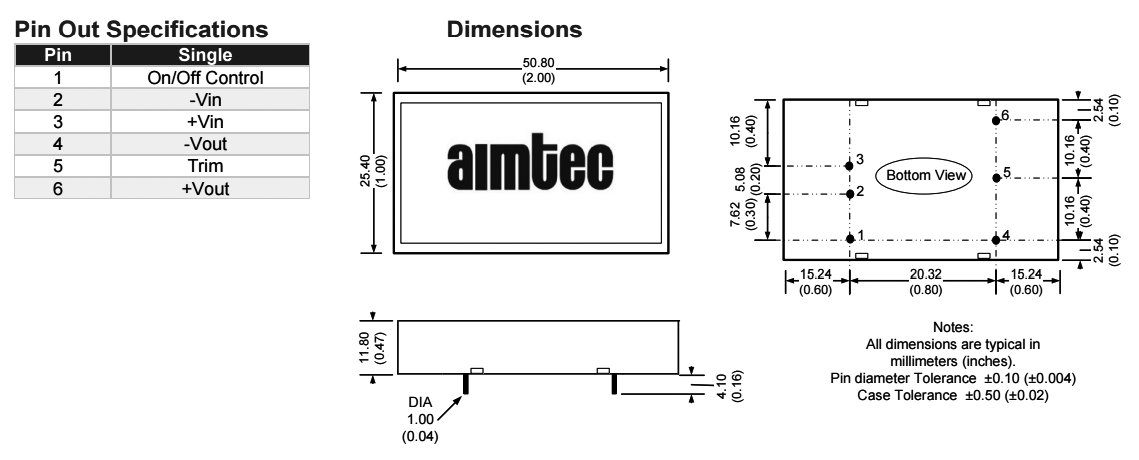

- Fig. 6. (AM15EW-110xxS-NZ)
- Fig. 7. (AM15T-xxxSZ)

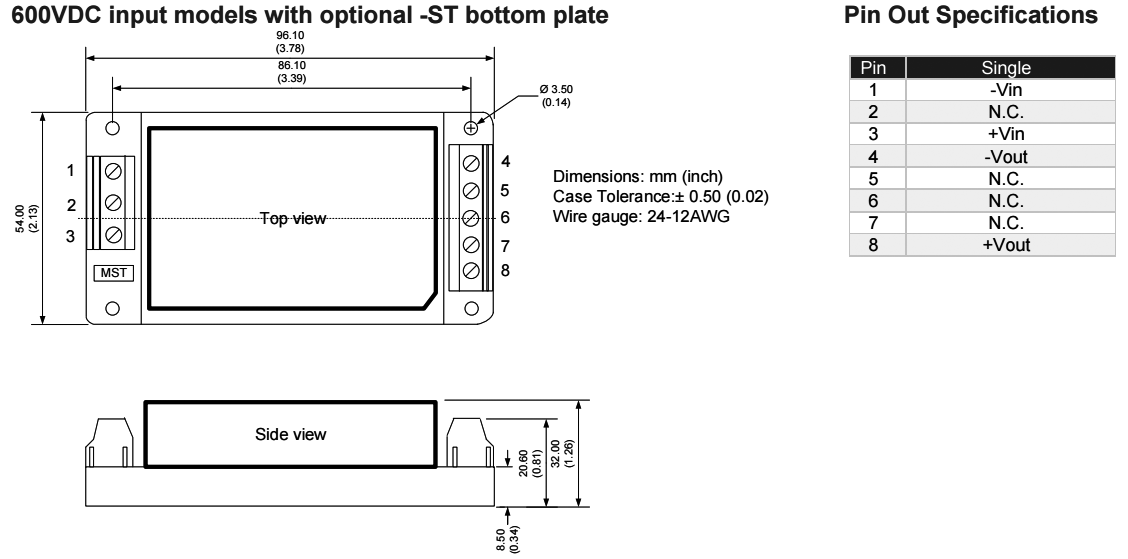

- Fig. 8. (AM15W-60024S-NZ-ST)
- Fig. 9. (AM15E-2405DZ, AM15E-2412SZ, AM15E-2415DZ)
- Fig. 10. (AM15TW-4815DZ)
| Symbol | Power | Number of outputs | Uinsul | Uin | Iout | Output voltage | Uout2 | Iout2 | Efficiency |
|---|---|---|---|---|---|---|---|---|---|
| [W] | [V DC] | [V DC] | [A] | [V DC] | [V DC] | [A] | [%] | ||
| AM15C-4805S-NZ | 15 | 1 | 1500 | 36...75 | 3 | 5 | - | - | 90 |
| AM15C-2405SZ | 15 | 1 | 1600 | 18...36 | 3 | 5 | - | - | 87 |
| AM15C-2412SZ | 15.6 | 1 | 1600 | 18...36 | 1.3 | 12 | - | - | 88 |
| AM15C-4805SZ | 15 | 1 | 1600 | 36...75 | 3 | 5 | - | - | 86 |
| AM15C-4812SZ | 15 | 1 | 1600 | 36...75 | 1.3 | 12 | - | - | 87 |
| AM15C-2405DZ | 15 | 2 | 1600 | 18...36 | 1.5 | 5 | -5 | 1.5 | 85 |
| AM15C-4805DZ | 15 | 2 | 1600 | 36...75 | 1.5 | 5 | -5 | 1.5 | 84 |
| AM15C-4812DZ | 15 | 2 | 1600 | 36...75 | 0.625 | 12 | -12 | 0.625 | 87 |
| AM15CW-4815SZ | 15 | 1 | 1600 | 18...75 | 1 | 15 | - | - | 88 |
| AM15CW-2412DZ | 15 | 2 | 1600 | 9...36 | 0.625 | 12 | -12 | 0.625 | 88 |
| AM15CW-4805DZ | 15 | 2 | 1600 | 18...75 | 1.5 | 5 | -5 | 1.5 | 84 |
| AM15CW-2405S-FZ | 15 | 1 | 1500 | 9...36 | 3 | 5 | - | - | 88 |
| AM15CW-2412S-FZ | 15 | 1 | 1500 | 9...36 | 1.3 | 12 | - | - | 87 |
| AM15E-2405SZ | 15 | 1 | 1500 | 18...36 | 3 | 5 | - | - | 85 |
| AM15E-2415SZ | 15 | 1 | 1500 | 18...36 | 1 | 15 | - | - | 88 |
| AM15E-2418SZ | 15 | 1 | 1500 | 18...36 | 0.8 | 18 | - | - | 86 |
| AM15E-2424SZ | 15 | 1 | 1500 | 18...36 | 0.62 | 24 | - | - | 86 |
| AM15E-4803SZ | 15 | 1 | 1500 | 36...72 | 3 | 3.3 | - | - | 80 |
| AM15E-1224DZ | 15 | 2 | 1500 | 9...18 | 0.31 | 24 | -24 | 0.31 | 85 |
| AM15EW-2412SZ | 15 | 1 | 1500 | 9...36 | 1.25 | 12 | - | - | 85 |
| AM15EW-2415SZ | 15 | 1 | 1500 | 9...36 | 1 | 15 | - | - | 86 |
| AM15EW-2415DZ | 15 | 2 | 1500 | 9...36 | 0.5 | 15 | -15 | 0.5 | 86 |
| AM15EW-11005SIZ | 15 | 1 | 1500 | 36...160 | 3 | 5 | - | - | 80 |
| AM15EW-11003S-NZ | 15 | 1 | 1500 | 40...160 | 4 | 3.3 | - | - | 87 |
| AM15EW-11005S-NZ | 15 | 1 | 1500 | 40...160 | 3 | 5 | - | - | 89 |
| AM15EW-11012S-NZ | 15 | 1 | 1500 | 40...160 | 1.25 | 12 | - | - | 88 |
| AM15EW-11015S-NZ | 15 | 1 | 1500 | 40...160 | 1 | 15 | - | - | 88 |
| AM15OW-2403SNZ | 15 | 1 | 1500 | 9...36 | 4.5 | 3.3 | - | - | 88 |
| AM15OW-4805SNZ | 15 | 1 | 1500 | 18...75 | 3 | 5 | - | - | 88 |
| AM15T-2403SZ | 15 | 1 | 1600 | 18...36 | 4 | 3.3 | - | - | 87 |
| AM15T-24051SZ | 15.3 | 1 | 1600 | 18...36 | 3 | 5.1 | - | - | 89 |
| AM15T-2412SZ | 15 | 1 | 1600 | 18...36 | 1.25 | 12 | - | - | 90 |
| AM15T-4803SZ | 15 | 1 | 1600 | 36...75 | 4 | 3.3 | - | - | 86 |
| AM15T-48051SZ | 15 | 1 | 1600 | 36...75 | 3 | 5.1 | - | - | 88 |
| AM15T-4812SZ | 15 | 1 | 1600 | 36...75 | 1.25 | 12 | - | - | 89 |
| AM15W-60024S-NZ-ST | 15 | 1 | 4000 | 100...1000 | 0.625 | 24 | - | - | 80 |
| AM15E-2405DZ | 15 | 2 | 1500 | 18...36 | 1.5 | 5 | -5 | 1.5 | 83 |
| AM15E-2412SZ | 15 | 1 | 1500 | 18...36 | 1.25 | 12 | - | - | 85 |
| AM15E-2415DZ | 15 | 2 | 1500 | 18...36 | 0.5 | 15 | -15 | 0.5 | 86 |
| AM15TW-4815DZ | 15 | 2 | 1600 | 18...75 | 0.5 | 15 | -15 | 0.5 | 90 |
| AM15CW-4815SNZK-ST | 15 | 1 | 1500 | 18...75 | 1 | 15 | - | - | - |
| AM15CW-4815SNZKSTD | 15 | 1 | 1500 | 18...75 | 1 | 15 | - | - | - |
| AM15CW-4824SNZKSTD | 15 | 1 | 1500 | 18...75 | 0.625 | 24 | - | - | - |
Operating temperature:
- -40...70°C (AM15W-60024S-NZ-ST)
- -40...85°C (AM15C-24xxxZ, AM15C-4805SZ, AM15C-4805DZ, AM15C-4812SZ, AM15C-4812DZ, AM15CW-xxx, AM15ExxxZ, AM15OW-2403SNZ, AM15OW-4805SNZ, AM15TxxxZ)
- -40...105°C (AM15C-4805S-NZ)
Protection:
- anti-overload OPP (AM15Cxxx, AM15EW-xxxZ, AM15E-2405DZ, AM15E-2412SZ, AM15E-2415DZ, AM15OW-2403SNZ, AM15OW-4805SNZ, AM15W-60024S-NZ-ST, AM15TW-4815DZ)
- anti-overvoltage OVP (AM15Cxxx, AM15EW-xxxZ, AM15E-2405DZ, AM15E-2412SZ, AM15E-2415DZ, AM15OW-2403SNZ, AM15OW-4805SNZ, AM15TxxxZ, AM15W-60024S-NZ-ST)
- short circuit protection SCP (AM15C-4805S-NZ, AM15CW-4815SNZK-ST, AM15CW-4815SNZKSTD, AM15CW-4824SNZKSTD, AM15ExxxZ, AM15OW-2403SNZ, AM15OW-4805SNZ, AM15TxxxZ, AM15W-60024S-NZ-ST)
Case:
- DIP24 (AM15T-xxxSZ)
Dimensions:
- 1"x1" (AM15CxxxZ)
- 2"x1" (AM15E-2405SZ, AM15E-2415SZ, AM15E-2418SZ, AM15E-2424SZ, AM15E-4803SZ, AM15E-1224DZ, AM15EW-xxxZ)
- 1.6"x1" (AM15OW-2403SNZ, AM15OW-4805SNZ)
- 3"x2" (AM15W-60024S-NZ-ST)
Mounting:
- on panel (AM15CW-4815SNZK-ST)
- for DIN rail mounting (AM15CW-4815SNZKSTD, AM15CW-4824SNZKSTD)
- PCB (AM15T-2403SZ)
Application:
- photovoltaics (AM15W-60024S-NZ-ST)
