Converter: DC/DC; AIMTEC

Converter: DC/DC; AIMTEC, AM30CW-2403SZ, AM30CW-2405SZ, AM30CW-2412SZ, AM30CW-2415SZ |EN|
ManufacturerAIMTEC
Type of converterDC/DC
Symbol Power Uinsul Insulation voltage Uin Output voltage Iout Uout2 Iout2 Uout3 Iout5 Efficiency Dimensions
[W] [V DC] [V] [V DC] [V DC] [A] [V DC] [A] [V DC] [mA] [%]

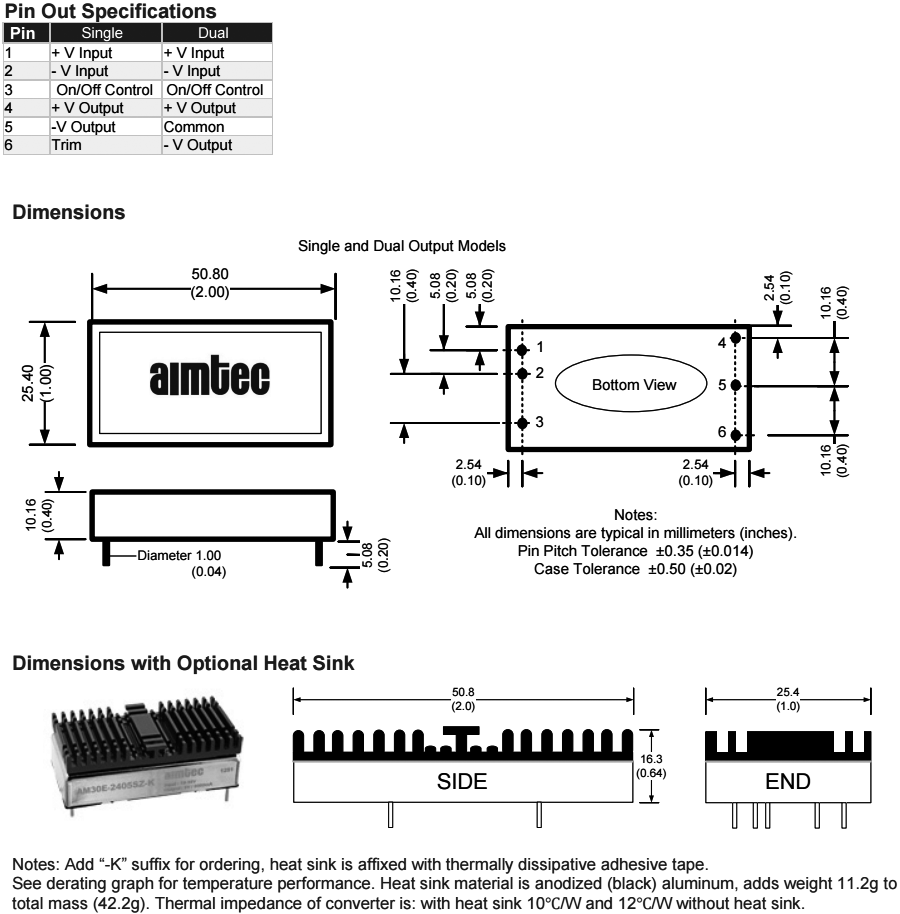

AM30CW-2403SZ 30 1600 - 9...36 3.3 7 - - - - 88 Fig. 1.
AM30CW-2405SZ 30 1600 - 9...36 5 6 - - - - 89 Fig. 1.
AM30CW-2412SZ 30 1600 - 9...36 12 2.5 - - - - 89 Fig. 1.
AM30CW-2415SZ 30 1600 - 9...36 15 2 - - - - 91 Fig. 1.
AM30CW-4803SZ 30 1600 - 18...75 3.3 7 - - - - 89 Fig. 1.
AM30CW-4805SZ 30 1600 - 18...75 5 6 - - - - 90 Fig. 1.
AM30CW-4812SZ 30 1600 - 18...75 12 2.5 - - - - 90 Fig. 1.
AM30CW-4815SZ 30 1600 - 18...75 15 2 - - - - 92 Fig. 1.
AM30CW-2412DZ 30 1600 - 9...36 12 1.25 -12 1.25 - - 89 Fig. 1.
AM30CW-2415DZ 30 1600 - 9...36 15 1 -15 1 - - 91 Fig. 1.
AM30CW-4812DZ 30 1600 - 18...75 12 1.25 -12 1.25 - - 90 Fig. 1.
AM30CW-4815DZ 30 1600 - 18...75 15 1 -15 1 - - 91 Fig. 1.

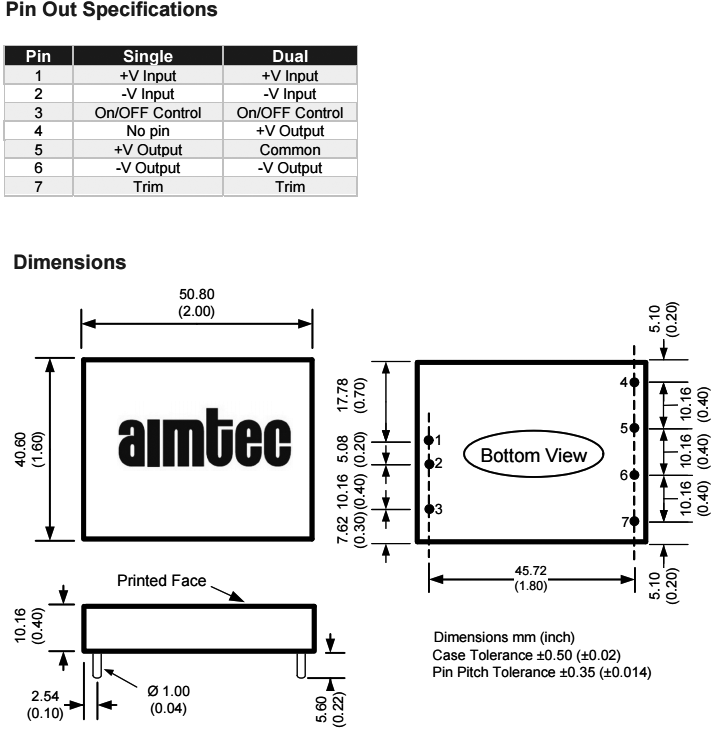

AM30E-2405SZ 30 1600 - 18...36 5 6 - - - - 92 Fig. 2.
AM30E-2412SZ 30 1600 - 18...36 12 2.5 - - - - 92 Fig. 2.
AM30E-4805SZ 30 1600 - 36...75 5 6 - - - - 91 Fig. 2.
AM30E-4812SZ 30 1600 - 36...75 12 2.5 - - - - 91 Fig. 2.

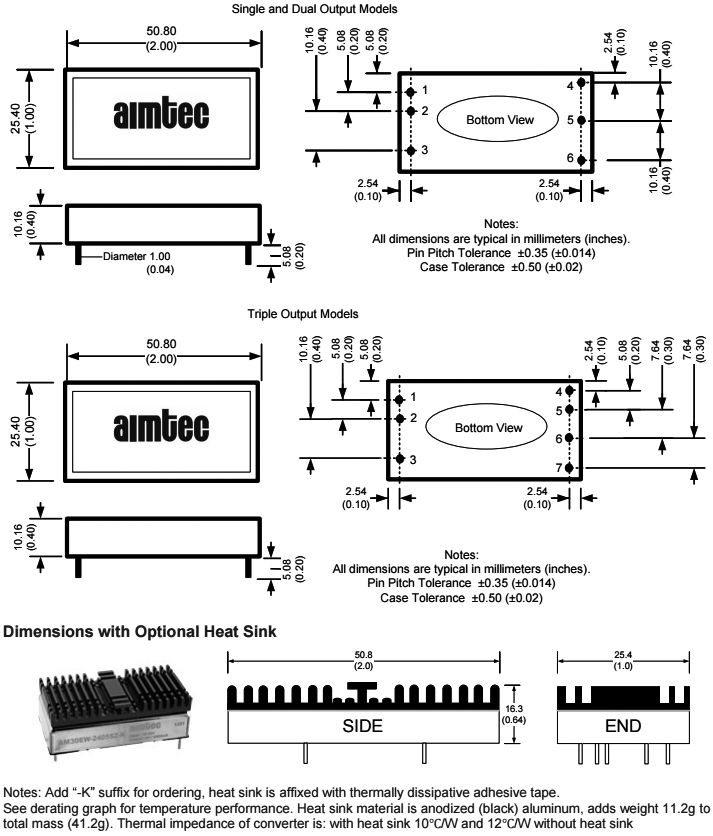

AM30EW-2405DZ 30 1600 - 9...36 5 3 -5 3 - - 88 Fig. 3.
AM30EW-240512TZ 30 1600 - 9...36 5 4 12 420m -12 420 90 Fig. 3.
AM30EW-240515TZ 30 1600 - 9...36 5 4 15 330m -15 330 90 Fig. 3.

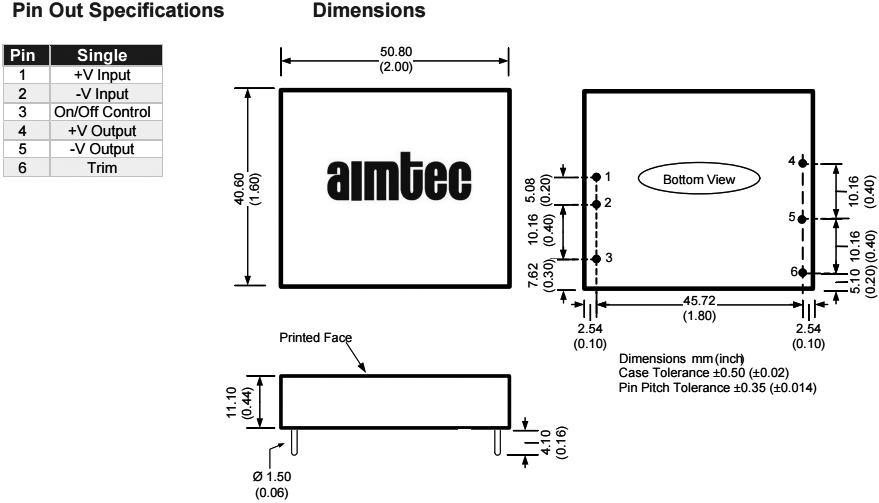

AM30K-2405SZ 25 1500 - 18...36 5 5 - - - - 87 Fig. 4.
AM30K-2415SZ 30 1500 - 18...36 15 2 - - - - 91 Fig. 4.
AM30K-2415S-NZ 30 1500 - 18...36 15 2 - - - - 89 Fig. 5.
AM30K-4815S-NZ 30 1500 - 36...75 15 2 - - - - 90 Fig. 5.
AM30KW-2412DIZ 30 1500 - 9...36 12 1.25 -12 1.25 - - 82 Fig. 6.
AM30KW-4824SH30IZ 30 3000 - 18...75 24 1.25 - - - - 83 Fig. 6.
AM30OW-480524DH30V 30 - 3000 18...75 5 4 24 417m - - 84 Fig. 7.
Protection:
Additional functions:
Operating temperature:
Manufacturer series:
Body dim.:
Number of outputs:
Mounting:
Dimensions:
  • 1"x1" (AM30CW-xxxZ)
  • 2"x1" (AM30ExxxZ)
  • 2"x1.6" (AM30KxxxZ)
