Converter: DC/DC; AIMTEC
| Manufacturer | AIMTEC |
| Operating temperature | -40...85°C |
| Power | 12W |
| Type of converter | DC/DC |
Case:
- DIP24 (AM12TxxxZ)
Body dim.:
- 31.8x20.3x10.2mm (AM12TxxxZ)
- 50.8x25.4x10.2mm (AM12E-2415DH30-FZ)
Manufacturer series:
- AM12E-FZ (AM12E-2415DH30-FZ)
- AM12T-Z (AM12T-xxxZ)
- AM12TW-Z (AM12TW-xxxZ)
Dimensions:

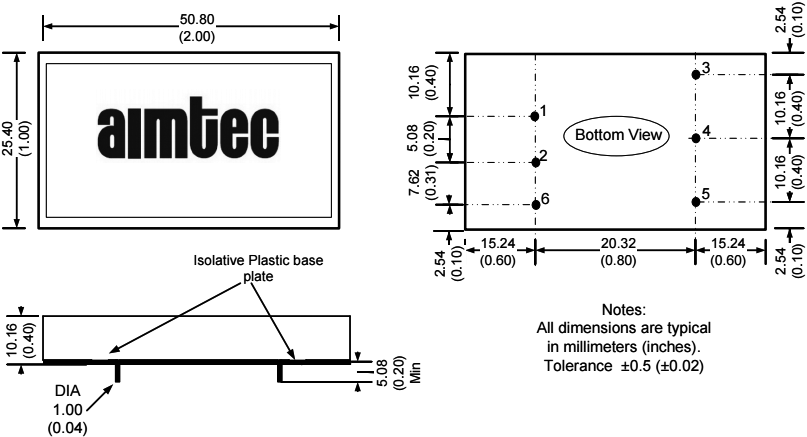

- Fig. 1. (AM12E-2415DH30-FZ)

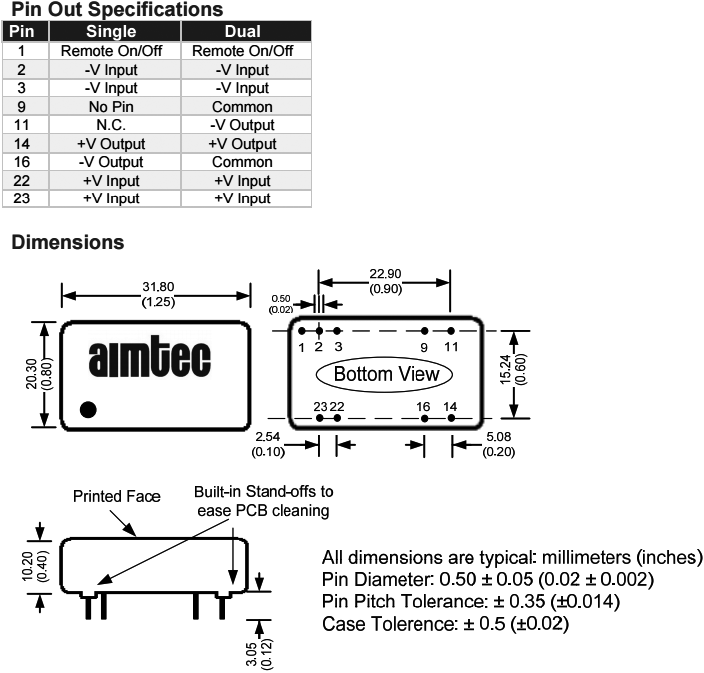

- Fig. 2. (AM12T-xxxZ)
- Fig. 3. (AM12TW-xxxZ)
| Symbol | Protection | Insulation voltage | Uin | Iout | Output voltage | Uout2 | Iout2 | Number of outputs | Efficiency | Dimensions |
|---|---|---|---|---|---|---|---|---|---|---|
| [V DC] | [V DC] | [A] | [V DC] | [V DC] | [A] | [%] | ["] | |||
| AM12E-2415DH30-FZ | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | 3000 | 18...36 | 400m | 15 | -15 | 400m | 2 | 86 | 2x1 |
| AM12T-1205SZ | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | 1600 | 9...18 | 2.4 | 5 | - | - | 1 | 89 | - |
| AM12T-1215SZ | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | 1600 | 9...18 | 800m | 15 | - | - | 1 | 90 | - |
| AM12T-2405SZ | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | 1600 | 18...36 | 2.4 | 5 | - | - | 1 | 89 | - |
| AM12T-2415SZ | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | 1600 | 18...36 | 800m | 15 | - | - | 1 | 90 | - |
| AM12T-4815SZ | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | 1600 | 36...75 | 800m | 15 | - | - | 1 | 89 | - |
| AM12T-1215DZ | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | 1600 | 9...18 | 400m | 15 | -15 | 400m | 2 | 91 | - |
| AM12T-2415DZ | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | 1600 | 18...36 | 400m | 15 | -15 | 400m | 2 | 91 | - |
| AM12T-4815DZ | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | 1600 | 36...75 | 400m | 15 | -15 | 400m | 2 | 89 | - |
| AM12TW-2403SZ | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | 1600 | 9...36 | 3.5 | 3.3 | - | - | 1 | 87 | - |
| AM12TW-2405SZ | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | 1600 | 9...36 | 2.4 | 5.1 | - | - | 1 | 89 | - |
| AM12TW-2415SZ | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | 1600 | 9...36 | 800m | 15 | - | - | 1 | 90 | - |
| AM12TW-4805SZ | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | 1600 | 18...75 | 2.4 | 5.1 | - | - | 1 | 89 | - |
| AM12TW-4805DZ | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | 1600 | 18...75 | 1.2 | 5 | -5 | 1.2 | 2 | 87 | - |
| AM12TW-4812DZ | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | 1600 | 18...75 | 500m | 12 | -12 | 500m | 2 | 90 | - |
| AM12TW-4815DZ | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | 1600 | 18...75 | 400m | 15 | -15 | 400m | 2 | 90 | - |
| AM12TW-2415DZ | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP | 1600 | 9...36 | 400m | 15 | -15 | 400m | 2 | 90 | - |
