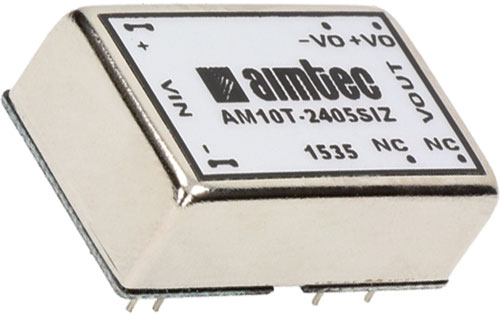

Converter: DC/DC; AIMTEC
| Manufacturer | AIMTEC |
| Type of converter | DC/DC |
| Symbol | Power | Case | Dimensions | Uinsul | Uin | Iout | Output voltage | Uout2 | Iout2 | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|
| [W] | ["] | [V DC] | [V DC] | [A] | [V DC] | [V DC] | [A] | [%] | ||
| AM10C-4812S-FZ | 10 | - | 1x1 | 1500 | 36...75 | 0.83 | 12 | - | - | 86 |
| AM10C-4824S-FZ | 10 | - | 1x1 | 1500 | 36...75 | 0.41 | 24 | - | - | 85 |
| AM10CW-4805S-FZ | 10 | - | 1x1 | 1500 | 18...75 | 2 | 5 | - | - | 84 |
| AM10CW-4812S-FZ | 10 | - | 1x1 | 1500 | 18...75 | 0.83 | 12 | - | - | 87 |
| AM10CW-4824S-FZ | 10 | - | 1x1 | 1500 | 18...75 | 0.41 | 24 | - | - | 87 |
| AM10CW-480505DVZ | 10 | - | 1x1 | 1500 | 18...75 | 1 | 5 | 5 | 1 | 84 |
| AM10E-1205SZ | 10 | - | 2x1 | 1500 | 9...18 | 2 | 5 | - | - | 83 |
| AM10E-2403SZ | 10 | DIP24 | - | 1500 | 18...36 | 2 | 3.3 | - | - | 78 |
| AM10E-2405SZ | 10 | - | 2x1 | 1500 | 18...36 | 2 | 5 | - | - | 83 |
| AM10E-2412SZ | 10 | - | 2x1 | 1500 | 18...36 | 0.833 | 12 | - | - | 85 |
| AM10E-2415SZ | 10 | - | 2x1 | 1500 | 18...36 | 0.666 | 15 | - | - | 86 |
| AM10E-2418SZ | 10 | DIP24 | - | 1500 | 18...36 | 0.55 | 18 | - | - | 86 |
| AM10E-2424SZ | 10 | DIP24 | - | 1500 | 18...36 | 0.416 | 24 | - | - | 86 |
| AM10E-4803SZ | 10 | DIP24 | - | 1500 | 36...72 | 2 | 3.3 | - | - | 78 |
| AM10E-4805SZ | 10 | - | 2x1 | 1500 | 36...72 | 2 | 5 | - | - | 84 |
| AM10E-4812SZ | 10 | - | 2x1 | 1500 | 36...72 | 0.833 | 12 | - | - | 86 |
| AM10E-2405DZ | 10 | DIP24 | - | 1500 | 18...36 | 1 | 5 | -5 | 1 | 84 |
| AM10E-2415DZ | 10 | DIP24 | - | 1500 | 18...36 | 0.33 | 15 | -15 | 330m | 86 |
| AM10EW-4803SZ | 10 | DIP24 | - | 1500 | 9...36 | 2 | 3.3 | - | - | 79 |
| AM10EW-4805SZ | 10 | DIP24 | - | 1500 | 18...72 | 2 | 5 | - | - | 82 |
| AM10EW-11012S-NZ | 10 | - | 2x1 | 1500 | 40...160 | 833m | 12 | - | - | 85 |
| AM10EW-11015S-NZ | 10 | - | 2x1 | 1500 | 40...160 | 0.667 | 15 | - | - | 85 |
| AM10EW-4803SH30-NZ | 10 | - | 2x1 | 3000 | 18...75 | 2.4 | 3.3 | - | - | 79 |
| AM10EW-4815SH30-NZ | 10 | - | 2x1 | 3000 | 18...75 | 0.667 | 15 | - | - | 87 |
| AM10G-2403NZ | 10 | SIP8 | - | 1500 | 18...36 | 2.4 | 3.3 | - | - | 83 |
| AM10G-2412NZ | 10 | SIP8 | - | 1500 | 18...36 | 0.83 | 12 | - | - | 86 |
| AM10GH-2403NZ | 10 | SIP8 | - | 1500 | 9...36 | 2.4 | 3.3 | - | - | 83 |
| AM10T-2415DNZ | 10 | DIP24 | - | 1500 | 18...36 | 0.333 | 15 | -15 | 333m | 87 |
| AM10T-4812DNZ | 10 | DIP24 | - | 1500 | 36...75 | 0.416 | 12 | -12 | 416m | 87 |
| AM10T-4815DNZ | 10 | DIP24 | - | 1500 | 36...75 | 0.333 | 15 | -15 | 333m | 87 |
| AM10TW-4803SZ | 10 | DIP24 | - | 1600 | 18...75 | 2.7 | 3.3 | - | - | 84 |
| AM10TW-2405DZ | 10 | DIP24 | - | 1600 | 9...36 | 1 | 5 | -5 | 1 | 85 |
| AM10TW-2412DZ | 10 | DIP24 | - | 1600 | 9...36 | 0.42 | 12 | -12 | 420m | 87 |
| AM10TW-4812D-NZ | 10 | DIP24 | - | 1500 | 18...75 | 0.416 | 12 | -12 | 416m | 88 |
| AM10TW-4815D-NZ | 10 | DIP24 | - | 1500 | 18...75 | 0.33 | 15 | -15 | 330m | 88 |
| AM10W-60005S-NZ-ST | 10 | - | 3x2 | 4000 | 100...1000 | 2 | 5 | - | - | 72 |
| AM10W-80005S-NZ | 10 | - | 5x3 | 4000 | 200...1500 | 2 | 5 | - | - | 64 |
| AM10SBO-4824SNZ-B | 10 | 1/16 Brick | - | 1500 | 36...75 | 0.417 | 24 | - | - | 88 |
Protection:
- anti-overload OPP
- anti-overvoltage OVP (AM10CxxxZ, AM10EW-xxx-NZ, AM10TxxxZ, AM10W-60005S-NZ-ST, AM10W-80005S-NZ, AM10SBO-4824SNZ-B)
- short circuit protection SCP
Operating temperature:
- -40...70°C (AM10W-60005S-NZ-ST, AM10W-80005S-NZ)
- -40...85°C (AM10CxxxZ, AM10ExxxZ, AM10GxxxNZ, AM10TxxxZ, AM10SBO-4824SNZ-B)
Body dim.:
- 22x9.5x12mm (AM10GxxxNZ)
- 25.4x25.4x10.2mm (AM10CxxxS-FZ)
- 25.4x25.4x11.7mm (AM10CW-480505DVZ)
- 31.8x20.3x10.2mm (AM10TW-4803SZ, AM10TW-2405DZ, AM10TW-2412DZ)
- 32x20x10.8mm (AM10TxxxNZ)
- 32.02x22.86x11.4mm (AM10SBO-4824SNZ-B)
- 50.8x25.4x10.16mm (AM10E-xxxZ, AM10EW-4803SZ, AM10EW-4805SZ)
- 50.8x25.4x11.8mm (AM10EW-11012S-NZ, AM10EW-11015S-NZ)
- 51.5x26.5x12mm (AM10EW-4803SH30-NZ, AM10EW-4815SH30-NZ)
- 96.1x54x32mm (AM10W-60005S-NZ-ST)
- 125x75x40mm (AM10W-80005S-NZ)
Manufacturer series:
- AM10C-FZ (AM10C-4812S-FZ, AM10C-4824S-FZ)
- AM10CW-FZ (AM10CW-48xxS-FZ)
- AM10CW-VZ (AM10CW-480505DVZ)
- AM10E-Z (AM10E-xxxZ)
- AM10EW-Z (AM10EW-4803SZ, AM10EW-4805SZ)
- AM10EW-NZ (AM10EW-xxx-NZ)
- AM10G-NZ (AM10G-2403NZ, AM10G-2412NZ)
- AM10GH-NZ (AM10GH-2403NZ)
- AM10T-NZ (AM10T-xxxDNZ)
- AM10TW-Z (AM10TW-4803SZ, AM10TW-2405DZ, AM10TW-2412DZ)
- AM10TW-NZ (AM10TW-4812D-NZ, AM10TW-4815D-NZ)
- AM10W-NZ (AM10W-60005S-NZ-ST, AM10W-80005S-NZ)
- AM10SBO-NZ (AM10SBO-4824SNZ-B)
Dimensions:

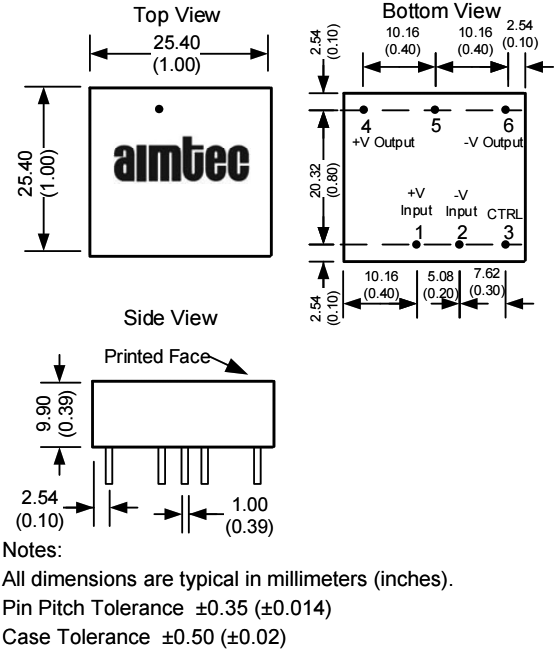

- Fig. 1. (AM10CxxxS-FZ)

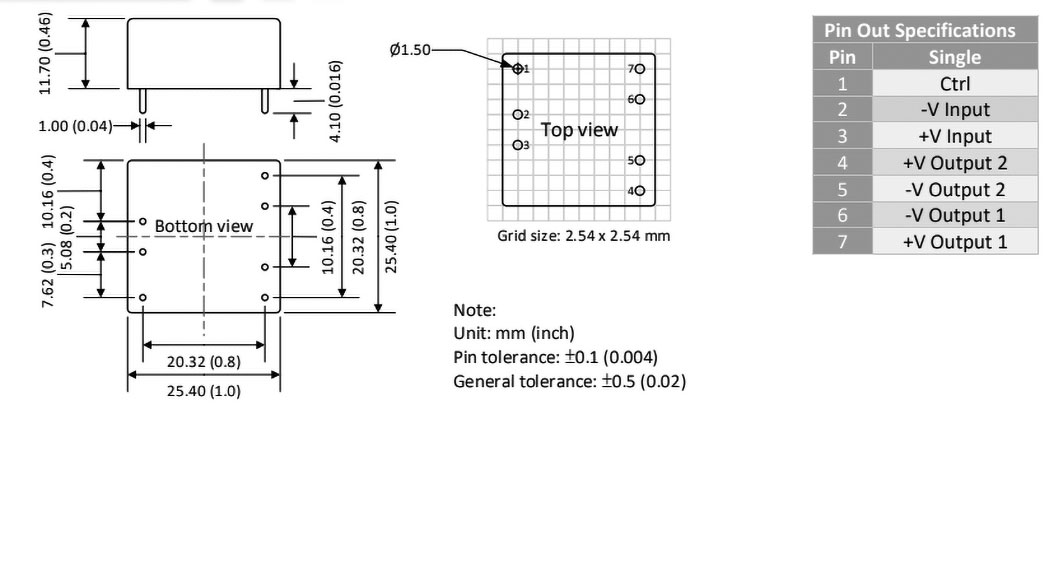

- Fig. 2. (AM10CW-480505DVZ)

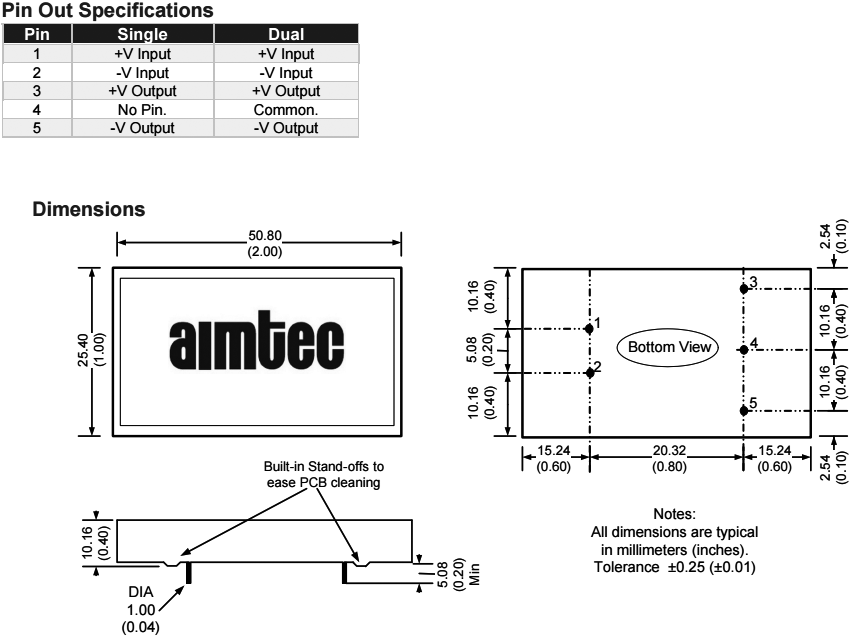

- Fig. 3. (AM10E-xxxZ, AM10EW-4803SZ, AM10EW-4805SZ)

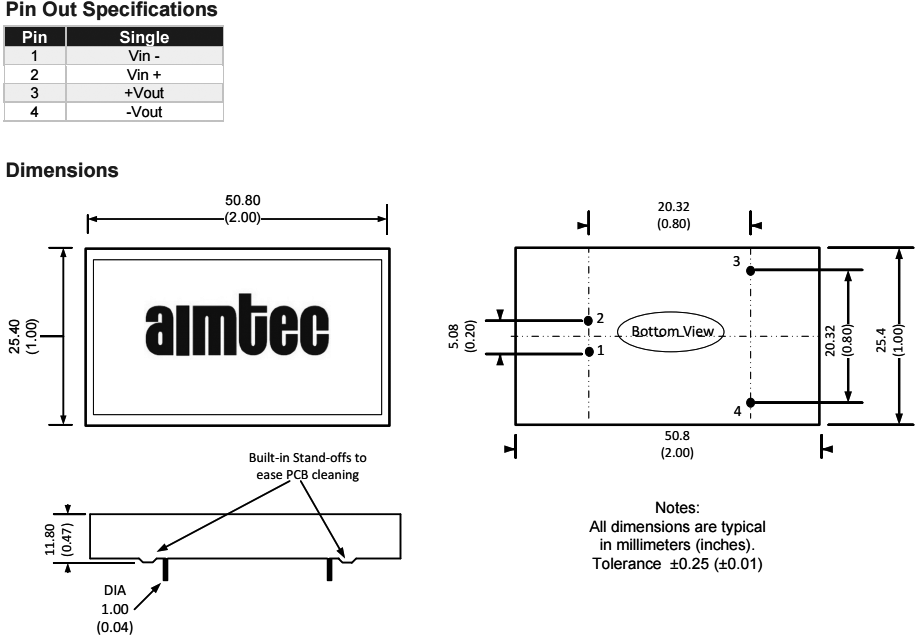

- Fig. 4. (AM10EW-11012S-NZ, AM10EW-11015S-NZ)

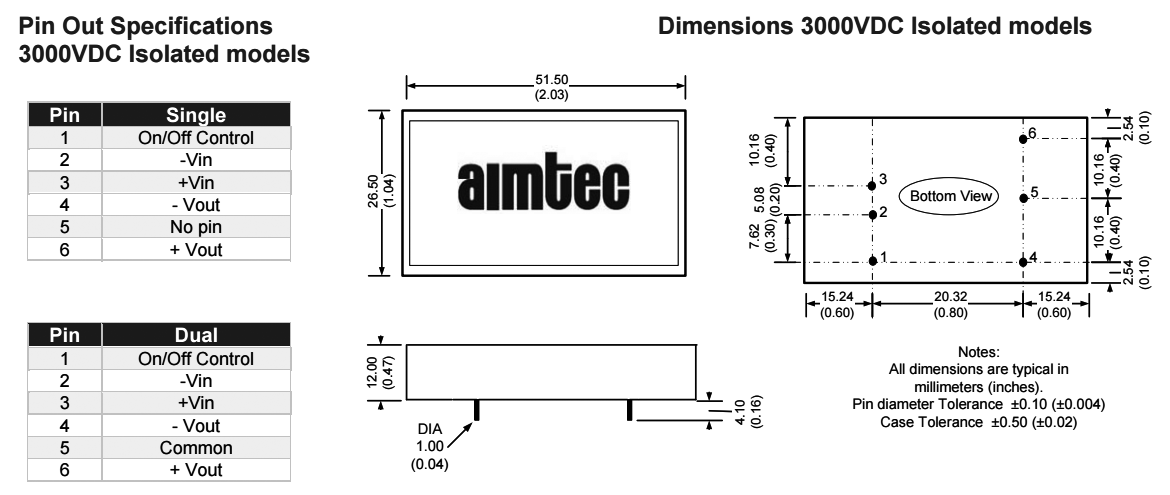

- Fig. 5. (AM10EW-4803SH30-NZ, AM10EW-4815SH30-NZ)

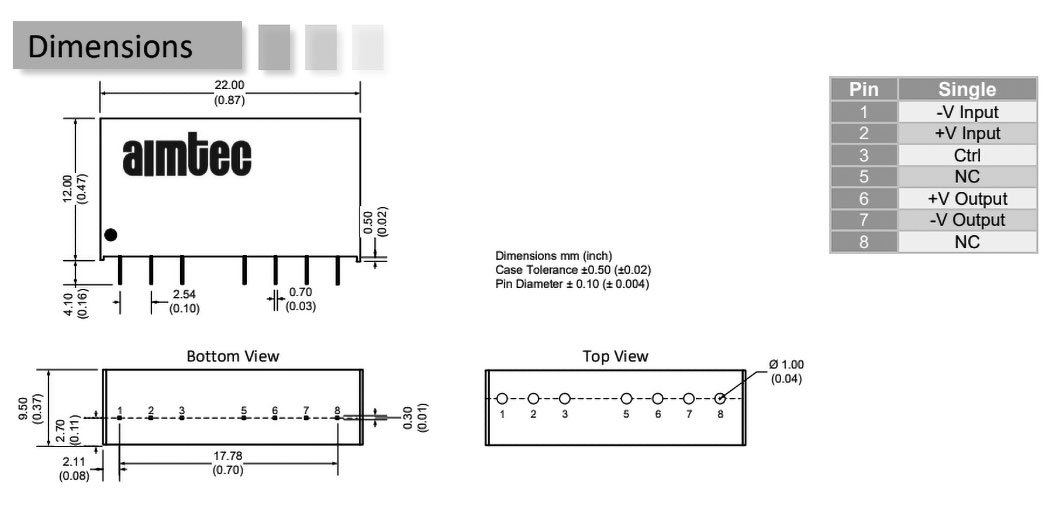

- Fig. 6. (AM10G-2403NZ, AM10G-2412NZ)

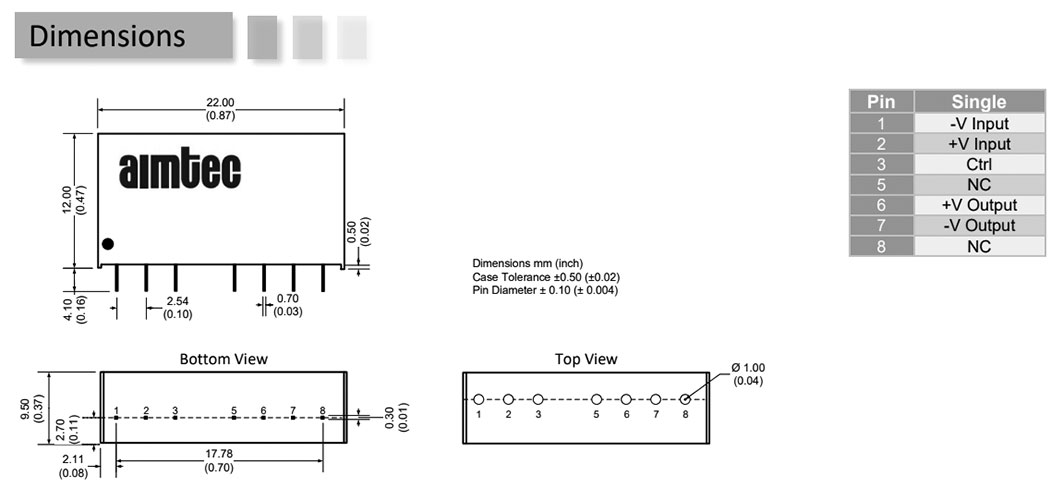

- Fig. 7. (AM10GH-2403NZ)

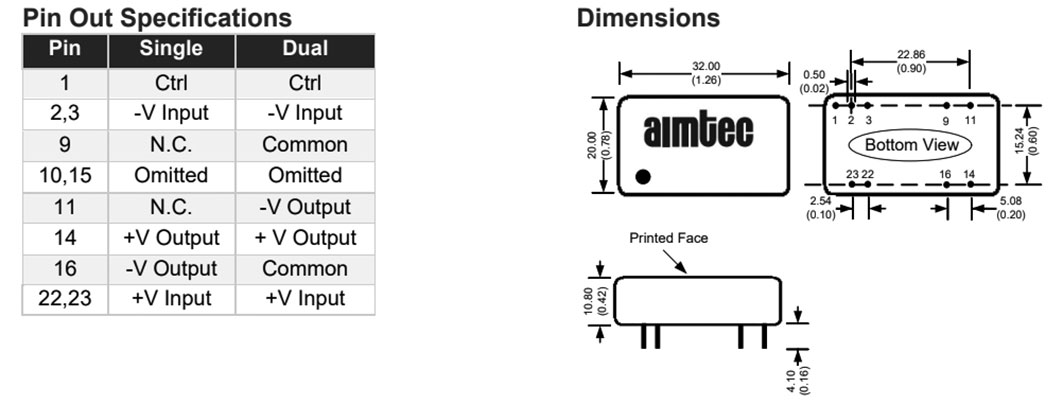

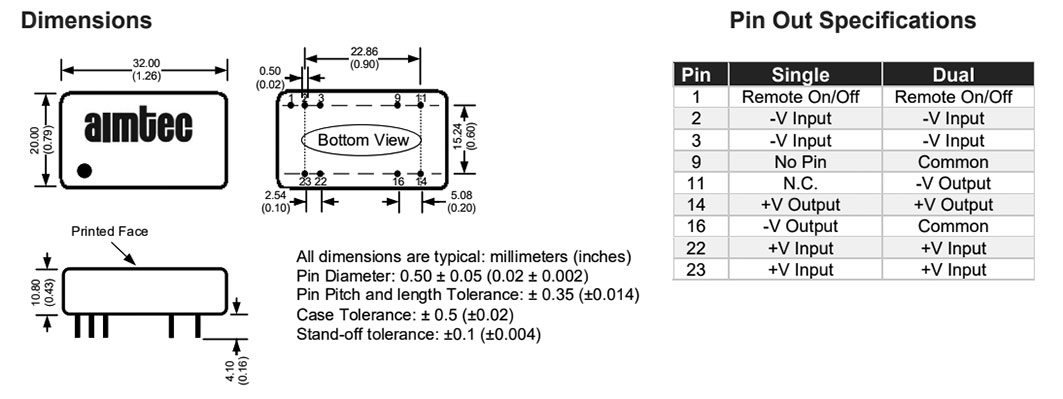

- Fig. 8. (AM10T-xxxDNZ)

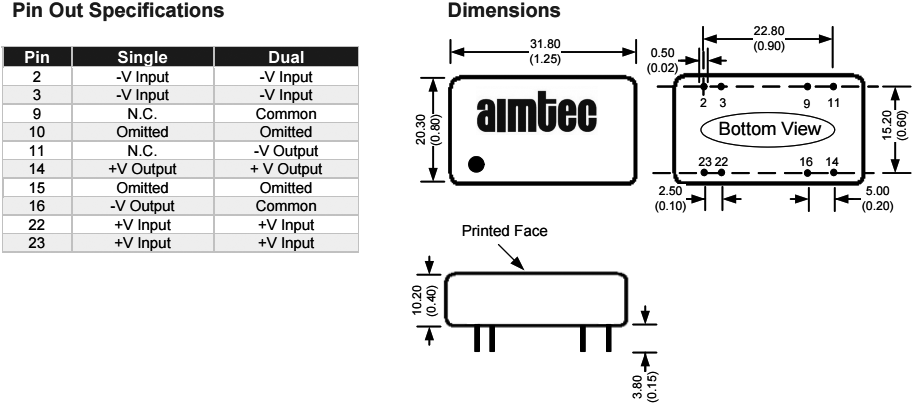

- Fig. 9. (AM10TW-4803SZ, AM10TW-2405DZ, AM10TW-2412DZ)
- Fig. 10. (AM10TW-4812D-NZ, AM10TW-4815D-NZ)

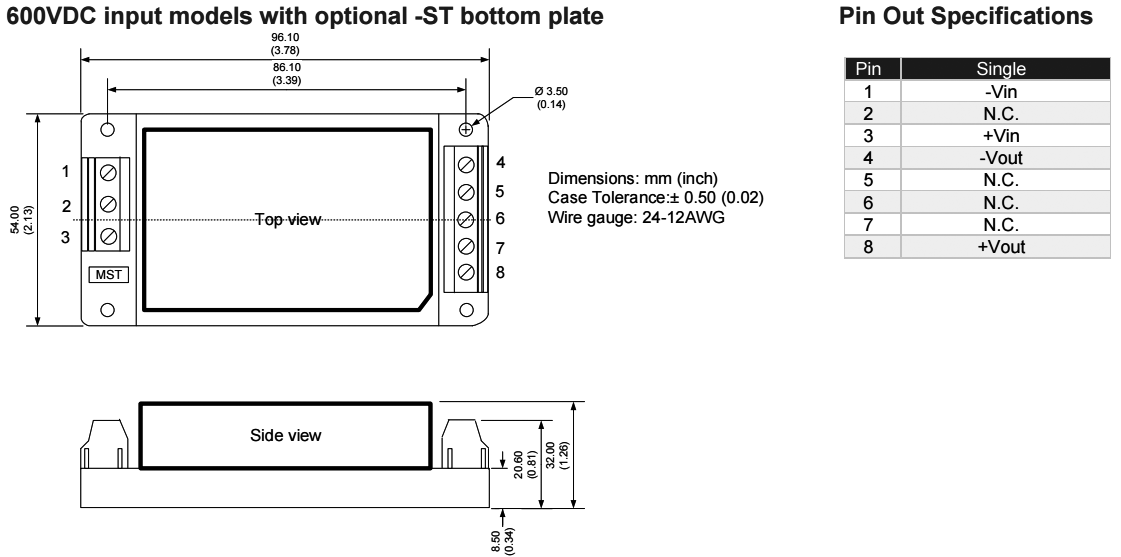

- Fig. 11. (AM10W-60005S-NZ-ST)

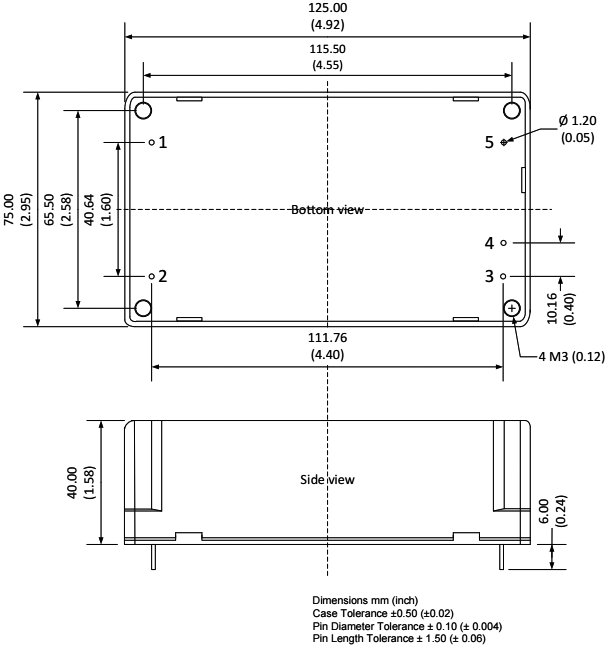

- Fig. 12. (AM10W-80005S-NZ)

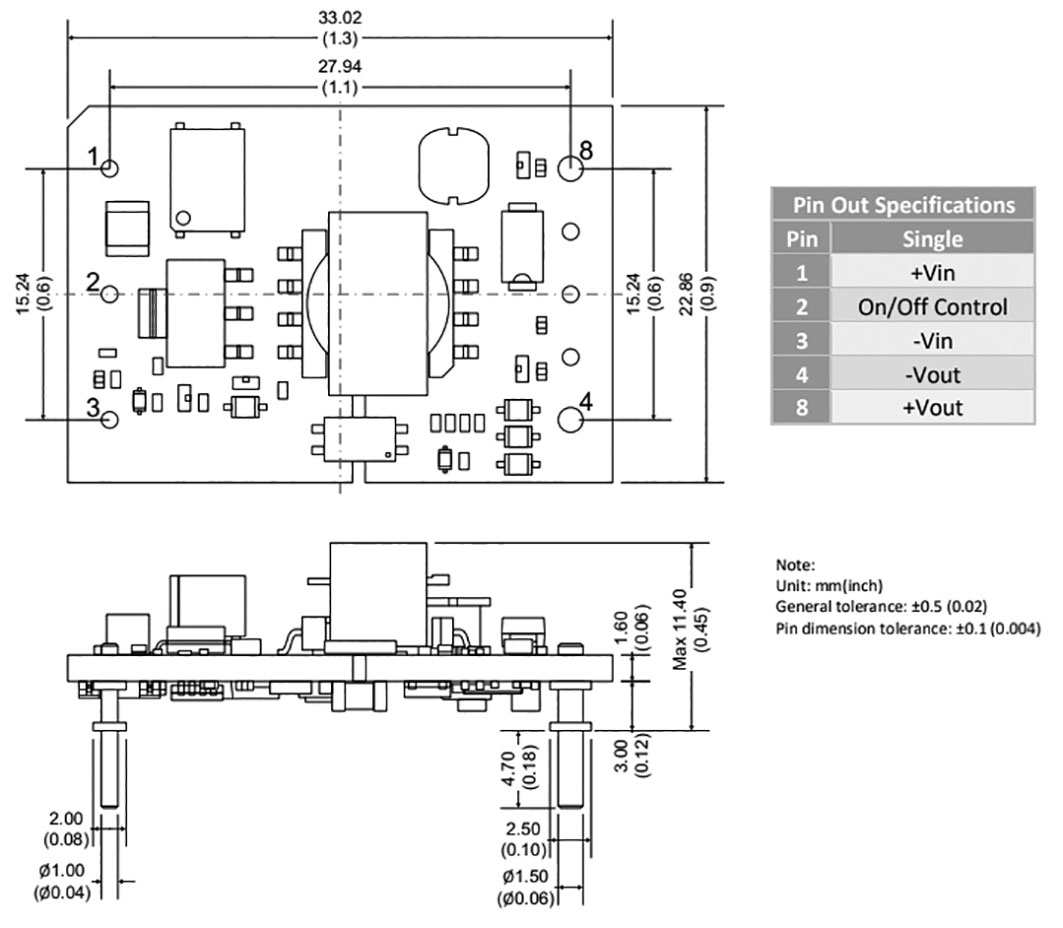

- Fig. 13. (AM10SBO-4824SNZ-B)
Mounting:
- THT (AM10G-2403NZ, AM10G-2412NZ)
Number of outputs:
- 1 (AM10CW-4812S-FZ, AM10E-xxxSZ, AM10EW-xxxZ, AM10GxxxNZ, AM10TW-4803SZ, AM10W-80005S-NZ, AM10SBO-4824SNZ-B)
- 2 (AM10CW-480505DVZ, AM10E-2405DZ, AM10E-2415DZ, AM10T-xxxDNZ, AM10TW-2405DZ, AM10TW-2412DZ, AM10TW-4812D-NZ, AM10TW-4815D-NZ)
Application:
- photovoltaics (AM10W-60005S-NZ-ST, AM10W-80005S-NZ)
