Converter: DC/DC; AIMTEC
| Manufacturer | AIMTEC |
| Case | DIP24 |
| Symbol | Power | Uinsul | Uin | Iout | Uout2 | Iout2 | Efficiency | Output voltage | Number of outputs | Mounting |
|---|---|---|---|---|---|---|---|---|---|---|
| [W] | [V DC] | [V DC] | [A] | [V DC] | [mA] | [%] | [V DC] | |||
| AM8T-2403SZ | 7.5 | 1500 | 18...36 | 2 | - | - | 80 | 3.3 | 1 | - |
| AM8T-2405SZ | 7.5 | 1500 | 18...36 | 1.5 | - | - | 82 | 5 | 1 | - |
| AM8T-2412SZ | 8 | 1500 | 18...36 | 665m | - | - | 85 | 12 | 1 | - |
| AM8T-2415SZ | 8 | 1500 | 18...36 | 535m | - | - | 84 | 15 | 1 | - |
| AM8T-4805SZ | 8 | 1500 | 36...72 | 1.5 | - | - | 82 | 5 | 1 | - |
| AM8T-1212DZ | 8 | 1500 | 9...18 | 335m | -12 | 335 | 84 | 12 | 2 | - |
| AM8T-0503SIZ | 5.3 | 1500 | 4.5...9 | 1.6 | - | - | 74 | 3.3 | 1 | - |
| AM8TW-2405SZ | 7.5 | 1600 | 9...36 | 1.5 | - | - | 86 | 5 | 1 | - |
| AM8TW-2412SZ | 8 | 1600 | 9...36 | 665m | - | - | 87 | 12 | 1 | - |
| AM8TW-4803SZ | 6.6 | 1600 | 18...75 | 2 | - | - | 82 | 3.3 | 1 | - |
| AM8TW-4805SZ | 7.5 | 1600 | 18...75 | 1.5 | - | - | 86 | 5 | 1 | - |
| AM8TW-4812SZ | 8 | 1600 | 18...75 | 665m | - | - | 87 | 12 | 1 | - |
| AM8TW-2403SH30Z | 8 | 3000 | 13...70 | 2 | - | - | 83 | 3.3 | 1 | - |
| AM8TW-2405SH30Z | 8 | 3000 | 13...70 | 1.5 | - | - | 86 | 5 | 1 | PCB |
| AM8TW-2412SH30Z | 8 | 3000 | 13...70 | 665m | - | - | 85 | 12 | 1 | - |
| AM8TW-2415SH30Z | 8 | 3000 | 13...70 | 535m | - | - | 86 | 15 | 1 | - |
| AM8TW-11003SH30Z | 8 | 3000 | 42...176 | 2 | - | - | 81 | 3.3 | 1 | - |
| AM8TW-11005SH30Z | 8 | 3000 | 42...176 | 1.5 | - | - | 84 | 5 | 1 | - |
| AM8TW-11012SH30Z | 8 | 3000 | 42...176 | 665m | - | - | 84 | 12 | 1 | - |
| AM8TW-11015SH30Z | 8 | 3000 | 42...176 | 535m | - | - | 83 | 15 | 1 | - |
| AM8TW-2405DH30Z | 8 | 3000 | 13...70 | 800m | -5 | 800 | 83 | 5 | 2 | - |
| AM8TW-2412DH30Z | 8 | 3000 | 13...70 | 335m | -12 | 335 | 85 | 12 | 2 | - |
| AM8TW-2415DH30Z | 8 | 3000 | 13...70 | 265m | -15 | 265 | 86 | 15 | 2 | - |
| AM8TW-11005DH30Z | 8 | 3000 | 42...176 | 800m | -5 | 800 | 80 | 5 | 2 | - |
| AM8TW-11012DH30Z | 8 | 3000 | 42...176 | 335m | -12 | 335 | 82 | 12 | 2 | - |
| AM8TW-11015DH30Z | 8 | 3000 | 42...176 | 265m | -15 | 265 | 83 | 15 | 2 | - |
Protection:
- anti-overload OPP
- anti-overvoltage OVP (AM8T-0503SIZ, AM8TW-xxxZ)
- short circuit protection SCP
Additional functions:
- adjustable output voltage (AM8T-0503SIZ)
Operating temperature:
- -40...75°C (AM8T-0503SIZ)
- -40...85°C (AM8T-24xxSZ, AM8T-4805SZ, AM8T-1212DZ, AM8TW-xxxZ)
Body dim.:
- 31.75x20.32x10.16mm (AM8T-2403SZ)
- 31.8x20.3x10.2mm (AM8T-2405SZ, AM8T-2412SZ, AM8T-2415SZ, AM8T-4805SZ, AM8T-1212DZ, AM8TW-xxxZ)
- 31.8x20.3x10.8mm (AM8T-0503SIZ)
Manufacturer series:
- AM8T-Z (AM8T-24xxSZ, AM8T-4805SZ, AM8T-1212DZ)
- AM8T-IZ (AM8T-0503SIZ)
- AM8TW-Z (AM8TW-xxxZ)
Dimensions:

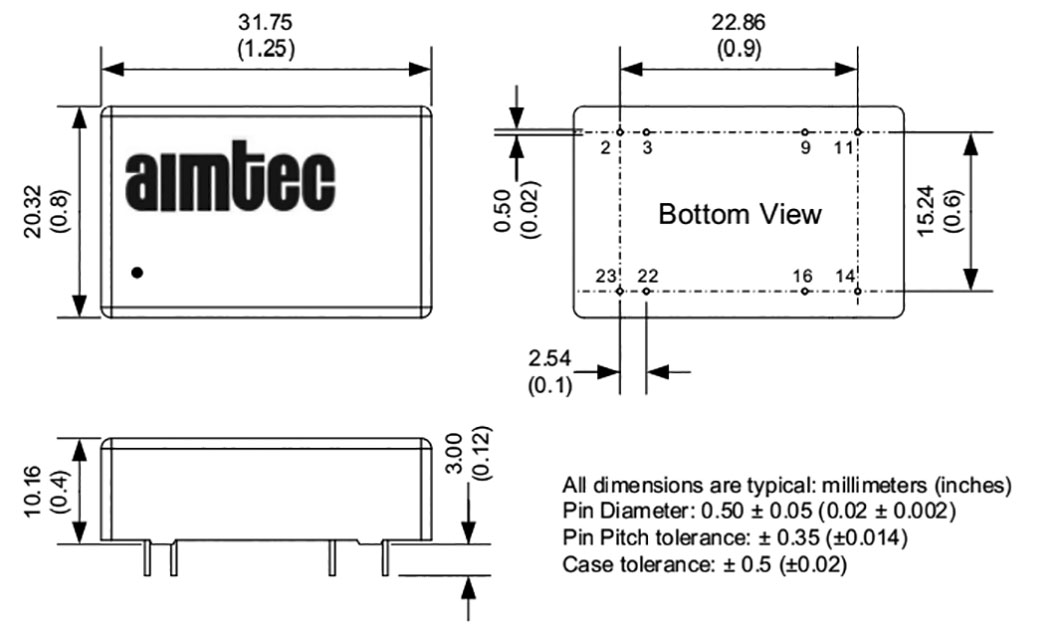

- Fig. 1. (AM8T-2403SZ)

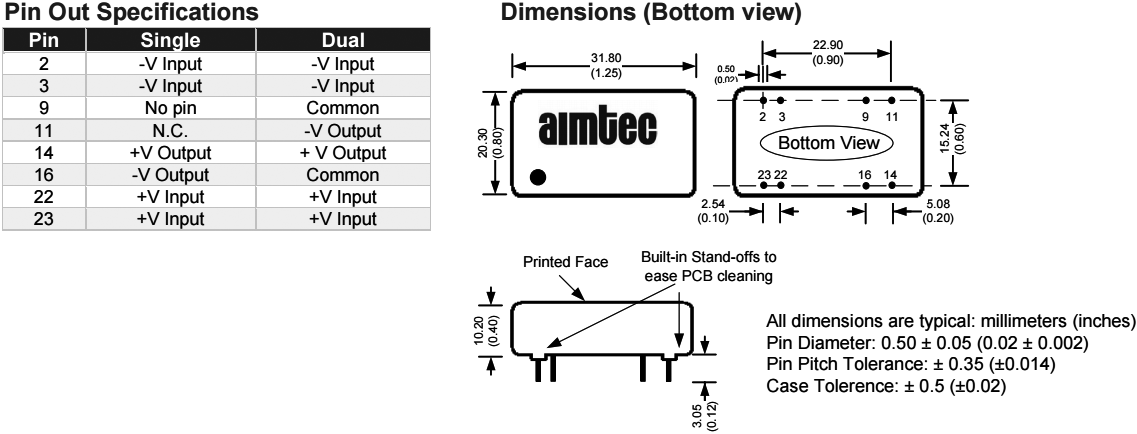

- Fig. 2. (AM8T-2405SZ, AM8T-2412SZ, AM8T-2415SZ, AM8T-4805SZ, AM8T-1212DZ)

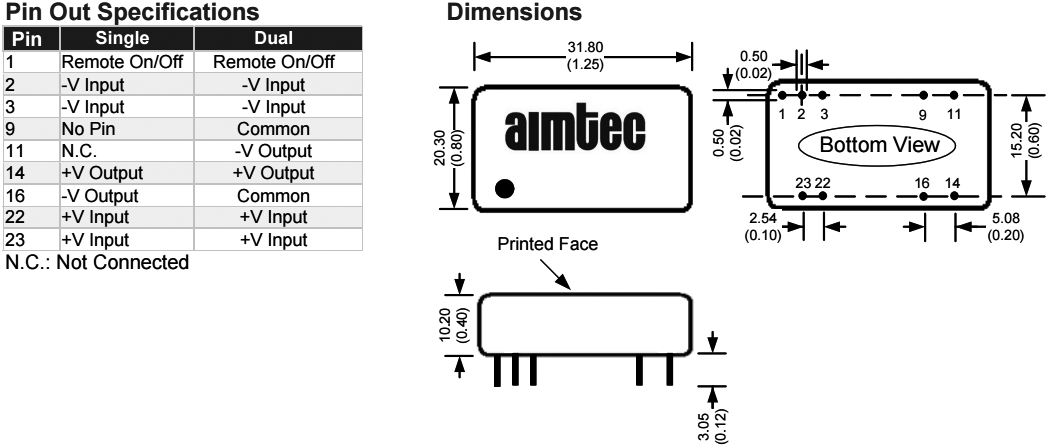

- Fig. 3. (AM8T-0503SIZ)

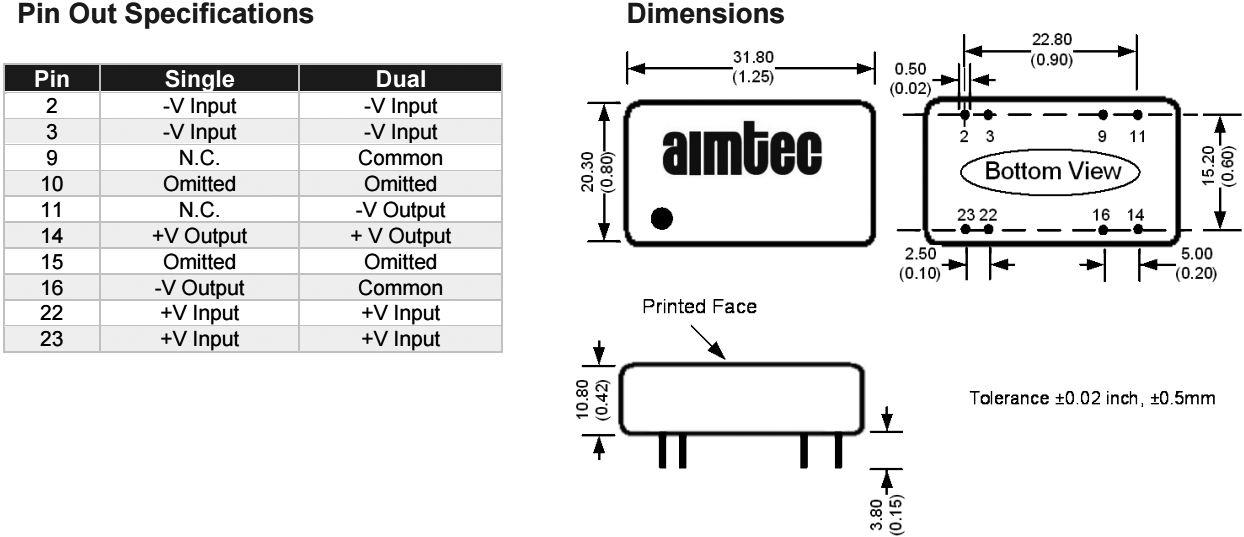

- Fig. 4. (AM8TW-xxxZ)
