Converter: DC/DC; AIMTEC
| Manufacturer | AIMTEC |
Manufacturer series:
- AM5T-Z (AM5T-xxxSZ)
- AM5T-FZ (AM5T-1205SH40-FZ, AM5T-2412SH40-FZ)
- AM5T-VZ (AM5T-1224SH35-VZ, AM5T-1205D-VZ)
- AM5TW-Z (AM5TW-2405SZ, AM5TW-2405SH35Z, AM5TW-2412SZ, AM5TW-2424SZ, AM5TW-4805SZ, AM5TW-4805SH35Z)
- AM5TW-RZ (AM5TW-xxx-RZ)
- AM5TW-VZ (AM5TW-2415S-VZ)
- AM5TW-RVZ (AM5TW-4803S-RVZ)
- AM5NG-NZ (AM5NG-151509DH40NZ)
Dimensions:

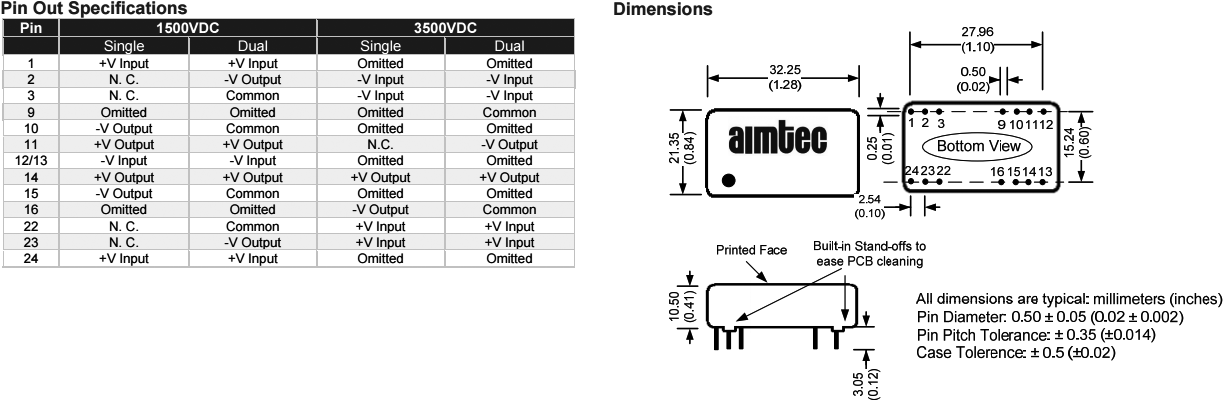

- Fig. 1. (AM5T-xxxSZ)

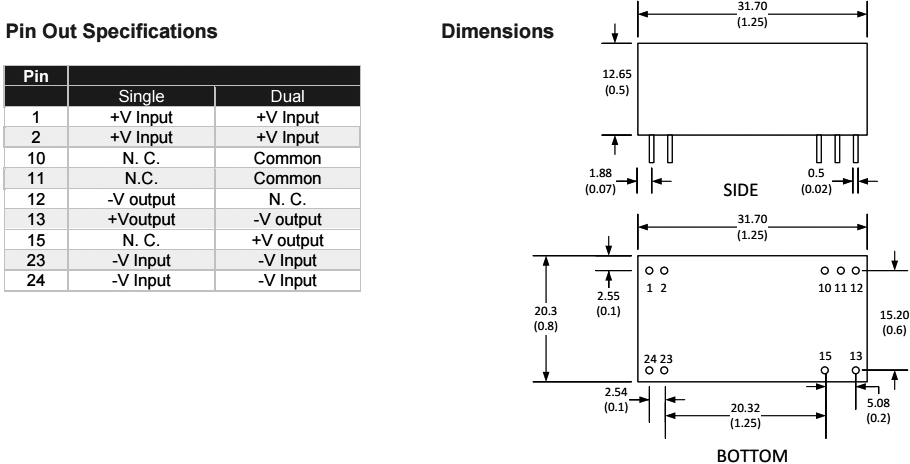

- Fig. 2. (AM5T-1205SH40-FZ, AM5T-2412SH40-FZ)

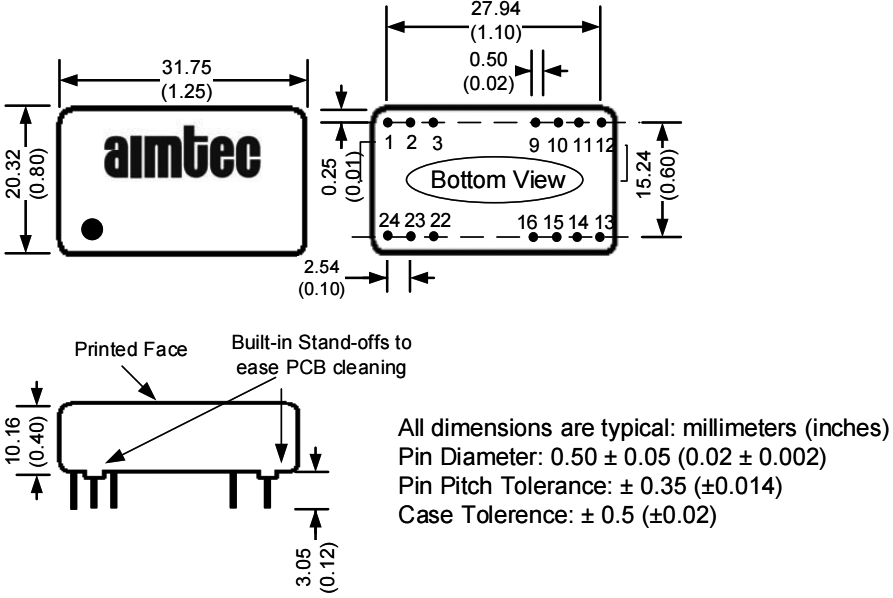

- Fig. 3. (AM5T-1224SH35-VZ, AM5T-1205D-VZ)

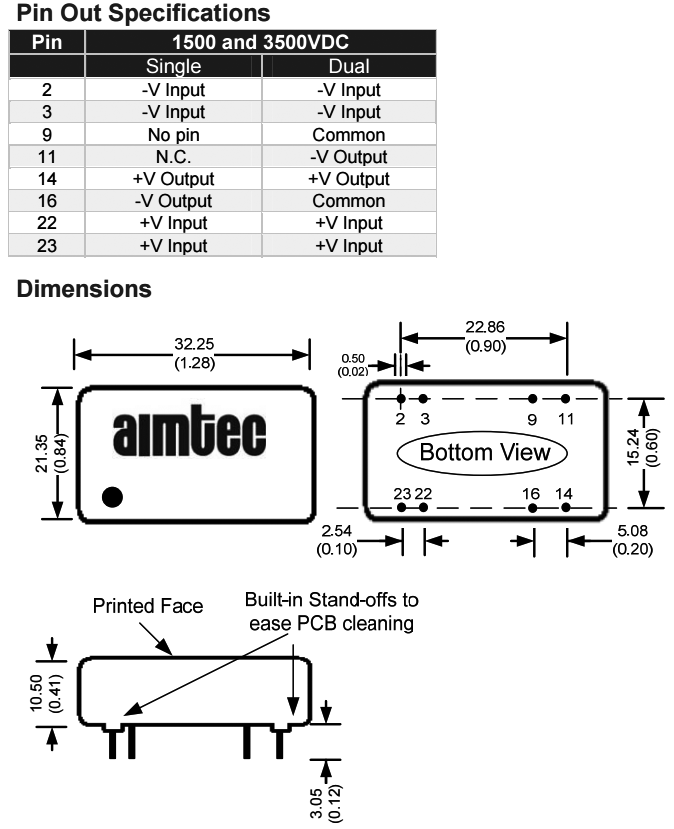

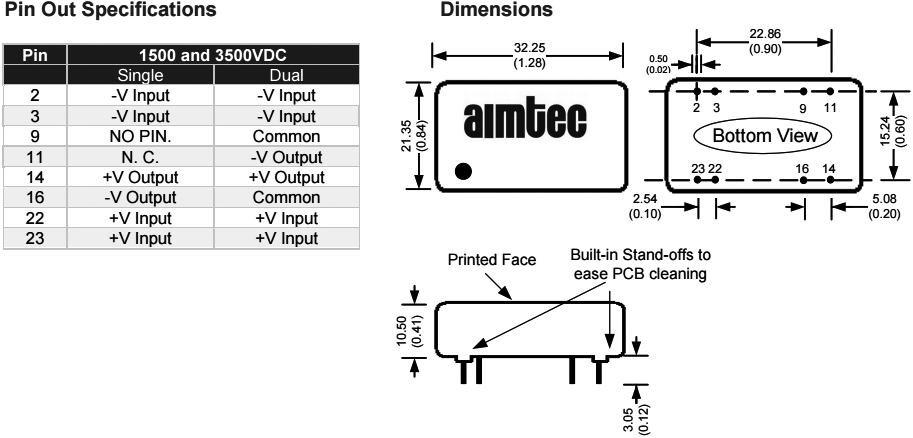

- Fig. 4. (AM5TW-2405SZ, AM5TW-2405SH35Z, AM5TW-2412SZ, AM5TW-2424SZ, AM5TW-4805SZ, AM5TW-4805SH35Z)

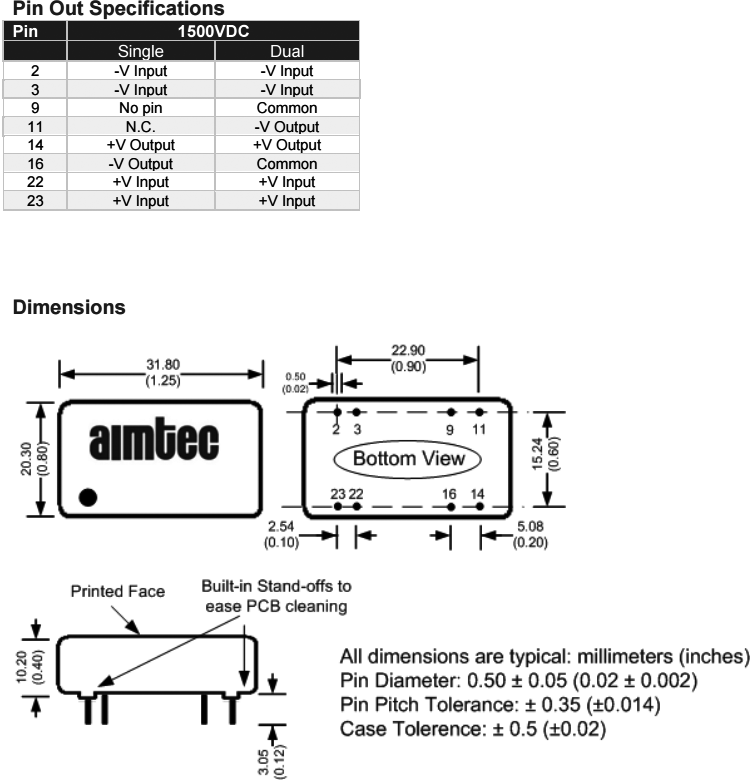

- Fig. 5. (AM5TW-xxx-RZ)
- Fig. 6. (AM5TW-2415S-VZ)
- Fig. 7. (AM5TW-4803S-RVZ)

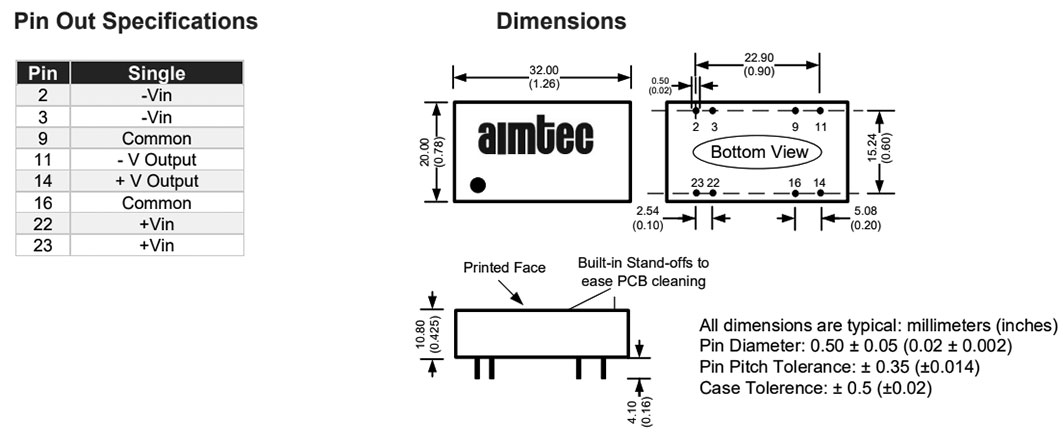

- Fig. 8. (AM5NG-151509DH40NZ)
| Symbol | Power | Uinsul | Uin | Output voltage | Iout | Uout2 | Iout2 | Efficiency | Case | Temp. |
|---|---|---|---|---|---|---|---|---|---|---|
| [W] | [V DC] | [V DC] | [V DC] | [A] | [V DC] | [mA] | [%] | [°C] | ||
| AM5T-0512SZ | 5 | 1500 | 4.5...9 | 12 | 410m | - | - | 76 | DIP24 | -40...85 |
| AM5T-1205SZ | 5 | 1500 | 9...18 | 5 | 1 | - | - | 77 | DIP24 | -40...85 |
| AM5T-1215SZ | 5 | 1500 | 9...18 | 15 | 330m | - | - | 80 | DIP24 | -40...85 |
| AM5T-2403SZ | 5 | 1500 | 18...36 | 3.3 | 1.3 | - | - | 75 | DIP24 | -40...85 |

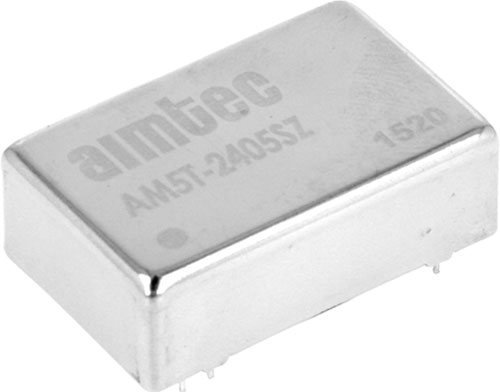

| AM5T-2405SZ | 5 | 1500 | 18...36 | 5 | 1 | - | - | 80 | DIP24 | -40...85 |
| AM5T-2412SZ | 5 | 1500 | 18...36 | 12 | 410m | - | - | 80 | DIP24 | -40...85 |
| AM5T-2415SZ | 5 | 1500 | 18...36 | 15 | 330m | - | - | 82 | DIP24 | -40...85 |
| AM5T-4803SZ | 4.3 | 1500 | 36...72 | 3.3 | 1.3 | - | - | 75 | DIP24 | -40...85 |
| AM5T-4807SZ | 5 | 1500 | 36...72 | 7.2 | 690m | - | - | 81 | DIP24 | -40...85 |
| AM5T-1205SH40-FZ | 5 | 4000 | 9...18 | 5 | 1 | - | - | 81 | DIP24 | -40...85 |
| AM5T-2412SH40-FZ | 6 | 4000 | 18...36 | 12 | 500m | - | - | 85 | DIP24 | -40...85 |
| AM5T-1224SH35-VZ | 5 | 3500 | 9...18 | 24 | 210m | - | - | 75 | DIP24 | -40...85 |
| AM5T-1205D-VZ | 5 | 1500 | 9...18 | 5 | 500m | -5 | 500 | 72 | DIP24 | -40...85 |
| AM5TW-2405SZ | 5 | 1500 | 9...36 | 5 | 1 | - | - | 80 | DIP24 | -40...85 |
| AM5TW-2412SZ | 5 | 1500 | 9...36 | 12 | 410m | - | - | 81 | DIP24 | -40...85 |
| AM5TW-2424SZ | 5 | 1500 | 9...36 | 24 | 200m | - | - | 82 | DIP24 | -40...85 |
| AM5TW-4805SZ | 5 | 1500 | 18...72 | 5 | 1 | - | - | 81 | DIP24 | -40...85 |
| AM5TW-2405SH35Z | 5 | 3500 | 9...36 | 5 | 1 | - | - | 80 | DIP24 | -40...85 |
| AM5TW-4805SH35Z | 5 | 3500 | 18...72 | 5 | 1 | - | - | 81 | DIP24 | -40...85 |
| AM5TW-2405S-RZ | 5 | 1500 | 9...36 | 5 | 1 | - | - | 80 | DIP24 | -40...85 |
| AM5TW-2412S-RZ | 5 | 1500 | 9...36 | 12 | 420m | - | - | 81 | DIP24 | -40...85 |
| AM5TW-4805S-RZ | 5 | 1500 | 18...72 | 5 | 1 | - | - | 81 | DIP24 | -40...85 |
| AM5TW-4815S-RZ | 5 | 1500 | 18...72 | 15 | 330m | - | - | 84 | DIP24 | -40...85 |
| AM5TW-4805D-RZ | 5 | 1500 | 18...72 | 5 | 500m | -5 | 500 | 81 | DIP24 | -40...85 |
| AM5TW-4812D-RZ | 5 | 1500 | 18...72 | 12 | 210m | -12 | 210 | 82 | DIP24 | -40...85 |
| AM5TW-2415S-VZ | 5 | 1500 | 9...36 | 15 | 330m | - | - | 74 | DIP24 | -40...85 |
| AM5TW-4803S-RVZ | 5 | 1500 | 18...72 | 3.3 | 1.2 | - | - | 70 | DIP24 | -40...85 |
| AM5NG-151509DH40NZ | 5 | 4000 | 13.5...16.5 | 15 | 200m | -9 | 200 | 87 | DIP24 | -40...85 |
Protection:
- anti-overload OPP (AM5T-0512SZ, AM5T-1205SZ, AM5T-1205SH40-FZ, AM5T-1215SZ, AM5T-24xxxZ, AM5T-4803SZ, AM5T-4807SZ, AM5TW-2405SxxxZ, AM5TW-2412SZ, AM5TW-2412S-RZ, AM5TW-2424SZ, AM5TW-4805xxxZ, AM5TW-4815S-RZ, AM5TW-4812D-RZ)
- anti-overvoltage OVP (AM5T-1205SH40-FZ, AM5T-2412SH40-FZ)
- short circuit protection SCP
Body dim.:
- 31.6x20.3x10.2mm (AM5NG-151509DH40NZ)

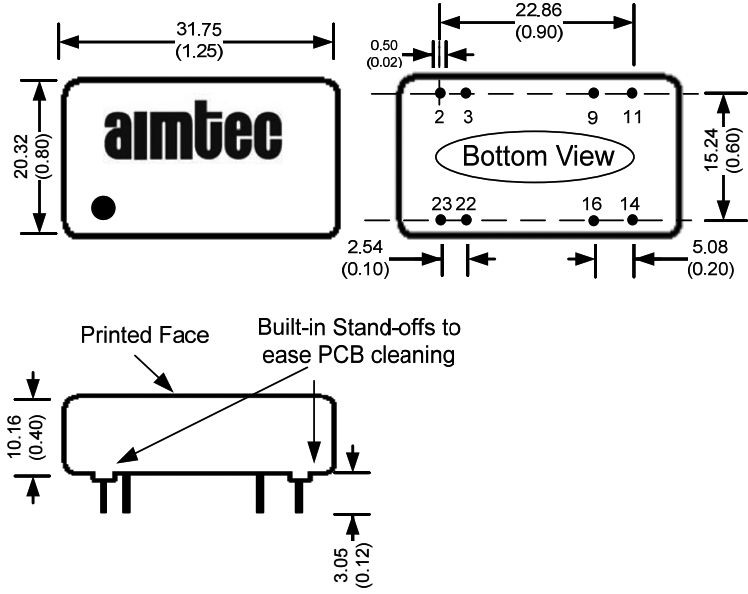

- 31.7x20.3x10.16mm (AM5T-1224SH35-VZ, AM5T-1205D-VZ)
- 31.7x20.3x12.85mm (AM5T-1205SH40-FZ, AM5T-2412SH40-FZ)
- 31.8x20.3x10.2mm (AM5TW-2405S-RZ, AM5TW-2412S-RZ, AM5TW-2415S-VZ, AM5TW-4805S-RZ, AM5TW-4805D-RZ, AM5TW-4803S-RVZ, AM5TW-4815S-RZ, AM5TW-4812D-RZ)
- 32.25x21.35x10.5mm (AM5T-xxxSZ, AM5TW-2405SZ, AM5TW-2405SH35Z, AM5TW-2412SZ, AM5TW-2424SZ, AM5TW-4805SZ, AM5TW-4805SH35Z)
Number of outputs:
- 1 (AM5T-0512SZ, AM5T-1205SZ, AM5T-1205SH40-FZ, AM5T-1215SZ, AM5T-1224SH35-VZ, AM5T-24xxSZ, AM5T-4803SZ, AM5T-4807SZ, AM5TW-24xxxZ, AM5TW-4805SxxxZ, AM5TW-4803S-RVZ, AM5TW-4815S-RZ)
- 2 (AM5T-1205D-VZ, AM5TW-4805D-RZ, AM5TW-4812D-RZ, AM5NG-151509DH40NZ)
