Converter: DC/DC; AIMTEC
| Manufacturer | AIMTEC |
| Additional functions | PWM controlled dimming function |
Manufacturer series:
- AML
Dimensions:

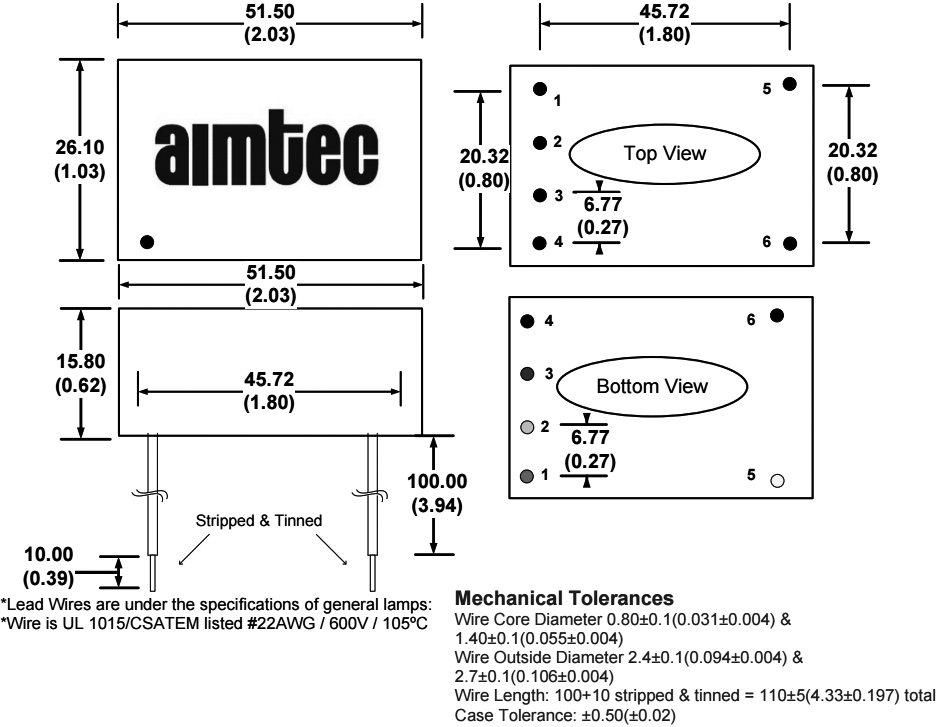

- Fig. 1. (AMLBW-3630Z)

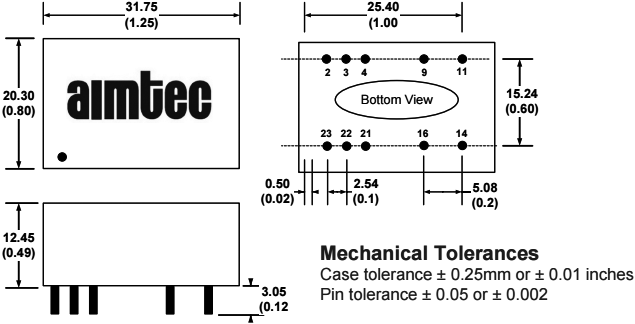

- Fig. 2. (AMLD-60xxxZ)

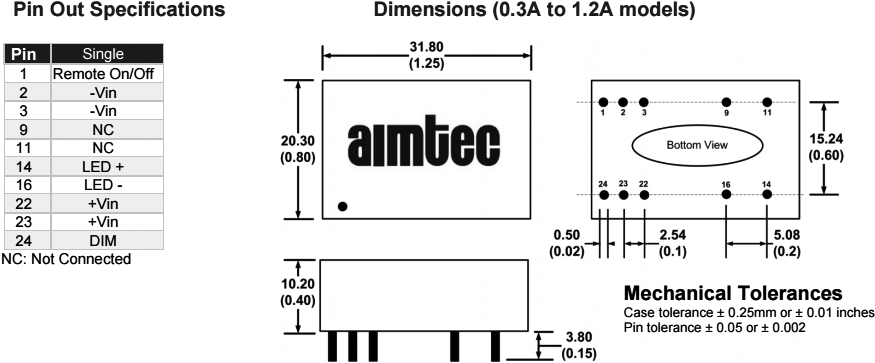

- Fig. 3. (AMLD-36xxxIZ)

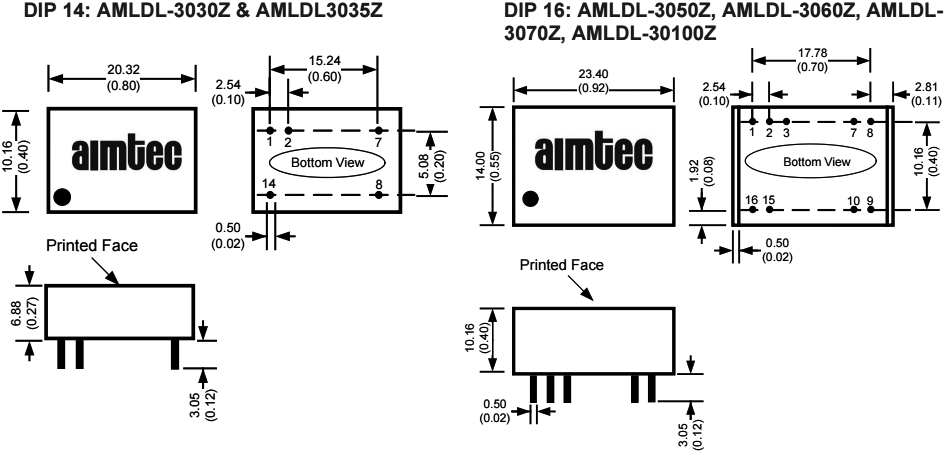

- Fig. 4. (AMLDL-3050Z, AMLDL-30100Z)

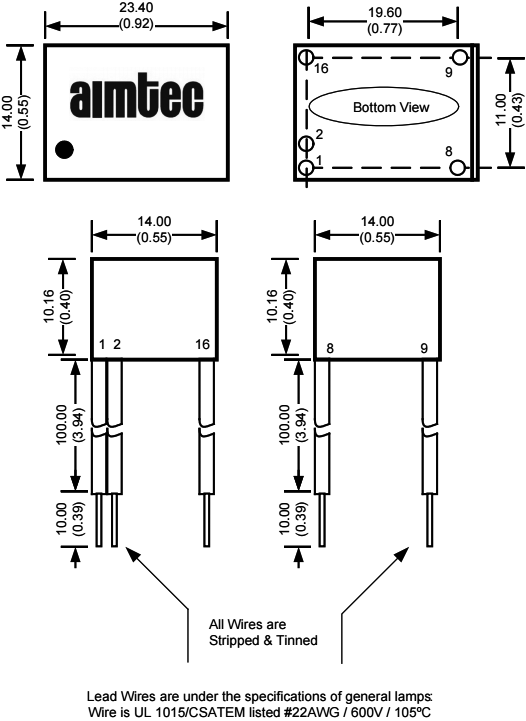

- Fig. 5. (AMLDLW-30100Z)

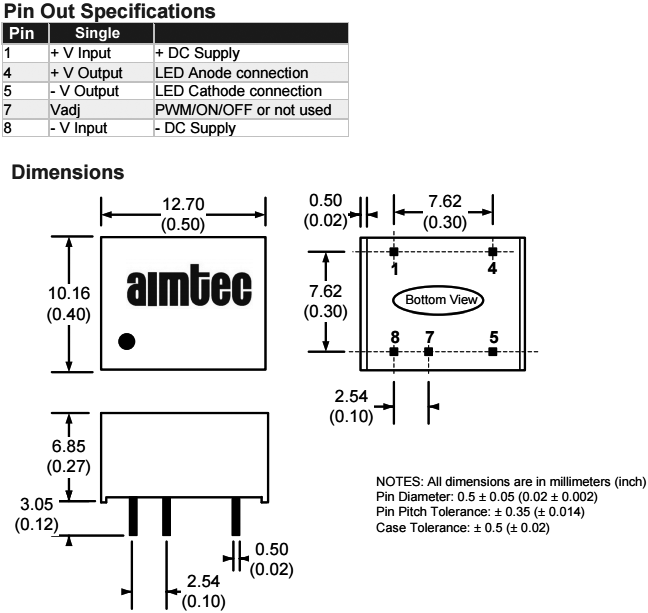

- Fig. 6. (AMLDP-16x0Z)

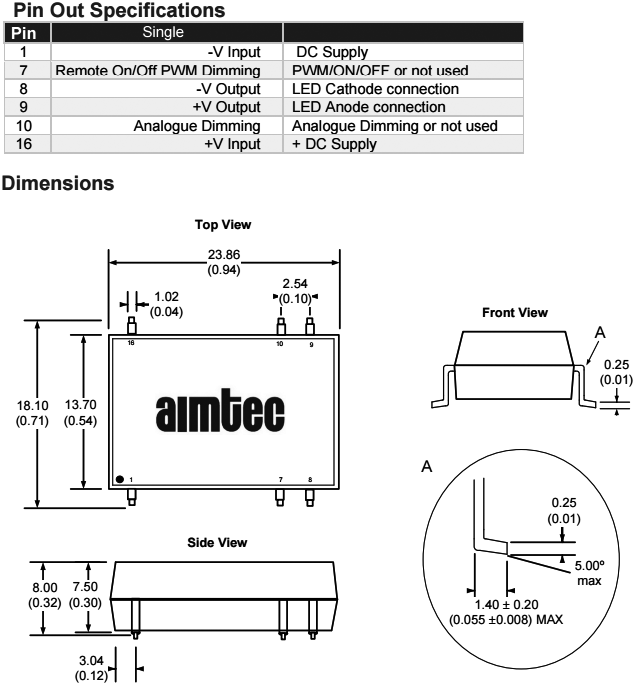

- Fig. 7. (AMLDV-4830-NZ)
| Symbol | Case | Uin | Uout | Iout | Body dim. | Efficiency | Mounting | Number of outputs | Dimensions |
|---|---|---|---|---|---|---|---|---|---|
| [V DC] | [V DC] | [mA] | [mm] | [%] | ["] | ||||
| AMLBW-3630Z | - | 9...36 | 14...48 | 300 | 51.5x26.1x15.85 | 92 | - | 1 | 2x1 |
| AMLD-6025Z | DIP24 | 7...60 | 2...57 | 250 | 31.75x20.3x12.45 | 97 | - | 1 | - |
| AMLD-6050Z | DIP24 | 7...60 | 2...57 | 500 | 31.75x20.3x12.45 | 97 | - | 1 | - |
| AMLD-60100Z | DIP24 | 7...60 | 2...48 | 1000 | 31.75x20.3x12.45 | 97 | THT | 1 | - |
| AMLD-3630IZ | DIP24 | 5...36 | 2...32 | 300 | 31.8x20.3x10.2 | 96 | - | - | - |
| AMLD-3635IZ | DIP24 | 5...36 | 2...32 | 350 | 31.8x20.3x10.2 | 96 | - | - | - |

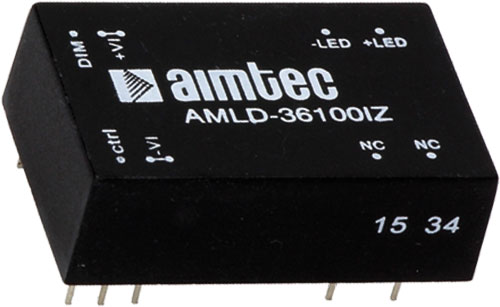

| AMLD-36100IZ | DIP24 | 5...36 | 2...32 | 1000 | 31.8x20.3x10.2 | 96 | - | - | - |
| AMLDL-3050Z | DIP16 | 7...30 | 2...28 | 500 | 23.37x13.97x10.16 | 95 | - | 1 | - |
| AMLDL-30100Z | DIP16 | 7...30 | 2...28 | 1000 | 23.4x14x10.16 | 95 | - | 1 | - |
| AMLDLW-30100Z | - | 7...30 | 2...28 | 1000 | 23.4x14x10.16 | 95 | - | 1 | 1x0.6 |
| AMLDP-1630Z | DIP8 | 7...16 | 2...14 | 300 | 12.7x10.16x6.85 | 93 | - | 1 | - |
| AMLDP-1650Z | DIP8 | 7...16 | 2...14 | 500 | 12.7x10.16x6.85 | 93 | - | 1 | - |
| AMLDP-1660Z | DIP8 | 7...16 | 2...14 | 600 | 12.7x10.16x6.85 | 93 | - | 1 | - |
| AMLDV-4830-NZ | - | 5.5...48 | 3.3...36 | 300 | 23.86x18.1x8 | 96 | SMT | 1 | - |
Protection:
- anti-overvoltage OVP (AMLBW-3630Z)
- short circuit protection SCP
Operating temperature:
- -40...85°C
