Converter: DC/DC; RECOM
| Manufacturer | RECOM |
| Power | 30W |
| Symbol | Uinsul | Uinsul | Uin | Uout | Iout | Uout2 | Iout2 | Efficiency |
|---|---|---|---|---|---|---|---|---|
| [kV DC] | [kV] | [V DC] | [V DC] | [A] | [V DC] | [A] | [%] | |
| REM30-2405SW | - | 5 | 9...36 | 5 | 6 | - | - | 88 |
| REM30-2412SW | - | 5 | 9...36 | 12 | 2.5 | - | - | 89 |
| REM30-2415DW | - | 5 | 9...36 | 15 | 1 | -15 | 1 | 89 |
| REM30-2424SW | - | 5 | 9...36 | 24 | 1.25 | - | - | 89 |
| REM30-4812SW | - | 5 | 18...75 | 12 | 2.5 | - | - | 89 |
| REM30-4815DW | - | 5 | 18...75 | 15 | 1 | -15 | 1 | 89.5 |
| REM30-4824SW | - | 5 | 18...75 | 24 | 1.25 | - | - | 89 |
| REC30-2412S | 1.6 | - | 18...36 | 12 | 2.5 | - | - | 90 |
| REC30-2412SZ | 1.6 | - | 9...36 | 12 | 2.5 | - | - | 88.5 |
| REC30-2415D | 1.6 | - | 18...36 | 15 | 1 | -15 | 1 | 89 |
| REC30-2415DZ | 1.6 | - | 9...36 | 15 | 1 | -15 | 1 | 89 |
| REC30-2415SZ | 1.6 | - | 9...36 | 15 | 2 | - | - | 89 |
| REC30-243.4S | 1.6 | - | 18...36 | 3.4 | 6 | - | - | 87 |
| REC30-245.1S | 1.6 | - | 18...36 | 5.1 | 6 | - | - | 89 |
| REC30-245.1SZ | 1.6 | - | 9...36 | 5.1 | 6 | - | - | 87.5 |
| REC30-4812SZ | 1.6 | - | 18...75 | 12 | 2.5 | - | - | 89 |
| RP30-1212SE | 1.6 | - | 9...18 | 12 | 2.5 | - | - | 88 |
| RP30-1215DE | 1.6 | - | 9...18 | 15 | 1 | -15 | - | 87 |
| RP30-1215SE | 1.6 | - | 9...18 | 15 | 2 | - | - | 88 |
| RP30-2405DF | 1.6 | - | 18...36 | 5 | 3 | -5 | 3 | 90 |
| RP30-2405SE | 1.6 | - | 18...36 | 5 | 6 | - | - | 88 |
| RP30-2405SE-HC | 1.6 | - | 18...36 | 5 | 6 | - | - | 88 |
| RP30-2405SEW | 1.6 | - | 10...40 | 5 | 6 | - | - | 87 |
| RP30-2405SF | 1.6 | - | 18...36 | 5 | 6 | - | - | 90 |
| RP30-2405SFW | 1.6 | - | 9...36 | 5 | 6 | - | - | 88 |
| RP30-2412DE | 1.6 | - | 18...36 | 12 | 1.25 | -12 | 1.25 | 88 |
| RP30-2412DEW | 1.6 | - | 10...40 | 12 | 1.25 | -12 | 1.25 | 84 |
| RP30-2412DFW | 1.6 | - | 9...36 | 12 | 1.25 | -12 | 1.25 | 87 |
| RP30-2412SE | 1.6 | - | 18...36 | 12 | 2.5 | - | - | 89 |
| RP30-2412SEW | 1.6 | - | 10...40 | 12 | 2.5 | - | - | 87 |
| RP30-2412SF | 1.6 | - | 18...36 | 12 | 2.5 | - | - | 91 |
| RP30-2412SFW | 1.6 | - | 9...36 | 12 | 2.5 | - | - | 89 |
| RP30-2415DE | 1.6 | - | 18...36 | 15 | 1 | -15 | 1 | 88 |
| RP30-2415DEW | 1.6 | - | 10...40 | 15 | 1 | -15 | 1 | 85 |
| RP30-2415DF | 1.6 | - | 18...36 | 15 | 1 | -15 | 1 | 90 |
| RP30-2415DFW | 1.6 | - | 9...36 | 15 | 1 | -15 | 1 | 87 |
| RP30-2415SEW | 1.6 | - | 10...40 | 15 | 2 | - | - | 88 |
| RP30-2415SF | 1.6 | - | 18...36 | 15 | 2 | - | - | 91 |
| RP30-2415SFW | 1.6 | - | 9...36 | 15 | 2 | - | - | 89 |
| RP30-243.3SE | 1.6 | - | 18...36 | 3.3 | 6 | - | - | 86 |
| RP30-243.3SEW | 1.6 | - | 10...40 | 3.3 | 6 | - | - | 87 |
| RP30-243.3SEW/N | 1.6 | - | 10...40 | 3.3 | 6 | - | - | 87 |
| RP30-243.3SF | 1.6 | - | 18...36 | 3.3 | 8 | - | - | 87 |
| RP30-4805SEW | 1.6 | - | 18...75 | 5 | 6 | - | - | 88 |
| RP30-4805SFW | 1.6 | - | 18...75 | 5 | 6 | - | - | 88 |
| RP30-4812SEW | 1.6 | - | 18...75 | 12 | 2.5 | - | - | 87 |
| RP30-4812SF | 1.6 | - | 36...75 | 12 | 2.5 | - | - | 91 |
| RP30-4812SFW | 1.6 | - | 18...75 | 12 | 2.5 | - | - | 90 |
| RP30-4815SEW | 1.6 | - | 18...75 | 15 | 2 | - | - | 88 |
| RP30-4815SFW | 1.6 | - | 18...75 | 15 | 2 | - | - | 91 |
| RPA30-2405SAW | 1.6 | - | 9...36 | 5 | 6 | - | - | 89 |
| RPA30-2405SAW/N | 1.6 | - | 9...36 | 5 | 6 | - | - | 89 |
| RPA30-2405SAW/P | 1.6 | - | 9...36 | 5 | 6 | - | - | 89 |
| RPA30-2412DAW | 1.6 | - | 9...36 | 12 | 1.25 | -12 | 1.25 | 88 |
| RPA30-2412DAW/P | 1.6 | - | 9...36 | 12 | 1.25 | -12 | 1.25 | 88 |
| RPA30-2412SAW | 1.6 | - | 9...36 | 12 | 2.5 | - | - | 88 |
| RPA30-2412SAW/N | 1.6 | - | 9...36 | 12 | 2.5 | - | - | 88 |
| RPA30-2412SAW/P | 1.6 | - | 9...36 | 12 | 2.5 | - | - | 88 |
| RPA30-2415DAW | 1.6 | - | 9...36 | 15 | 1 | -15 | 1 | 88 |
| RPA30-2415DAW/P | 1.6 | - | 9...36 | 15 | 1 | -15 | 1 | 88 |
| RPA30-2415SAW/N | 1.6 | - | 9...36 | 15 | 2 | - | - | 88 |
| RPA30-2415SAW/P | 1.6 | - | 9...36 | 15 | 2 | - | - | 88 |
| RPA30-243.3SAW/P | 1.6 | - | 9...36 | 3.3 | 7.5 | - | - | 88 |
| RPM30-2405SEW | 1.6 | - | 10...40 | 5 | 6 | - | - | - |
| RPP30-2412SW | 2.25 | - | 9...36 | 12 | 2.5 | - | - | 88 |
| REC30K-483.3S | 2 | - | 36...75 | 3.3 | - | - | - | 87 |
| REC30K-4805S | 2 | - | 36...75 | 5 | - | - | - | 89 |
| REC30K-4809S | 2 | - | 36...75 | 9 | - | - | - | 89 |
| REC30K-4812S | 2 | - | 36...75 | 12 | - | - | - | 89 |
| REC30K-4815S | 2 | - | 36...75 | 15 | - | - | - | 88 |
| REC30K-4824S | 2 | - | 36...75 | 24 | - | - | - | 88 |
| REC30K-4805D | 2 | - | 36...75 | 5 | 2 | -5 | 2 | 83 |
| REC30K-4812D | 2 | - | 36...75 | 12 | 1.25 | -12 | 1.25 | 86 |
| REC30K-4815D | 2 | - | 36...75 | 15 | 1 | -15 | 1 | 87 |
| REC30K-243.3SZ | 2 | - | 9...36 | 3.3 | 6 | - | - | 87 |
| REC30K-2405SZ | 2 | - | 9...36 | 5 | 6 | - | - | 87 |
| REC30K-2409SZ | 2 | - | 9...36 | 9 | 3.34 | - | - | 89 |
| REC30K-2412SZ | 2 | - | 9...36 | 12 | 2.5 | - | - | 88 |
| REC30K-2415SZ | 2 | - | 9...36 | 15 | 2 | - | - | 88 |
| REC30K-2424SZ | 2 | - | 9...36 | 24 | 1.25 | - | - | 88 |
| REC30K-2405DZ | 2 | - | 9...36 | 5 | 2 | -5 | 2 | 84 |
| REC30K-2412DZ | 2 | - | 9...36 | 12 | 1.25 | -12 | 1.25 | 88 |
| REC30K-2415DZ | 2 | - | 9...36 | 15 | 1 | -15 | 1 | 88 |
| REC30K-483.3SZ | 2 | - | 18...75 | 3.3 | 6 | - | - | 86 |
| REC30K-4805SZ | 2 | - | 18...75 | 5 | 6 | - | - | 87 |
| REC30K-4809SZ | 2 | - | 18...75 | 9 | 3.34 | - | - | 89 |
| REC30K-4812SZ | 2 | - | 18...75 | 12 | 2.5 | - | - | 89 |
| REC30K-4815SZ | 2 | - | 18...75 | 15 | 2 | - | - | 88 |
| REC30K-4824SZ | 2 | - | 18...75 | 24 | 1.25 | - | - | 88 |
| REC30K-4805DZ | 2 | - | 18...75 | 5 | 2 | -5 | 2 | 83 |
| REC30K-4812DZ | 2 | - | 18...75 | 12 | 1.25 | -12 | 1.25 | 86 |
| REC30K-4815DZ | 2 | - | 18...75 | 15 | 1 | -15 | 1 | 87 |
Manufacturer series:
- REM30-W (REM30-xxxW)
- REC30 (REC30-2412S, REC30-2415D, REC30-243.4S, REC30-245.1S)
- REC30-Z (REC30-xxxZ)
- RP30-E (RP30-121xxE, RP30-2405SE, RP30-2405SE-HC, RP30-241xxE, RP30-243.3SE)
- RP30-F (RP30-xxxF)
- RP30-EW (RP30-2405SEW, RP30-241xxEW, RP30-243.3SEW, RP30-243.3SEW/N, RP30-48xxSEW)
- RP30-FW (RP30-xxxFW)
- RPA30-AW (RPA30-24xxx)
- RPM30-EW (RPM30-2405SEW)
- RPP30-W (RPP30-2412SW)
- REC30K (REC30K-xxx)
Protection:
- over current OCP (RPA30-24xxx)
- undervoltage UVP (REM30-xxxW, REC30-xxx, RP30-xxx, RPA30-24xxx)
- anti-overload OLP (REC30K-xxx)
- anti-overload OPP (REM30-xxxW, REC30-xxx, RP30-xxx, RPP30-2412SW)
- anti-overvoltage OVP (RExxx, RP30-xxx, RPA30-24xxx, RPP30-2412SW)
- short circuit protection SCP (RExxx, RP30-xxx, RPA30-24xxx)
- against reverse polarity (RPM30-2405SEW)
- overheating OTP (REM30-xxxW, RP30-xxx, RPA30-24xxx, RPP30-2412SW)
Operating temperature:
- -40...62°C (RP30-xxxFW)
- -40...70°C (RP30-121xxE, RP30-2405SExxx, RP30-2412DE, RP30-2412DEW, RP30-2412SE, RP30-2412SEW, RP30-2415DE, RP30-2415DEW, RP30-2415SEW, RP30-243.3SExxx, RP30-48xxSEW)
- -40...74°C (RP30-xxxF)
- -40...85°C (REC30-xxx)
- -40...105°C (REM30-xxxW, REC30K-xxx, RPA30-24xxx)
Body dim.:
- 25.4x25.4x10.2mm (RPA30-24xxx, REC30K-xxx)
- 50.8x25.4x10.2mm (REM30-xxxW, RP30-2405DF, RP30-2405SF, RP30-2405SFW, RP30-2412DFW, RP30-2412SF, RP30-2412SFW, RP30-2415DF, RP30-2415DFW, RP30-2415SF, RP30-2415SFW, RP30-243.3SF, RP30-4805SFW, RP30-4812SF, RP30-4812SFW, RP30-4815SFW)
- 50.8x30.5x12.7mm (RPP30-2412SW)
- 50.8x40.6x10.2mm (REC30-xxx, RP30-121xxE, RP30-2405SE, RP30-2405SEW, RP30-2412DE, RP30-2412DEW, RP30-2412SE, RP30-2412SEW, RP30-2415DE, RP30-2415DEW, RP30-2415SEW, RP30-243.3SExxx, RP30-48xxSEW)
- 56.8x40.6x17mm (RP30-2405SE-HC)
- 101.6x57.15x19mm (RPM30-2405SEW)

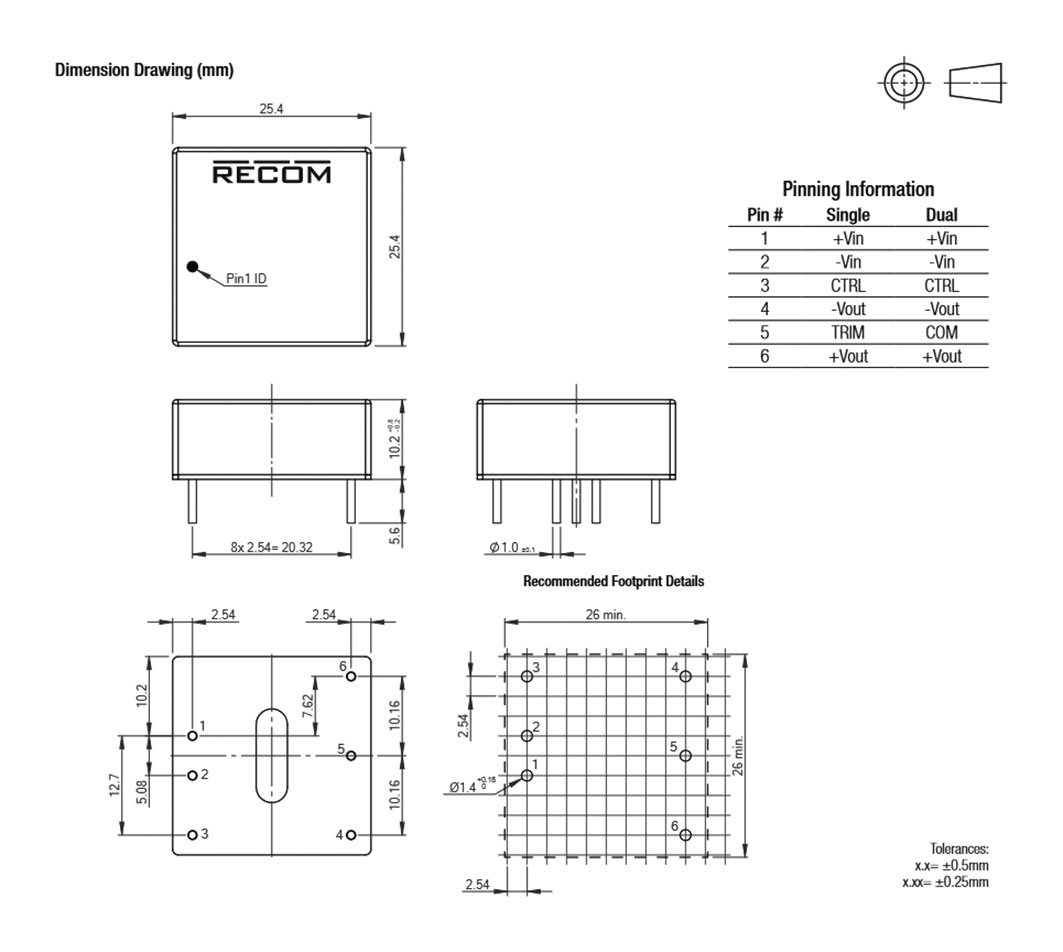

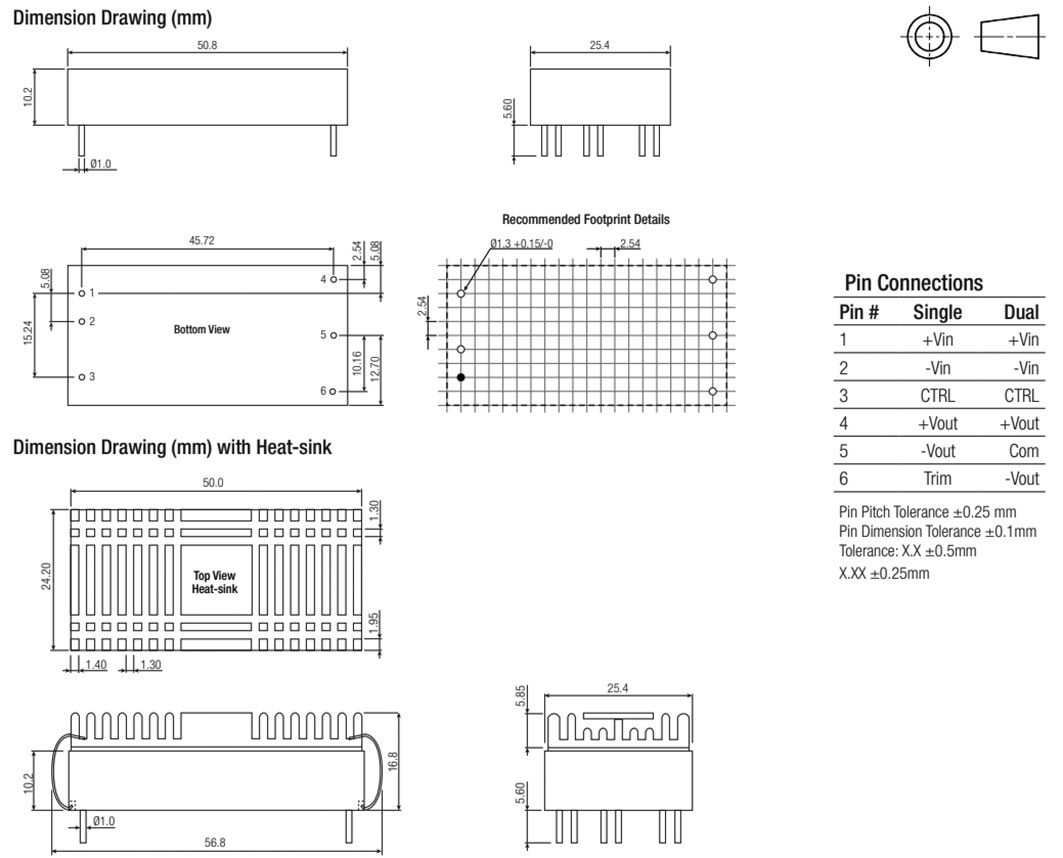

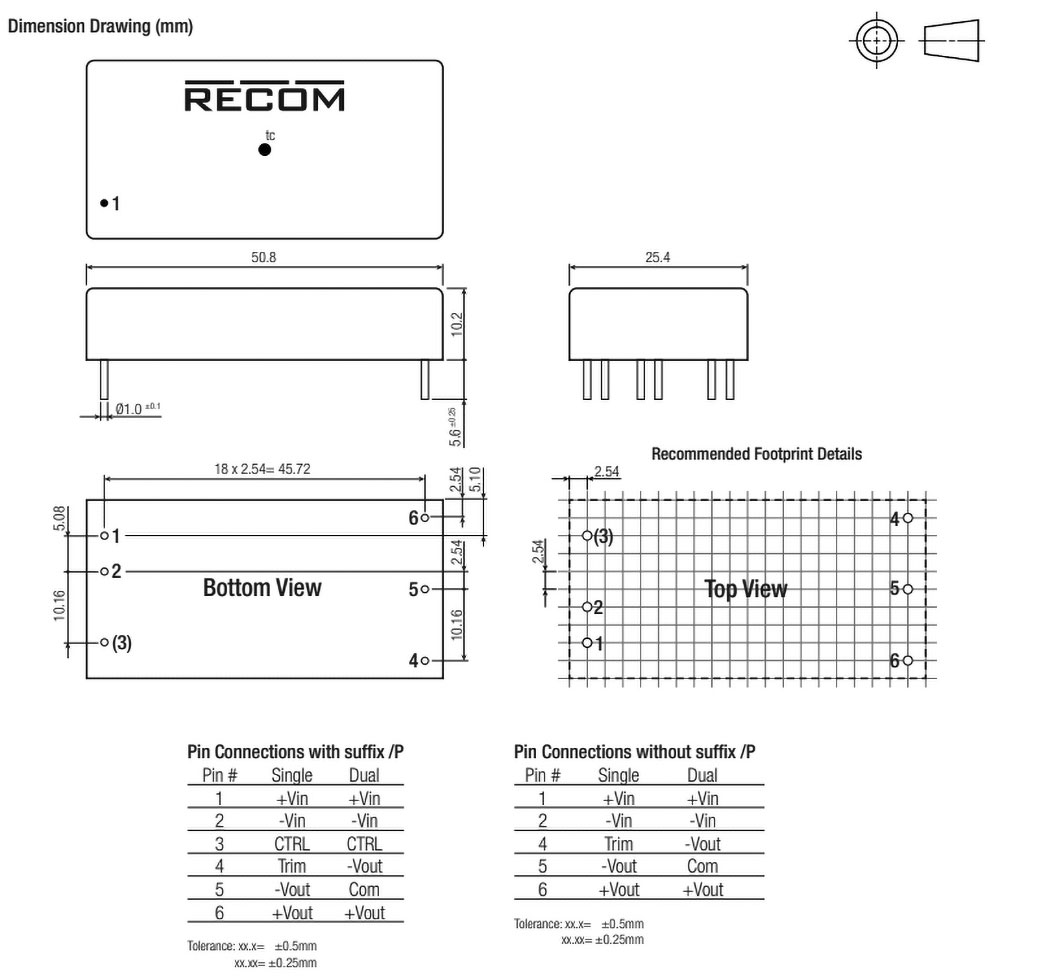

Dimensions:
- Fig. 1. (REM30-xxxW)

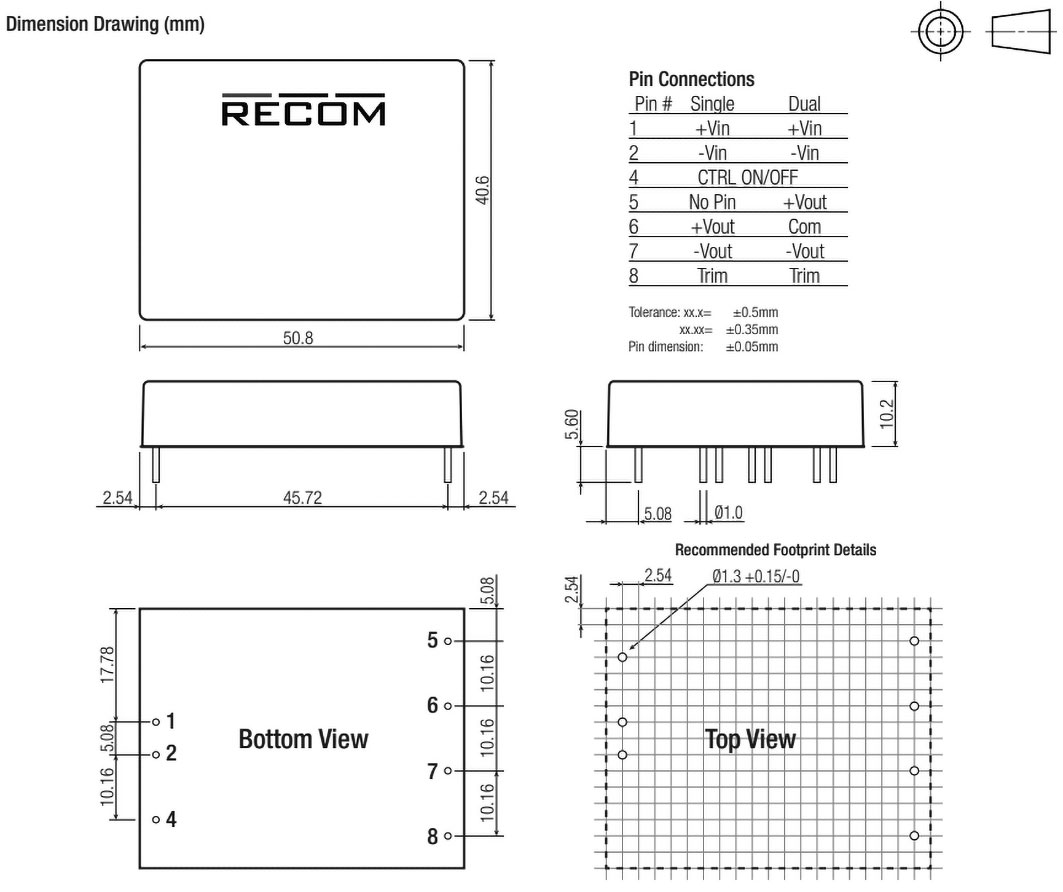

- Fig. 2. (REC30-2412S, REC30-2415D, REC30-243.4S, REC30-245.1S)

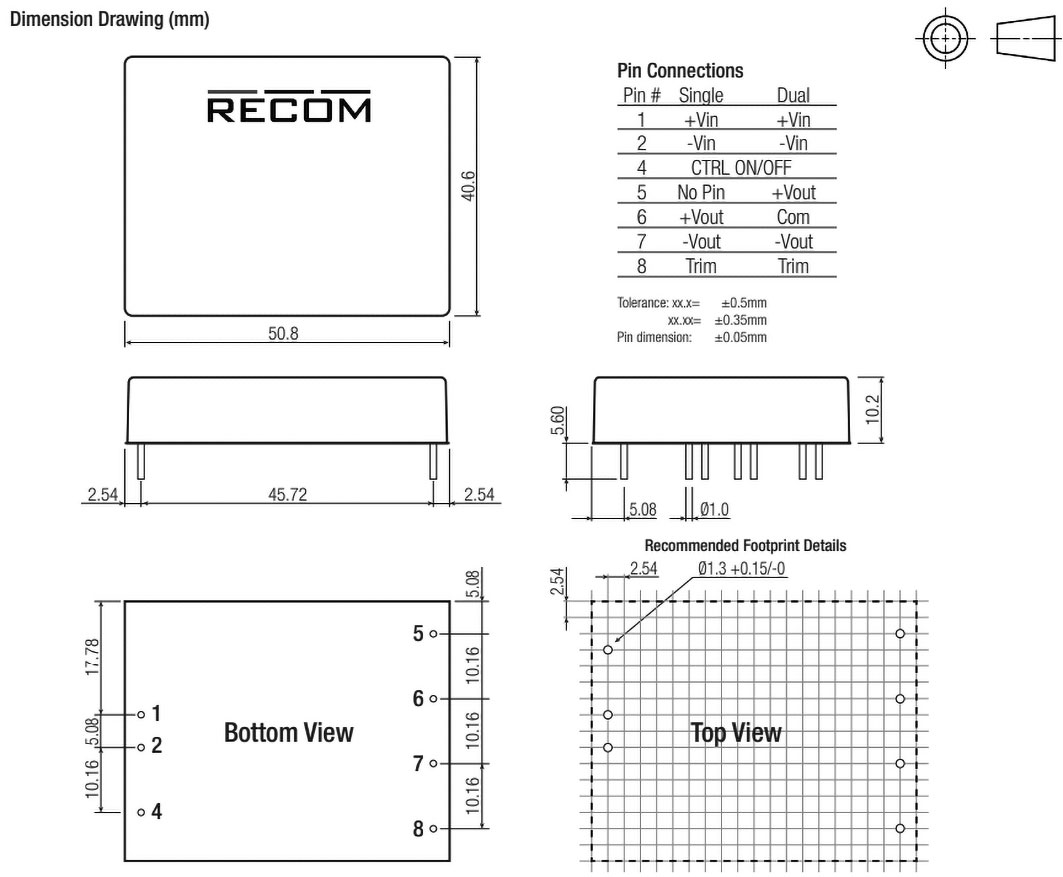

- Fig. 3. (REC30-xxxZ)

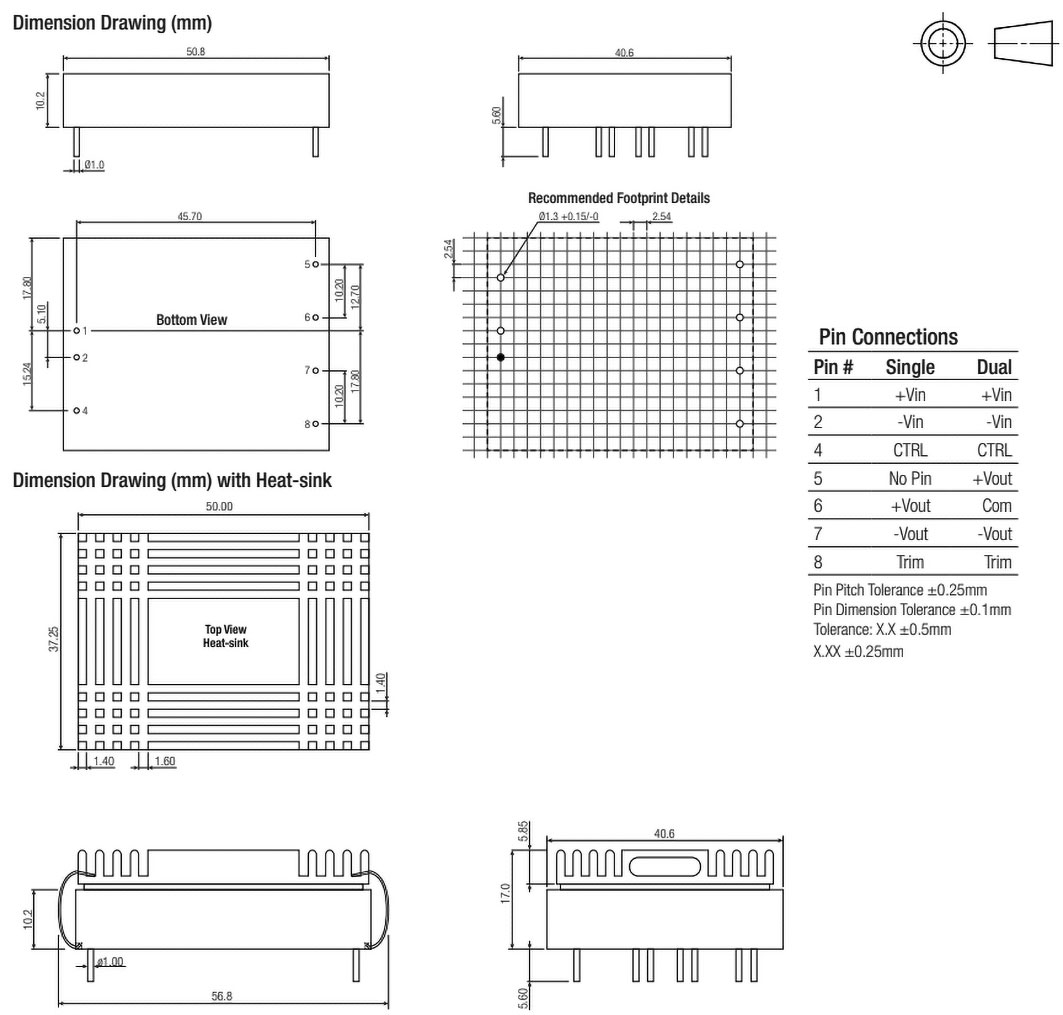

- Fig. 4. (RP30-121xxE, RP30-2405SE, RP30-2405SE-HC, RP30-241xxE, RP30-243.3SE)

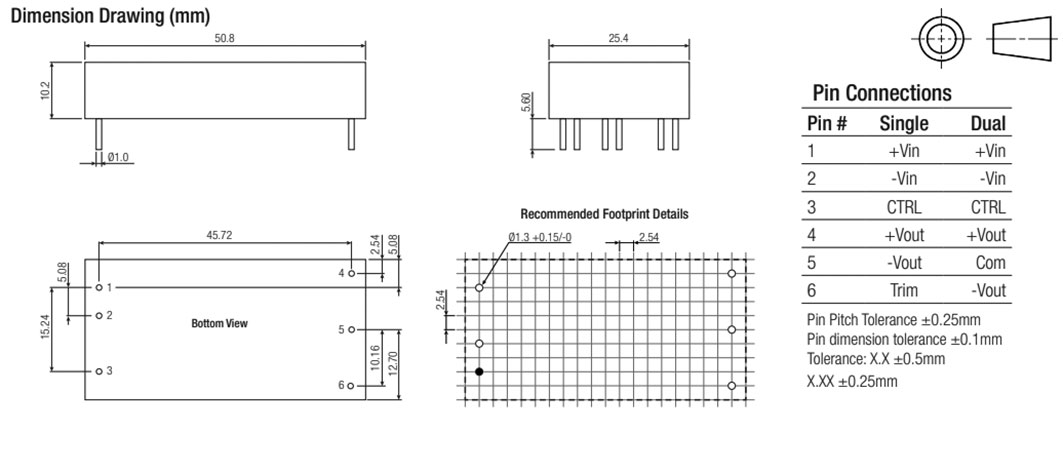

- Fig. 5. (RP30-xxxF)

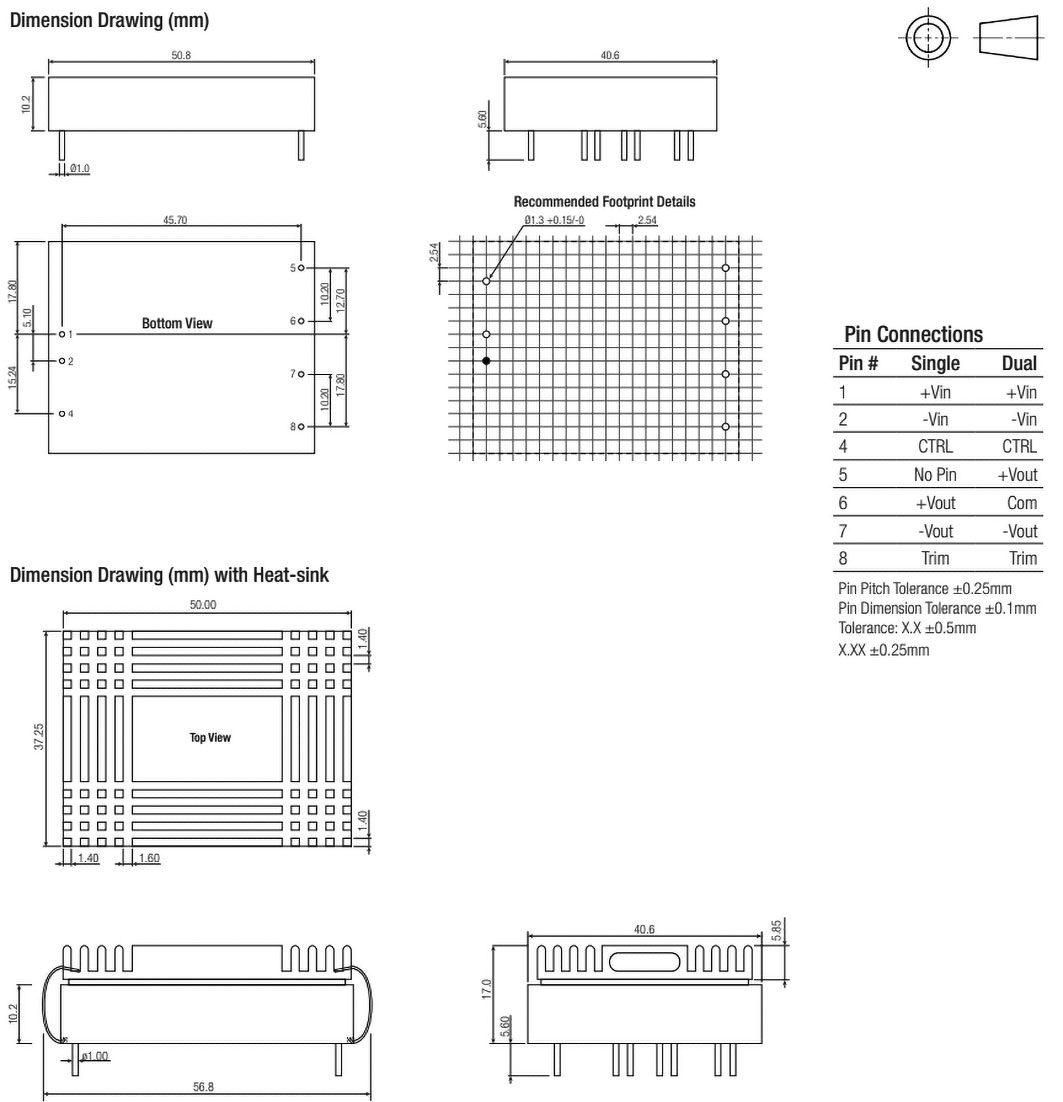

- Fig. 6. (RP30-2405SEW, RP30-241xxEW, RP30-243.3SEW, RP30-243.3SEW/N, RP30-48xxSEW)
- Fig. 7. (RP30-xxxFW)

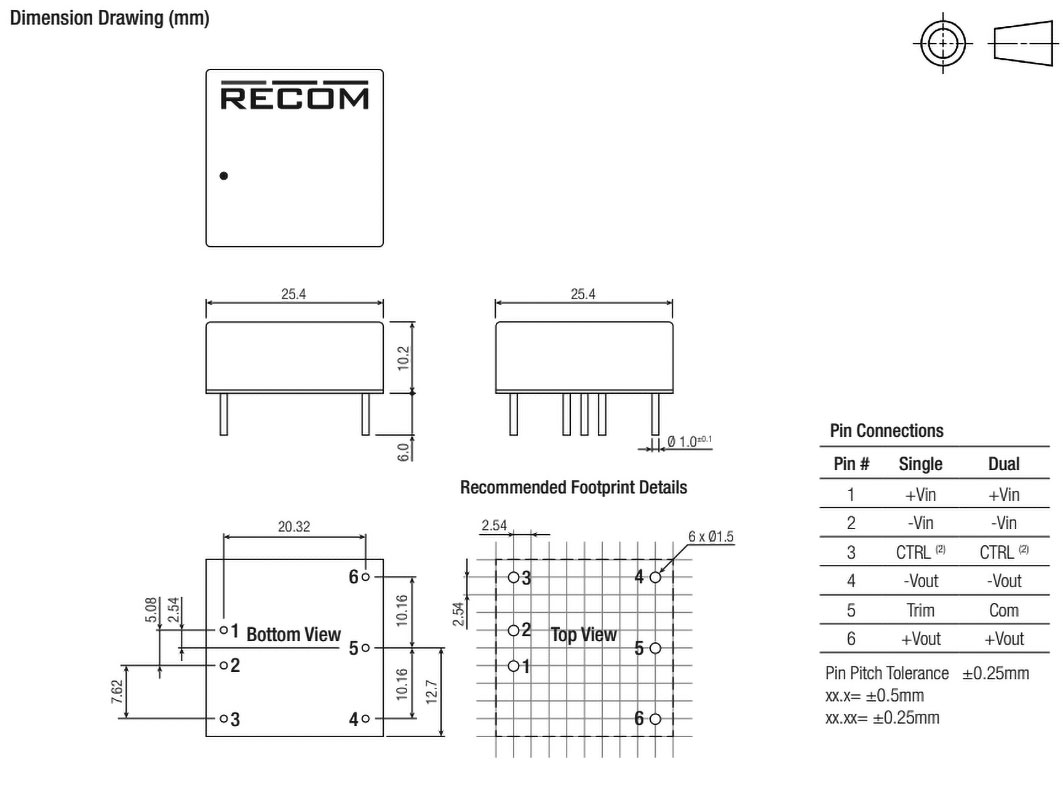

- Fig. 8. (RPA30-24xxx)

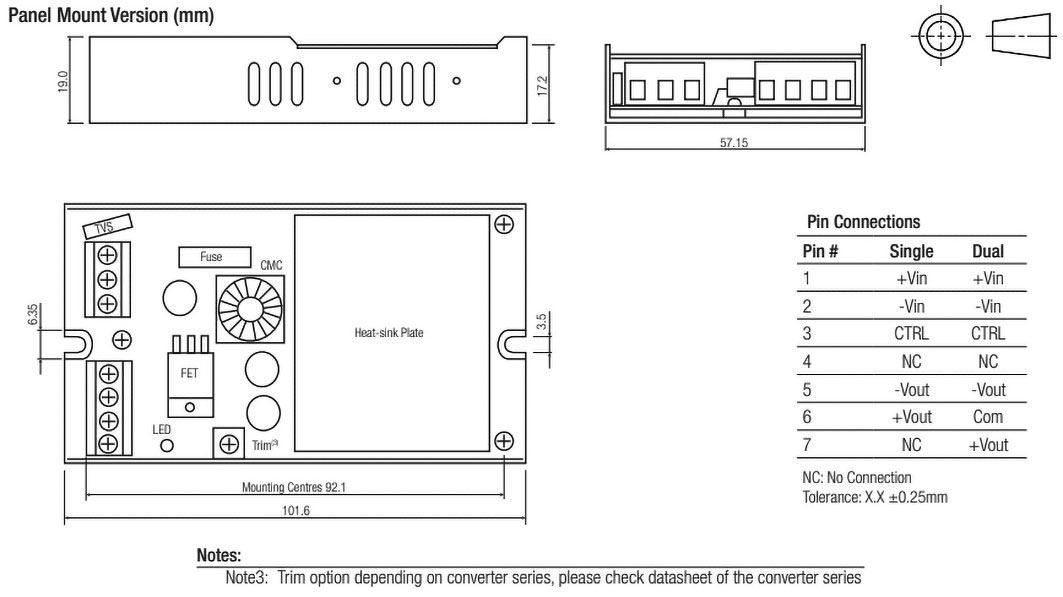

- Fig. 9. (RPM30-2405SEW)

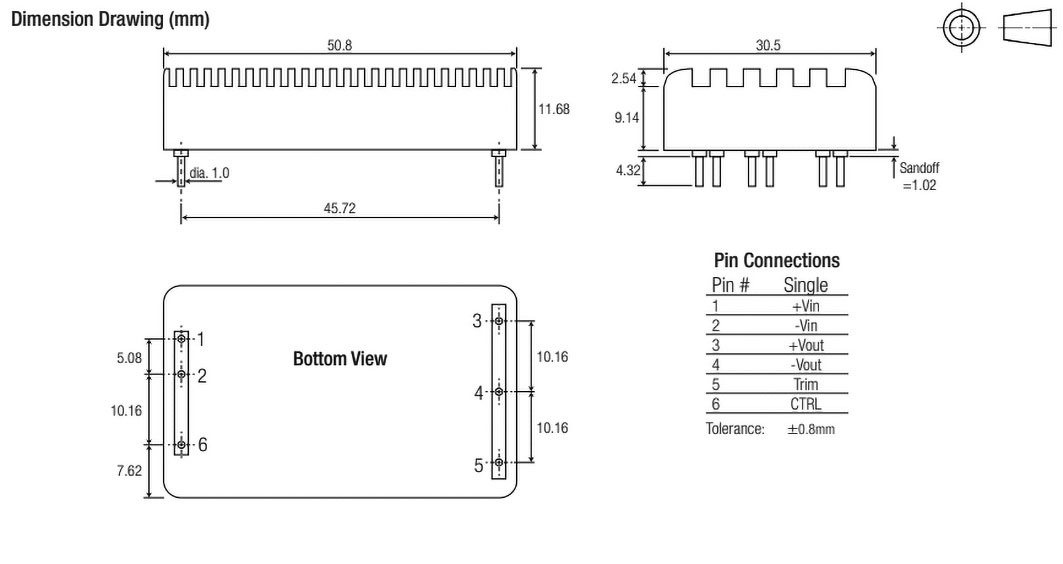

- Fig. 10. (RPP30-2412SW)
- Fig. 11. (REC30K-xxx)
Number of outputs:
- 1 (REM30-xxxSW, REC30-2412S, REC30-2412SZ, REC30-2415SZ, REC30-243.4S, REC30-245.1S, REC30-245.1SZ, REC30-4812SZ, REC30K-483.3S, REC30K-483.3SZ, REC30K-4805S, REC30K-4805SZ, REC30K-4809S, REC30K-4809SZ, REC30K-4812S, REC30K-4812SZ, REC30K-4815S, REC30K-4815SZ, REC30K-4824S, REC30K-4824SZ, REC30K-24xxxSZ, RP30-1212SE, RP30-1215SE, RP30-2405Sxxx, RP30-2412Sxx, RP30-2415Sxx, RP30-243.3Sxxx, RP30-48xxx, RPA30-2405SAWxx, RPA30-2412SAWxx, RPA30-2415SAW/N, RPA30-2415SAW/P, RPA30-243.3SAW/P, RPM30-2405SEW, RPP30-2412SW)
- 2 (REM30-2415DW, REM30-4815DW, REC30-2415D, REC30-2415DZ, REC30K-4805D, REC30K-4805DZ, REC30K-4812D, REC30K-4812DZ, REC30K-4815D, REC30K-4815DZ, REC30K-24xxDZ, RP30-1215DE, RP30-2405DF, RP30-2412Dxx, RP30-2415Dxx, RPA30-2412DAW, RPA30-2412DAW/P, RPA30-2415DAW, RPA30-2415DAW/P)
Mounting:
- on panel (RPM30-2405SEW)
- THT (REM30-xxxW, REC30-xxx, REC30K-483.3S, REC30K-483.3SZ, REC30K-480xxx, REC30K-481xxx, REC30K-4824S, REC30K-24xxxZ, RP30-xxx, RPA30-24xxx, RPP30-2412SW)
Dimensions:
- 2"x1" (REM30-xxxW, RP30-2405DF, RP30-2405SF, RP30-2405SFW, RP30-2412DFW, RP30-2412SF, RP30-2412SFW, RP30-2415DF, RP30-2415DFW, RP30-2415SF, RP30-2415SFW, RP30-243.3SF, RP30-4805SFW, RP30-4812SF, RP30-4812SFW, RP30-4815SFW)
- 2"x1.6" (REC30-xxx, RP30-121xxE, RP30-2405SExxx, RP30-2412DE, RP30-2412DEW, RP30-2412SE, RP30-2412SEW, RP30-2415DE, RP30-2415DEW, RP30-2415SEW, RP30-243.3SExxx, RP30-48xxSEW)
- 1"x1" (RPA30-24xxx, REC30K-xxx)
- 2"x1.2" (RPP30-2412SW)
