Converter; DC/DC; RECOM
| Manufacturer | RECOM |
| Application | LED |
| Symbol | Type of power supply accessories | Additional functions | Manufacturer series | Mounting | Protection | Dimensions | Uin | Iout | Uout | Efficiency | Operating temperature | Body dim. | Number of outputs | Application - series/manufacturer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [V DC] | [mA] | [V DC] | [%] | [°C] | [mm] | |||||||||

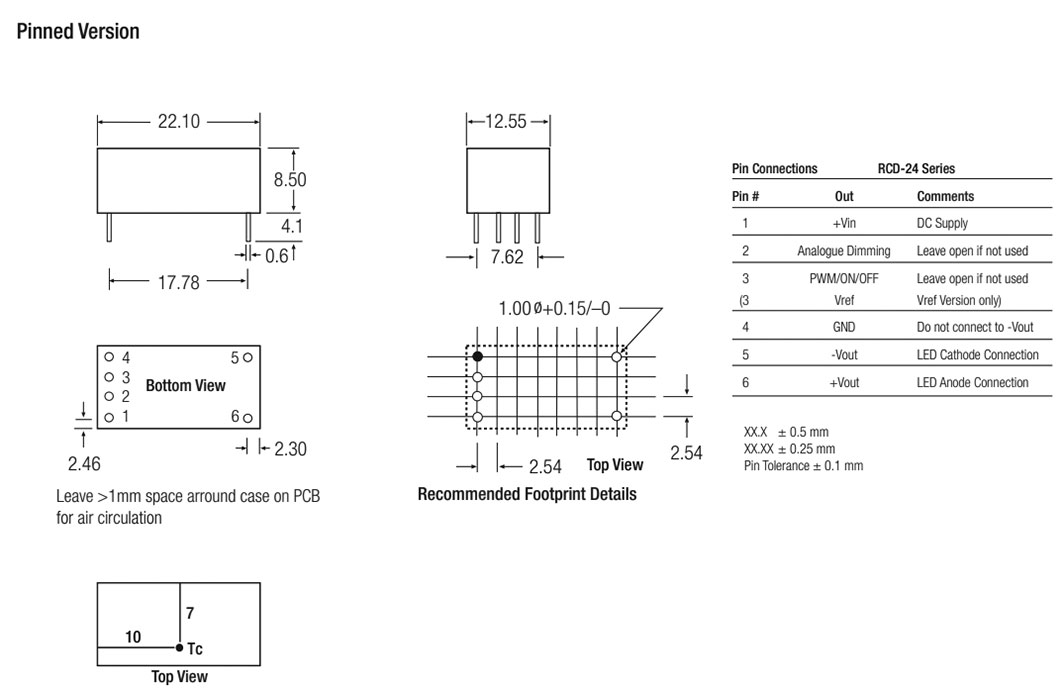

| RCD-24-0.30 | - | - | RCD-24 | PCB | short circuit protection SCP | Fig. 1. | 4.5...36 | 300 | 2...35 | 96 | -40...85 | 22.1x12.6x8.5 | 1 | - |
| RCD-24-0.30/VREF | - | - | RCD-24 | PCB | short circuit protection SCP | Fig. 1. | 4.5...36 | 300 | 2...35 | 96 | -40...85 | 22.1x12.6x8.5 | 1 | - |

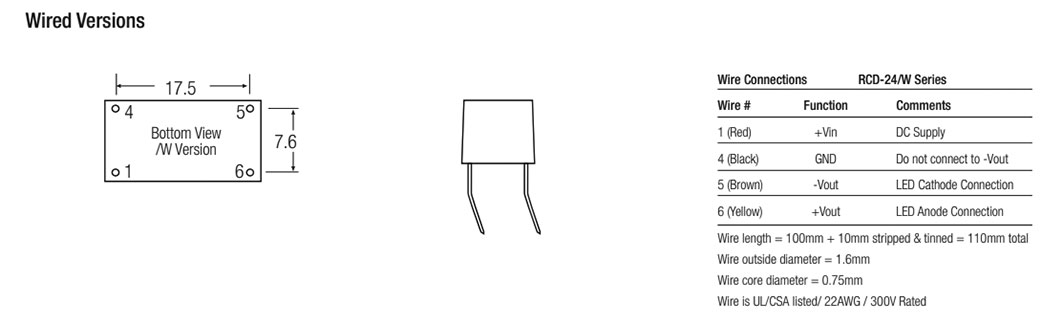

| RCD-24-0.30/W | - | - | RCD-24 | cables | short circuit protection SCP | Fig. 2. | 4.5...36 | 300 | 2...35 | 96 | -40...85 | 22.1x12.6x8.5 | 1 | - |

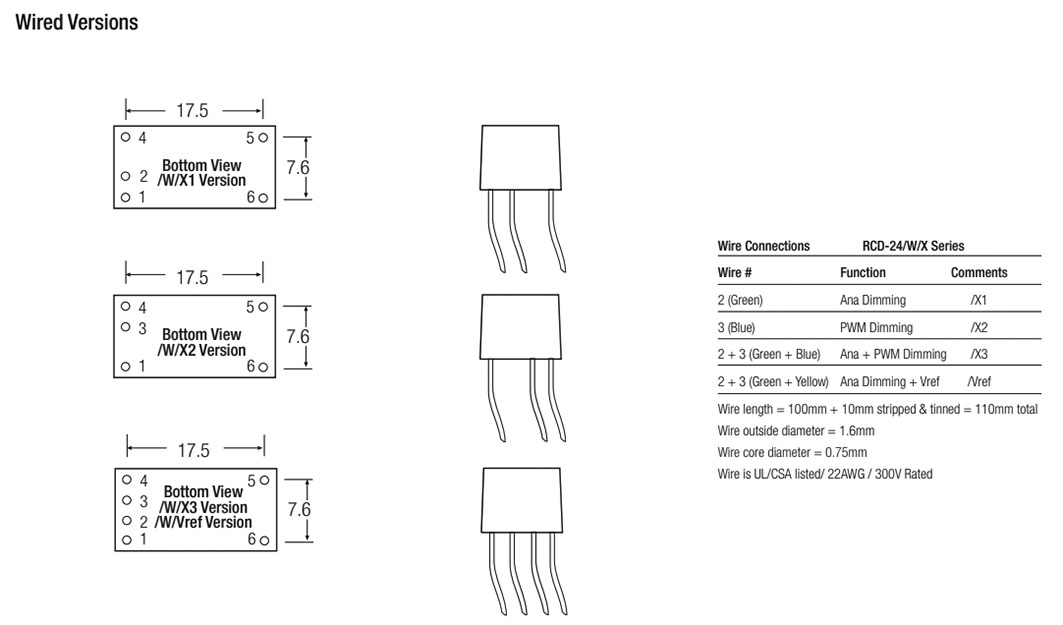

| RCD-24-0.30/W/X3 | - | PWM controlled dimming function | RCD-24 | cables | short circuit protection SCP | Fig. 3. | 4.5...36 | 300 | 2...35 | 96 | -40...85 | 22.1x12.6x8.5 | 1 | - |
| RCD-24-0.30/W/VREF | - | - | RCD-24 | cables | short circuit protection SCP | Fig. 3. | 4.5...36 | 300 | 2...35 | 96 | -40...85 | 22.1x12.6x8.5 | 1 | - |

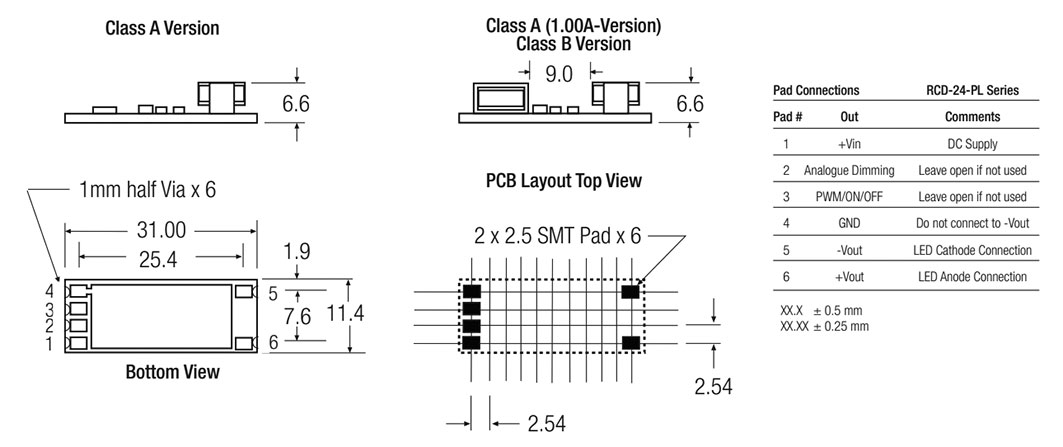

| RCD-24-0.30/PL/A | - | PWM controlled dimming function | RCD-24/PL | SMT | short circuit protection SCP | Fig. 4. | 4.5...36 | 300 | 2...35 | 96 | -40...85 | 31x11.4x6.6 | 1 | - |
| RCD-24-0.30/PL/B | - | PWM controlled dimming function | RCD-24/PL | SMT | short circuit protection SCP | Fig. 4. | 4.5...36 | 300 | 2...35 | 96 | -40...85 | 31x11.4x6.6 | 1 | - |
| RCD-24-0.35 | - | - | RCD-24 | PCB | short circuit protection SCP | Fig. 1. | 4.5...36 | 350 | 2...35 | 96 | -40...85 | 22.1x12.6x8.5 | 1 | - |
| RCD-24-0.35/VREF | - | - | RCD-24 | PCB | short circuit protection SCP | Fig. 1. | 4.5...36 | 350 | 2...35 | 96 | -40...85 | 22.1x12.6x8.5 | 1 | - |
| RCD-24-0.35/W | - | - | RCD-24 | cables | short circuit protection SCP | Fig. 2. | 4.5...36 | 350 | 2...35 | 96 | -40...85 | 22.1x12.6x8.5 | 1 | - |
| RCD-24-0.35/W/X1 | - | - | RCD-24 | cables | short circuit protection SCP | Fig. 3. | 4.5...36 | 350 | 2...35 | 96 | -40...85 | 22.1x12.6x8.5 | 1 | - |
| RCD-24-0.35/W/X2 | - | PWM controlled dimming function | RCD-24 | cables | short circuit protection SCP | Fig. 3. | 4.5...36 | 350 | 2...35 | 96 | -40...85 | 22.1x12.6x8.5 | 1 | - |
| RCD-24-0.35/W/X3 | - | PWM controlled dimming function | RCD-24 | cables | short circuit protection SCP | Fig. 3. | 4.5...36 | 350 | 2...35 | 96 | -40...85 | 22.1x12.6x8.5 | 1 | - |
| RCD-24-0.35/W/VREF | - | - | RCD-24 | cables | short circuit protection SCP | Fig. 3. | 4.5...36 | 350 | 2...35 | 96 | -40...85 | 22.1x12.6x8.5 | 1 | - |
| RCD-24-0.35/PL/A | - | PWM controlled dimming function | RCD-24/PL | SMT | short circuit protection SCP | Fig. 4. | 4.5...36 | 350 | 2...35 | 96 | -40...85 | 31x11.4x6.6 | 1 | - |
| RCD-24-0.35/PL/A-R | - | PWM controlled dimming function | RCD-24/PL | SMT | short circuit protection SCP | Fig. 4. | 4.5...36 | 350 | 2...35 | 96 | -40...85 | 31x11.4x6.6 | 1 | - |
| RCD-24-0.35/PL/B | - | PWM controlled dimming function | RCD-24/PL | SMT | short circuit protection SCP | Fig. 4. | 4.5...36 | 350 | 2...35 | 96 | -40...85 | 31x11.4x6.6 | 1 | - |
| RCD-24-0.50 | - | - | RCD-24 | PCB | short circuit protection SCP | Fig. 1. | 4.5...36 | 500 | 2...35 | 96 | -40...80 | 22.1x12.6x8.5 | 1 | - |
| RCD-24-0.50/VREF | - | - | RCD-24 | PCB | short circuit protection SCP | Fig. 1. | 4.5...36 | 500 | 2...35 | 96 | -40...80 | 22.1x12.6x8.5 | 1 | - |
| RCD-24-0.50/W | - | - | RCD-24 | cables | short circuit protection SCP | Fig. 2. | 4.5...36 | 500 | 2...35 | 96 | -40...80 | 22.1x12.6x8.5 | 1 | - |
| RCD-24-0.50/W/X2 | - | PWM controlled dimming function | RCD-24 | cables | short circuit protection SCP | Fig. 3. | 4.5...36 | 500 | 2...35 | 96 | -40...80 | 22.1x12.6x8.5 | 1 | - |
| RCD-24-0.50/W/X3 | - | PWM controlled dimming function | RCD-24 | cables | short circuit protection SCP | Fig. 3. | 4.5...36 | 500 | 2...35 | 96 | -40...80 | 22.1x12.6x8.5 | 1 | - |
| RCD-24-0.50/W/VREF | - | - | RCD-24 | cables | short circuit protection SCP | Fig. 3. | 4.5...36 | 500 | 2...35 | 96 | -40...80 | 22.1x12.6x8.5 | 1 | - |
| RCD-24-0.50/PL/A | - | PWM controlled dimming function | RCD-24/PL | SMT | short circuit protection SCP | Fig. 4. | 4.5...36 | 500 | 2...35 | 96 | -40...80 | 31x11.4x6.6 | 1 | - |
| RCD-24-0.50/PL/B | - | PWM controlled dimming function | RCD-24/PL | SMT | short circuit protection SCP | Fig. 4. | 4.5...36 | 500 | 2...35 | 96 | -40...80 | 31x11.4x6.6 | 1 | - |
| RCD-24-0.60 | - | - | RCD-24 | PCB | short circuit protection SCP | Fig. 1. | 4.5...36 | 600 | 2...35 | 96 | -40...75 | 22.1x12.6x8.5 | 1 | - |
| RCD-24-0.60/VREF | - | - | RCD-24 | PCB | short circuit protection SCP | Fig. 1. | 4.5...36 | 600 | 2...35 | 96 | -40...75 | 22.1x12.6x8.5 | 1 | - |
| RCD-24-0.60/W | - | - | RCD-24 | cables | short circuit protection SCP | Fig. 2. | 4.5...36 | 600 | 2...35 | 96 | -40...75 | 22.1x12.6x8.5 | 1 | - |
| RCD-24-0.60/W/X3 | - | PWM controlled dimming function | RCD-24 | cables | short circuit protection SCP | Fig. 3. | 4.5...36 | 600 | 2...35 | 96 | -40...75 | 22.1x12.6x8.5 | 1 | - |
| RCD-24-0.60/W/VREF | - | - | RCD-24 | cables | short circuit protection SCP | Fig. 3. | 4.5...36 | 600 | 2...35 | 96 | -40...75 | 22.1x12.6x8.5 | 1 | - |
| RCD-24-0.60/PL/A | - | PWM controlled dimming function | RCD-24/PL | SMT | short circuit protection SCP | Fig. 4. | 4.5...36 | 600 | 2...35 | 96 | -40...75 | 31x11.4x6.6 | 1 | - |
| RCD-24-0.60/PL/B | - | PWM controlled dimming function | RCD-24/PL | SMT | short circuit protection SCP | Fig. 4. | 4.5...36 | 600 | 2...35 | 96 | -40...75 | 31x11.4x6.6 | 1 | - |
| RCD-24-0.70 | - | - | RCD-24 | PCB | short circuit protection SCP | Fig. 1. | 4.5...36 | 700 | 2...35 | 96 | -40...71 | 22.1x12.6x8.5 | 1 | - |
| RCD-24-0.70/VREF | - | - | RCD-24 | PCB | short circuit protection SCP | Fig. 1. | 4.5...36 | 700 | 2...35 | 96 | -40...71 | 22.1x12.6x8.5 | 1 | - |
| RCD-24-0.70/W | - | - | RCD-24 | cables | short circuit protection SCP | Fig. 2. | 4.5...36 | 700 | 2...35 | 96 | -40...71 | 22.1x12.6x8.5 | 1 | - |
| RCD-24-0.70/W/X1 | - | - | RCD-24 | cables | short circuit protection SCP | Fig. 3. | 4.5...36 | 700 | 2...35 | 96 | -40...71 | 22.1x12.6x8.5 | 1 | - |
| RCD-24-0.70/W/X2 | - | PWM controlled dimming function | RCD-24 | cables | short circuit protection SCP | Fig. 3. | 4.5...36 | 700 | 2...35 | 96 | -40...71 | 22.1x12.6x8.5 | 1 | - |
| RCD-24-0.70/W/X3 | - | PWM controlled dimming function | RCD-24 | cables | short circuit protection SCP | Fig. 3. | 4.5...36 | 700 | 2...35 | 96 | -40...71 | 22.1x12.6x8.5 | 1 | - |
| RCD-24-0.70/W/VREF | - | - | RCD-24 | cables | short circuit protection SCP | Fig. 3. | 4.5...36 | 700 | 2...35 | 96 | -40...71 | 22.1x12.6x8.5 | 1 | - |
| RCD-24-0.70/PL/A | - | PWM controlled dimming function | RCD-24/PL | SMT | short circuit protection SCP | Fig. 4. | 4.5...36 | 700 | 2...35 | 96 | -40...75 | 31x11.4x6.6 | 1 | - |
| RCD-24-0.70/PL/A-R | - | PWM controlled dimming function | RCD-24/PL | SMT | short circuit protection SCP | Fig. 4. | 4.5...36 | 700 | 2...35 | 96 | -40...75 | 31x11.4x6.6 | 1 | - |
| RCD-24-0.70/PL/B | - | PWM controlled dimming function | RCD-24/PL | SMT | short circuit protection SCP | Fig. 4. | 4.5...36 | 700 | 2...35 | 96 | -40...75 | 31x11.4x6.6 | 1 | - |
| RCD-24-1.00 | - | - | RCD-24 | PCB | short circuit protection SCP | Fig. 1. | 6...36 | 1000 | 3...31 | 96 | -40...71 | 22.1x12.6x8.5 | 1 | - |
| RCD-24-1.00/W/X1 | - | - | RCD-24 | cables | short circuit protection SCP | Fig. 3. | 6...36 | 1000 | 3...31 | 96 | -40...71 | 22.1x12.6x8.5 | 1 | - |
| RCD-24-1.00/W/X2 | - | PWM controlled dimming function | RCD-24 | cables | short circuit protection SCP | Fig. 3. | 6...36 | 1000 | 3...31 | 96 | -40...71 | 22.1x12.6x8.5 | 1 | - |
| RCD-24-1.00/W/X3 | - | PWM controlled dimming function | RCD-24 | cables | short circuit protection SCP | Fig. 3. | 6...36 | 1000 | 3...31 | 96 | -40...71 | 22.1x12.6x8.5 | 1 | - |
| RCD-24-1.00/PL/A | - | PWM controlled dimming function | RCD-24/PL | SMT | short circuit protection SCP | Fig. 4. | 6...36 | 1000 | 2...32 | 94 | -40...65 | 31x11.4x6.6 | 1 | - |
| RCD-24-1.00/PL/A-R | - | PWM controlled dimming function | RCD-24/PL | SMT | short circuit protection SCP | Fig. 4. | 6...36 | 1000 | 2...32 | 94 | -40...65 | 31x11.4x6.6 | 1 | - |
| RCD-24-1.20 | - | - | RCD-24 | PCB | short circuit protection SCP | Fig. 1. | 6...36 | 1200 | 3...31 | 96 | -40...65 | 22.1x12.6x8.5 | 1 | - |
| RCD-24-1.20/W | - | - | RCD-24 | cables | short circuit protection SCP | Fig. 2. | 6...36 | 1200 | 3...31 | 96 | -40...65 | 22.1x12.6x8.5 | 1 | - |
| RCD-24-1.20/W/X1 | - | - | RCD-24 | cables | short circuit protection SCP | Fig. 3. | 6...36 | 1200 | 3...31 | 96 | -40...65 | 22.1x12.6x8.5 | 1 | - |
| RCD-24-1.20/W/X3 | - | PWM controlled dimming function | RCD-24 | cables | short circuit protection SCP | Fig. 3. | 6...36 | 1200 | 3...31 | 96 | -40...65 | 22.1x12.6x8.5 | 1 | - |

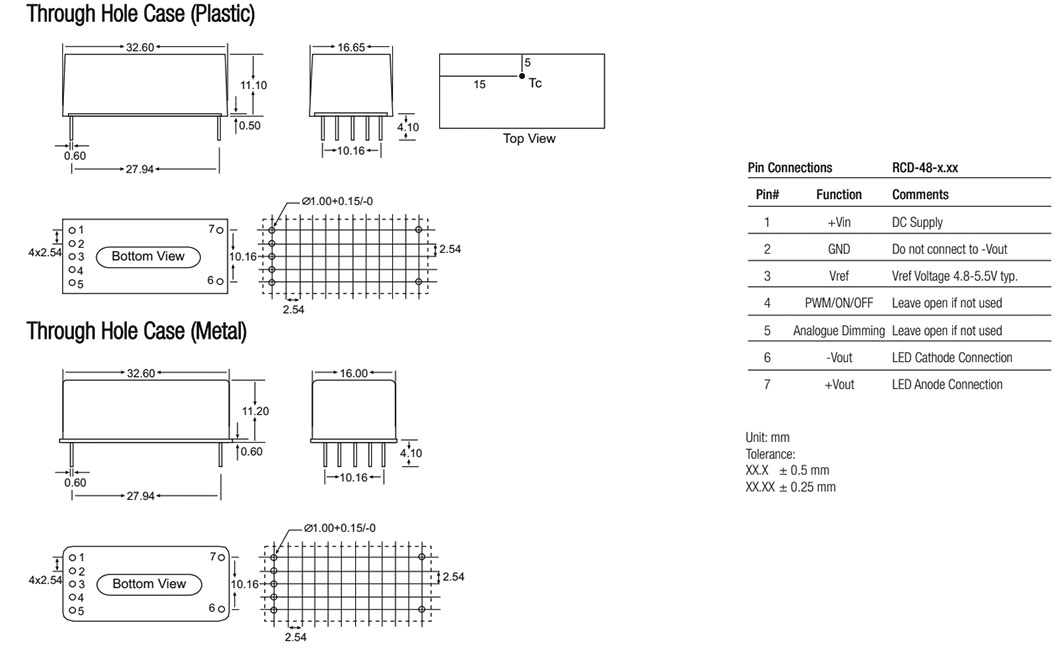

| RCD-48-0.35 | - | PWM controlled dimming function | RCD-48 | PCB | short circuit protection SCP | Fig. 5. | 9...60 | 350 | 2...56 | 96 | -40...80 | 32.6x16.65x11.1 | 1 | - |

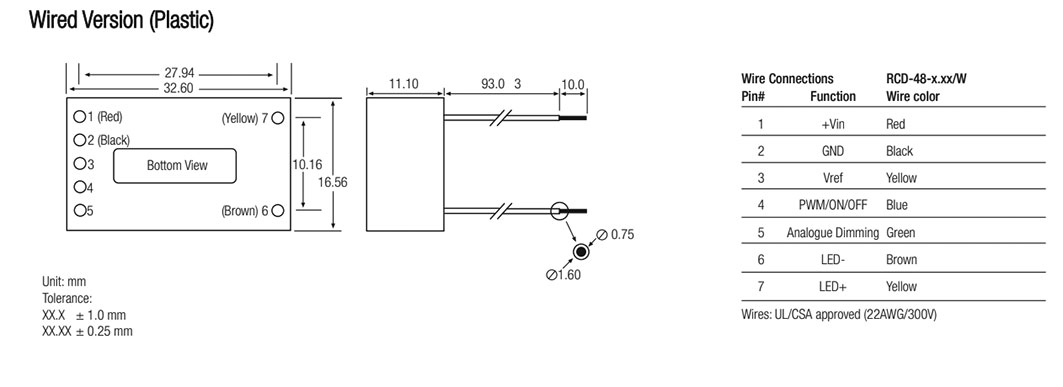

| RCD-48-0.35/W | - | PWM controlled dimming function | RCD-48 | cables | short circuit protection SCP | Fig. 6. | 9...60 | 350 | 2...56 | 96 | -40...80 | 32.6x16.65x11.1 | 1 | - |
| RCD-48-0.50 | - | PWM controlled dimming function | RCD-48 | PCB | short circuit protection SCP | Fig. 5. | 9...60 | 500 | 2...56 | 96 | -40...80 | 32.6x16.65x11.1 | 1 | - |
| RCD-48-0.50/W | - | PWM controlled dimming function | RCD-48 | cables | short circuit protection SCP | Fig. 6. | 9...60 | 500 | 2...56 | 96 | -40...80 | 32.6x16.65x11.1 | 1 | - |
| RCD-48-0.70 | - | PWM controlled dimming function | RCD-48 | PCB | short circuit protection SCP | Fig. 5. | 9...60 | 700 | 2...56 | 96 | -40...75 | 32.6x16.65x11.1 | 1 | - |
| RCD-48-0.70/W | - | PWM controlled dimming function | RCD-48 | cables | short circuit protection SCP | Fig. 6. | 9...60 | 700 | 2...56 | 96 | -40...75 | 32.6x16.65x11.1 | 1 | - |
| RCD-48-1.00 | - | PWM controlled dimming function | RCD-48 | PCB | short circuit protection SCP | Fig. 5. | 9...60 | 1000 | 2...56 | 96 | -40...60 | 32.6x16.65x11.1 | 1 | - |
| RCD-48-1.00/W | - | PWM controlled dimming function | RCD-48 | cables | short circuit protection SCP | Fig. 6. | 9...60 | 1000 | 2...56 | 96 | -40...60 | 32.6x16.65x11.1 | 1 | - |
| RCD-48-1.20/M | - | PWM controlled dimming function | RCD-48 | PCB | short circuit protection SCP | Fig. 5. | 9...60 | 1200 | 2...56 | 96 | -40...50 | 32.6x16x11.2 | 1 | - |
| RPY-1.5Q-CT | - | PWM controlled dimming function | RPY-1.5Q | PCB | over current OCP, short circuit protection SCP, overheating OTP | - | 4...36 | 1500 | 800m...34.8 | - | -40...125 | 3x5x1.6 | 1 | - |
| RPY-1.5Q-R | - | PWM controlled dimming function | RPY-1.5Q | PCB | over current OCP, short circuit protection SCP, overheating OTP | - | 4...36 | 1500 | 800m...34.8 | - | -40...125 | 3x5x1.6 | 1 | - |
| RPY-1.5Q-EVM-1 | extension module | PWM controlled dimming function | - | - | - | - | 4...36 | 1500 | 800m...34.8 | - | - | 85x55x6.5 | - | RPY-1.5Q |
