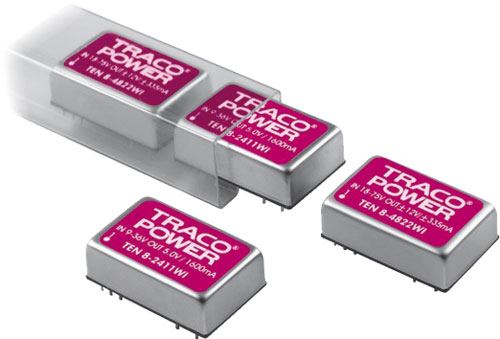

Converter: DC/DC; TRACO POWER
| Manufacturer | TRACO POWER |
| Symbol | Power | Uinsul | Uin | Iout | Uout2 | Iout2 | Efficiency |
|---|---|---|---|---|---|---|---|
| [W] | [V DC] | [V DC] | [mA] | [V DC] | [mA] | [%] | |
| TEN3-2410WI | 3 | 1500 | 9...36 | 750 | - | - | 75 |
| TEN3-2411WI | 3 | 1500 | 9...36 | 600 | - | - | 79 |
| TEN3-2412WI | 3 | 1500 | 9...36 | 250 | - | - | 81 |
| TEN3-2413WI | 3 | 1500 | 9...36 | 200 | - | - | 82 |
| TEN3-2422WI | 3 | 1500 | 9...36 | 125 | -12 | 125 | 80 |
| TEN3-2423WI | 3 | 1500 | 9...36 | 100 | -15 | 100 | 80 |
| TEN3-4810WI | 3 | 1500 | 18...75 | 750 | - | - | 76 |
| TEN3-4811WI | 3 | 1500 | 18...75 | 600 | - | - | 80 |
| TEN3-4812WI | 3 | 1500 | 18...75 | 250 | - | - | 83 |
| TEN3-4813WI | 3 | 1500 | 18...75 | 200 | - | - | 84 |
| TEN3-4822WI | 3 | 1500 | 18...75 | 125 | -12 | 125 | 82 |
| TEN3-4823WI | 3 | 1500 | 18...75 | 100 | -15 | 100 | 82 |
| TEN5-2410WI | 5 | 1500 | 9...36 | 1200 | - | - | 75 |
| TEN5-2411WI | 5 | 1500 | 9...36 | 1000 | - | - | 78 |
| TEN5-2412WI | 5 | 1500 | 9...36 | 500 | - | - | 83 |
| TEN5-2413WI | 5 | 1500 | 9...36 | 400 | - | - | 82 |
| TEN5-2422WI | 5 | 1500 | 9...36 | 250 | -12 | 250 | 83 |
| TEN5-2423WI | 5 | 1500 | 9...36 | 200 | -15 | 200 | 82 |
| TEN5-4810WI | 5 | 1500 | 18...75 | 1200 | - | - | 75 |
| TEN5-4811WI | 5 | 1500 | 18...75 | 1000 | - | - | 78 |
| TEN5-4812WI | 5 | 1500 | 18...75 | 500 | - | - | 83 |
| TEN5-4813WI | 5 | 1500 | 18...75 | 400 | - | - | 82 |
| TEN5-4821WI | 5 | 1500 | 18...75 | 500 | -5 | 500 | 78 |
| TEN5-4822WI | 5 | 1500 | 18...75 | 250 | -12 | 250 | 83 |
| TEN8-2410WI | 8 | 1500 | 9...36 | 2400 | - | - | 85 |
| TEN8-2411WI | 8 | 1500 | 9...36 | 1600 | - | - | 87 |
| TEN8-2412WI | 8 | 1500 | 9...36 | 666 | - | - | 86 |
| TEN8-2413WI | 8 | 1500 | 9...36 | 533 | - | - | 86 |
| TEN8-2421WI | 8 | 1500 | 9...36 | 800 | -5 | 800 | 84 |
| TEN8-2422WI | 8 | 1500 | 9...36 | 333 | -12 | 333 | 86 |
| TEN8-2423WI | 8 | 1500 | 9...36 | 267 | -15 | 267 | 86 |
| TEN8-4810WI | 8 | 1500 | 18...75 | 2400 | - | - | 85 |
| TEN8-4811WI | 8 | 1500 | 18...75 | 1600 | - | - | 87 |
| TEN8-4812WI | 8 | 1500 | 18...75 | 666 | - | - | 87 |
| TEN8-4821WI | 8 | 1500 | 18...75 | 800 | -5 | 800 | 84 |
| TEN8-4822WI | 8 | 1500 | 18...75 | 333 | -12 | 333 | 87 |
| TEN8-4823WI | 8 | 1500 | 18...75 | 267 | -15 | 267 | 87 |
| TEN8-7210WI | 8 | 1500 | 43...160 | 2400 | - | - | 84 |
| TEN8-7211WI | 8 | 1500 | 43...160 | 1600 | - | - | 85 |
| TEN8-7212WI | 8 | 1500 | 43...160 | 666 | - | - | 86 |
| TEN8-7213WI | 8 | 1500 | 43...160 | 533 | - | - | 86 |
| TEN8-7221WI | 8 | 1500 | 43...160 | 800 | -5 | 800 | 82 |
| TEN8-7222WI | 8 | 1500 | 43...160 | 333 | -12 | 333 | 85 |
| TEN8-7223WI | 8 | 1500 | 43...160 | 267 | -15 | 267 | 85 |
| TEN15-2410WI | 15 | 1500 | 9...36 | 3000 | - | - | 78 |
| TEN15-2411WI | 15 | 1500 | 9...36 | 2950 | - | - | 82 |
| TEN15-2412WI | 15 | 1500 | 9...36 | 1250 | - | - | 85 |
| TEN15-2422WI | 15 | 1500 | 9...36 | 625 | -12 | 625 | 85 |
| TEN15-2423WI | 15 | 1500 | 9...36 | 500 | -15 | 500 | 86 |
| TEN15-4810WI | 15 | 1500 | 18...75 | 3000 | - | - | 78 |
| TEN15-4811WI | 15 | 1500 | 18...75 | 2950 | - | - | 82 |
| TEN15-4812WI | 15 | 1500 | 18...75 | 1250 | - | - | 85 |
| TEN15-4822WI | 15 | 1500 | 18...75 | 625 | -12 | 625 | 85 |
| TEN15-4823WI | 15 | 1500 | 18...75 | 500 | -15 | 500 | 86 |
| TEN20-2411WI | 20 | 1500 | 9...36 | 4000 | - | - | 79 |
| TEN20-2412WI | 20 | 1500 | 9...36 | 1670 | - | - | 81 |
| TEN20-2413WI | 20 | 1500 | 9...36 | 1330 | - | - | 81 |
| TEN20-2421WI | 20 | 1500 | 9...36 | 2000 | -5 | 2000 | 79 |
| TEN20-2422WI | 20 | 1500 | 9...36 | 835 | -12 | 835 | 81 |
| TEN20-2423WI | 20 | 1500 | 9...36 | 665 | -15 | 665 | 82 |
| TEN20-4811WI | 20 | 1500 | 18...75 | 4000 | - | - | 80 |
| TEN20-4812WI | 20 | 1500 | 18...75 | 1670 | - | - | 81 |
| TEN20-4813WI | 20 | 1500 | 18...75 | 1330 | - | - | 81 |
| TEN20-4821WI | 20 | 1500 | 18...75 | 2000 | -5 | 2000 | 79 |
| TEN20-4822WI | 20 | 1500 | 18...75 | 835 | -12 | 835 | 83 |
| TEN20-4823WI | 20 | 1500 | 18...75 | 665 | -15 | 665 | 84 |
| TEN25-2410WI | 25 | 1500 | 10...40 | 5500 | - | - | 82 |
| TEN25-2411WI | 25 | 1500 | 10...40 | 5000 | - | - | 85 |
| TEN25-2412WI | 25 | 1500 | 10...40 | 2500 | - | - | 89 |
| TEN25-2413WI | 25 | 1500 | 10...40 | 2000 | - | - | 89 |
| TEN25-2422WI | 25 | 1500 | 10...40 | 1250 | -12 | 1250 | 89 |
| TEN25-2423WI | 25 | 1500 | 10...40 | 1000 | -15 | 1000 | 89 |
| TEN25-4810WI | 25 | 1500 | 18...75 | 5500 | - | - | 82 |
| TEN25-4811WI | 25 | 1500 | 18...75 | 5000 | - | - | 85 |
| TEN25-4813WI | 25 | 1500 | 18...75 | 2000 | - | - | 89 |
| TEN25-4822WI | 25 | 1500 | 18...75 | 1250 | -12 | 1250 | 89 |
| TEN25-4823WI | 25 | 1500 | 18...75 | 1000 | -15 | 1000 | 89 |
| TEN30-2410WI | 30 | 1500 | 10...40 | 6000 | - | - | 87 |
| TEN30-2411WI | 30 | 1500 | 10...40 | 6000 | - | - | 87 |
| TEN30-2412WI | 30 | 1500 | 10...40 | 2500 | - | - | 87 |
| TEN30-2413WI | 30 | 1500 | 10...40 | 2000 | - | - | 88 |
| TEN30-2422WI | 30 | 1500 | 10...40 | 1250 | -12 | 1250 | 85 |
| TEN30-2423WI | 30 | 1500 | 10...40 | 1000 | -15 | 1000 | 86 |
| TEN30-4810WI | 30 | 1500 | 18...75 | 6000 | - | - | 87 |
| TEN30-4811WI | 30 | 1500 | 18...75 | 6000 | - | - | 88 |
| TEN30-4812WI | 30 | 1500 | 18...75 | 2500 | - | - | 87 |
| TEN30-4813WI | 30 | 1500 | 18...75 | 2000 | - | - | 88 |
| TEN30-4822WI | 30 | 1500 | 18...75 | 1250 | -12 | 1250 | 86 |
| TEN30-4823WI | 30 | 1500 | 18...75 | 1000 | -15 | 1000 | 87 |
| TEN40-2410WI | 40 | 1500 | 9...36 | 10000 | - | - | 86 |
| TEN40-2411WI | 40 | 1500 | 9...36 | 8000 | - | - | 87 |
| TEN40-2412WI | 40 | 1500 | 9...36 | 3350 | - | - | 87 |
| TEN40-2413WI | 40 | 1500 | 9...36 | 2650 | - | - | 87 |
| TEN40-2422WI | 40 | 1500 | 9...36 | 1650 | -12 | 1650 | 86 |
| TEN40-4810WI | 40 | 1500 | 18...75 | 10000 | - | - | 86 |
| TEN40-4811WI | 40 | 1500 | 18...75 | 8000 | - | - | 88 |
| TEN40-4812WI | 40 | 1500 | 18...75 | 3350 | - | - | 87 |
| TEN40-4813WI | 40 | 1500 | 18...75 | 2650 | - | - | 87 |
| TEN40-4822WI | 40 | 1500 | 18...75 | 1650 | -12 | 1650 | 86 |
| TEN40-4823WI | 40 | 1500 | 18...75 | 1350 | -15 | 1350 | 86 |
| TEN50-2410WI | 50 | 1500 | 9...36 | 10000 | - | - | 90 |
| TEN50-2411WI | 50 | 1500 | 9...36 | 10000 | - | - | 91 |
| TEN50-2412WI | 50 | 1500 | 9...36 | 4170 | - | - | 92 |
| TEN50-2413WI | 50 | 1500 | 9...36 | 3330 | - | - | 92 |
| TEN50-2415WI | 50 | 1500 | 9...36 | 2080 | - | - | 91 |
| TEN50-4810WI | 50 | 1500 | 18...75 | 10000 | - | - | 90 |
| TEN50-4811WI | 50 | 1500 | 18...75 | 10000 | - | - | 91 |
| TEN50-4812WI | 50 | 1500 | 18...75 | 4170 | - | - | 92 |
| TEN50-4813WI | 50 | 1500 | 18...75 | 3330 | - | - | 92 |
| TEN50-4815WI | 50 | 1500 | 18...75 | 2080 | - | - | 91 |
Operating temperature:
- -40...80°C (TEN50-xxxWI)
- -40...85°C (TEN3xxxWI, TEN5-xxxWI, TEN8-xxxWI, TEN15-xxxWI, TEN2xxxWI, TEN40-xxxWI)
Case:
- DIP24 (TEN3-xxxWI, TEN5-xxxWI, TEN8-xxxWI)
Protection:
- anti-overload OPP (TEN3xxxWI, TEN5-xxxWI, TEN8-xxxWI, TEN2xxxWI, TEN40-xxxWI)
- anti-overvoltage OVP (TEN8-xxxWI, TEN2xxxWI, TEN30-xxxWI, TEN40-xxxWI)
- short circuit protection SCP
- overheating OTP (TEN50-xxxWI)
Switching frequency:
- 350kHz (TEN3-xxxWI)
- 450kHz (TEN5-xxxWI)
- 300kHz (TEN8-xxxWI, TEN2xxxWI, TEN30-xxxWI, TEN40-xxxWI)
- 330kHz (TEN15-xxxWI)
- 285kHz (TEN50-xxxWI)

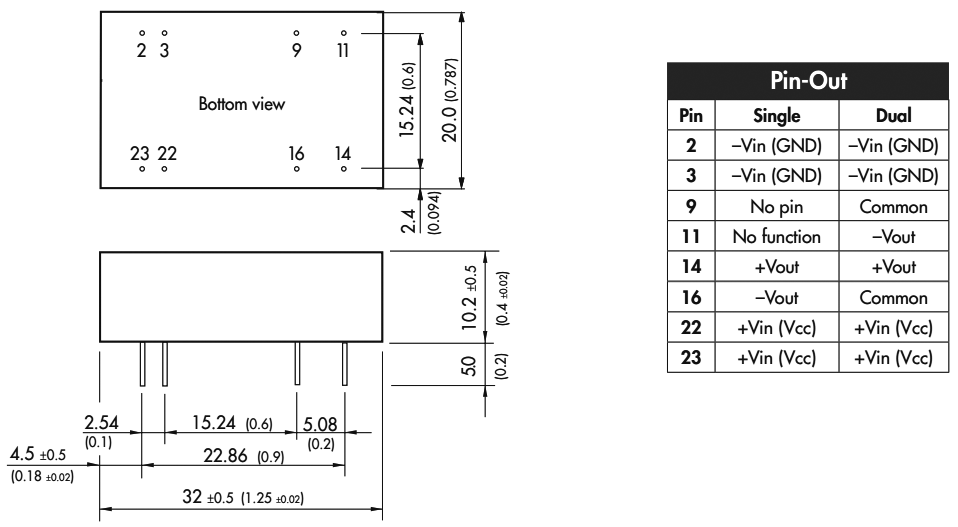

Body dim.:

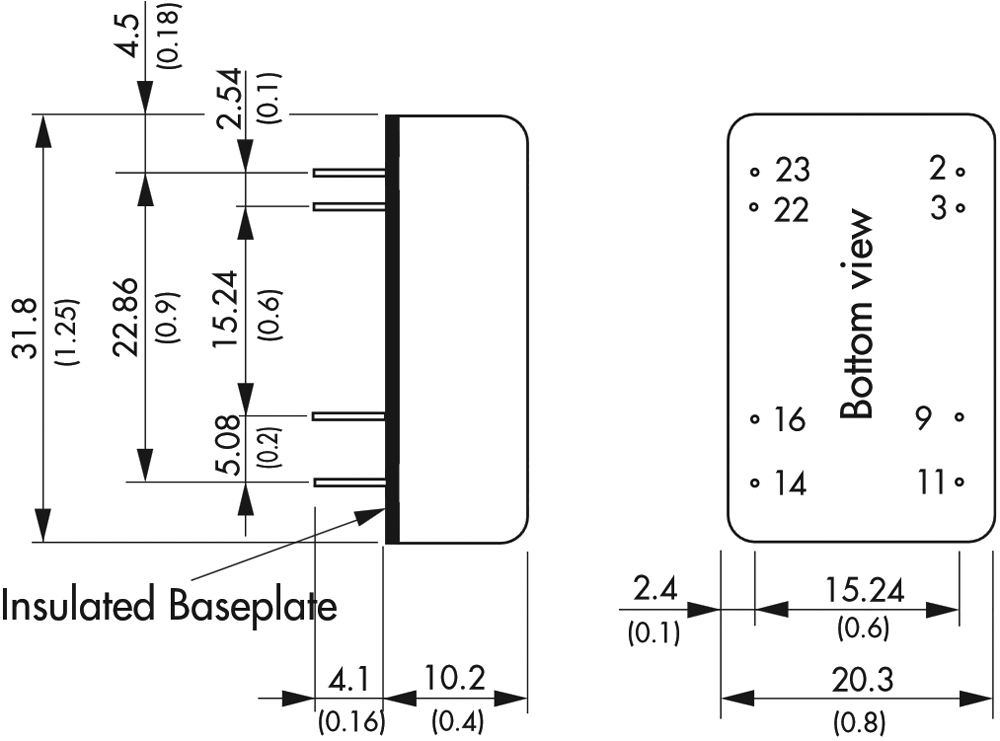

- 31.8x20.3x10.2mm (TEN5-xxxWI)

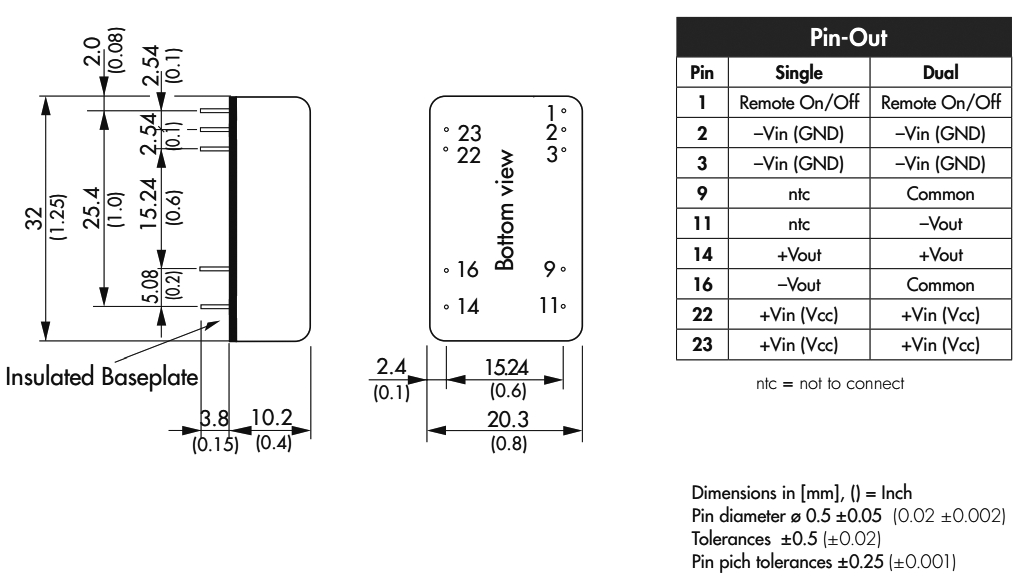

- 32x20x10.2mm (TEN3-xxxWI)
- 32x20.3x10.2mm (TEN8-xxxWI)

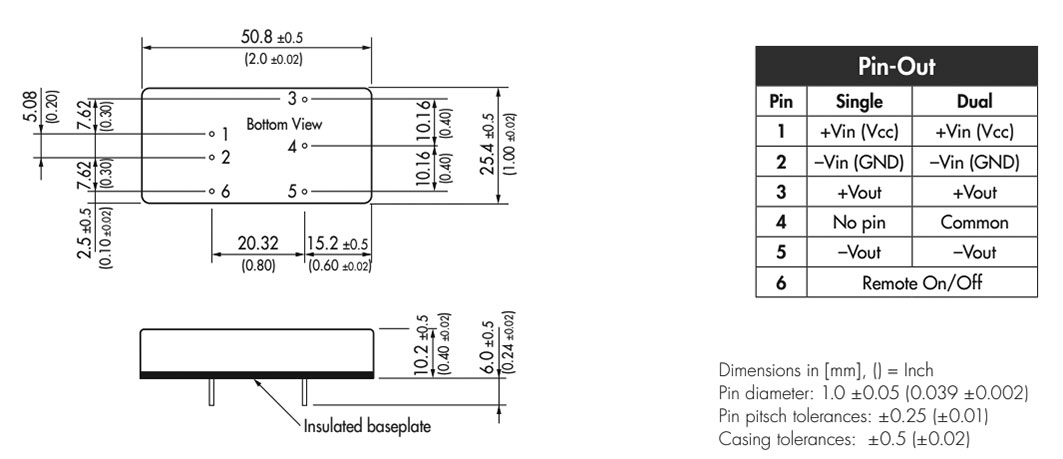

- 50.8x25.4x10.2mm (TEN15-xxxWI)

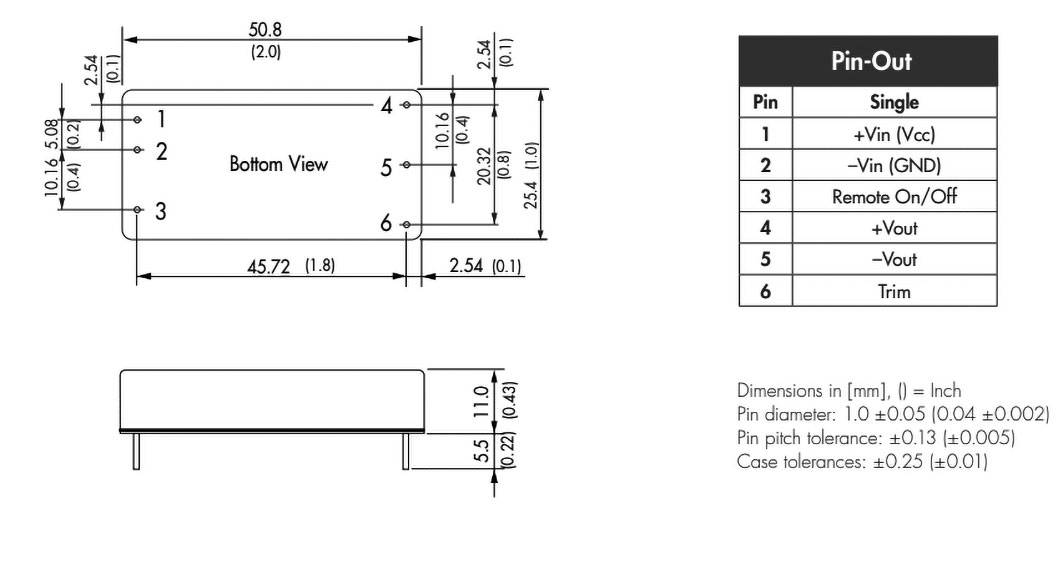

- 50.8x25.4x11mm (TEN50-xxxWI)

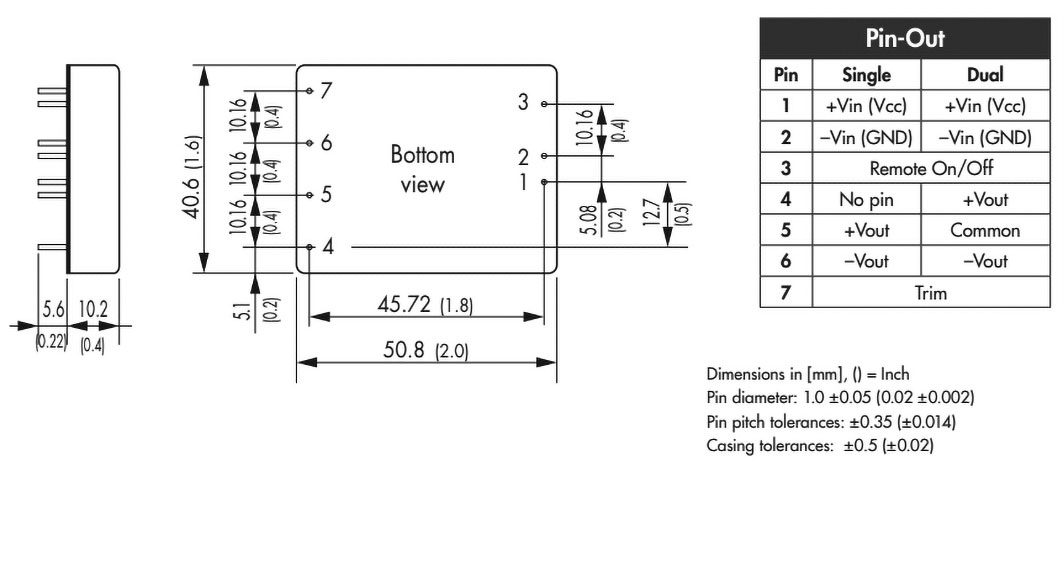

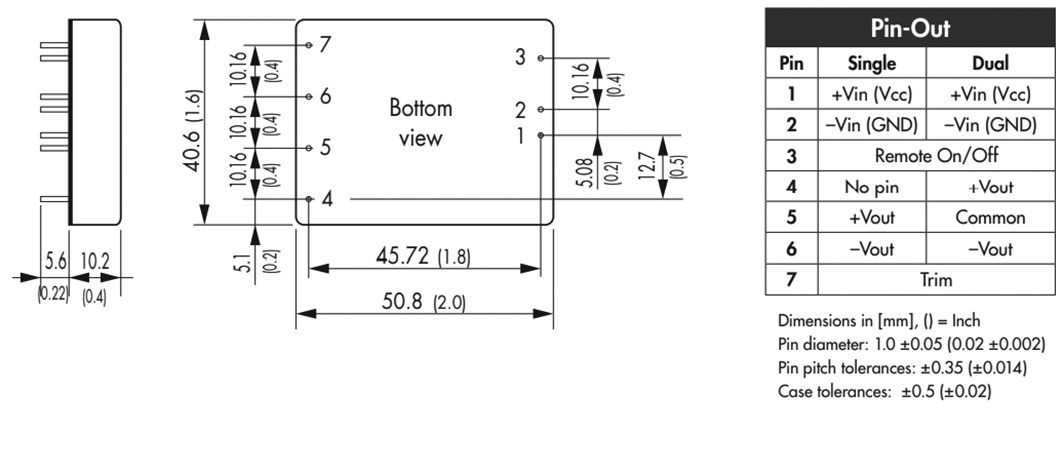

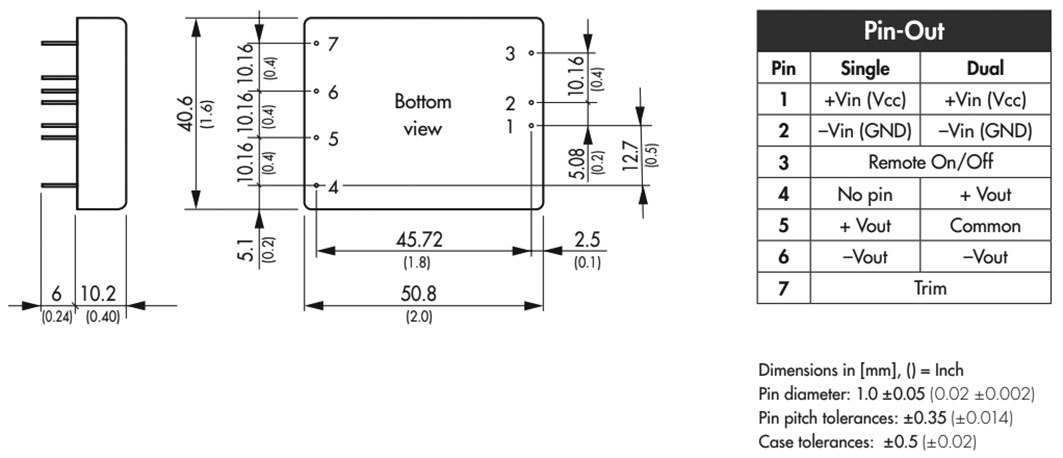

- 50.8x40.6x10.2mm (TEN2xxxWI, TEN30-xxxWI)

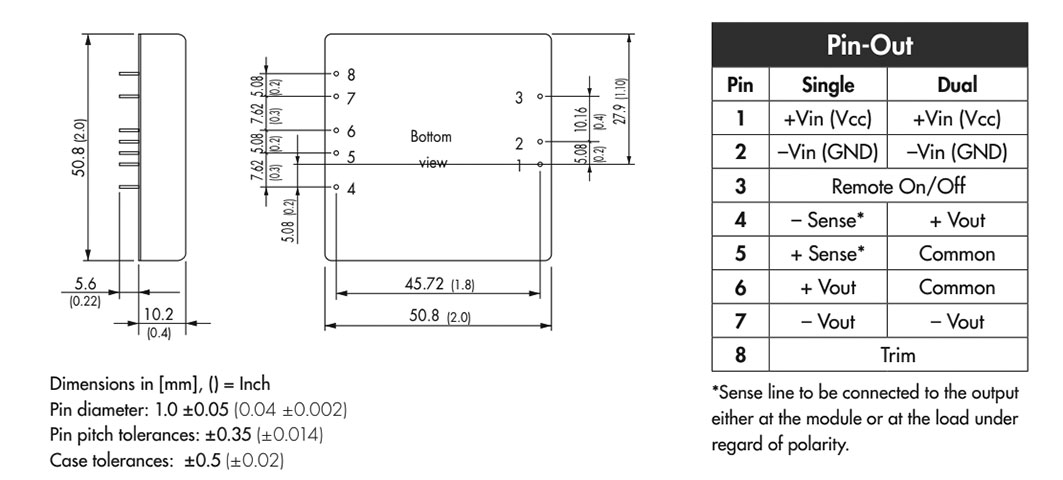

- 50.8x50.8x10.2mm (TEN40-xxxWI)
Number of outputs:
- 1 (TEN3-241xWI, TEN3-481xWI, TEN30-241xWI, TEN30-481xWI, TEN5-241xWI, TEN5-481xWI, TEN50-xxxWI, TEN8-241xWI, TEN8-481xWI, TEN8-721xWI, TEN15-241xWI, TEN15-481xWI, TEN20-241xWI, TEN20-481xWI, TEN25-241xWI, TEN25-481xWI, TEN40-241xWI, TEN40-481xWI)
- 2 (TEN3-2422WI, TEN3-2423WI, TEN3-4822WI, TEN3-4823WI, TEN30-2422WI, TEN30-2423WI, TEN30-4822WI, TEN30-4823WI, TEN5-2422WI, TEN5-2423WI, TEN5-4821WI, TEN5-4822WI, TEN8-242xWI, TEN8-482xWI, TEN8-722xWI, TEN15-2422WI, TEN15-2423WI, TEN15-4822WI, TEN15-4823WI, TEN20-242xWI, TEN20-482xWI, TEN25-2422WI, TEN25-2423WI, TEN25-4822WI, TEN25-4823WI, TEN40-2422WI, TEN40-4822WI, TEN40-4823WI)
Manufacturer series:
- TEN 3WI (TEN3-xxxWI)
- TEN 5WI (TEN5-xxxWI)
- TEN 8WI (TEN8-xxxWI)
- TEN 15WI (TEN15-xxxWI)
- TEN 20WI (TEN20-xxxWI)
- TEN 25WI (TEN25-xxxWI)
- TEN 30WI (TEN30-xxxWI)
- TEN 40WI (TEN40-xxxWI)
- TEN 50WI (TEN50-xxxWI)
Dimensions:
Mounting:
- THT (TEN3xxxWI, TEN5xxxWI, TEN8-xxxWI, TEN15-xxxWI, TEN25-xxxWI, TEN40-xxxWI)
Output voltage:
- 3.3V DC (TENxxx10WI)
- 5V DC (TEN3xxx11WI, TEN5xxx1WI, TEN8-xxx1WI, TEN2xxx1WI, TEN40-2411WI, TEN40-4811WI)
- 5.1V DC (TEN15-2411WI, TEN15-4811WI)
- 12V DC (TENxxx2WI)
- 15V DC (TENxxx3WI)
- 24V DC (TEN50-2415WI, TEN50-4815WI)
Dimensions:
- 2"x1" (TEN15-xxxWI, TEN50-xxxWI)
- 2"x1.6" (TEN2xxxWI, TEN30-xxxWI)
- 2"x2" (TEN40-xxxWI)
