Converter: DC/DC; TRACO POWER
| Manufacturer | TRACO POWER |
| Number of outputs | 1 |
| Operating temperature | -40...85°C |
| Symbol | Switch. freq. | Case | Protection | Body dim. | Manufacturer series | Dimensions | Uin | Iout | Efficiency | Output voltage | Mounting |
|---|---|---|---|---|---|---|---|---|---|---|---|
| [kHz] | [mm] | [V DC] | [A] | [%] | [V DC] | ||||||

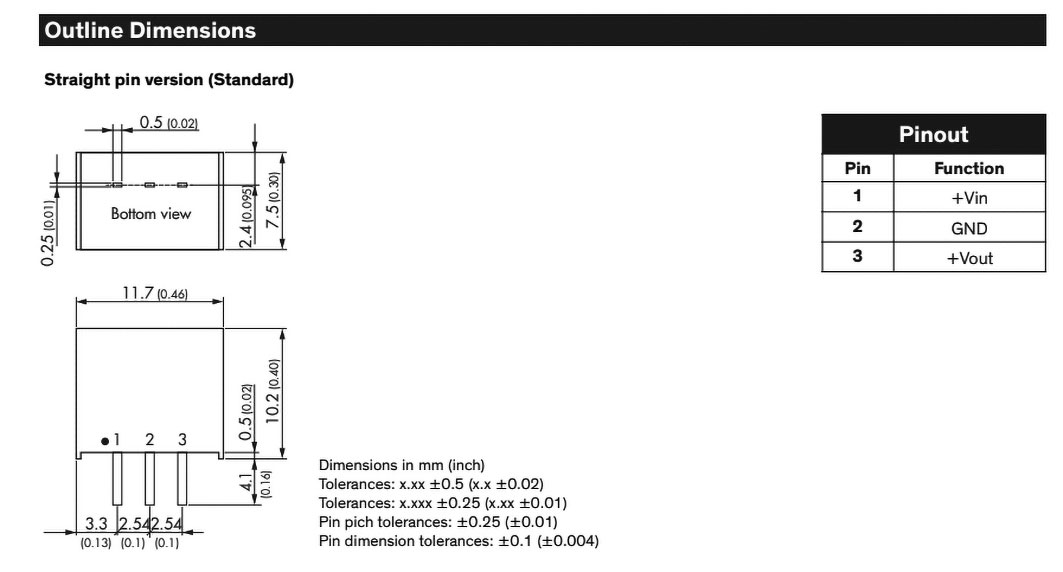

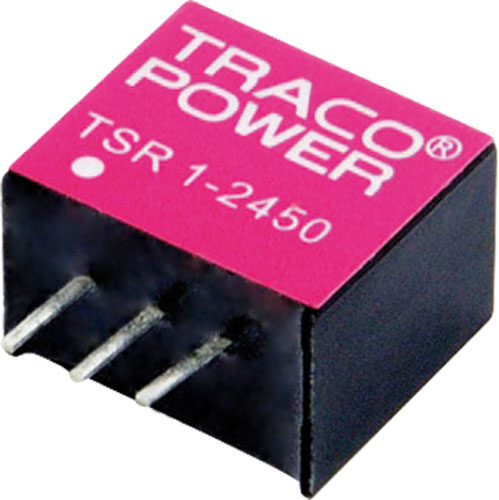

| TSR1-2412 | 500 | SIP3 | anti-overload OPP, short circuit protection SCP | 11.7x10.2x7.6 | TSR 1 | Fig. 1. | 4.6...36 | 1 | 74 | 1.2 | THT |
| TSR1-2418 | 500 | SIP3 | anti-overload OPP, short circuit protection SCP | 11.7x10.2x7.6 | TSR 1 | Fig. 1. | 4.6...36 | 1 | 82 | 1.8 | THT |
| TSR1-2425 | 500 | SIP3 | anti-overload OPP, short circuit protection SCP | 11.7x10.2x7.6 | TSR 1 | Fig. 1. | 4.6...36 | 1 | 87 | 2.5 | THT |
| TSR1-2433 | 500 | SIP3 | anti-overload OPP, short circuit protection SCP | 11.7x10.2x7.6 | TSR 1 | Fig. 1. | 4.75...36 | 1 | 91 | 3.3 | THT |
| TSR1-2450 | 500 | SIP3 | anti-overload OPP, short circuit protection SCP | 11.7x10.2x7.6 | TSR 1 | Fig. 1. | 6.5...36 | 1 | 94 | 5 | THT |
| TSR1-2465 | 500 | SIP3 | anti-overload OPP, short circuit protection SCP | 11.7x10.2x7.6 | TSR 1 | Fig. 1. | 9...36 | 1 | 93 | 6.5 | THT |
| TSR1-2490 | 500 | SIP3 | anti-overload OPP, short circuit protection SCP | 11.7x10.2x7.6 | TSR 1 | Fig. 1. | 12...36 | 1 | 95 | 9 | THT |
| TSR1-24120 | 500 | SIP3 | anti-overload OPP, short circuit protection SCP | 11.7x10.2x7.6 | TSR 1 | Fig. 1. | 15...36 | 1 | 95 | 12 | THT |
| TSR1-24150 | 500 | SIP3 | anti-overload OPP, short circuit protection SCP | 11.7x10.2x7.6 | TSR 1 | Fig. 1. | 18...36 | 1 | 96 | 15 | THT |

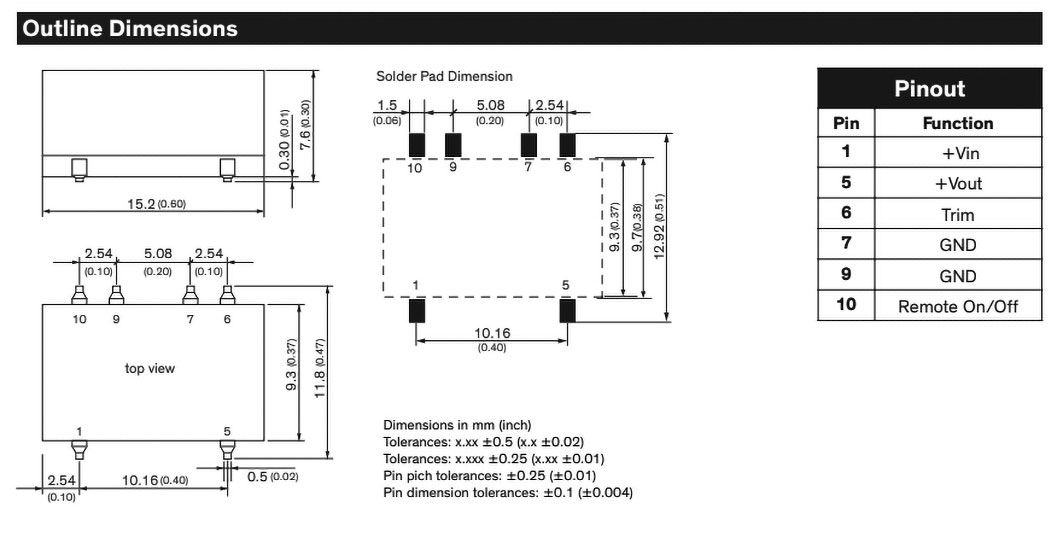

| TSR1-0512SM | 500 | - | short circuit protection SCP | 15.2x9.3x7.6 | TSR 1SM | Fig. 2. | 3...5.5 | 1 | 91 | 1.2 | SMT |
| TSR1-0515SM | 500 | - | short circuit protection SCP | 15.2x9.3x7.6 | TSR 1SM | Fig. 2. | 3...5.5 | 1 | 92 | 1.5 | SMT |
| TSR1-0518SM | 500 | - | short circuit protection SCP | 15.2x9.3x7.6 | TSR 1SM | Fig. 2. | 3...5.5 | 1 | 93 | 1.8 | SMT |
| TSR1-0525SM | 500 | - | short circuit protection SCP | 15.2x9.3x7.6 | TSR 1SM | Fig. 2. | 3.8...5.5 | 1 | 95 | 2.5 | SMT |
| TSR1-2412SM | 500 | - | short circuit protection SCP | 15.2x9.3x7.6 | TSR 1SM | Fig. 2. | 4.6...36 | 1 | 74 | 1.2 | SMT |
| TSR1-2415SM | 500 | - | short circuit protection SCP | 15.2x9.3x7.6 | TSR 1SM | Fig. 2. | 4.6...36 | 1 | 79 | 1.5 | SMT |
| TSR1-2418SM | 500 | - | short circuit protection SCP | 15.2x9.3x7.6 | TSR 1SM | Fig. 2. | 4.6...36 | 1 | 82 | 1.8 | SMT |
| TSR1-2425SM | 500 | - | short circuit protection SCP | 15.2x9.3x7.6 | TSR 1SM | Fig. 2. | 4.6...36 | 1 | 87 | 2.5 | SMT |
| TSR1-2433SM | 500 | - | short circuit protection SCP | 15.2x9.3x7.6 | TSR 1SM | Fig. 2. | 4.75...36 | 1 | 91 | 3.3 | SMT |
| TSR1-2450SM | 500 | - | short circuit protection SCP | 15.2x9.3x7.6 | TSR 1SM | Fig. 2. | 6.5...36 | 1 | 94 | 5 | SMT |
| TSR1-2465SM | 500 | - | short circuit protection SCP | 15.2x9.3x7.6 | TSR 1SM | Fig. 2. | 9...36 | 1 | 94 | 6.5 | SMT |
| TSR1-2490SM | 500 | - | short circuit protection SCP | 15.2x9.3x7.6 | TSR 1SM | Fig. 2. | 12...36 | 1 | 95 | 9 | SMT |
| TSR1-24120SM | 500 | - | short circuit protection SCP | 15.2x9.3x7.6 | TSR 1SM | Fig. 2. | 15...36 | 1 | 95 | 12 | SMT |
| TSR1-24150SM | 500 | - | short circuit protection SCP | 15.2x9.3x7.6 | TSR 1SM | Fig. 2. | 18...36 | 1 | 96 | 15 | SMT |
| TSRN1-2415 | 360 | SIP3 | short circuit protection SCP | 11.7x10.2x7.5 | TSRN 1 | Fig. 3. | 4.6...42 | 1 | 77 | 1.5 | THT |

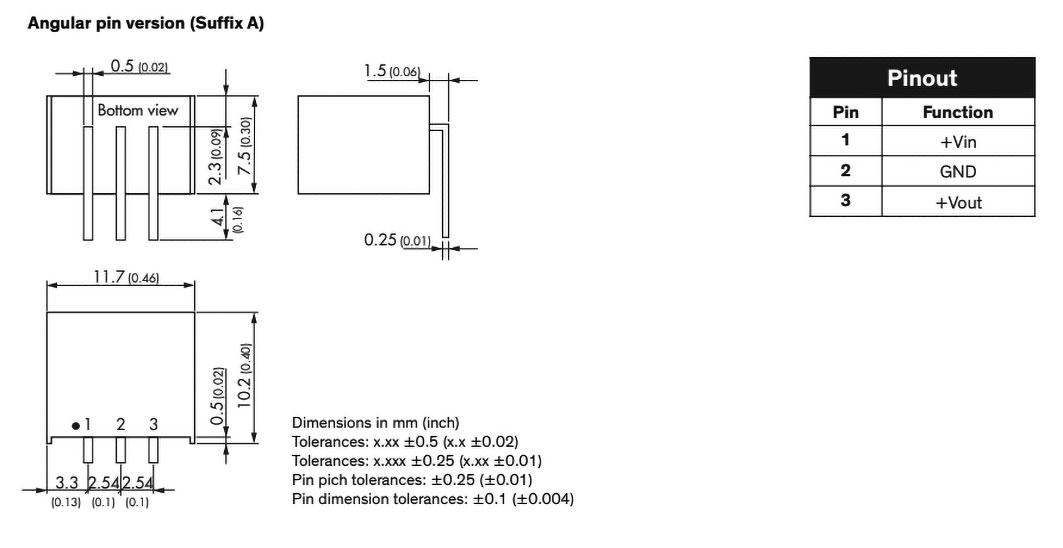

| TSRN1-2415A | 360 | SIP3 | short circuit protection SCP | 11.7x10.2x7.5 | TSRN 1 | Fig. 4. | 4.6...42 | 1 | 77 | 1.5 | THT |
| TSRN1-2418 | 360 | SIP3 | short circuit protection SCP | 11.7x10.2x7.5 | TSRN 1 | Fig. 3. | 4.6...42 | 1 | 81 | 1.8 | THT |
| TSRN1-2418A | 360 | SIP3 | short circuit protection SCP | 11.7x10.2x7.5 | TSRN 1 | Fig. 4. | 4.6...42 | 1 | 81 | 1.8 | THT |
| TSRN1-2425 | 360 | SIP3 | short circuit protection SCP | 11.7x10.2x7.5 | TSRN 1 | Fig. 3. | 4.6...42 | 1 | 84 | 2.5 | THT |
| TSRN1-2425A | 360 | SIP3 | short circuit protection SCP | 11.7x10.2x7.5 | TSRN 1 | Fig. 4. | 4.6...42 | 1 | 84 | 2.5 | THT |
| TSRN1-2433 | 360 | SIP3 | short circuit protection SCP | 11.7x10.2x7.5 | TSRN 1 | Fig. 3. | 4.6...42 | 1 | 88 | 3.3 | THT |
| TSRN1-2433A | 360 | SIP3 | short circuit protection SCP | 11.7x10.2x7.5 | TSRN 1 | Fig. 4. | 4.6...42 | 1 | 88 | 3.3 | THT |
| TSRN1-2450 | 696 | SIP3 | short circuit protection SCP | 11.7x10.2x7.5 | TSRN 1 | Fig. 3. | 6.5...42 | 1 | 92 | 5 | THT |
| TSRN1-2450A | 696 | SIP3 | short circuit protection SCP | 11.7x10.2x7.5 | TSRN 1 | Fig. 4. | 6.5...42 | 1 | 92 | 5 | THT |
| TSRN1-2465 | 696 | SIP3 | short circuit protection SCP | 11.7x10.2x7.5 | TSRN 1 | Fig. 3. | 8...42 | 1 | 93 | 6.5 | THT |
| TSRN1-2465A | 696 | SIP3 | short circuit protection SCP | 11.7x10.2x7.5 | TSRN 1 | Fig. 4. | 8...42 | 1 | 93 | 6.5 | THT |
| TSRN1-2490 | 696 | SIP3 | short circuit protection SCP | 11.7x10.2x7.5 | TSRN 1 | Fig. 3. | 10.5...42 | 1 | 95 | 9 | THT |
| TSRN1-2490A | 696 | SIP3 | short circuit protection SCP | 11.7x10.2x7.5 | TSRN 1 | Fig. 4. | 10.5...42 | 1 | 95 | 9 | THT |
| TSRN1-24120 | 696 | SIP3 | short circuit protection SCP | 11.7x10.2x7.5 | TSRN 1 | Fig. 3. | 13.5...42 | 1 | 95 | 12 | THT |
| TSRN1-24120A | 696 | SIP3 | short circuit protection SCP | 11.7x10.2x7.5 | TSRN 1 | Fig. 4. | 13.5...42 | 1 | 95 | 12 | THT |
| TSRN1-24150 | 696 | SIP3 | short circuit protection SCP | 11.7x10.2x7.5 | TSRN 1 | Fig. 3. | 16.5...42 | 1 | 96 | 15 | THT |
| TSRN1-24150A | 696 | SIP3 | short circuit protection SCP | 11.7x10.2x7.5 | TSRN 1 | Fig. 4. | 16.5...42 | 1 | 96 | 15 | THT |

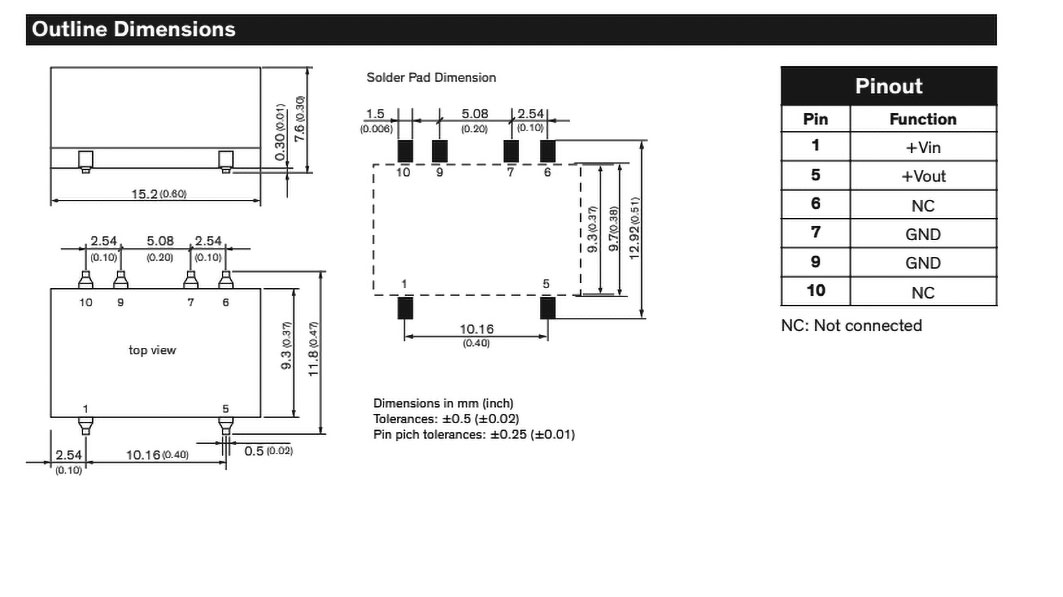

| TSRN1-0525SM | 410 | - | short circuit protection SCP | 15.2x9.3x7.6 | TSRN 1SM | Fig. 5. | 3...5.5 | 1 | 96 | 2.5 | SMT |
| TSRN1-2433SM | 300 | - | short circuit protection SCP | 15.2x9.3x7.6 | TSRN 1SM | Fig. 5. | 4.6...42 | 1 | 88 | 3.3 | SMT |
| TSRN1-2450SM | 580 | - | short circuit protection SCP | 15.2x9.3x7.6 | TSRN 1SM | Fig. 5. | 6.5...42 | 1 | 92 | 5 | SMT |
| TSRN1-2490SM | 580 | - | short circuit protection SCP | 15.2x9.3x7.6 | TSRN 1SM | Fig. 5. | 10.5...42 | 1 | 95 | 9 | SMT |
| TSRN1-24120SM | 580 | - | short circuit protection SCP | 15.2x9.3x7.6 | TSRN 1SM | Fig. 5. | 13.5...42 | 1 | 95 | 12 | SMT |
| TSRN1-24150SM | 580 | - | short circuit protection SCP | 15.2x9.3x7.6 | TSRN 1SM | Fig. 5. | 16.5...42 | 1 | 96 | 15 | SMT |
| TSR1-2433E | 520 | SIP3 | short circuit protection SCP | 11.6x10.2x7.5 | TSR 1E | Fig. 6. | 6...36 | 1 | 88 | 3.3 | THT |
| TSR1-2450E | 520 | SIP3 | short circuit protection SCP | 11.6x10.2x7.5 | TSR 1E | Fig. 6. | 7...36 | 1 | 92 | 5 | THT |

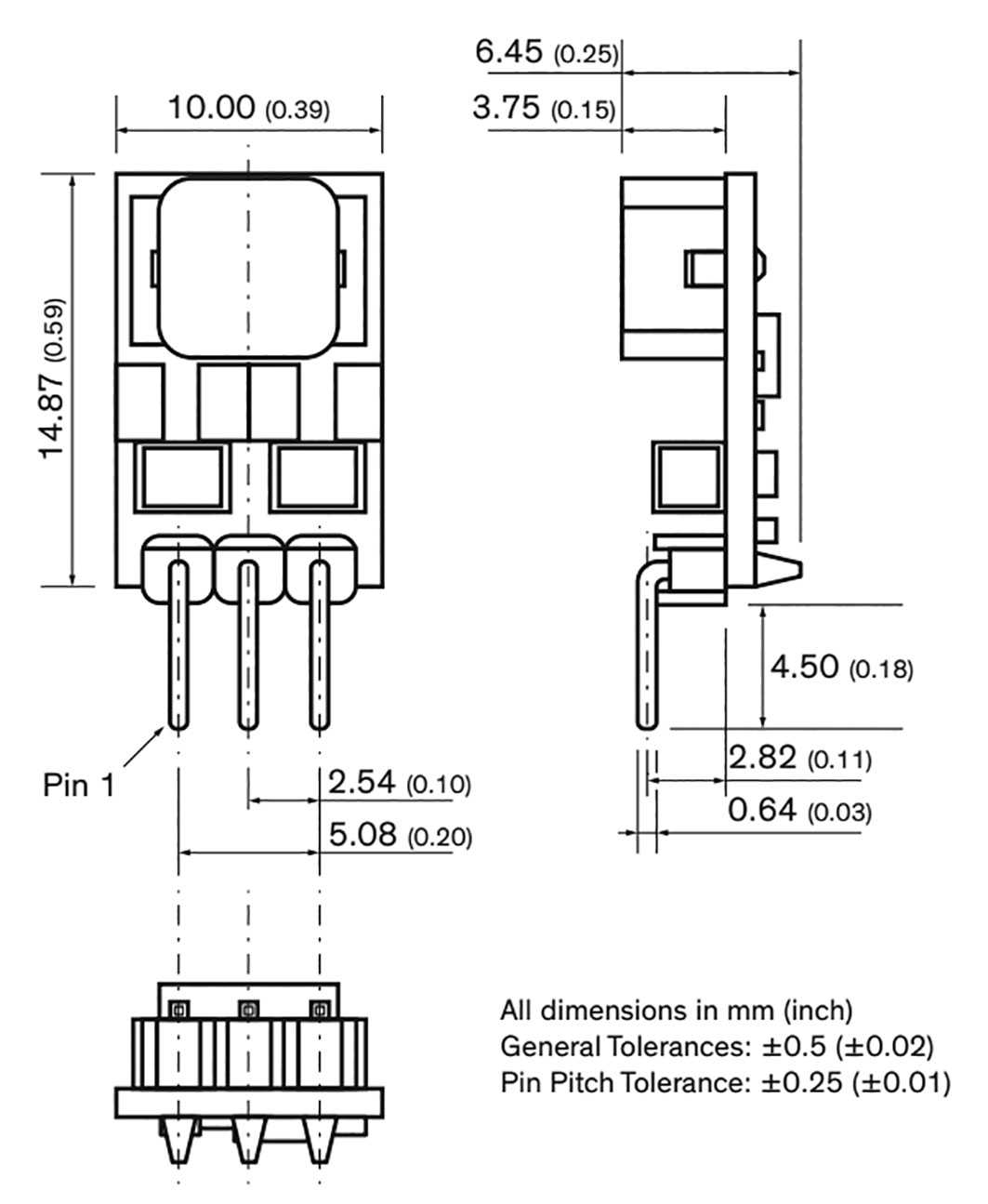

| TSR1.5-2433E | 410 | TO220 | short circuit protection SCP | 14.87x10x6.45 | TSR 1.5E | Fig. 7. | 7...36 | 1.5 | 93 | 3.3 | THT |
| TSR1.5-2450E | 410 | TO220 | short circuit protection SCP | 14.87x10x6.45 | TSR 1.5E | Fig. 7. | 7...36 | 1.5 | 95 | 5 | THT |
| TSR1.5-24120E | 410 | TO220 | short circuit protection SCP | 14.87x10x6.45 | TSR 1.5E | Fig. 7. | 15...36 | 1 | 97 | 12 | THT |
