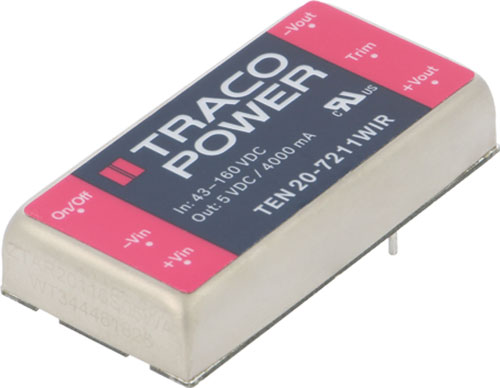

Converter: DC/DC; TRACO POWER
| Manufacturer | TRACO POWER |
| Application | railway industry |
| Conform to the norm | EN 50155 |
| Dimensions | 2"x1" |
| Symbol | Power | Uin | Iout | Uout2 | Iout2 | Efficiency |
|---|---|---|---|---|---|---|
| [W] | [V DC] | [mA] | [V DC] | [mA] | [%] | |
| TEN20-2410WIR | 20 | 9...36 | 4500 | - | - | 85 |
| TEN20-2411WIR | 20 | 9...36 | 4000 | - | - | 88 |
| TEN20-2412WIR | 20 | 9...36 | 1670 | - | - | 89 |
| TEN20-2413WIR | 20 | 9...36 | 1330 | - | - | 88 |
| TEN20-2423WIR | 20 | 9...36 | 667 | -15 | 667 | 89 |
| TEN20-4810WIR | 20 | 18...75 | 4500 | - | - | 85 |
| TEN20-4811WIR | 20 | 18...75 | 4000 | - | - | 88 |
| TEN20-4812WIR | 20 | 18...75 | 1670 | - | - | 89 |
| TEN20-4813WIR | 20 | 18...75 | 1330 | - | - | 89 |
| TEN20-4822WIR | 20 | 18...75 | 833 | -12 | 833 | 88 |
| TEN20-4823WIR | 20 | 18...75 | 667 | -15 | 667 | 89 |
| TEN20-7210WIR | 20 | 43...160 | 4500 | - | - | 85 |
| TEN20-7213WIR | 20 | 43...160 | 1330 | - | - | 88 |
| TEN20-7222WIR | 20 | 43...160 | 833 | -12 | 833 | 88 |
| TEN20-7223WIR | 20 | 43...160 | 667 | -15 | 667 | 89 |
| TEN40-2410WIR | 40 | 9...36 | 10000 | - | - | 90 |
| TEN40-2411WIR | 40 | 9...36 | 8000 | - | - | 91 |
| TEN40-2412WIR | 40 | 9...36 | 3333 | - | - | 92 |
| TEN40-2413WIR | 40 | 9...36 | 2666 | - | - | 92 |
| TEN40-2415WIR | 40 | 9...36 | 1666 | - | - | 91 |
| TEN40-2422WIR | 40 | 9...36 | 1666.6 | -12 | 1666 | 90 |
| TEN40-2423WIR | 40 | 9...36 | 1333 | -15 | 1333 | 90 |
| TEN40-2425WIR | 40 | 9...36 | 833 | -24 | 833 | 91 |
| TEN40-4810WIR | 40 | 18...75 | 10000 | - | - | 90 |
| TEN40-4811WIR | 40 | 18...75 | 8000 | - | - | 91 |
| TEN40-4812WIR | 40 | 18...75 | 3333 | - | - | 92 |
| TEN40-4813WIR | 40 | 18...75 | 2666 | - | - | 92 |
| TEN40-4822WIR | 40 | 18...75 | 1666 | -12 | 1666 | 90 |
| TEN40-4823WIR | 40 | 18...75 | 1333 | -15 | 1333 | 90 |
| TEN40-4825WIR | 40 | 18...75 | 833 | -24 | 833 | 91 |
| TEN40-7210WIR | 40 | 43...160 | 10000 | - | - | 88 |
| TEN40-7211WIR | 40 | 43...160 | 8000 | - | - | 89 |
| TEN40-7212WIR | 40 | 43...160 | 3333 | - | - | 90 |
| TEN40-7213WIR | 40 | 43...160 | 2666 | - | - | 91 |
| TEN40-7222WIR | 40 | 43...160 | 1666 | -12 | 1666 | 89 |
| TEN40-7223WIR | 40 | 43...160 | 1333 | -15 | 1333 | 89 |
| TEN40-7225WIR | 40 | 43...160 | 833 | -24 | 833 | 91 |
| TEN60-2411WIR | 60 | 18...36 | 12000 | - | - | 91 |
| TEN60-2412WIR | 60 | 18...36 | 5000 | - | - | 93 |
| TEN60-2413WIR | 60 | 18...36 | 4000 | - | - | 93 |
| TEN60-2415WIR | 60 | 18...36 | 2500 | - | - | 91 |
| TEN60-2418WIR | 60 | 18...36 | 1250 | - | - | 92 |
| TEN60-2422WIR | 60 | 18...36 | 2500 | -12 | 2500 | 91 |
| TEN60-2423WIR | 60 | 18...36 | 2000 | -15 | 2000 | 91 |
| TEN60-2425WIR | 60 | 18...36 | 1250 | -24 | 1250 | 92 |
| TEN60-4811WIR | 60 | 36...75 | 12000 | - | - | 92 |
| TEN60-4812WIR | 60 | 36...75 | 5000 | - | - | 93 |
| TEN60-4813WIR | 60 | 36...75 | 4000 | - | - | 94 |
| TEN60-4815WIR | 60 | 36...75 | 2500 | - | - | 92 |
| TEN60-4818WIR | 60 | 36...75 | 1250 | - | - | 92 |
| TEN60-4822WIR | 60 | 36...75 | 2500 | -12 | 2500 | 92 |
| TEN60-4823WIR | 60 | 36...75 | 2000 | -15 | 2000 | 92 |
| TEN60-4825WIR | 60 | 36...75 | 1250 | -24 | 1250 | 92 |
| TEN60-7211WIR | 60 | 36...160 | 12000 | - | - | 91 |
| TEN60-7212WIR | 60 | 36...160 | 5000 | - | - | 92 |
| TEN60-7213WIR | 60 | 36...160 | 4000 | - | - | 92 |
| TEN60-7215WIR | 60 | 36...160 | 2500 | - | - | 91 |
| TEN60-7218WIR | 60 | 36...160 | 1250 | - | - | 91 |
| TEN60-7222WIR | 60 | 36...160 | 2500 | -12 | 2500 | 91 |
| TEN60-7223WIR | 60 | 36...160 | 2000 | -15 | 2000 | 91 |
| TEN60-7225WIR | 60 | 36...160 | 1250 | -24 | 1250 | 91 |
Protection:
- anti-overload OPP (TEN20-xxxWIR, TEN40-xxxWIR)
- anti-overvoltage OVP (TEN20-xxxWIR, TEN40-xxxWIR)
- short circuit protection SCP (TEN20-xxxWIR, TEN40-xxxWIR)
- voltage drop BOP (TEN60-xxxWIR)
Operating temperature:
- -40...85°C (TEN20-xxxWIR, TEN40-xxxWIR)
- -40...90°C (TEN60-xxxWIR)

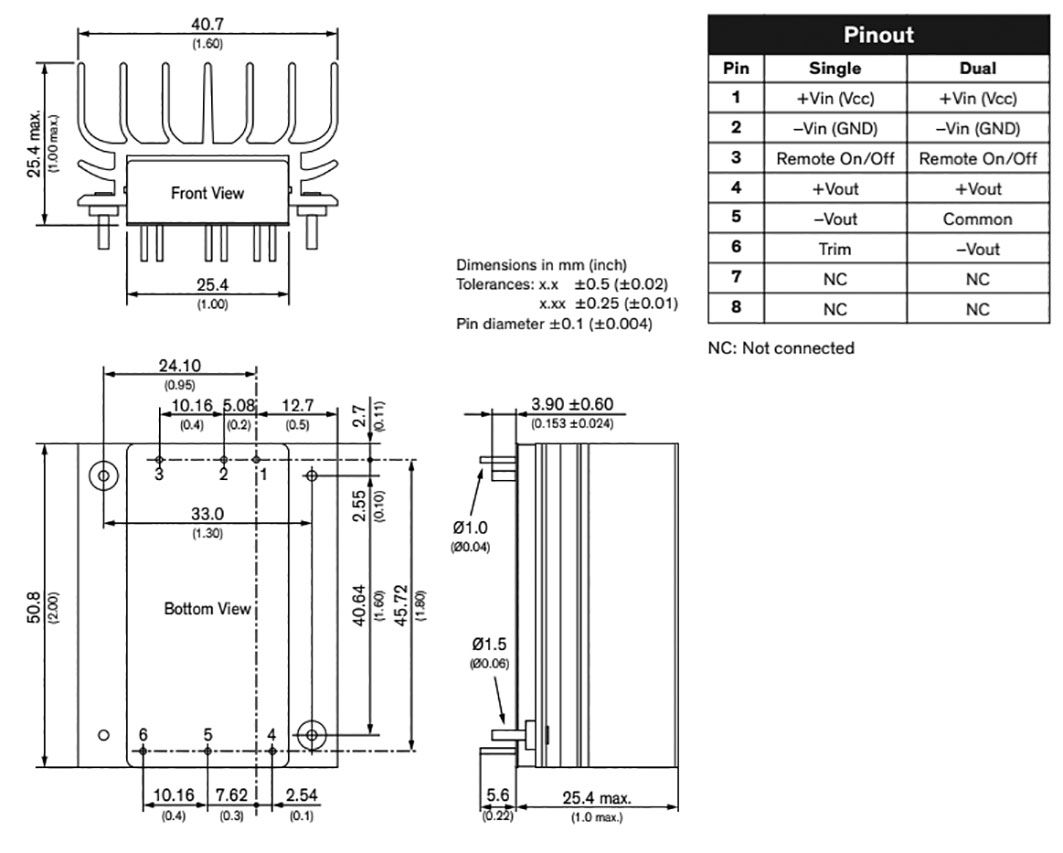

Body dimensions:
- 50.8x25.4x10.2mm (TEN20-xxxWIR, TEN40-xxxWIR)
- 50.8x40.7x25.4mm (TEN60-xxxWIR)
Switching frequency:
- 330kHz (TEN20-xxxWIR)
- 250kHz (TEN40-xxxWIR, TEN60-xxxWIR)
Insulation voltage:
- 1600V (TEN40-24xxWIR, TEN40-48xxWIR)
- 2250V (TEN20-xxxWIR)
- 3000V (TEN40-72xxWIR, TEN60-xxxWIR)
Number of outputs:
- 1 (TEN20-241xWIR, TEN20-481xWIR, TEN20-7210WIR, TEN20-7213WIR, TEN40-241xWIR, TEN40-481xWIR, TEN40-721xWIR, TEN60-241xWIR, TEN60-481xWIR, TEN60-721xWIR)
- 2 (TEN20-2423WIR, TEN20-4822WIR, TEN20-4823WIR, TEN20-7222WIR, TEN20-7223WIR, TEN40-242xWIR, TEN40-482xWIR, TEN40-722xWIR, TEN60-242xWIR, TEN60-482xWIR, TEN60-722xWIR)
Manufacturer series:
- TEN 20WIR (TEN20-xxxWIR)
- TEN 40WIR (TEN40-xxxWIR)
- TEN 60WIR (TEN60-xxxWIR)
Output voltage:
- 3.3V DC (TENxxx10WIR)
- 5V DC (TENxxx11WIR)
- 12V DC (TENxxx2WIR)
- 15V DC (TENxxx3WIR)
- 24V DC (TENxxx5WIR)
- 48V DC (TEN60-xx18WIR)
Mounting:
- PCB (TEN60-4815WIR)
- THT (TEN20-xxxWIR, TEN40-xxxWIR, TEN60-24xxWIR, TEN60-4811WIR, TEN60-4812WIR, TEN60-4813WIR, TEN60-4818WIR, TEN60-482xWIR, TEN60-72xxWIR)
