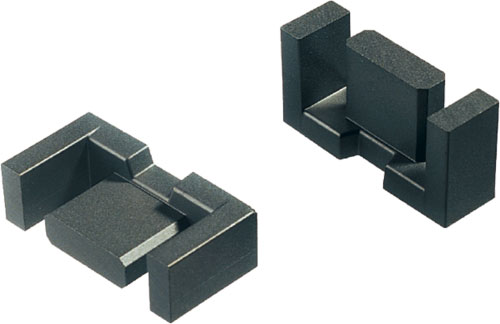

Core: ferrite; Version: EFD; FERROXCUBE
| Symbol | Type of core | Version | Dimensions | Material | Inductance factor AL | Effective core volume (Ve) | Effective core cross-section (Ae) | A dimension | B dimension | C dimension | D dimension | E dimension | F dimension | Dimension G | Quantity in set/package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [nH] | [mm3] | [mm2] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [pcs.] | |||||
| EFD20-3F3 | ferrite | EFD | Fig. 1. | 3F3 | 1200 | 1460 | 31 | 20 | 10 | 6.65 | 7.7 | 15.4 | 8.9 | 3.6 | 1 |
| EFD25/13/9-3F3 | ferrite | EFD | Fig. 1. | 3F3 | 2000 | 3300 | 58 | 25 | 12.5 | 9.1 | 9.3 | 18.7 | 11.4 | 5.2 | 1 |
| EFD30/15/9-3C94 | ferrite | EFD | Fig. 1. | 3C94 | 2100 | 4700 | 69 | 30 | 15 | 9.1 | 11.2 | 22.4 | 14.6 | 4.9 | 1 |
| EFD25/13/9-3C94 | ferrite | EFD | Fig. 1. | 3C94 | 2200 | 3300 | 58 | 25 | 12.5 | 9.1 | 9.3 | 18.7 | 11.4 | 5.2 | 1 |
