Counter; digital, mounting; ABB

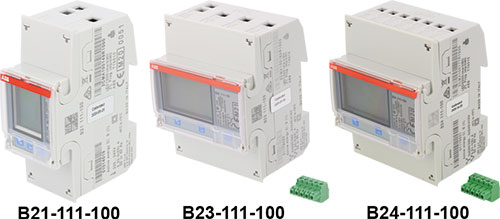

Counter; digital, mounting; ABB, B21-111-100, B21-112-100, B21-113-100, B21-311-100 |EN|

Type of meter	counter
Kind of meter	digital, mounting
Mounting	for DIN rail mounting
Manufacturer	ABB
Display	LCD
Operating frequency	50...60Hz

Symbol: (B2x-111-100)
IP rating	IP20
Accuracy class	B
Output	pulse output
Interface	IR
Operating temperature	-40...70°C
Symbol: (B21-112-100, B23-112-100, B23-212-100, B24-112-100, B24-212-100)
IP rating	IP20
Accuracy class	B
Output	pulse output
Interface	RS485
Operating temperature	-40...70°C
Symbol: (B2x-113-100)
IP rating	IP20
Accuracy class	B
Output	pulse output
Interface	M-Bus
Operating temperature	-40...70°C
Symbol: (B21-311-100, B23-311-100)
IP rating	IP20
Accuracy class	B
Output	pulse output x2
Interface	IR
Operating temperature	-40...70°C
Symbol: (B21-312-100, B23-312-100)
IP rating	IP20
Accuracy class	B
Output	pulse output x2
Interface	RS485
Operating temperature	-40...70°C
Symbol: (B21-313-100, B23-313-100)
IP rating	IP20
Accuracy class	B
Output	pulse output x2
Interface	M-Bus
Operating temperature	-40...70°C
Symbol: (B24-352-100)
IP rating	IP20
Accuracy class	C
Output	pulse output x2
Interface	RS485
Operating temperature	-40...70°C
Symbol: (B24-353-100)
IP rating	IP20
Accuracy class	C
Output	pulse output x2
Interface	M-Bus
Operating temperature	-40...70°C

Symbol	B21-111-100	B21-112-100	B21-113-100	B21-311-100	B21-312-100	B21-313-100	B23-111-100	B23-112-100	B23-113-100	B23-212-100	B23-311-100	B23-312-100	B23-313-100	B24-111-100	B24-112-100	B24-113-100	B24-212-100	B24-352-100	B24-353-100
Maximum current [A]	65	65	65	65	65	65	65	65	65	65	65	65	65	6	6	6	6	6	6
Communictions protocol
- Modbus RTU		x			x			x		x		x			x		x	x
U_in [V]
- 220...240	x	x	x	x	x	x	x	x	x	x	x	x	x
- 230...240														x	x	x	x	x	x
Input
- pulse x2				x	x	x					x	x	x					x	x
Dimensions (W x H x D) [mm]	35x26.5x65	35x26.5x65	35x26.5x65	35x26.5x65	35x26.5x65	35x26.5x65	70x26.5x65	70x26.5x65	70x26.5x65	70x26.5x65	70x26.5x65	70x26.5x65	70x26.5x65	70x26.5x65	70x26.5x65	70x26.5x65	70x26.5x65	70x26.5x65	70x26.5x65
Measurement
- reactive electric energy				x	x	x				x	x	x	x				x	x	x
- active electric energy	x	x	x	x	x	x	x	x	x	x	x	x	x	x	x	x	x	x	x

Features:

MID certificate
four tariff (B21-31x-100, B23-31x-100, B24-352-100, B24-353-100)
import and export of data in registers (B21-31x-100, B23-212-100, B23-31x-100, B24-212-100, B24-352-100, B24-353-100)
one tariff (B21-11x-100, B23-11x-100, B23-212-100, B24-11x-100, B24-212-100)

Symbol	Kind of network	Kind of measurement
B21-111-100	single-phase	direct
B21-112-100	single-phase	direct
B21-113-100	single-phase	direct
B21-311-100	single-phase	direct
B21-312-100	single-phase	direct
B21-313-100	single-phase	direct
B23-111-100	three-phase	direct
B23-112-100	three-phase	direct
B23-113-100	three-phase	direct
B23-212-100	three-phase	direct
B23-311-100	three-phase	direct
B23-312-100	three-phase	direct
B23-313-100	three-phase	direct
B24-111-100	three-phase	indirect with 5A current transformer
B24-112-100	three-phase	indirect with 5A current transformer
B24-113-100	three-phase	indirect with 5A current transformer
B24-212-100	three-phase	indirect with 5A current transformer
B24-352-100	three-phase	indirect with 5A current transformer
B24-353-100	three-phase	indirect with 5A current transformer
