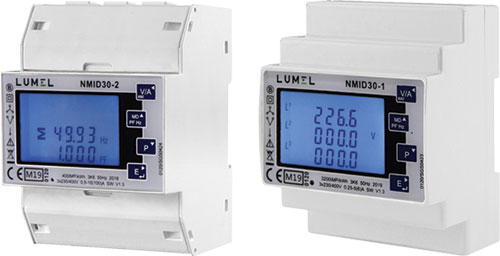

Counter; digital, mounting; LUMEL
| Manufacturer | LUMEL |
| Type of meter | counter |
| Kind of meter | digital, mounting |
| Display | LCD |
| Illumination | yes |
| Mounting | for DIN rail mounting |
| IP rating | IP51 |
| Accuracy class | B |
| Operating temperature | -25...55°C |
| Symbol | NMID30-1 | NMID30-2 | NMID08 | NMID08LITE | NMID08MBUS | NMID09 | NMID09LITE | NMID09MBUS | NMID10 | NMID10LITE | NMID10MBUS | NMID11 | NMID11LITE | NMID11MBUS | NMID12 | NMID12LITE | NMID12MBUS | NMID13 | NMID13LITE | NMID13MBUS | NMID31 | NMID31LITE | NMID31MBUS | NMID32 | NMID32LITE | NMID32MBUS | NMID33 | NMID33LITE | NMID33MBUS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Kind of measurement | |||||||||||||||||||||||||||||
| - direct | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | ||||
| - indirect with 5A current transformer | x | x | x | x | |||||||||||||||||||||||||
| Maximum current [A] | 6 | 100 | 120m | 120m | 120m | 6 | 6 | 6 | 100 | 100 | 100 | 120m | 120m | 120m | 45 | 45 | 45 | 6 | 6 | 6 | 120m | 120m | 120m | 6 | 6 | 6 | 100 | 100 | 100 |
| Supply voltage [V DC] | |||||||||||||||||||||||||||||
| - 120...380 | x | ||||||||||||||||||||||||||||
| Supply voltage [V AC] | |||||||||||||||||||||||||||||
| - 85...265 | x | ||||||||||||||||||||||||||||
| - 100...550 | x | x | x | ||||||||||||||||||||||||||
| Dimensions (W x H x D) [mm] | 72x94.5x65 | 76x100x65 | 35x95.5x65 | 35x95.5x65 | 35x95.5x65 | 35x90x65 | 35x90x65 | 35x90x65 | 35x90x65 | 35x90x65 | 35x90x65 | 17.9x95.5x65 | 17.9x95.5x65 | 17.9x95.5x65 | 17.5x90x65 | 17.5x90x65 | 17.5x90x65 | 17.5x90x65 | 17.5x90x65 | 17.5x90x65 | 72x90x65 | 72x90x65 | 72x90x65 | 72x90x65 | 72x90x65 | 72x90x65 | 72x90x65 | 72x90x65 | 72x90x65 |
| Symbol: (NMID30-1, NMID30-2) | |
|---|---|
| Kind of network | three-phase |
| Operating frequency | 45...65Hz |
| Rated voltage | 230V/400V |
| Input voltage | 100...289V |
| Communictions protocol | Modbus RTU |
| Measurement | frequency, reactive electric energy, active electric energy, reactive power, active power, apparent power, AC voltage, AC current, THD, power factor |
| Output | relay, OC type output |
| Interface | RS485 |
| Symbol: (NMID08, NMID09) | |
| Kind of network | single-phase |
| Operating frequency | 49...51Hz |
| Rated voltage | 230V |
| Input voltage | 184...276V |
| Communictions protocol | Modbus RTU |
| Measurement | reactive electric energy, active electric energy, apparent electric energy |
| Output | pulse output SO |
| Interface | ModBus |
| Symbol: (NMID08LITE, NMID09LITE) | |
| Kind of network | single-phase |
| Operating frequency | 49...51Hz |
| Rated voltage | 230V |
| Input voltage | 184...276V |
| Measurement | reactive electric energy, active electric energy, apparent electric energy |
| Output | pulse output SO |
| Symbol: (NMID08MBUS, NMID09MBUS) | |
| Kind of network | single-phase |
| Operating frequency | 49...51Hz |
| Rated voltage | 230V |
| Input voltage | 184...276V |
| Measurement | reactive electric energy, active electric energy, apparent electric energy |
| Output | pulse output SO |
| Interface | MBUS |
| Symbol: (NMID10) | |
| Kind of network | single-phase |
| Operating frequency | 49...51Hz |
| Rated voltage | 230V |
| Input voltage | 184...276V |
| Communictions protocol | Modbus RTU |
| Measurement | frequency, reactive electric energy, active electric energy, apparent electric energy, reactive power, active power |
| Output | pulse output SO |
| Interface | ModBus |
| Symbol: (NMID10LITE) | |
| Kind of network | single-phase |
| Operating frequency | 49...51Hz |
| Rated voltage | 230V |
| Input voltage | 184...276V |
| Measurement | frequency, reactive electric energy, active electric energy, apparent electric energy, reactive power, active power |
| Output | pulse output SO |
| Symbol: (NMID10MBUS) | |
| Kind of network | single-phase |
| Operating frequency | 49...51Hz |
| Rated voltage | 230V |
| Input voltage | 184...276V |
| Measurement | frequency, reactive electric energy, active electric energy, apparent electric energy, reactive power, active power |
| Output | pulse output SO |
| Interface | MBUS |
| Symbol: (NMID11, NMID12, NMID13) | |
| Kind of network | single-phase |
| Operating frequency | 49...51Hz |
| Rated voltage | 230V |
| Input voltage | 193...253V |
| Communictions protocol | Modbus RTU |
| Measurement | frequency, reactive electric energy, active electric energy, apparent electric energy, reactive power, active power |
| Output | pulse output SO |
| Interface | ModBus |
| Symbol: (NMID11LITE, NMID12LITE, NMID13LITE) | |
| Kind of network | single-phase |
| Operating frequency | 49...51Hz |
| Rated voltage | 230V |
| Input voltage | 193...253V |
| Measurement | frequency, reactive electric energy, active electric energy, apparent electric energy, reactive power, active power |
| Output | pulse output SO |
| Symbol: (NMID11MBUS, NMID12MBUS, NMID13MBUS) | |
| Kind of network | single-phase |
| Operating frequency | 49...51Hz |
| Rated voltage | 230V |
| Input voltage | 193...253V |
| Measurement | frequency, reactive electric energy, active electric energy, apparent electric energy, reactive power, active power |
| Output | pulse output SO |
| Interface | MBUS |
| Symbol: (NMID31, NMID32, NMID33) | |
| Kind of network | three-phase |
| Operating frequency | 49...51Hz |
| Rated voltage | 230V/400V |
| Communictions protocol | Modbus RTU |
| Measurement | frequency, reactive electric energy, active electric energy, reactive power, active power, apparent power, AC voltage, AC current, THD, power factor |
| Output | pulse output SO |
| Interface | ModBus |
| Symbol: (NMID3xLITE) | |
| Kind of network | three-phase |
| Operating frequency | 49...51Hz |
| Rated voltage | 230V/400V |
| Measurement | frequency, reactive electric energy, active electric energy, reactive power, active power, apparent power, AC voltage, AC current, THD, power factor |
| Output | pulse output SO |
| Symbol: (NMID3xMBUS) | |
| Kind of network | three-phase |
| Operating frequency | 49...51Hz |
| Rated voltage | 230V/400V |
| Measurement | frequency, reactive electric energy, active electric energy, reactive power, active power, apparent power, AC voltage, AC current, THD, power factor |
| Output | pulse output SO |
| Interface | MBUS |
Features:
- MID certificate
| Symbol | Product description |
|---|---|
| NMID30-1 | Counter;digital,mounting;for DIN rail mounting;three-phase |
| NMID30-2 | Counter;digital,mounting;for DIN rail mounting;three-phase |
| NMID08 | Counter;digital,mounting;for DIN rail mounting;single-phase |
| NMID08LITE | Counter;digital,mounting;for DIN rail mounting;single-phase |
| NMID08MBUS | Counter;digital,mounting;for DIN rail mounting;single-phase |
| NMID09 | Counter;digital,mounting;for DIN rail mounting;single-phase |
| NMID09LITE | Counter;digital,mounting;for DIN rail mounting;single-phase |
| NMID09MBUS | Counter;digital,mounting;for DIN rail mounting;single-phase |
| NMID10 | Counter;digital,mounting;for DIN rail mounting;single-phase |
| NMID10LITE | Counter;digital,mounting;for DIN rail mounting;single-phase |
| NMID10MBUS | Counter;digital,mounting;for DIN rail mounting;single-phase |
| NMID11 | Counter;digital,mounting;for DIN rail mounting;single-phase |
| NMID11LITE | Counter;digital,mounting;for DIN rail mounting;single-phase |
| NMID11MBUS | Counter;digital,mounting;for DIN rail mounting;single-phase |
| NMID12 | Counter;digital,mounting;for DIN rail mounting;single-phase |
| NMID12LITE | Counter;digital,mounting;for DIN rail mounting;single-phase |
| NMID12MBUS | Counter;digital,mounting;for DIN rail mounting;single-phase |
| NMID13 | Counter;digital,mounting;for DIN rail mounting;single-phase |
| NMID13LITE | Counter;digital,mounting;for DIN rail mounting;single-phase |
| NMID13MBUS | Counter;digital,mounting;for DIN rail mounting;single-phase |
| NMID31 | Counter;digital,mounting;for DIN rail mounting;three-phase |
| NMID31LITE | Counter;digital,mounting;for DIN rail mounting;three-phase |
| NMID31MBUS | Counter;digital,mounting;for DIN rail mounting;three-phase |
| NMID32 | Counter;digital,mounting;for DIN rail mounting;three-phase |
| NMID32LITE | Counter;digital,mounting;for DIN rail mounting;three-phase |
| NMID32MBUS | Counter;digital,mounting;for DIN rail mounting;three-phase |
| NMID33 | Counter;digital,mounting;for DIN rail mounting;three-phase |
| NMID33LITE | Counter;digital,mounting;for DIN rail mounting;three-phase |
| NMID33MBUS | Counter;digital,mounting;for DIN rail mounting;three-phase |
