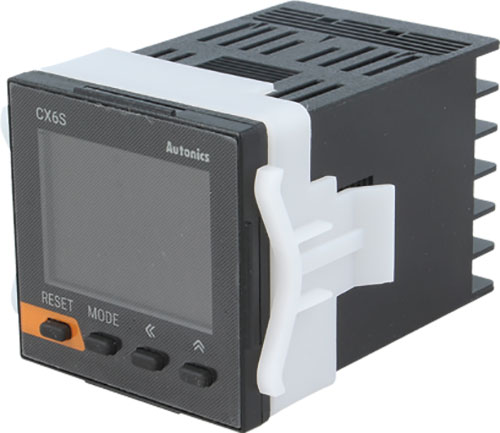

Counter: electronical; progressive/reversing; AUTONICS
| Manufacturer | AUTONICS |
| Type of counter | electronical |
| Kind of counter | progressive/reversing |
| Type of counted signal | time/pulses |
| Range | 0,001s...99999,9h / 999999 |
| Mounting | on panel |
| Electrical connection | screw terminals |
| Resetting method | electrical, locking possibility, manual |
| Display | LCD |
| Number of operation modes | 15 |
| Operation modes | pulse after a specified time, delayed switching off, delayed switching on, ON and OFF delay |
| Operating temperature | -10...55°C |
| Power supply | external |
| Symbol | Kind of IN1 | Kind of IN2 | Kind of OUT1 | Kind of OUT2 |
|---|---|---|---|---|
| CX6M-1P2 | NPN, PNP | NPN, PNP | SPDT | - |
| CX6M-1P2F | voltage | voltage | SPDT | - |
| CX6M-1P4 | NPN, PNP | NPN, PNP | SPDT | - |
| CX6M-1P4F | voltage | voltage | SPDT | - |
| CX6M-2P2 | NPN, PNP | NPN, PNP | SPST | SPST |
| CX6M-2P2F | voltage | voltage | SPST | SPST |
| CX6M-2P4 | NPN, PNP | NPN, PNP | SPST | SPST |
| CX6M-2P4F | voltage | voltage | SPST | SPST |
| CX6S-1P2 | NPN, PNP | NPN, PNP | SPDT | - |
| CX6S-1P2F | voltage | voltage | SPDT | - |
| CX6S-1P4 | NPN, PNP | NPN, PNP | SPDT | - |
| CX6S-1P4F | voltage | voltage | SPDT | - |
| CX6S-2P2 | NPN, PNP | NPN, PNP | SPST | SPST |
| CX6S-2P2F | voltage | voltage | SPST | SPST |
| CX6S-2P4 | NPN, PNP | NPN, PNP | SPST | SPST |
| CX6S-2P4F | voltage | voltage | SPST | SPST |
| Symbol | Body dim. | Mounting hole | Disp. height 1 | Disp. 2 height | The additional control inputs | Supply voltage | Usup |
|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | [V AC] | [V DC] | ||
| CX6M-1P2 | 72x72x70.5 | 68x68 | 15.2 | 12.3 | RESET, TOTAL RESET | 24 | 24...48 |
| CX6M-1P2F | 72x72x70.5 | 68x68 | 15.2 | 12.3 | RESET | 24 | 24...48 |
| CX6M-1P4 | 72x72x70.5 | 68x68 | 15.2 | 12.3 | RESET, TOTAL RESET | 100...240 | - |
| CX6M-1P4F | 72x72x70.5 | 68x68 | 15.2 | 12.3 | RESET | 100...240 | - |
| CX6M-2P2 | 72x72x70.5 | 68x68 | 15.2 | 12.3 | RESET, TOTAL RESET | 24 | 24...48 |
| CX6M-2P2F | 72x72x70.5 | 68x68 | 15.2 | 12.3 | RESET | 24 | 24...48 |
| CX6M-2P4 | 72x72x70.5 | 68x68 | 15.2 | 12.3 | RESET, TOTAL RESET | 100...240 | - |
| CX6M-2P4F | 72x72x70.5 | 68x68 | 15.2 | 12.3 | RESET | 100...240 | - |
| CX6S-1P2 | 48x48x70.5 | 45x45 | 10.1 | 8.1 | RESET, TOTAL RESET | 24 | 24...48 |
| CX6S-1P2F | 48x48x70.5 | 45x45 | 10.1 | 8.1 | RESET | 24 | 24...48 |
| CX6S-1P4 | 48x48x70.5 | 45x45 | 10.1 | 8.1 | RESET, TOTAL RESET | 100...240 | - |
| CX6S-1P4F | 48x48x70.5 | 45x45 | 10.1 | 8.1 | RESET | 100...240 | - |
| CX6S-2P2 | 48x48x70.5 | 45x45 | 10.1 | 8.1 | RESET, TOTAL RESET | 24 | 24...48 |
| CX6S-2P2F | 48x48x70.5 | 45x45 | 10.1 | 8.1 | RESET | 24 | 24...48 |
| CX6S-2P4 | 48x48x70.5 | 45x45 | 10.1 | 8.1 | RESET, TOTAL RESET | 100...240 | - |
| CX6S-2P4F | 48x48x70.5 | 45x45 | 10.1 | 8.1 | RESET | 100...240 | - |
