Counter: electronical; pulses; H7EC; OMRON
| Manufacturer | OMRON |
| Type of counter | electronical |
| Type of counted signal | pulses |
| Range | 99999999 |
| Display height 1 | 8.6mm |
| Operating temperature | -10...55°C |
| Battery/ rechargeable battery | battery CR2477 3V x1 |
| Manufacturer series | H7EC |
| Display | LCD |
| Mounting | on panel |
| Mounting hole | 45x22.2mm |
| Electrical connection | screw terminals |
| Body dimensions | 48x24x48.5mm |
| Resetting method | electrical, locking possibility, manual |
| Power supply | battery CR2477 3V x1 |
| IP rating | IP66 |
| Related items | Y92F-75, Y92F-77 |
| Symbol | Body col. | Control circuit | Kind of IN1 |
|---|---|---|---|
| H7EC-N | grey | Fig. 1. | contact |
| H7EC-N-B | black | Fig. 1. | contact |
| H7EC-NV | grey | Fig. 2. | voltage, NPN, PNP |
| H7EC-NV-B | black | Fig. 2. | voltage, NPN, PNP |
| H7EC-NV-H | grey | Fig. 2. | voltage, NPN, PNP |
| H7EC-NV-BH | black | Fig. 2. | voltage, NPN, PNP |

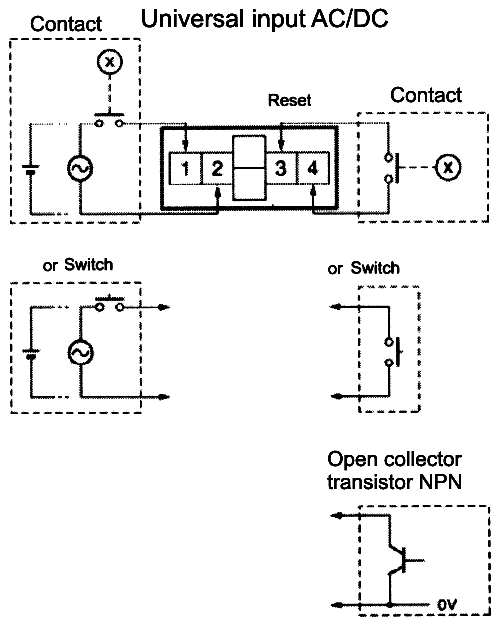

| H7EC-NFV | grey | Fig. 3. | voltage |
| H7EC-NFV-B | black | Fig. 3. | voltage |
| Symbol | Max IN1 count. freq. | Illumination | Electrical input 1 parameters |
|---|---|---|---|
| [Hz] | |||
| H7EC-N | 1000 | - | - |
| H7EC-N-B | 1000 | - | - |
| H7EC-NV | 1000 | - | 4...30V DC |
| H7EC-NV-B | 1000 | - | 4...30V DC |
| H7EC-NV-H | 1000 | yes | 4...30V DC |
| H7EC-NV-BH | 1000 | yes | 4...30V DC |
| H7EC-NFV | 20 | - | 24...240V AC/DC |
| H7EC-NFV-B | 20 | - | 24...240V AC/DC |
