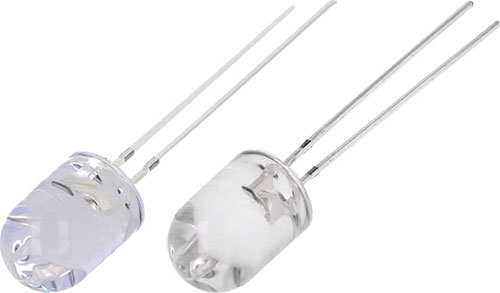

CRLED; THT; OPTOSUPPLY

Manufacturer	OPTOSUPPLY
Type of diode	CRLED
Mounting	THT
Term. pitch	2.54mm

Features:

without flange (OSB5SA8B31B-CR, OSY5PA8B31B-CR)
without stopper (OSB5SA8B31B-CR, OSB64L8B31B-CR18, OSB64LA131A-CR18, OSY5PA8B31B-CR)
integrated current stabilizer

Ø_LED:

4.8mm (OSxxx5T51A-CR14)
5mm (OSW5DK57E1A-CR14, OSW5DK5111A-CR14, OSW5DK5A31A-CR14, OSW5DK5A32A-CR14, OSW5DK5B61A-CR14, OSW5DK5E31BCRLED14, OSW5DK5GA1B-CR14, OSM5DK57E1A-CR14, OSM5DK5111A-CR14, OSM5DK5A31A-CR14, OSM5DK5A32A-CR14, OSM5DK5B61A-CR14, OSM5DK5E31BCRLED14, OSM5DK5GA1B-CR14, OSB64L5A7E1A-CR14, OSB64L5111A-CR14, OSB5SA57E1A-CR14, OSB5SA5111A-CR14, OSB5SA5A31A-CR14, OSB5SA5A34A-CR14, OSB5SA5B61A-CR14, OSB5SA5E31BCRLED14, OSB5SA5GA1B-CR14, OSG5DA57E1A-CR14, OSG5DA5111A-CR14, OSG5DA5B61A-CR14, OSG5DA5A34A-CR14, OSG5DA5E31BCRLED14, OSG5DA5GA1B-CR14, OSY5MA5xx1A-CR14, OSY5PA5B61A-CR14, OSY5PA5A34A-CR14, OSY5PA5E31BCRLED14, OSY5PA5GA1B-CR14, OSO5PA57E1A-CR14, OSO5PA5B61A-CR14, OSO5PA5A34A-CR14, OSO5PA5E31BCRLED14, OSO5PA5GA1B-CR14, OSR5MA5xx1A-CR14, OSR5PA5B61A-CR14, OSR5PA5A34A-CR14, OSR5PA5E31BCRLED14, OSR5PA5GA1B-CR14, OS5OGA5111A-CR14, OSK5DK5111A-CR14)
8mm (OSB5SA8B31B-CR, OSB5SA8B31B-CR14, OSB64L8B31B-CR18, OSY5PA8B31B-CR, OSY5PA8B31B-CR14, OSG5DA8B31B-CR14, OSM5DK8B31B-CR14, OSO5PA8B31B-CR14, OSR5PA8B31B-CR14, OSW5DK8B31B-CR14)
10mm (OSM5DKA131A-CR14, OSM5DKA201A-CR14, OSW5DKA131A-CR14, OSW5DKA201A-CR14, OSR5MAA131A-CR14, OSR5PAA201A-CR14, OSB5SAA131A-CR14, OSB5SAA201A-CR14, OSB64LA131A-CR14, OSB64LA131A-CR18, OSK5DKA131A-CR14, OSG5DAA131A-CR14, OSG5DAA201A-CR14, OSY5MAA131A-CR14, OSY5PAA201A-CR14, OSO5PAA201A-CR14)

Operating voltage:

Symbol	Current	View. angle
	[mA]	[°]
OSW5DK57E1A-CR14	14	140
OSM5DK57E1A-CR14	14	140
OSB64L5A7E1A-CR14	14	140
OSB5SA57E1A-CR14	14	140
OSG5DA57E1A-CR14	14	140
OSY5MA57E1A-CR14	14	140
OSO5PA57E1A-CR14	14	140
OSR5MA57E1A-CR14	14	140
OSM5DK5111A-CR14	14	15
OSM5DK5A31A-CR14	14	30
OSM5DKA131A-CR14	14	30
OSW5DK5111A-CR14	14	15
OSW5DK5A31A-CR14	14	30
OSW5DKA131A-CR14	14	30
OSR5MA5111A-CR14	14	15
OSR5MA5A31A-CR14	14	30
OSR5MAA131A-CR14	14	30
OSB5SA5111A-CR14	14	15
OSB5SA5A31A-CR14	14	30
OSB5SA8B31B-CR	16	30
OSB5SAA131A-CR14	14	30
OSB64L5111A-CR14	14	15
OSB64L8B31B-CR18	18	30
OSB64LA131A-CR14	14	30
OSB64LA131A-CR18	18	30
OS5OGA5111A-CR14	14	15
OSK5DK5111A-CR14	14	15
OSK5DKA131A-CR14	14	30
OSG5DA5111A-CR14	14	15
OSG5DAA131A-CR14	14	30
OSY5MA5111A-CR14	14	15
OSY5MA5A31A-CR14	14	30
OSY5MAA131A-CR14	14	30
OSY5PA8B31B-CR	16	30
OSB5SA5T51A-CR14	14	50
OSG5DA5T51A-CR14	14	50
OSM5DK5T51A-CR14	14	50
OSO5PA5T51A-CR14	14	50
OSR5PA5T51A-CR14	14	50
OSW5DK5T51A-CR14	14	50
OSY5PA5T51A-CR14	14	50
OSW5DK5B61A-CR14	14	60
OSM5DK5B61A-CR14	14	60
OSB5SA5B61A-CR14	14	60
OSG5DA5B61A-CR14	14	60
OSY5PA5B61A-CR14	14	60
OSO5PA5B61A-CR14	14	60
OSR5PA5B61A-CR14	14	60
OSW5DK5A32A-CR14	14	30
OSM5DK5A32A-CR14	14	30
OSB5SA5A34A-CR14	14	30
OSG5DA5A34A-CR14	14	30
OSY5PA5A34A-CR14	14	30
OSO5PA5A34A-CR14	14	30
OSR5PA5A34A-CR14	14	30
OSB5SA8B31B-CR14	14	30
OSG5DA8B31B-CR14	14	30
OSM5DK8B31B-CR14	14	30
OSO5PA8B31B-CR14	14	30
OSR5PA8B31B-CR14	14	30
OSW5DK8B31B-CR14	14	30
OSY5PA8B31B-CR14	14	30
OSB5SAA201A-CR14	14	8
OSG5DAA201A-CR14	14	8
OSM5DKA201A-CR14	14	8
OSO5PAA201A-CR14	14	8
OSR5PAA201A-CR14	14	8
OSW5DKA201A-CR14	14	8
OSY5PAA201A-CR14	14	8
OSB5SA5E31BCRLED14	14	30
OSB5SA5GA1B-CR14	14	100
OSG5DA5E31BCRLED14	14	30
OSG5DA5GA1B-CR14	14	100
OSM5DK5E31BCRLED14	14	30
OSM5DK5GA1B-CR14	14	100
OSO5PA5E31BCRLED14	14	30
OSO5PA5GA1B-CR14	14	100
OSR5PA5E31BCRLED14	14	30
OSR5PA5GA1B-CR14	14	100
OSW5DK5E31BCRLED14	14	30
OSW5DK5GA1B-CR14	14	100
OSY5PA5E31BCRLED14	14	30
OSY5PA5GA1B-CR14	14	100

Symbol	No. of term.	Lens	Front	Colour	Chromatic coord.	λ_d	Luminosity	Operating temperature	Maximum power	Colour temp.
						[nm]	[mcd]	[°C]	[mW]	[K]
OSW5DK57E1A-CR14	2	transparent	flat	white cold	x: 0.27; y: 0.28	-	2500	-	-	-
OSM5DK57E1A-CR14	2	transparent	flat	white warm	x: 0.45; y: 0.41	-	2000	-	-	-
OSB64L5A7E1A-CR14	2	transparent	flat	blue (ice blue)	x: 0.19; y: 0.29	-	2200	-	-	-
OSB5SA57E1A-CR14	2	transparent	flat	blue	-	465...475	750	-	-	-
OSG5DA57E1A-CR14	2	transparent	flat	green	-	520...530	2500	-	-	-
OSY5MA57E1A-CR14	2	transparent	flat	yellow	-	585...595	1120	-	-	-
OSO5PA57E1A-CR14	2	transparent	flat	orange	-	600...610	1120	-	-	-
OSR5MA57E1A-CR14	2	transparent	flat	red	-	620...630	1120	-	-	-
OSM5DK5111A-CR14	2	transparent	convex	white warm	x: 0.45; y: 0.41	-	14400	-	-	-
OSM5DK5A31A-CR14	2	transparent	convex	white warm	x: 0.45; y: 0.41	-	8000	-	-	-
OSM5DKA131A-CR14	2	transparent	convex	white warm	x: 0.45; y: 0.41	-	8000	-	-	-
OSW5DK5111A-CR14	2	transparent	convex	white cold	x: 0.27; y: 0.28	-	18000	-	-	-
OSW5DK5A31A-CR14	2	transparent	convex	white cold	x: 0.27; y: 0.28	-	12000	-	-	-
OSW5DKA131A-CR14	2	transparent	convex	white cold	x: 0.27; y: 0.28	-	12000	-	-	-
OSR5MA5111A-CR14	2	transparent	convex	red	-	620...630	14400	-	-	-
OSR5MA5A31A-CR14	2	transparent	convex	red	-	620...630	7500	-	-	-
OSR5MAA131A-CR14	2	transparent	convex	red	-	620...630	7500	-	-	-
OSB5SA5111A-CR14	2	transparent	convex	blue	-	465...475	12000	-	-	-
OSB5SA5A31A-CR14	2	transparent	convex	blue	-	465...475	6500	-	-	-
OSB5SA8B31B-CR	2	transparent	convex	blue	-	465...475	5800	-	-	-
OSB5SAA131A-CR14	2	transparent	convex	blue	-	465...475	6500	-	-	-
OSB64L5111A-CR14	2	transparent	convex	blue (ice blue)	x: 0.19; y: 0.29	-	18000	-	-	-
OSB64L8B31B-CR18	2	transparent	convex	blue (ice blue)	x: 0.19; y: 0.29	-	10000	-	-	-
OSB64LA131A-CR14	2	transparent	convex	blue (ice blue)	x: 0.19; y: 0.29	-	10000	-	-	-
OSB64LA131A-CR18	2	transparent	convex	blue (ice blue)	x: 0.19; y: 0.29	-	10000	-	-	-
OS5OGA5111A-CR14	2	transparent	convex	orange	-	600...610	22000	-	-	-
OSK5DK5111A-CR14	2	transparent	convex	pink	x: 0.45; y: 0.17	-	4200	-	-	-
OSK5DKA131A-CR14	2	transparent	convex	pink	x: 0.45; y: 0.17	-	2500	-	-	-
OSG5DA5111A-CR14	2	transparent	convex	green	-	520...530	22000	-	-	-
OSG5DAA131A-CR14	2	transparent	convex	green	-	520...530	12000	-	-	-
OSY5MA5111A-CR14	2	transparent	convex	yellow	-	585...595	14400	-	-	-
OSY5MA5A31A-CR14	2	transparent	convex	yellow	-	585...595	7500	-	-	-
OSY5MAA131A-CR14	2	transparent	convex	yellow	-	585...595	7500	-	-	-
OSY5PA8B31B-CR	2	transparent	convex	yellow	-	585...595	7000	-	-	-
OSB5SA5T51A-CR14	2	transparent	flat	blue	-	465...475	3000	-	-	-
OSG5DA5T51A-CR14	2	transparent	flat	green	-	520...530	5800	-	-	-
OSM5DK5T51A-CR14	2	transparent	flat	white warm	x: 0.45; y: 0.41	-	5000	-	-	-
OSO5PA5T51A-CR14	2	transparent	flat	orange	-	600...610	4200	-	-	-
OSR5PA5T51A-CR14	2	transparent	flat	red	-	620...630	3500	-	-	-
OSW5DK5T51A-CR14	2	transparent	flat	white cold	x: 0.27; y: 0.28	-	5800	-	-	-
OSY5PA5T51A-CR14	2	transparent	flat	yellow	-	585...595	3500	-	-	-
OSW5DK5B61A-CR14	2	transparent	convex	white cold	x: 0.27; y: 0.28	-	7000	-	-	-
OSM5DK5B61A-CR14	2	transparent	convex	white warm	x: 0.45; y: 0.41	-	5800	-	-	-
OSB5SA5B61A-CR14	2	transparent	convex	blue	-	465...475	3000	-	-	-
OSG5DA5B61A-CR14	2	transparent	convex	green	-	520...530	7000	-	-	-
OSY5PA5B61A-CR14	2	transparent	convex	yellow	-	585...595	3000	-	-	-
OSO5PA5B61A-CR14	2	transparent	convex	orange	-	600...610	4200	-	-	-
OSR5PA5B61A-CR14	2	transparent	convex	red	-	620...630	3000	-	-	-
OSW5DK5A32A-CR14	2	white, diffused	convex	white cold	x: 0.27; y: 0.28	-	5800	-	-	-
OSM5DK5A32A-CR14	2	white, diffused	convex	white warm	x: 0.45; y: 0.41	-	4200	-	-	-
OSB5SA5A34A-CR14	2	diffused, blue	convex	blue	-	465...475	3000	-	-	-
OSG5DA5A34A-CR14	2	diffused, green	convex	green	-	520...530	5800	-	-	-
OSY5PA5A34A-CR14	2	diffused, yellow	convex	yellow	-	585...595	3000	-	-	-
OSO5PA5A34A-CR14	2	diffused, orange	convex	orange	-	600...610	3500	-	-	-
OSR5PA5A34A-CR14	2	red, diffused	convex	red	-	620...630	3000	-	-	-
OSB5SA8B31B-CR14	2	transparent	convex	blue	-	465...475	5800	-	-	-
OSG5DA8B31B-CR14	2	transparent	convex	green	-	520...530	10000	-	-	-
OSM5DK8B31B-CR14	2	transparent	convex	white warm	x: 0.45; y: 0.41	-	7000	-	-	-
OSO5PA8B31B-CR14	2	transparent	convex	orange	-	600...610	7000	-	-	-
OSR5PA8B31B-CR14	2	transparent	convex	red	-	620...630	7000	-	-	-
OSW5DK8B31B-CR14	2	transparent	convex	white	x: 0.27; y: 0.28	-	10000	-	-	-
OSY5PA8B31B-CR14	2	transparent	convex	yellow	-	585...595	7000	-	-	-
OSB5SAA201A-CR14	2	transparent	convex	blue	-	465...475	10000	-	-	-
OSG5DAA201A-CR14	2	transparent	convex	green	-	520...530	60000	-	-	-
OSM5DKA201A-CR14	2	transparent	convex	white warm	x: 0.44; y: 0.41	-	60000	-	-	-
OSO5PAA201A-CR14	2	transparent	convex	orange	-	600...610	14400	-	-	-
OSR5PAA201A-CR14	2	transparent	convex	red	-	620...630	14400	-	-	-
OSW5DKA201A-CR14	2	transparent	convex	white	x: 0.27; y: 0.28	-	60000	-	-	-
OSY5PAA201A-CR14	2	transparent	convex	yellow	-	585...595	14400	-	-	-
OSB5SA5E31BCRLED14	2	transparent	convex	blue	-	465...475	6500	-30...85	320	-
OSB5SA5GA1B-CR14	2	transparent	flat	blue	-	465...475	750	-30...85	320	-
OSG5DA5E31BCRLED14	2	transparent	convex	green	-	520...530	12000	-30...85	320	-
OSG5DA5GA1B-CR14	2	transparent	flat	green	-	520...530	1560	-30...85	320	-
OSM5DK5E31BCRLED14	2	transparent	convex	white warm	x: 0.45; y: 0.41	-	8000	-30...85	320	2700-3300
OSM5DK5GA1B-CR14	2	transparent	flat	white warm	x: 0.44; y: 0.41	-	1560	-30...85	320	2700-3300
OSO5PA5E31BCRLED14	2	transparent	convex	orange	-	600...610	7500	-30...85	320	-
OSO5PA5GA1B-CR14	2	transparent	flat	orange	-	600...610	1000	-30...85	320	-
OSR5PA5E31BCRLED14	2	transparent	convex	red	-	620...630	7500	-30...85	320	-
OSR5PA5GA1B-CR14	2	transparent	flat	red	-	620...630	1000	-30...85	320	-
OSW5DK5E31BCRLED14	2	transparent	convex	white cold	x: 0.27; y: 0.28	-	12000	-30...85	320	8500-18000
OSW5DK5GA1B-CR14	2	transparent	flat	white cold	x: 0.27; y: 0.28	-	1560	-30...85	320	8500-18000
OSY5PA5E31BCRLED14	2	transparent	convex	yellow	-	585...595	7500	-30...85	320	-
OSY5PA5GA1B-CR14	2	transparent	flat	yellow	-	585...595	1000	-30...85	320	-
