DC/DC converters, TBA series
| Manufacturer | TRACO POWER |
| Protection | short circuit protection SCP |
| Switching frequency | 200kHz |
| Symbol | Power | Case | Uinsul | Uin | Uout | Iout | Uout2 | Iout2 | Efficiency |
|---|---|---|---|---|---|---|---|---|---|
| [W] | [V] | [V DC] | [V DC] | [mA] | [V DC] | [mA] | [%] | ||
| TBA1-0310 | 1 | SIP4 | 1500 | 2.97...3.63 | 3.3 | 260 | - | - | 73 |
| TBA1-0311 | 1 | SIP4 | 1500 | 2.97...3.63 | 5 | 200 | - | - | 76 |
| TBA1-0510 | 1 | SIP4 | 1500 | 4.5...5.5 | 3.3 | 260 | - | - | 75 |
| TBA1-0511 | 1 | SIP4 | 1500 | 4.5...5.5 | 5 | 200 | - | - | 79 |
| TBA1-0519 | 1 | SIP4 | 1500 | 4.5...5.5 | 9 | 110 | - | - | 80 |
| TBA1-0512 | 1 | SIP4 | 1500 | 4.5...5.5 | 12 | 80 | - | - | 82 |
| TBA1-0513 | 1 | SIP4 | 1500 | 4.5...5.5 | 15 | 65 | - | - | 82 |
| TBA1-1211 | 1 | SIP4 | 1500 | 10.8...13.2 | 5 | 200 | - | - | 79 |
| TBA1-1219 | 1 | SIP4 | 1500 | 10.8...13.2 | 9 | 110 | - | - | 79 |
| TBA1-1212 | 1 | SIP4 | 1500 | 10.8...13.2 | 12 | 80 | - | - | 80 |
| TBA1-1213 | 1 | SIP4 | 1500 | 10.8...13.2 | 15 | 65 | - | - | 80 |
| TBA1-2411 | 1 | SIP4 | 1500 | 21.6...26.4 | 5 | 200 | - | - | 79 |
| TBA1-2419 | 1 | SIP4 | 1500 | 21.6...26.4 | 9 | 110 | - | - | 80 |
| TBA1-2412 | 1 | SIP4 | 1500 | 21.6...26.4 | 12 | 80 | - | - | 82 |
| TBA1-2413 | 1 | SIP4 | 1500 | 21.6...26.4 | 15 | 65 | - | - | 82 |
| TBA1-0511E | 1 | SIP7 | 1500 | 4.5...5.5 | 5 | 200 | - | - | 79 |
| TBA1-0512E | 1 | SIP7 | 1500 | 4.5...5.5 | 12 | 84 | - | - | 82 |
| TBA1-0513E | 1 | SIP7 | 1500 | 4.5...5.5 | 15 | 66 | - | - | 82 |
| TBA1-0521E | 1 | SIP7 | 1500 | 4.5...5.5 | 5 | 100 | -5 | 100 | 79 |
| TBA1-0522E | 1 | SIP7 | 1500 | 4.5...5.5 | 12 | 41 | -12 | 41 | 82 |
| TBA1-0523E | 1 | SIP7 | 1500 | 4.5...5.5 | 15 | 33 | -15 | 33 | 82 |
| TBA1-1211E | 1 | SIP7 | 1500 | 10.8...13.2 | 5 | 200 | - | - | 79 |
| TBA1-1212E | 1 | SIP7 | 1500 | 10.8...13.2 | 12 | 84 | - | - | 80 |
| TBA1-1213E | 1 | SIP7 | 1500 | 10.8...13.2 | 15 | 66 | - | - | 80 |
| TBA1-1221E | 1 | SIP7 | 1500 | 10.8...13.2 | 5 | 100 | -5 | 100 | 79 |
| TBA1-1222E | 1 | SIP7 | 1500 | 10.8...13.2 | 12 | 41 | -12 | 41 | 80 |
| TBA1-1223E | 1 | SIP7 | 1500 | 10.8...13.2 | 15 | 33 | -15 | 33 | 80 |
| TBA1-2411E | 1 | SIP7 | 1500 | 21.6...26.4 | 5 | 200 | - | - | 79 |
| TBA1-2412E | 1 | SIP7 | 1500 | 21.6...26.4 | 12 | 84 | - | - | 82 |
| TBA1-2413E | 1 | SIP7 | 1500 | 21.6...26.4 | 15 | 66 | - | - | 82 |
| TBA1-2421E | 1 | SIP7 | 1500 | 21.6...26.4 | 5 | 100 | -5 | 100 | 79 |
| TBA1-2422E | 1 | SIP7 | 1500 | 21.6...26.4 | 12 | 41 | -12 | 41 | 82 |
| TBA1-2423E | 1 | SIP7 | 1500 | 21.6...26.4 | 15 | 33 | -15 | 33 | 82 |
| TBA1-0511HI | 1 | SIP7 | 3000 | 4.5...5.5 | 5 | 200 | - | - | 79 |
| TBA1-0519HI | 1 | SIP7 | 3000 | 4.5...5.5 | 9 | 111 | - | - | 80 |
| TBA1-0512HI | 1 | SIP7 | 3000 | 4.5...5.5 | 12 | 84 | - | - | 82 |
| TBA1-0513HI | 1 | SIP7 | 3000 | 4.5...5.5 | 15 | 66 | - | - | 82 |
| TBA1-0521HI | 1 | SIP7 | 3000 | 4.5...5.5 | 5 | 100 | -5 | 100 | 79 |
| TBA1-0522HI | 1 | SIP7 | 3000 | 4.5...5.5 | 12 | 41 | -12 | 41 | 82 |
| TBA1-0523HI | 1 | SIP7 | 3000 | 4.5...5.5 | 15 | 33 | -15 | 33 | 82 |
| TBA1-1211HI | 1 | SIP7 | 3000 | 10.8...13.2 | 5 | 200 | - | - | 79 |
| TBA1-1219HI | 1 | SIP7 | 3000 | 10.8...13.2 | 9 | 111 | - | - | 79 |
| TBA1-1212HI | 1 | SIP7 | 3000 | 10.8...13.2 | 12 | 84 | - | - | 80 |
| TBA1-1213HI | 1 | SIP7 | 3000 | 10.8...13.2 | 15 | 66 | - | - | 80 |
| TBA1-1221HI | 1 | SIP7 | 3000 | 10.8...13.2 | 5 | 100 | -5 | 100 | 79 |
| TBA1-1222HI | 1 | SIP7 | 3000 | 10.8...13.2 | 12 | 41 | -12 | 41 | 80 |
| TBA1-1223HI | 1 | SIP7 | 3000 | 10.8...13.2 | 15 | 33 | -15 | 33 | 80 |
| TBA1-2411HI | 1 | SIP7 | 3000 | 21.6...26.4 | 5 | 200 | - | - | 79 |
| TBA1-2419HI | 1 | SIP7 | 3000 | 21.6...26.4 | 9 | 111 | - | - | 80 |
| TBA1-2412HI | 1 | SIP7 | 3000 | 21.6...26.4 | 12 | 84 | - | - | 82 |
| TBA1-2413HI | 1 | SIP7 | 3000 | 21.6...26.4 | 15 | 66 | - | - | 82 |
| TBA1-2421HI | 1 | SIP7 | 3000 | 21.6...26.4 | 5 | 100 | -5 | 100 | 79 |
| TBA1-2422HI | 1 | SIP7 | 3000 | 21.6...26.4 | 12 | 41 | -12 | 41 | 82 |
| TBA1-2423HI | 1 | SIP7 | 3000 | 21.6...26.4 | 15 | 33 | -15 | 33 | 82 |
| TBA2-0511 | 2 | SIP7 | 1500 | 4.5...5.5 | 5 | 400 | - | - | 78 |
| TBA2-0512 | 2 | SIP7 | 1500 | 4.5...5.5 | 12 | 165 | - | - | 82 |
| TBA2-0513 | 2 | SIP7 | 1500 | 4.5...5.5 | 15 | 130 | - | - | 82 |
| TBA2-0521 | 2 | SIP7 | 1500 | 4.5...5.5 | 5 | 200 | -5 | 200 | 79 |
| TBA2-0522 | 2 | SIP7 | 1500 | 4.5...5.5 | 12 | 80 | -12 | 80 | 82 |
| TBA2-0523 | 2 | SIP7 | 1500 | 4.5...5.5 | 15 | 65 | -15 | 65 | 82 |
| TBA2-1211 | 2 | SIP7 | 1500 | 10.8...13.2 | 5 | 400 | - | - | 79 |
| TBA2-1212 | 2 | SIP7 | 1500 | 10.8...13.2 | 12 | 165 | - | - | 82 |
| TBA2-1213 | 2 | SIP7 | 1500 | 10.8...13.2 | 15 | 130 | - | - | 84 |
| TBA2-1221 | 2 | SIP7 | 1500 | 10.8...13.2 | 5 | 200 | -5 | 200 | 79 |
| TBA2-1222 | 2 | SIP7 | 1500 | 10.8...13.2 | 12 | 80 | -12 | 80 | 83 |
| TBA2-1223 | 2 | SIP7 | 1500 | 10.8...13.2 | 15 | 65 | -15 | 65 | 84 |
| TBA2-2411 | 2 | SIP7 | 1500 | 21.6...26.4 | 5 | 400 | - | - | 78 |
| TBA2-2412 | 2 | SIP7 | 1500 | 21.6...26.4 | 12 | 165 | - | - | 84 |
| TBA2-2413 | 2 | SIP7 | 1500 | 21.6...26.4 | 15 | 130 | - | - | 84 |
| TBA2-2421 | 2 | SIP7 | 1500 | 21.6...26.4 | 5 | 200 | -5 | 200 | 80 |
| TBA2-2422 | 2 | SIP7 | 1500 | 21.6...26.4 | 12 | 80 | -12 | 80 | 84 |
| TBA2-2423 | 2 | SIP7 | 1500 | 21.6...26.4 | 15 | 65 | -15 | 65 | 84 |
Number of outputs:
Body dimensions:

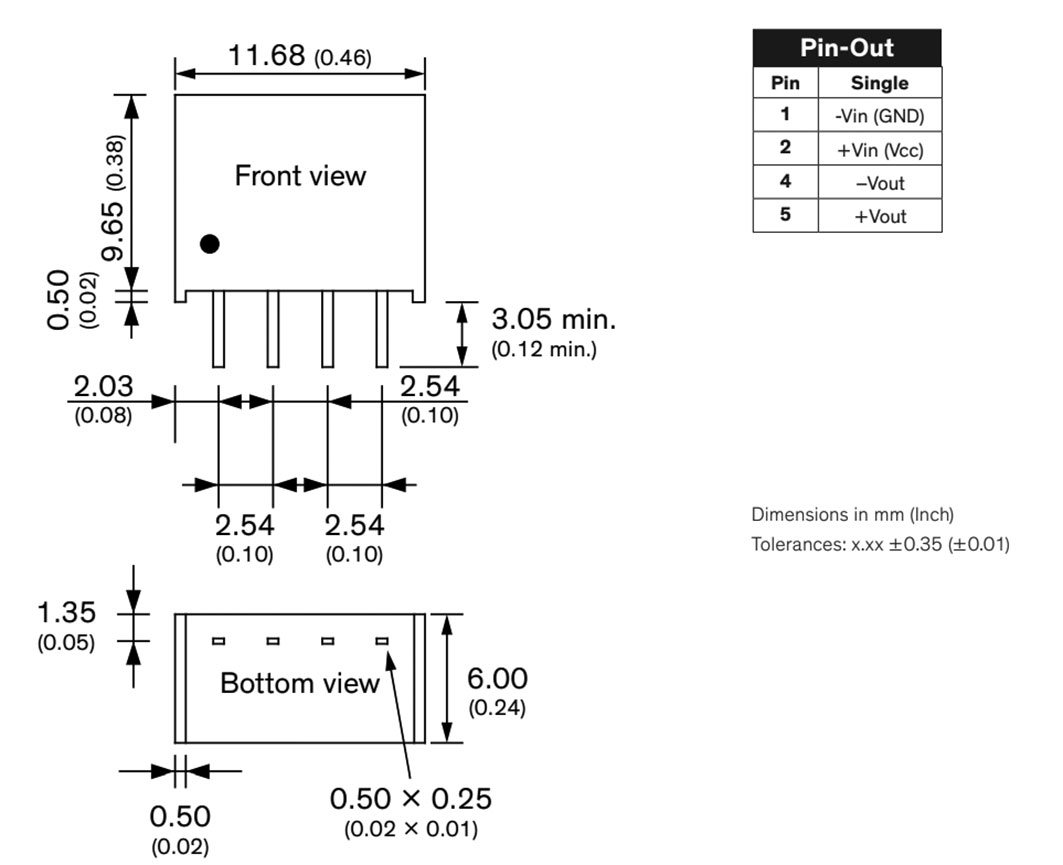

- 11.68x9.65x6mm (TBA1-0310, TBA1-0311, TBA1-0510, TBA1-0511, TBA1-0519, TBA1-0512, TBA1-0513, TBA1-1211, TBA1-1219, TBA1-1212, TBA1-1213, TBA1-2411, TBA1-2419, TBA1-2412, TBA1-2413)

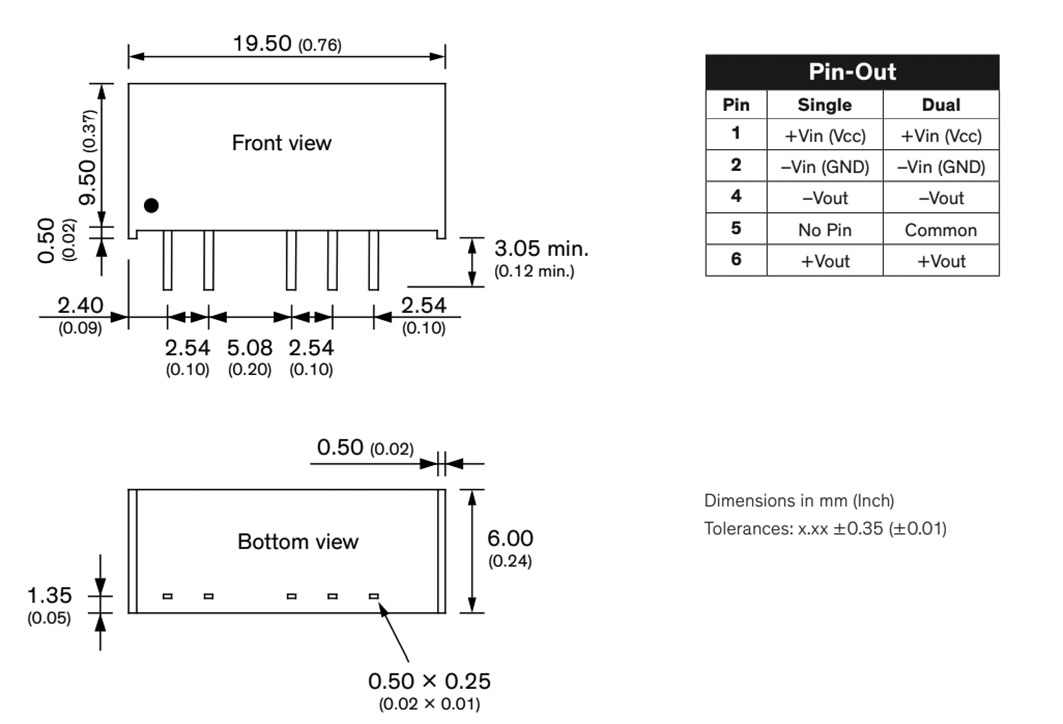

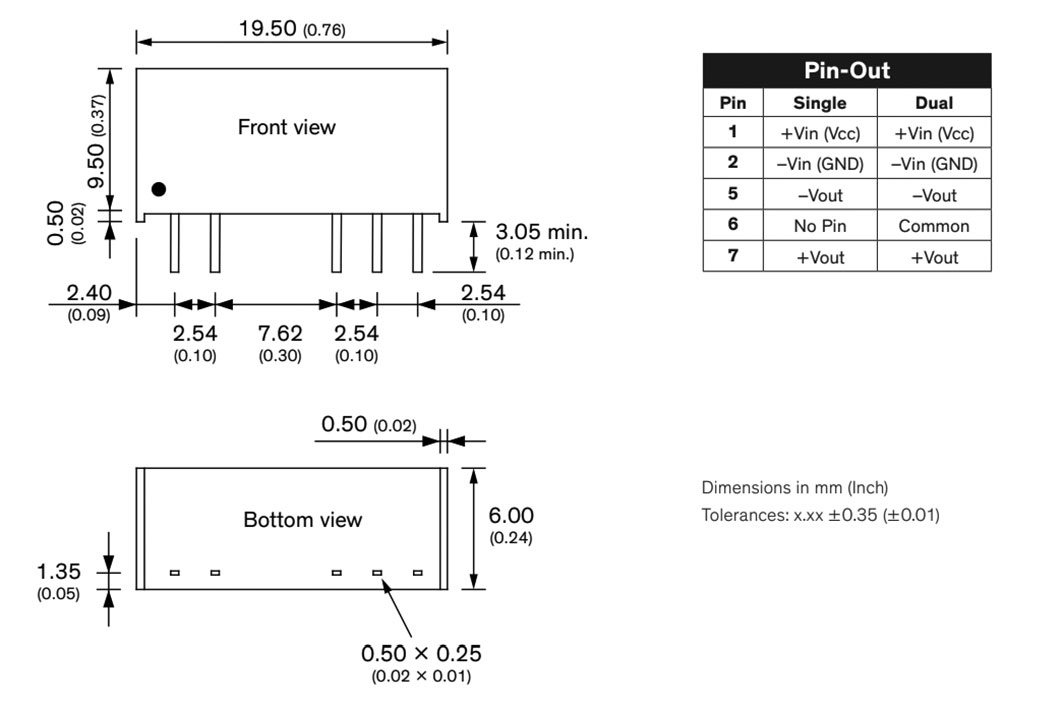

- 19.5x9.5x6mm (TBA1-0511E, TBA1-0511HI, TBA1-0512E, TBA1-0512HI, TBA1-0513E, TBA1-0513HI, TBA1-0519HI, TBA1-052xxx, TBA1-1211E, TBA1-1211HI, TBA1-1212E, TBA1-1212HI, TBA1-1213E, TBA1-1213HI, TBA1-1219HI, TBA1-122xxx, TBA1-2411E, TBA1-2411HI, TBA1-2412E, TBA1-2412HI, TBA1-2413E, TBA1-2413HI, TBA1-2419HI, TBA1-242xxx)

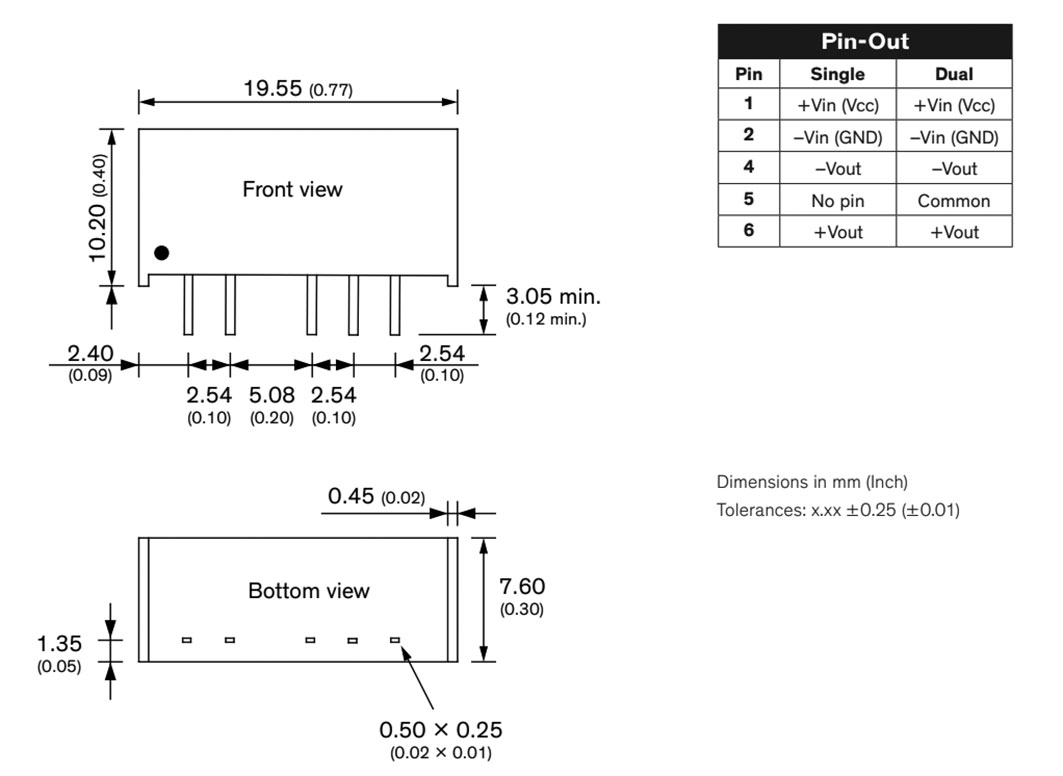

- 19.55x10.2x7.6mm (TBA2-xxx)
Operating temperature:
- -40...80°C (TBA2-xxx)
- -40...85°C (TBA1-xxx)
Manufacturer series:
Dimensions:
Mounting:
- THT
